Stainless steel muffler with tail pipe
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
W Brian Jordan
Topic author - Posts: 41
- Joined: Thu Jan 03, 2019 6:01 pm
- First Name: Brian
- Last Name: Jordan
- * REQUIRED* Type and Year of Model Ts owned: 1926 roadster pu , 14 touring
- Location: Williamsport IN
- MTFCA Life Member: YES
Stainless steel muffler with tail pipe
I have looked in the catalogs and websites but have not found the stainless steel setup that someone used to sell. Can someone tell me who sells them or if they are available?
-
Moxie26
- Posts: 1884
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Stainless steel muffler with tail pipe
Brian, I haven't seen those for sale for a long time. I purchased mine maybe 20 years ago, still in the car, looking New as when I put it on. Stainless steel was the best pic at the time.
-
varmint
- Posts: 846
- Joined: Mon Jan 07, 2019 2:02 pm
- First Name: Vernon
- Last Name: Worley
- * REQUIRED* Type and Year of Model Ts owned: October 26, 1926 Coupe
- Location: New Orleans, LA
- Contact:
Re: Stainless steel muffler with tail pipe
I did my own stainless exhaust. If you cannot weld, there is a place in Lafayette, IN that I drove right by this year that does custom exhaust. I have not used their services. Whatever they charge is what it costs for stainless. I would provide them with a new pack nut ahead of time.
Vern (Vieux Carre)
-
ModelTWoods
- Posts: 1437
- Joined: Tue Jan 08, 2019 10:53 am
- First Name: Terry
- Last Name: Woods
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
- Location: Cibolo (San Antonio), TX
Re: Stainless steel muffler with tail pipe
Yes, the stainless muffler with short tailpipe, and the stainless exhaust pipe have been out of production for many years, probably over a decade at the least, The muffler was made by a fellow Texan, Frank Fenton, as I recall, and the exhaust pipe was made by a Michigan man. I was foresighted enough to buy one of each while they were still available. They, along with a stainless 1 1/2" exhaust pipe clamp, give me a 100% stainless exhaust system. I still have the parts in storage and they are NOT for sale.
If you have one of the current production 'take-apart' mufflers, you can easily change all the tubes from cold rolled steel to stainless steel. the outer shell will be 5" stainless exhaust tubing (12" long) and I bought a pre cut length on EBAY. The innermost tube is 1 1/2" and the middle tube is something over 3". You would use the regular steel ends from the current production muffler, OR if authenticity is not a concern, I'm sure a short 12" stainless muffler with a 1 1/2" inlet can be bought.
Last edited by ModelTWoods on Thu Jul 31, 2025 12:47 pm, edited 1 time in total.
-
NorthCoast
- Posts: 4
- Joined: Sat Jul 26, 2025 9:26 pm
- First Name: Sam
- Last Name: Hooley
- * REQUIRED* Type and Year of Model Ts owned: 1917 Touring, 1924 model TT flatbed
- Location: Tillamook, Oregon
Re: Stainless steel muffler with tail pipe
The stainless exhaust has been gone for some time, but I bought a stainless exhaust pipe pre-bent from Langs only 2 years ago. My guess for the pipe any independent muffler shop should be able to make you something.
-
NorthCoast
- Posts: 4
- Joined: Sat Jul 26, 2025 9:26 pm
- First Name: Sam
- Last Name: Hooley
- * REQUIRED* Type and Year of Model Ts owned: 1917 Touring, 1924 model TT flatbed
- Location: Tillamook, Oregon
-
TRDxB2
- Posts: 6279
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Stainless steel muffler with tail pipe

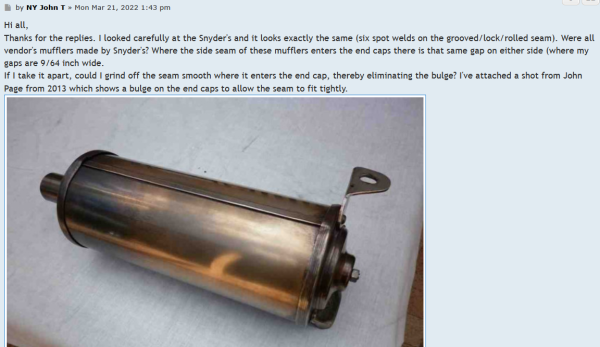

Some more info viewtopic.php?t=27863
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Allan
- Posts: 6650
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Stainless steel muffler with tail pipe
The muffler shown in Frank's photo is made incorrectly, stainless or otherwise. Rolling the outer shell was not done as it should be. Because the shell needs to go INSIDE the lip on the muffler ends, the joint ridge should be folded with the overlapping edges on the INSIDE of the shell. Then there is no need to beat a relief in the muffler ends to accommodate it.
That type of rolled joint, on the outside of the shell, should be reserved for the cast iron muffler ends, where the shell goes over a land on the shell, rather than into it. Making them correctly is not difficult. It just requires attention to detail. My sheetmetal worker who rolls the shells for the mufflers I assemble calls them inside and outside seams.
Allan from down under.
Allan from down under.
That type of rolled joint, on the outside of the shell, should be reserved for the cast iron muffler ends, where the shell goes over a land on the shell, rather than into it. Making them correctly is not difficult. It just requires attention to detail. My sheetmetal worker who rolls the shells for the mufflers I assemble calls them inside and outside seams.
Allan from down under.
Allan from down under.
-
DHort
- Posts: 2836
- Joined: Sun Jan 06, 2019 1:30 pm
- First Name: Dave
- Last Name: Hjortnaes
- * REQUIRED* Type and Year of Model Ts owned: 24 Speedster, 20 touring
- Location: Men Falls, WI
Re: Stainless steel muffler with tail pipe
Brian
If you are not fussy, this muffler works fine. Unfortunately it is not stainless.
https://www.amazon.com/Complete-Tractor ... B00EUCJL40
Great price here
https://www.industrial-supply-center.co ... 1117-6002/
If you are not fussy, this muffler works fine. Unfortunately it is not stainless.
https://www.amazon.com/Complete-Tractor ... B00EUCJL40
Great price here
https://www.industrial-supply-center.co ... 1117-6002/
-
Allan
- Posts: 6650
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Stainless steel muffler with tail pipe
While any muffler will/may work on a T, there is something about the sound of an original style exhaust system that is unique to a T. It's a bit like needing to hear the buzz of the coils. The sounds are unique to a T. Many of the aftermarket mufflers make the T sound a bit strangled to my failing hearing.
Allan from down under.
Allan from down under.
