Hey All,
After removing the body to repair it I now cannot remember where the pads go. I have new dust shields and I don't see much info in the Ford Service Manual.
Can anyone advise me?
Thanks,
Campbell Tellman II
1916 Ford Touring Car
Beaufort, NC
Body to Chassis Pads
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Campbell Tellman
Topic author - Posts: 53
- Joined: Mon Oct 11, 2021 9:28 am
- First Name: Campbell
- Last Name: Tellman
- * REQUIRED* Type and Year of Model Ts owned: 1916 Ford Touring
- Location: Beaufort, NC
-
Erik Johnson
- Posts: 1068
- Joined: Mon Feb 04, 2019 10:25 pm
- First Name: Erik
- Last Name: Johnson
- Location: Minneapolis, MN
Re: Body to Chassis Pads
When your 1916 touring originally came from the factory, there were no pads between the body brackets and the chassis.
If there were pads when you removed the body from the frame, those would have been added by someone at a later date.
If there were pads when you removed the body from the frame, those would have been added by someone at a later date.
-
big2bird
- Posts: 513
- Joined: Mon Sep 14, 2020 10:57 pm
- First Name: Jeffrey
- Last Name: Hausey
- * REQUIRED* Type and Year of Model Ts owned: Early 23 Touring
- Location: Anaheim, Ca.
- Board Member Since: 2020
Re: Body to Chassis Pads
You may have had shims to adjust door openings.
-
John_Aldrich
- Posts: 118
- Joined: Wed Mar 13, 2019 10:46 am
- First Name: John
- Last Name: Aldrich
- * REQUIRED* Type and Year of Model Ts owned: 1915, 1923. 1927
- Location: Kapowsin WA
Re: Body to Chassis Pads
I used an old inner tube that I cut up and used between the body brackets and the frame on my 1915. No noise at all...Erik Johnson wrote: ↑Thu Aug 14, 2025 2:15 pmWhen your 1916 touring originally came from the factory, there were no pads between the body brackets and the chassis.
If there were pads when you removed the body from the frame, those would have been added by someone at a later date.
John Aldrich
Typical Model T Addict
Typical Model T Addict
-
TRDxB2
- Posts: 6306
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Body to Chassis Pads

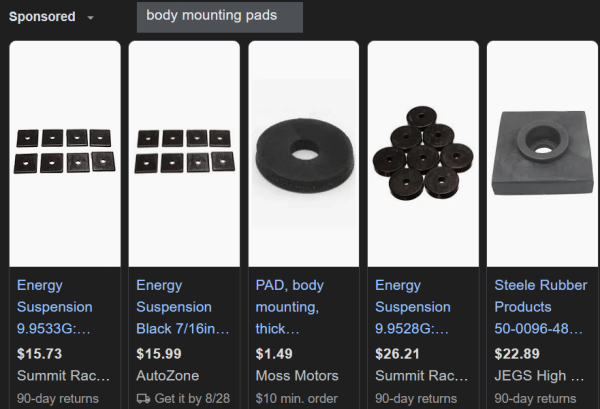

Hot rodders use them to reduce vibrations. Old tubes work too
- Attachments
-
