‘26-‘27 Axle Taper

Post by QGolden » Fri Aug 29, 2025 11:57 am

I am looking for a source for a drawing of the ‘26-‘27 rear axle taper, keyway etc.

I am building an HCR and want to make use of ‘27 wire wheels that I have had in stock for a while. I will make an Axle, but need a drawing of the end taper, keyway, threaded ends etc.

For the front I will be using a modified T axle so I can use T spindles. I have several books, but evidently not the right one. 😝

Thanks in advance for any leads.
Top
User avatar

George House
Posts: 2866
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: ‘26-‘27 Axle Taper

Post by George House » Fri Aug 29, 2025 12:34 pm

Assuming you have correct hubs for T wire wheels ? Isn’t the axle taper and keyway the same for all T tapered
axles ?
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔
Top
User avatar

DanTreace
Posts: 3884
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: ‘26-‘27 Axle Taper

Post by DanTreace » Fri Aug 29, 2025 1:20 pm

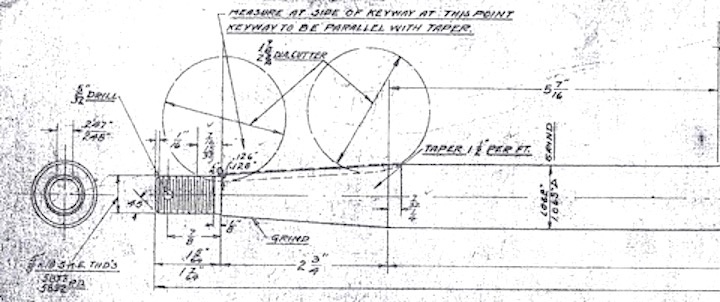

Ford print detail of the rear axle taper, latest rev, 6-'25
