Just finished replacing a blown head gasket on our 27 depot hack and noticed the head to be cast aluminum.
The head has the Ford logo on it.
Did ford make an aluminum head or should I assume the head to be an aftermarket item?
Thank you
Model T Aluminum head ?
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
DanTreace
- Posts: 3909
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Model T Aluminum head ?
If a cast letter ‘Z’ is on front water outlet, that’s a Z head. Modern part. Model T’s have iron cylinder heads.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
ModelTWoods
- Posts: 1482
- Joined: Tue Jan 08, 2019 10:53 am
- First Name: Terry
- Last Name: Woods
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
- Location: Cibolo (San Antonio), TX
Re: Model T Aluminum head ?
Some of the late Ralph Reeder's heads, also had Ford - Made In USA, on them until he got a nasty letter from Ford Motor Company. His heads can be identified by the name REEDER cast just inside the water outlet passage on the top, front of the head. Heads made by the late Ralph Zajicek, were identified, as Dan said in above post, by the letter Z located on the top of the water outlet passage, just behind were the water neck attaches. Of course either identifying mark could easily be removed with a Dremel tool or file, but you should be able to tell if that was done.
-
Allan
- Posts: 6842
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Model T Aluminum head ?
If the gasket has blown between cylinders 2 a nd three and your head is Reader head you are not an orphan. There is a huge hole between the cylinders, which matches holes in the gasket. The trouble is there is no corresponding hole in the block. I know of two such heads that let go there. The problem was solved by welding up the hole and re-surfacing the head.
Allan from down under.
Allan from down under.
-
TRDxB2
- Posts: 6353
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Model T Aluminum head ?

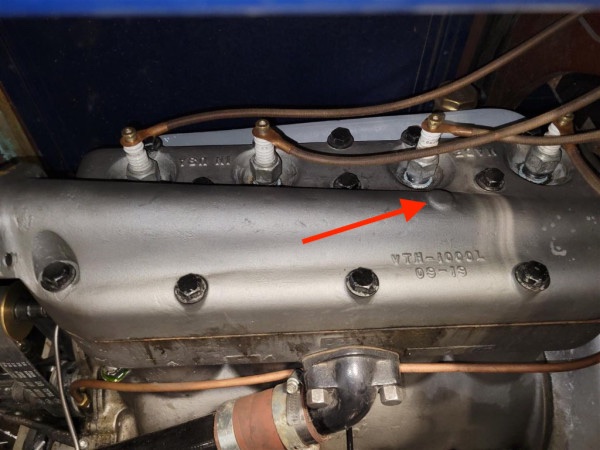

Not sure if this is an identifier for a READER head. Read posting viewtopic.php?t=37773
- Attachments
-
- 20230731_084937.jpg (99.73 KiB) Viewed 142 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
DanTreace
- Posts: 3909
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Model T Aluminum head ?
Previous forum discussions on the Reeder head. Believe they were made in High and Low styles.

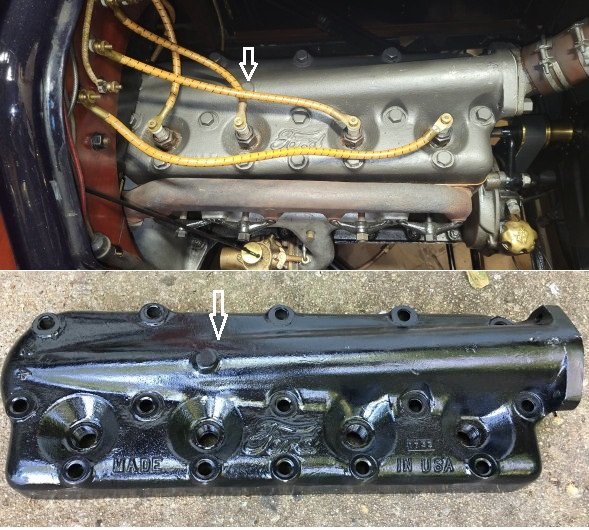

And that round casting sprue on top is an identifier.

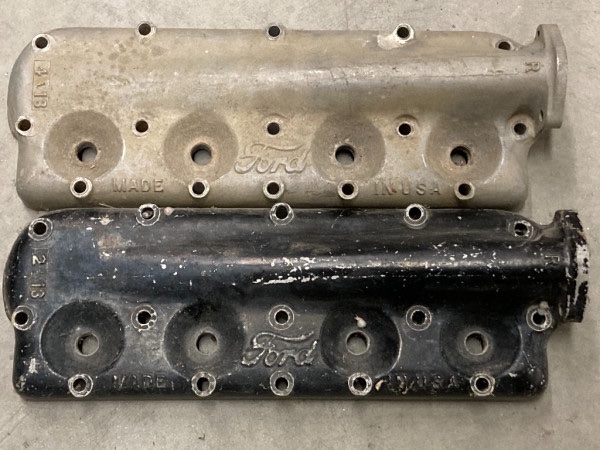

Another one was identified as “Ron Genson”made, has "R' on the top of the water outlet neck.
Correction:
Reply on name spelling:
“I saw your post for aluminum heads. It was Rod Genson who made the heads at the Palmer Foundry in Mass.”
Kevin Prus
And that round casting sprue on top is an identifier.
- cylinder head reeder w sprue.jpeg (81.7 KiB) Viewed 97 times
Another one was identified as “Ron Genson”made, has "R' on the top of the water outlet neck.
Correction:
Reply on name spelling:
“I saw your post for aluminum heads. It was Rod Genson who made the heads at the Palmer Foundry in Mass.”
Kevin Prus
- Ron Glenson head with R mark .jpeg (108.23 KiB) Viewed 97 times
