Photo Needed: Location & Measurements To….

Post by George House » Mon Nov 10, 2025 3:19 pm

….precise placement of brass Murphy fasteners on a 1914 firewall. I have sheet And cast Murphy fasteners. Presume the latter.. Many thanks
Attachments
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔
Top

Daisy Mae
Posts: 418
Joined: Mon May 06, 2024 9:32 pm
First Name: Kurt
Last Name: Andersson
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring
Location: Panama City Beach, FL

Re: Photo Needed: Location & Measurements To….

Post by Daisy Mae » Wed Nov 12, 2025 4:09 pm

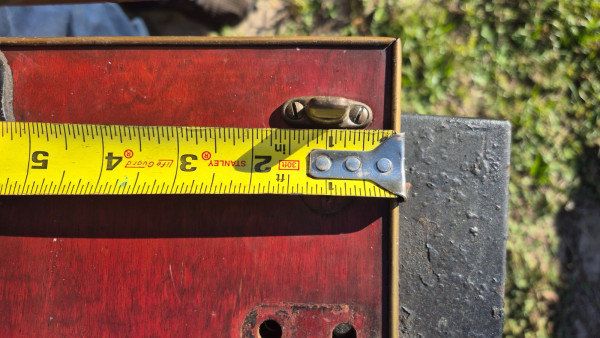

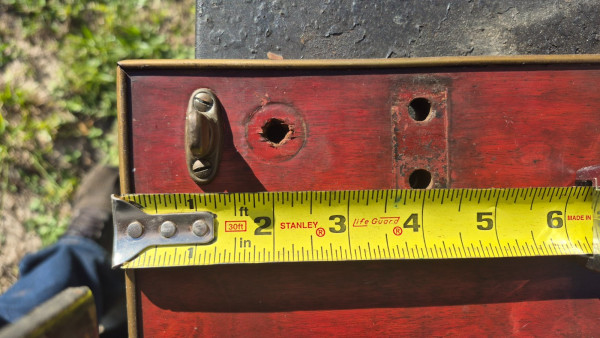

Hey George, here's how they exist on my '14
Call me anything you want...just so long as it isn't "late for dinner"
Top
User avatar

Topic author
George House
Posts: 2934
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: Photo Needed: Location & Measurements To….

Post by George House » Wed Nov 12, 2025 4:47 pm

Thank you Kurt. So they’re vertical on the right side and horizontal on the left side ? I received some good information from Larry Smith too. Anybody else ?
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔
Top

Daisy Mae
Posts: 418
Joined: Mon May 06, 2024 9:32 pm
First Name: Kurt
Last Name: Andersson
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring
Location: Panama City Beach, FL

Re: Photo Needed: Location & Measurements To….

Post by Daisy Mae » Wed Nov 12, 2025 6:42 pm

George, no, that was horizontal & vertical measurements for the right side fastener. The left one is exact same position/measurements
Call me anything you want...just so long as it isn't "late for dinner"
Top
User avatar

Topic author
George House
Posts: 2934
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: Photo Needed: Location & Measurements To….

Post by George House » Thu Nov 13, 2025 2:43 am

Very good.. thank you Kurt and Larry. Now to go to the little brass screw drawer. Don’t worry; they won’t be those horrid Phillips head screws…. :lol:
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔
Top
