Roller bearing long term storage.

Post by Daisy Mae » Mon Jan 19, 2026 1:30 pm

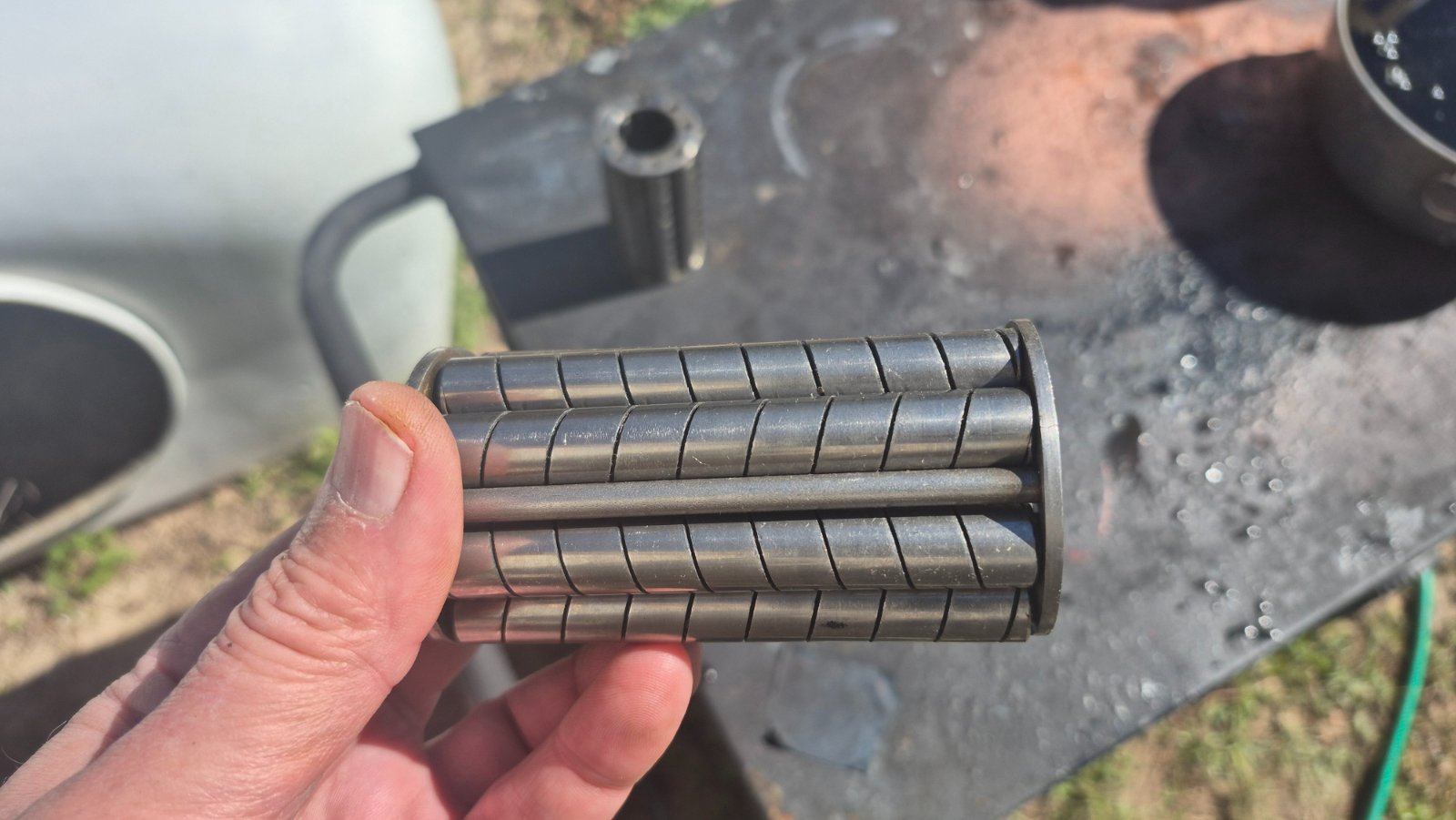

So just picked up a set of used rollers Chaffin's was selling recently, got them all cleaned up nice & purty, question being, what is the preferred method for long term storage, especially given I'm in humid/coastal salt air.

Let me know all your suggestions....
Call me anything you want...just so long as it isn't "late for dinner"
Top

Dan McEachern
Posts: 1476
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
* REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
Location: ALAMEDA,CA,USA

Re: Roller bearing long term storage.

Post by Dan McEachern » Mon Jan 19, 2026 1:45 pm

This stuff works pretty well for preventing corrosion on bare metal:

https://www.mcmaster.com/10245K52

LPS also works well or Boeshield, but its much more expensive.
Top
User avatar

RajoRacer
Posts: 5479
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Roller bearing long term storage.

Post by RajoRacer » Mon Jan 19, 2026 1:54 pm

Greased up & zipped up in a baggie.
Top

speedytinc
Posts: 5146
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Roller bearing long term storage.

Post by speedytinc » Mon Jan 19, 2026 1:58 pm

Either of the previous 2 answers.
I use LPS #3. its like a thin cosmoline. Then bag.
If the bag stays intact, you can directly install by greasing without removing the LPS.
Top

Topic author
Daisy Mae
Posts: 484
Joined: Mon May 06, 2024 9:32 pm
First Name: Kurt
Last Name: Andersson
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring
Location: Panama City Beach, FL

Re: Roller bearing long term storage.

Post by Daisy Mae » Mon Jan 19, 2026 2:14 pm

Thank ya'll!
Call me anything you want...just so long as it isn't "late for dinner"
Top
User avatar

1925 Touring
Posts: 888
Joined: Mon Apr 25, 2022 6:23 pm
First Name: Austin
Last Name: Farmer
* REQUIRED* Type and Year of Model Ts owned: 1922 Touring 1924 roadster pickup
Location: N.W. Illinois
Contact:
Contact 1925 Touring

Re: Roller bearing long term storage.

Post by 1925 Touring » Mon Jan 19, 2026 4:26 pm

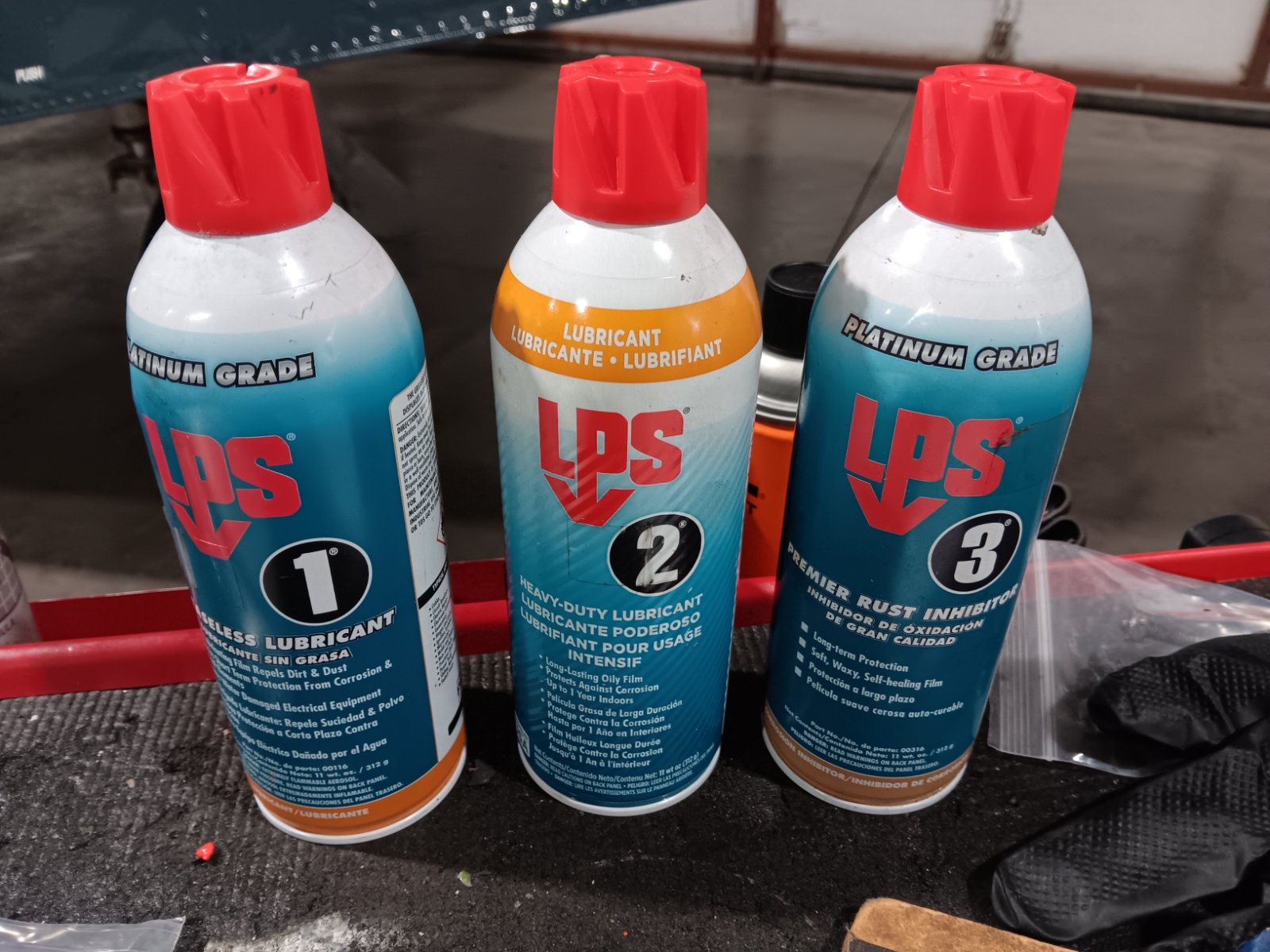

I vouch for lps, it's a good product.

Lps 1 is a good greasless lubricant
Lps 2 is a good oily lubricant and a little thicker
Lps 3 is great for preventing corrosion and providing a long lasting semi self healing film.
Just a 20 year old who listens to 40 year old music, works on 75 year old airplanes and drives 100 year old cars.
The past is only simple because hindsight is 20/20.
Top

John kuehn
Posts: 4630
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Roller bearing long term storage.

Post by John kuehn » Mon Jan 19, 2026 4:42 pm

Nothing special but a coating of some kind of wheel bearing grease inside and out will do the job. Not a bad idea to put them in a large baggie. When it’s time to use then put in a container of diesel and clean them up. Ready to go.
