How do you guys attach new gas filter screen inside the “potato “?
Got some to replace and don’t want to reinvent the wheel. Thanks Dan
Gas filter screen
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Pep C Strebeck
- Posts: 634
- Joined: Sun Jan 06, 2019 11:12 am
- First Name: Joseph
- Last Name: M
- Location: MI
Re: Gas filter screen
I have always soldered them in place.
"Remember son, there are two ways to do this: The right way, and your way” Thanks Dad, I love you too.
LOOKING FOR A LUFKIN No. 9A Height Gage Attachment.
LOOKING FOR A LUFKIN No. 9A Height Gage Attachment.
-
DanTreace
- Posts: 4045
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: '23 cutoff pickup, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Gas filter screen

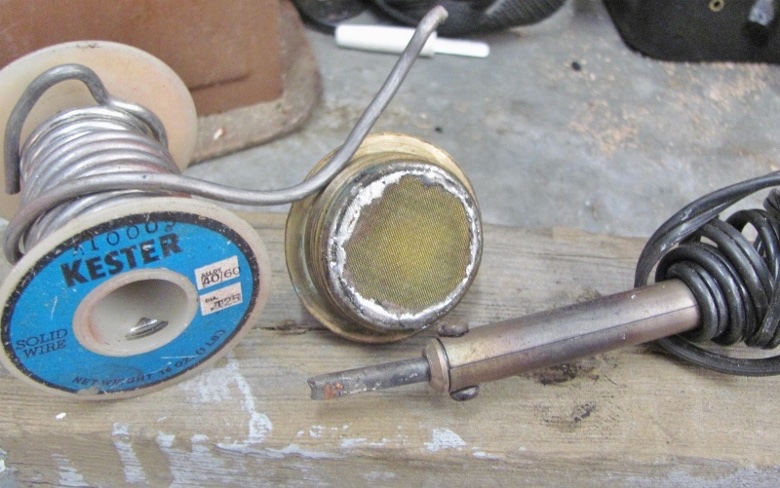

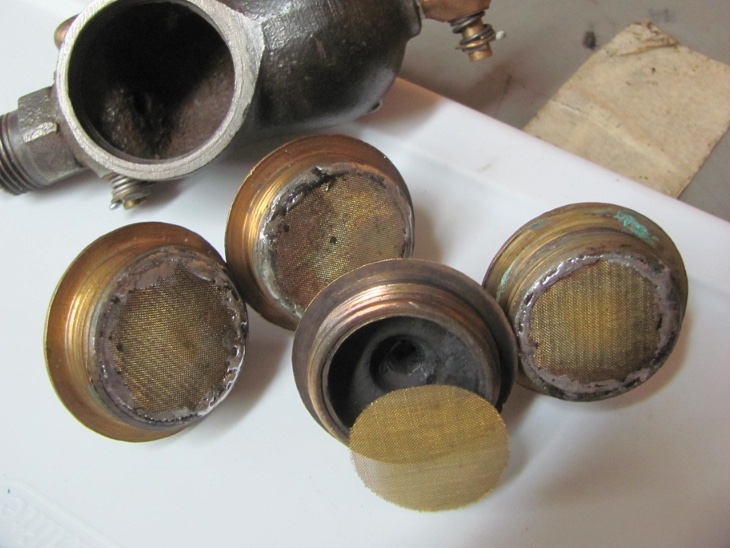

Have used a little 25w elec solder pistol , removed the old screen, then touch around the edge to heat up the residue solder in the rim groove.
Lay in the new screen, touch tack in a few places so it won't shift. Then heat and apply solder....more you do the better you get
Lay in the new screen, touch tack in a few places so it won't shift. Then heat and apply solder....more you do the better you get
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
big2bird
- Posts: 720
- Joined: Mon Sep 14, 2020 10:57 pm
- First Name: Jeffrey
- Last Name: Hausey
- * REQUIRED* Type and Year of Model Ts owned: Early 23 Touring
- Location: Anaheim, Ca.
- Board Member Since: 2020
Re: Gas filter screen
I lay screen across it, and pop in a manifold packing center ring doo dah, then trim. Works fine.
-
speedytinc
- Posts: 5139
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Gas filter screen
I did the job differently.
Originally the screen ws crimped in place by a thin outer rolled edge.
I put the outlet fitting in my lathe & cut a grove inside to fit a large snap ring.
Laid a larger piece of screen into the inside pocket & set the snap ring in then trimmed the excess screen.
Bonus advantage, I can easily replace the screen if it needs replacing when I hit 130 years old.
Originally the screen ws crimped in place by a thin outer rolled edge.
I put the outlet fitting in my lathe & cut a grove inside to fit a large snap ring.
Laid a larger piece of screen into the inside pocket & set the snap ring in then trimmed the excess screen.
Bonus advantage, I can easily replace the screen if it needs replacing when I hit 130 years old.
-
Allan
- Posts: 7139
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Gas filter screen
John is correct in my experience. The original screens were crimped in the brass fitting. If there is solder there, the screen has already been replaced at some time. Just do the same again.
Allan from down under.
Allan from down under.
-
Dan Hatch
Topic author - Posts: 5411
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: Gas filter screen
Has anyone tried annealing the bras crimp ring and re crimping it?
Also anyone here live close to Hartsville SC?
Also anyone here live close to Hartsville SC?
