Need Model T transmission "Top-Hat" bearing measurments

Post by accuratemodelmaker » Wed Feb 04, 2026 5:33 pm

Hey, can anyone in the group share the known measurements of the Model T transmission early Brake Drum "Top-Hat" bearing? I see some of them given by Benson Archives parts listing pages, but would prefer to have actual measurements, even if a little worn.

Thanks,

Jim Key
Accurate Models

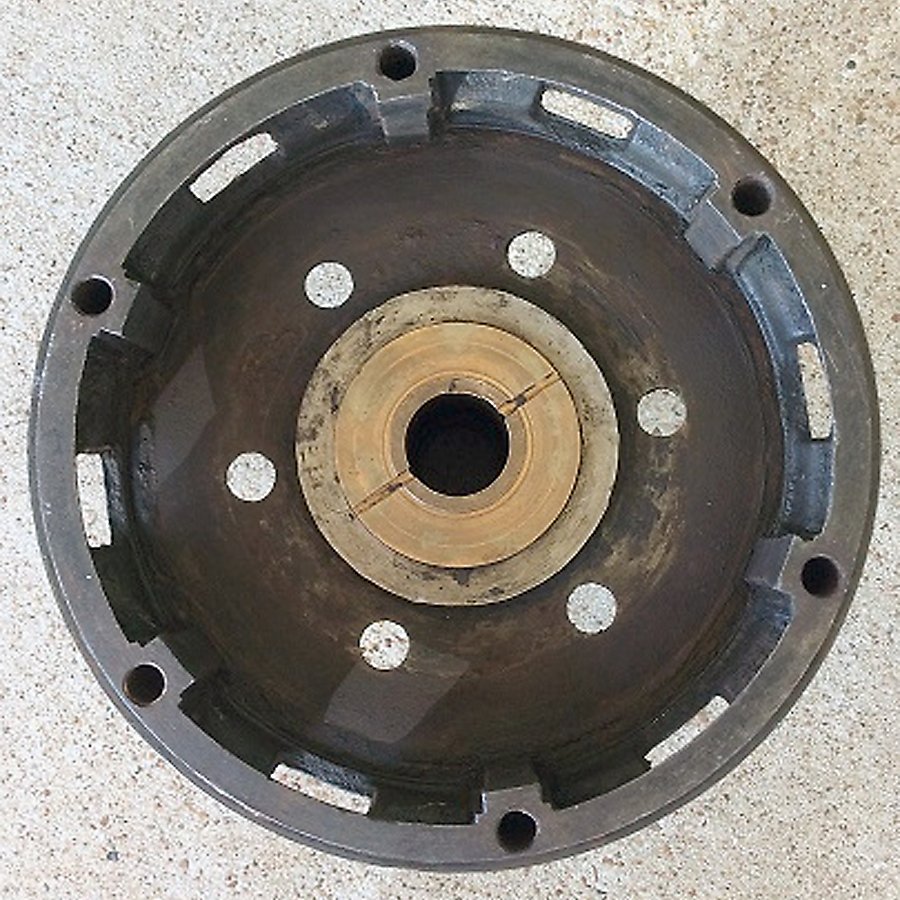

brake drum 5B.jpg

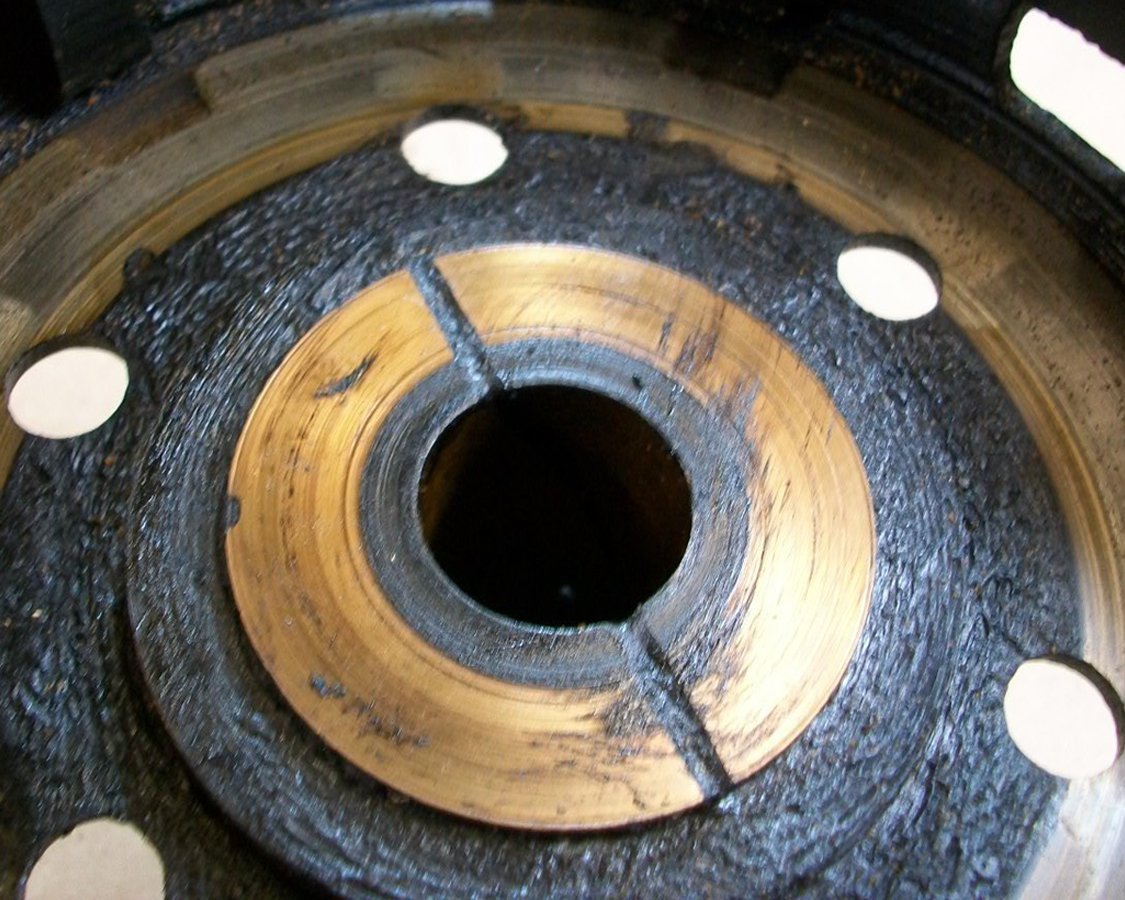

brake drum 4.JPG
