26 front axle trouble

Post by mike37 cdn » Mon Jul 15, 2019 7:25 pm

i am working on a 26 touring front axle problem is the axle is leaning to the rear of the car i know it has to lean to the front of the the bottom of the axle to the front just trying to see were the angle is built into the axle or is it built into the spring perches or the frame it steers so bad steering wheel always wants to always go to the left or right when going down the road i thing the axle is in backwards just want to make sure I am going about the right way thanks mike


Kerry
Posts: 543
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
Location: Rosedale Vic Australia

Re: 26 front axle trouble

Post by Kerry » Mon Jul 15, 2019 7:41 pm

No angle built into the axle, can go in both ways as long as you have the stub axles fitted on the right sides, the perche's have the angle, there is a left and a right in the perch.


Humblej
Posts: 596
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: 26 front axle trouble

Post by Humblej » Mon Jul 15, 2019 7:47 pm

The perches set the angle. The top of the perch has a little tab that is offset slightly, that tab should be on the back to set the correct angle.

User avatar

DanTreace
Posts: 1681
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: 26 front axle trouble

Post by DanTreace » Mon Jul 15, 2019 8:38 pm

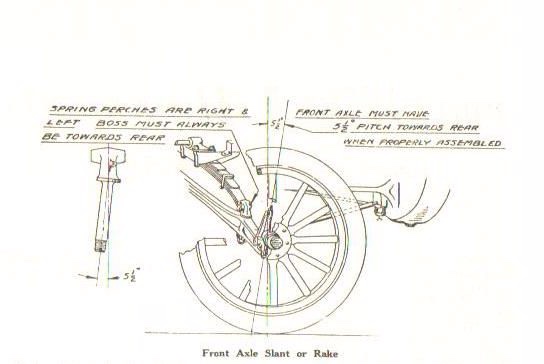

This sketch tells the info too:

The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Allan
Posts: 1857
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: 26 front axle trouble

Post by Allan » Tue Jul 16, 2019 6:43 am

As Frank says, the axle can simply be turned around so that the perches sit at the correct angle. You will need to check the spindles when this is done. The left side spindle has a right hand thread and the right hand spindle a left hand thread.

Allan from down under.


Topic author
mike37 cdn
Posts: 16
Joined: Sun Jan 06, 2019 3:36 pm
First Name: mike
Last Name: mclean
Location: pefferlaw ont ca

Re: 26 front axle trouble

Post by mike37 cdn » Tue Jul 16, 2019 7:54 am

thanks guys the spring perches are on the wrong side will be switching them back thanks again mike


Allan
Posts: 1857
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: 26 front axle trouble

Post by Allan » Tue Jul 16, 2019 11:41 pm

Mike, the perches can be an absolute bear to remove. Can need lots of heat, a press and some judicious use of a BFH.

If you have to tale the axle out to remove them, it is often far easier and potentially less damaging to leave the perches where they are and swap the spindles when you turn the axle.

Allan from down under.

User avatar

Steve Jelf
Posts: 3332
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: 26 front axle trouble

Post by Steve Jelf » Wed Jul 17, 2019 12:10 am

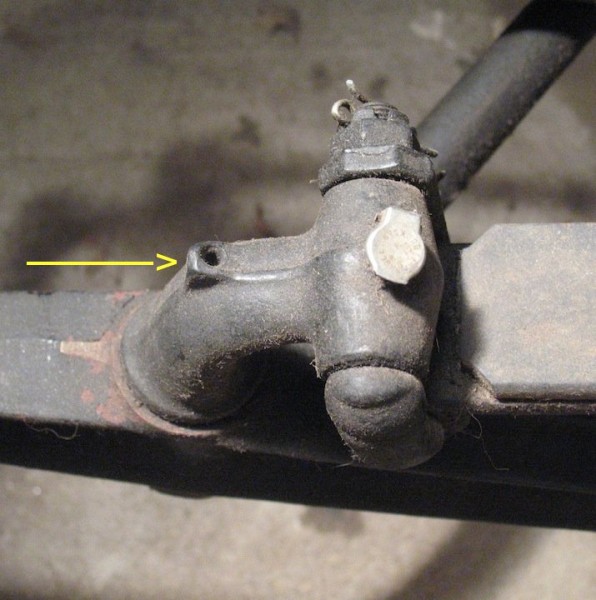

IMG_2605 copy 2.jpg
Here's a picture of what Jeff said. Tab goes toward the rear of the car. I agree with Allan, it's easier to turn the axle around than to switch the perches.
The inevitable often happens.
1915 Runabout
1923 Touring


fschrope
Posts: 83
Joined: Sun Jan 06, 2019 9:54 pm
First Name: Fred
Last Name: Schrope
Location: Upland, IN

Re: 26 front axle trouble

Post by fschrope » Wed Jul 17, 2019 9:07 am

The wishbone is still the major controller of caster. Disconnect it from the pan and push it down and you'll see what I mean.


John Codman
Posts: 353
Joined: Mon Jan 07, 2019 10:27 am
First Name: John
Last Name: Codman
Location: Naples, FL 34120

Re: 26 front axle trouble

Post by John Codman » Wed Jul 17, 2019 1:38 pm

fschrope is technically correct, but there is no adjustment of caster on a Model T that doesn't involve a gas wrench. The actual caster setting is built in through the perches.


Topic author
mike37 cdn
Posts: 16
Joined: Sun Jan 06, 2019 3:36 pm
First Name: mike
Last Name: mclean
Location: pefferlaw ont ca

Re: 26 front axle trouble

Post by mike37 cdn » Wed Jul 17, 2019 11:00 pm

they came out easy with a little heat and a 55 ton press

User avatar

Steve Jelf
Posts: 3332
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: 26 front axle trouble

Post by Steve Jelf » Wed Jul 17, 2019 11:45 pm

If pressing out a perch I fill the cotter hole with a piece of welding rod then put on the nut, flat side up. I've ruined perches pressing them out without that setup.
The inevitable often happens.
1915 Runabout
1923 Touring


Allan
Posts: 1857
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: 26 front axle trouble

Post by Allan » Mon Jul 22, 2019 6:50 am

Neat trick Steve. Why didn't I think of that?
I can't get my head around removing the perches and swapping them end to end to get the axle orientation correct, when all that is needed is to undo the spindle bolts and swap the spindles.

Allan from down under.


Scott_Conger
Posts: 2761
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: 26 front axle trouble

Post by Scott_Conger » Mon Jul 22, 2019 10:45 am

Alan

I think you do it when your scrap pile is running low and you have too much time on your hands.
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Erik Barrett
Posts: 222
Joined: Mon Jan 07, 2019 12:32 am
First Name: Erik
Last Name: Barrett
Location: Auburn, Ca.

Re: 26 front axle trouble

Post by Erik Barrett » Mon Jul 22, 2019 11:41 am

You are better off just swapping ends with the axle and leaving the perches alone. Now would be a good time to make sure your spindles are not on the wrong side also. That can be dangerous.
