Large drum hydraulic brakes

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
User avatar

Topic author
dlmyers
Posts: 76
Joined: Sun Jan 06, 2019 6:00 pm
First Name: Dale
Last Name: Myers
Location: Greenville
MTFCA Number: 24465
MTFCI Number: 19884
Board Member Since: 2001

Large drum hydraulic brakes

Post by dlmyers » Sun Jul 21, 2019 7:49 pm

These were on a friend's car when he bought it.
First
The old forums are a gold mine of information.

User avatar

Topic author
dlmyers
Posts: 76
Joined: Sun Jan 06, 2019 6:00 pm
First Name: Dale
Last Name: Myers
Location: Greenville
MTFCA Number: 24465
MTFCI Number: 19884
Board Member Since: 2001

Re: Large drum hydraulic brakes

Post by dlmyers » Sun Jul 21, 2019 7:52 pm

Second
The old forums are a gold mine of information.

User avatar

Topic author
dlmyers
Posts: 76
Joined: Sun Jan 06, 2019 6:00 pm
First Name: Dale
Last Name: Myers
Location: Greenville
MTFCA Number: 24465
MTFCI Number: 19884
Board Member Since: 2001

Re: Large drum hydraulic brakes

Post by dlmyers » Sun Jul 21, 2019 7:54 pm

Third
The old forums are a gold mine of information.

User avatar

Topic author
dlmyers
Posts: 76
Joined: Sun Jan 06, 2019 6:00 pm
First Name: Dale
Last Name: Myers
Location: Greenville
MTFCA Number: 24465
MTFCI Number: 19884
Board Member Since: 2001

Re: Large drum hydraulic brakes

Post by dlmyers » Sun Jul 21, 2019 7:57 pm

Fourth
He is working on a set for another car.
The old forums are a gold mine of information.


tdumas
Posts: 72
Joined: Mon Jan 07, 2019 9:45 pm
First Name: Ted
Last Name: Dumas
Location: Dallas, TX
MTFCI Number: 20999

Re: Large drum hydraulic brakes

Post by tdumas » Sun Jul 21, 2019 9:06 pm

What drums did he use? Model T drums don’t have much heat capacity.

One of our club members had Chevrolet drum brakes on his centerdoor sedan.


Kuhner
Posts: 30
Joined: Sun Jan 06, 2019 5:12 pm
First Name: Greg
Last Name: Kuhnash
Location: Lore City, Ohio
MTFCA Number: 28086
MTFCI Number: 21773
Board Member Since: 2006

Re: Large drum hydraulic brakes

Post by Kuhner » Mon Jul 22, 2019 8:50 am

Very nice. Looks better than discs to me.
“I don’t like nice people. I like tough, honest people”. - Woody Hayes

User avatar

Charlie B in N.J.
Posts: 251
Joined: Mon Jan 07, 2019 7:40 am
First Name: CHARLIE
Last Name: BRANCA
Location: Brick N.J.
MTFCA Number: 28967
Board Member Since: 2010

Re: Large drum hydraulic brakes

Post by Charlie B in N.J. » Mon Jul 22, 2019 9:42 am

Very nice. Would appreciate a parts list.
Forget everything you thought you knew.


Dan McEachern
Posts: 225
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: Large drum hydraulic brakes

Post by Dan McEachern » Mon Jul 22, 2019 10:02 am

Mid 50's GM passenger car. IMO, using the stock T backing plates is not the best, it may work, but they are too thin and will flex excessively. I'm sure others will disagree.


Les Schubert
Posts: 414
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Large drum hydraulic brakes

Post by Les Schubert » Mon Jul 22, 2019 12:18 pm

Hi
I can read the drum part number and the cylinder. I “assume” the shoes and spring hardware match the drum and cylinder?
What master cylinder please???
Thank you very much for your posting


Les Schubert
Posts: 414
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Large drum hydraulic brakes

Post by Les Schubert » Mon Jul 22, 2019 12:20 pm

If I can get the parts figured out I will likely buy from Rock Auto as they have good quality at good prices


Les Schubert
Posts: 414
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Large drum hydraulic brakes

Post by Les Schubert » Mon Jul 22, 2019 12:22 pm

Dan
What do you think would be thick enough?
I might get some laser cut


Dan McEachern
Posts: 225
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: Large drum hydraulic brakes

Post by Dan McEachern » Mon Jul 22, 2019 12:50 pm

I make mine out of 3/16. I just made a batch. Also ,it a really bad idea to set these up without the wheel cylinder piston retainer plate. Without that, if you break an axle and the wheel comes off you loose your braking ability on the other wheel. That plate is an OEM only part and is not available in the aftermarket AFAIK. The large shoe anchor pin passes thru that bracket. I have those also.


Steve Hughes
Posts: 55
Joined: Fri Jan 04, 2019 12:09 am
First Name: Steve
Last Name: Hughes
Location: Raymond, NE
MTFCA Number: 216
MTFCA Life Member: YES
MTFCI Number: 23070

Re: Large drum hydraulic brakes

Post by Steve Hughes » Mon Jul 22, 2019 3:15 pm

Looks very similar to what was on mine when I bought it, except the wheel cylinder is on the side rather than at the bottom. The shoes have angle brackets welded on the back side so that the brake lever actuates them as well as the hydraulics. Mine was using a master cylinder from a 60s era Ford Bronco if I remember right when I had to replace it. I would also like to see the parts list as I would like to do this setup on another car as well.

User avatar

kmatt
Posts: 132
Joined: Sun Jan 06, 2019 6:30 pm
First Name: Kevin
Last Name: Matthiesen
Location: Madera California
MTFCA Number: 11598

Re: Large drum hydraulic brakes

Post by kmatt » Mon Jul 22, 2019 3:41 pm

Dan; If the wheel cylinder piston retainer plate is a OEM only part, and it is not available in the aftermarket, is there a tandem type master cylinder with the two pistons that would work, or is it check with the 55-57 Chevy salvage yards for old parts ?

User avatar

Topic author
dlmyers
Posts: 76
Joined: Sun Jan 06, 2019 6:00 pm
First Name: Dale
Last Name: Myers
Location: Greenville
MTFCA Number: 24465
MTFCI Number: 19884
Board Member Since: 2001

Re: Large drum hydraulic brakes

Post by dlmyers » Mon Jul 22, 2019 4:40 pm

I wish I had a parts list.
The owner said he thought the master cylinder was 55 T-bird. The parts shown are what he had when I was there except the last photo of the anchor pins which I found on ebay after looking at dozens of photos. They are 55-62 Chevy (maybe Corvette) #3705732 and are being reproduced.
He didn't know what the drums were from.
The old forums are a gold mine of information.


Dennis Prince
Posts: 132
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Dennis
Last Name: Prince
Location: Madras Oregon
MTFCA Number: 22802
Board Member Since: 1999

Re: Large drum hydraulic brakes

Post by Dennis Prince » Mon Jul 22, 2019 10:25 pm

Did you have any problem with the adjuster clearing the spring perch and if so how did you handle it. Thanks Dennis


Dan McEachern
Posts: 225
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: Large drum hydraulic brakes

Post by Dan McEachern » Tue Jul 23, 2019 12:35 am

Kevin- regarding the piston retainer plate, I simply mill them out of bar shock and cold form the retainer tabs. They look just like the GM part except they are not stamped.

User avatar

kmatt
Posts: 132
Joined: Sun Jan 06, 2019 6:30 pm
First Name: Kevin
Last Name: Matthiesen
Location: Madera California
MTFCA Number: 11598

Re: Large drum hydraulic brakes

Post by kmatt » Tue Jul 23, 2019 12:55 am

Thanks Dan. I'm not thinking of doing this but the drum brakes sure look more 1920's than the disk brakes.

User avatar

TRDxB2
Posts: 609
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Large drum hydraulic brakes

Post by TRDxB2 » Tue Jul 23, 2019 10:38 am

Assuming the drums wrapped in plastic came in the box labeled 440-1073 then The NAPA site lists these applications for 440-1073:
BUYER'S GUIDE -This part fits the vehicles Ford Bronco 1966 - 1975, Ford F1 1/2 Ton - Pickup 1948 - 1952, Ford F100 1/2 Ton - Pickup 1953 - 1967, Ford P100 1961 - 1967. So need a confirmation about the paert number and if the drums fit without modification.


Dennis Prince
Posts: 132
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Dennis
Last Name: Prince
Location: Madras Oregon
MTFCA Number: 22802
Board Member Since: 1999

Re: Large drum hydraulic brakes

Post by Dennis Prince » Tue Jul 23, 2019 6:24 pm

What do you use for a emergency/park brake? I don't see any way to manually apply for parking.

User avatar

Topic author
dlmyers
Posts: 76
Joined: Sun Jan 06, 2019 6:00 pm
First Name: Dale
Last Name: Myers
Location: Greenville
MTFCA Number: 24465
MTFCI Number: 19884
Board Member Since: 2001

Re: Large drum hydraulic brakes

Post by dlmyers » Tue Jul 23, 2019 9:44 pm

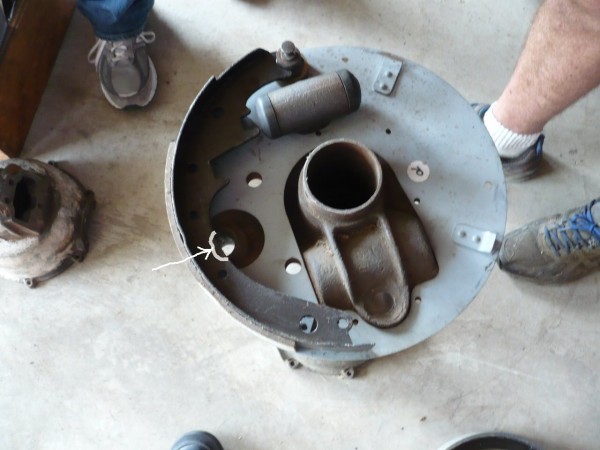

005 R.jpg
Dennis, I think you grind the shoe to allow room for the brake cam to clear. The cam will press on the back of the shoe.
I don't know about the adjuster clearance.

Frank, I guess the bolt holes are 5 X 5-1/2' in those drums.
I believe Mid 50's Chevy drums are 5 X 4-3/4". You would have to elongate the existing holes or drill new ones. Is that safe?
The old forums are a gold mine of information.


Dennis Prince
Posts: 132
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Dennis
Last Name: Prince
Location: Madras Oregon
MTFCA Number: 22802
Board Member Since: 1999

Re: Large drum hydraulic brakes

Post by Dennis Prince » Wed Jul 24, 2019 9:55 am

Dale, Thank you, using the brake cam makes perfect sense.


Jerry VanOoteghem
Posts: 131
Joined: Sun Jan 06, 2019 4:06 pm
First Name: Jerry
Last Name: VanOoteghem
Location: S.E. Michigan

Re: Large drum hydraulic brakes

Post by Jerry VanOoteghem » Sun Jul 28, 2019 8:33 pm

My dad used the same drums/shoes/wheel cylinders on my Fordor. Except, he made new backing plates, heavy enough for the job. He also used the GM parking brake parts, actuated by the T parking brake.
