TT rear hubs

Post by Rod Petrie » Wed Aug 14, 2019 8:42 am

The threads on my 26TT rear hubs are pretty boogered up. Is there a tool or a way to fix them or do I just go without hub caps? I bought a hub puller before I got the truck home in anticipation of needing it to pull the rear wheels. The wheels came right off so didn't need it. It is a good thing because it wouldn't screw on far enough to do any good.

User avatar

George House
Posts: 887
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
Location: Northern Caldwell County TX
MTFCA Number: 115
MTFCA Life Member: YES

Re: TT rear hubs

Post by George House » Wed Aug 14, 2019 9:09 am

About the only advice I can offer is obtaining one of those about 9” x 3/4” square metal thread chasing tools. There’s 8 different TPI selections on each tool. Someone will chime in with the specific TPI for TT rear hubs. I’m not familiar with a thread chaser like the one available for T hubs. Otherwise, find another TT rear hub with good threads. They’re not rare. I have several...
One of the biggest problems with today’s youth is they’ve never known the fear of hearing leather being rapidly pulled through seven Wrangler belt loops.

User avatar

PDGx
Posts: 117
Joined: Sun Jan 06, 2019 9:12 pm
First Name: Paul
Last Name: Grohsmeyer
Location: Central Florida
MTFCA Number: 27359
Board Member Since: 2007

Re: TT rear hubs

Post by PDGx » Wed Aug 14, 2019 5:21 pm

The rear hubs are 16 TPI.

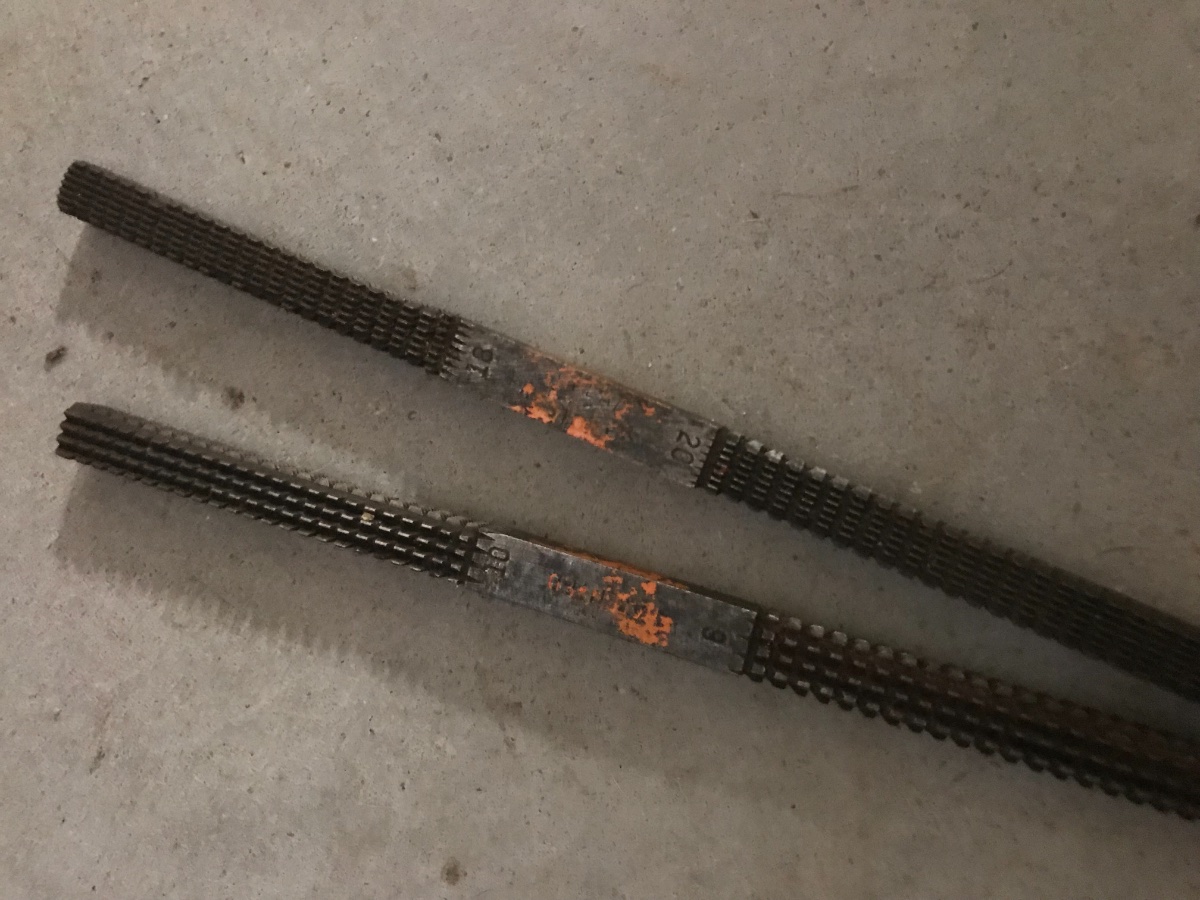

Yes, and if you don’t already have a set of these -
- you ought to get a set.

They can clean up about any external thread from about 8-32 TPI. They work like a file using any remaining thread grooves for alignment. Just work your way around the hub til you get it cleaned up.

I believe amazon even has them now.
