Youngblood combination carburetor and choke adjustment rod aftermarket

Post by Shemp » Sat Aug 24, 2019 11:39 pm

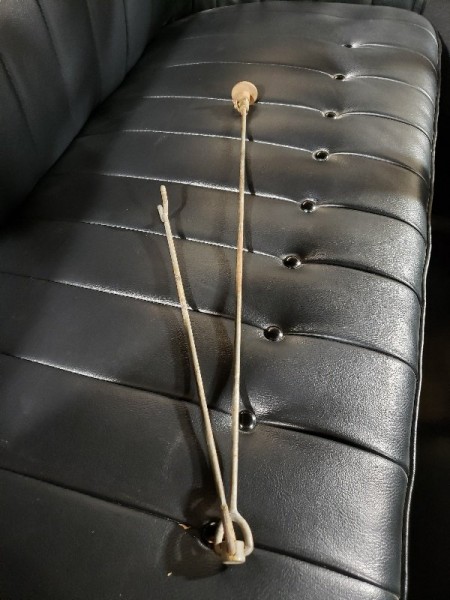

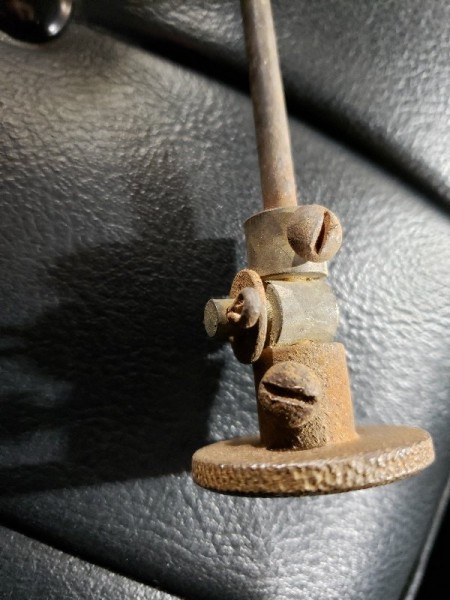

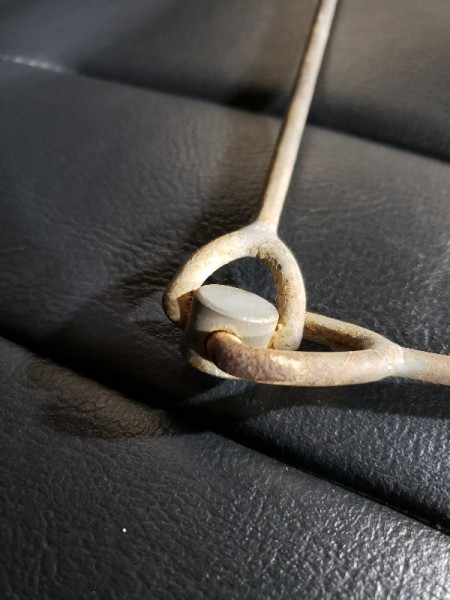

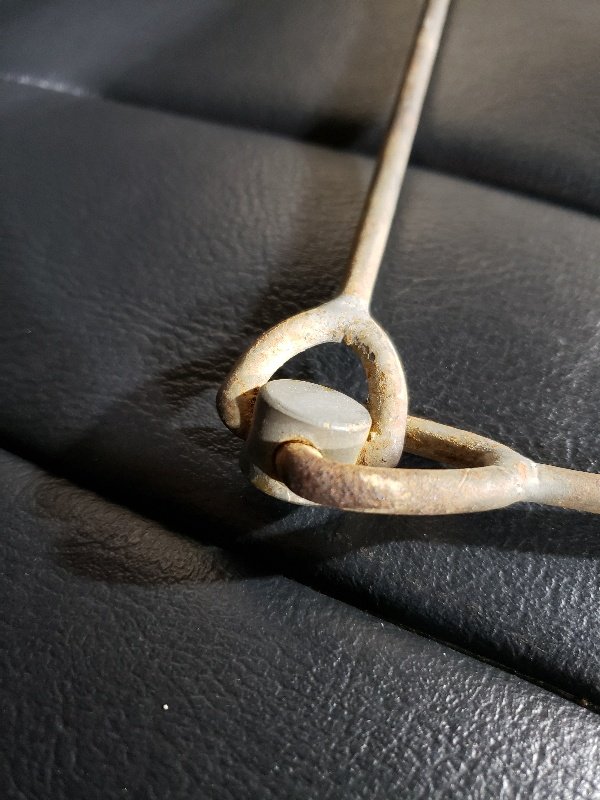

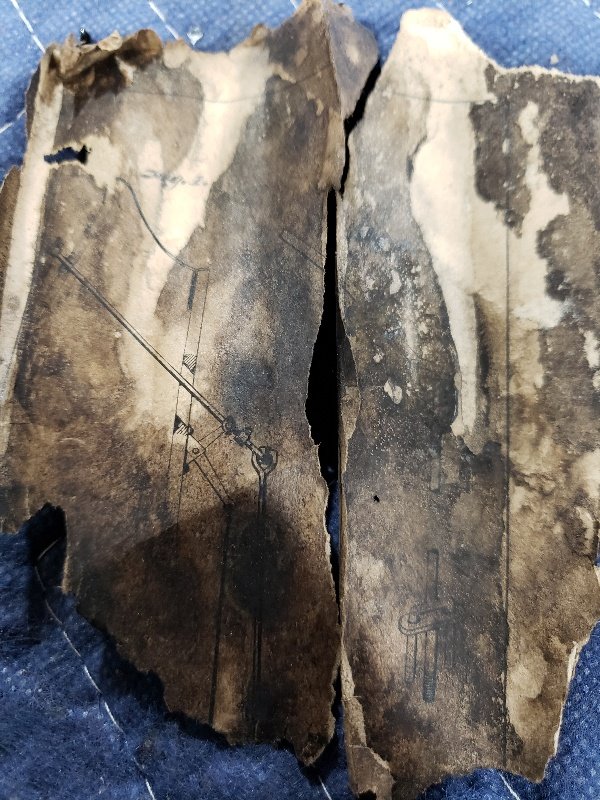

I came across this last night at a good friend's shop because I was in need of a knob for my choke rod. Only a small bit of the box and instructions remain, but what does, appears to be a cool 2 in 1way to adjust your fuel and choke your engine for startup. It was made by the Youngblood Sales and Manufacturing Company Atwood, Kansas. Anybody have one laying around with the intact instructions? Did anyone ever use one? Thanks for your insight.
Attachments


Allan
Posts: 796
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Youngblood combination carburetor and choke adjustment rod aftermarket

Post by Allan » Sun Aug 25, 2019 4:53 am

Here in Australia I have seen and found a similar set-up. This allows the mixture control rod to be longer and mounted within easy reach on the steering column. The universal type joint halves are nickel plated brass castings on ours.

Allan from down under.

User avatar

Dan B
Posts: 55
Joined: Sun Jan 06, 2019 1:53 pm
First Name: Dan
Last Name: Blaydon
Location: PA

Re: Youngblood combination carburetor and choke adjustment rod aftermarket

Post by Dan B » Tue Aug 27, 2019 8:31 pm

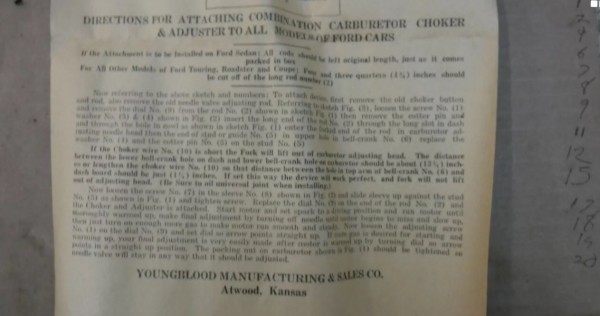

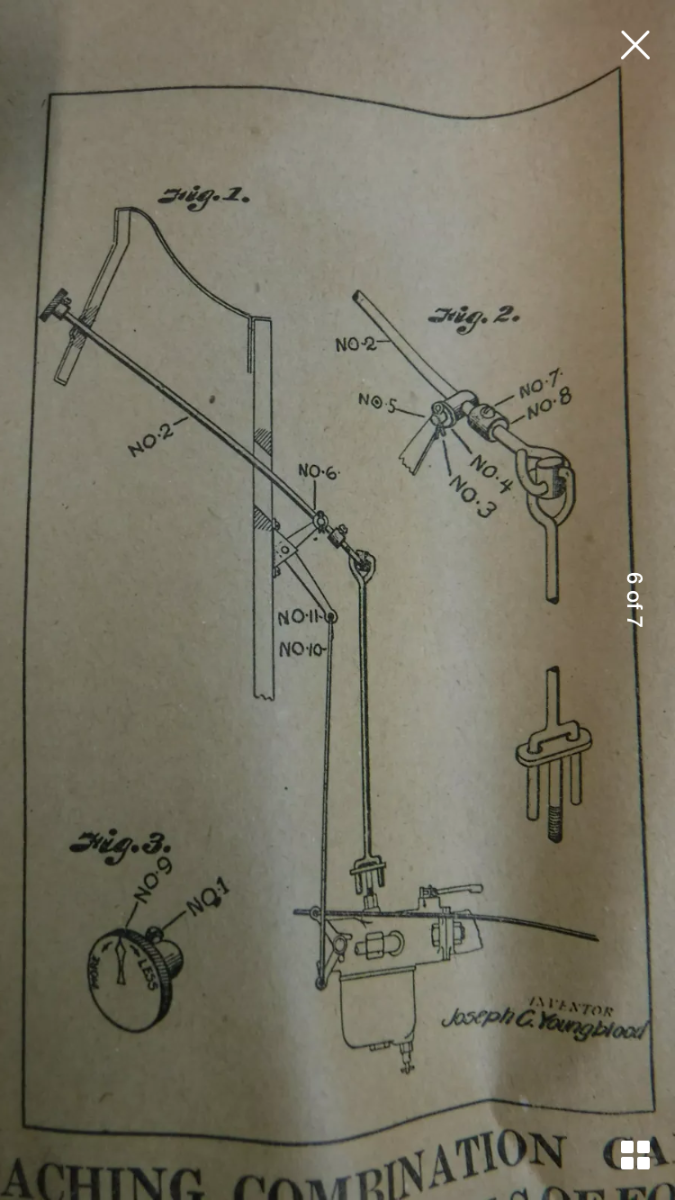

Here’s the instructions. I saved the pictures from an eBay auction a couple months ago.
Attachments
1923 Touring

User avatar

Dan B
Posts: 55
Joined: Sun Jan 06, 2019 1:53 pm
First Name: Dan
Last Name: Blaydon
Location: PA

Re: Youngblood combination carburetor and choke adjustment rod aftermarket

Post by Dan B » Tue Aug 27, 2019 8:32 pm

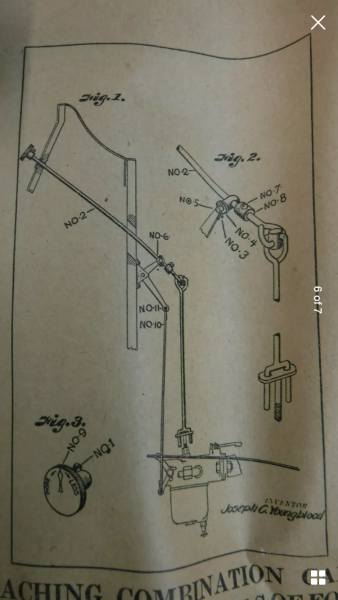

Instructions
Attachments
1923 Touring


Topic author
Shemp
Posts: 12
Joined: Mon Jan 07, 2019 11:14 pm
First Name: Randy
Last Name: Reysen
Location: Wisconsin
Board Member Since: 2018

Re: Youngblood combination carburetor and choke adjustment rod aftermarket

Post by Shemp » Tue Aug 27, 2019 8:33 pm

You are amazing!!! Thanks! Super helpful though thanks again!


Mark Osterman
Posts: 485
Joined: Mon Jan 07, 2019 10:18 pm
First Name: Mark
Last Name: Osterman
Location: Rochester, NY

Re: Youngblood combination carburetor and choke adjustment rod aftermarket

Post by Mark Osterman » Tue Aug 27, 2019 9:45 pm

That is a very handy device. I had a similar one on my dashboard when I ran a straight through NH.


Topic author
Shemp
Posts: 12
Joined: Mon Jan 07, 2019 11:14 pm
First Name: Randy
Last Name: Reysen
Location: Wisconsin
Board Member Since: 2018

Re: Youngblood combination carburetor and choke adjustment rod aftermarket

Post by Shemp » Sat Aug 31, 2019 5:22 pm

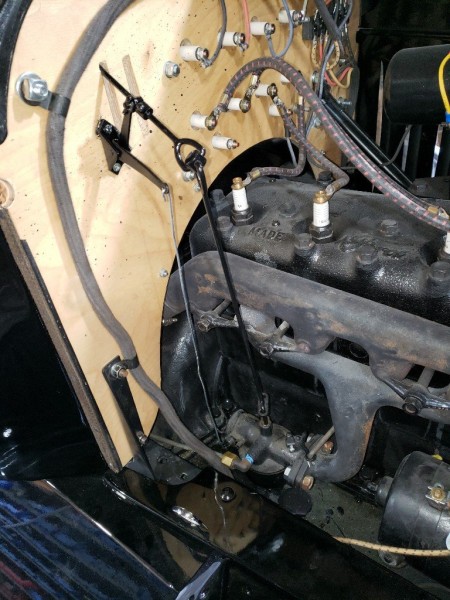

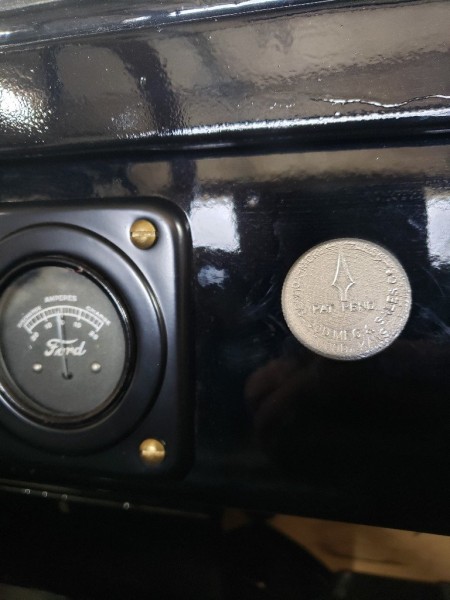

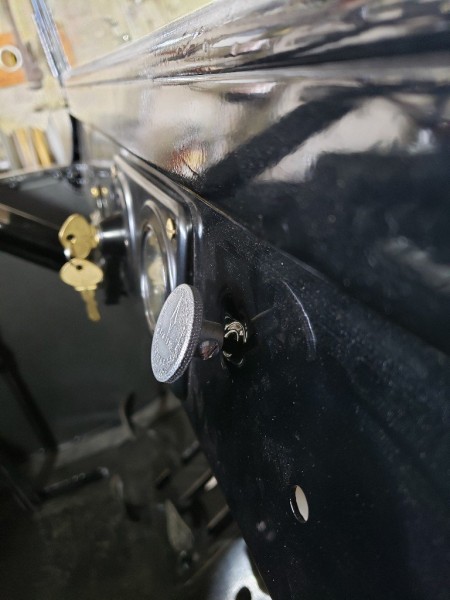

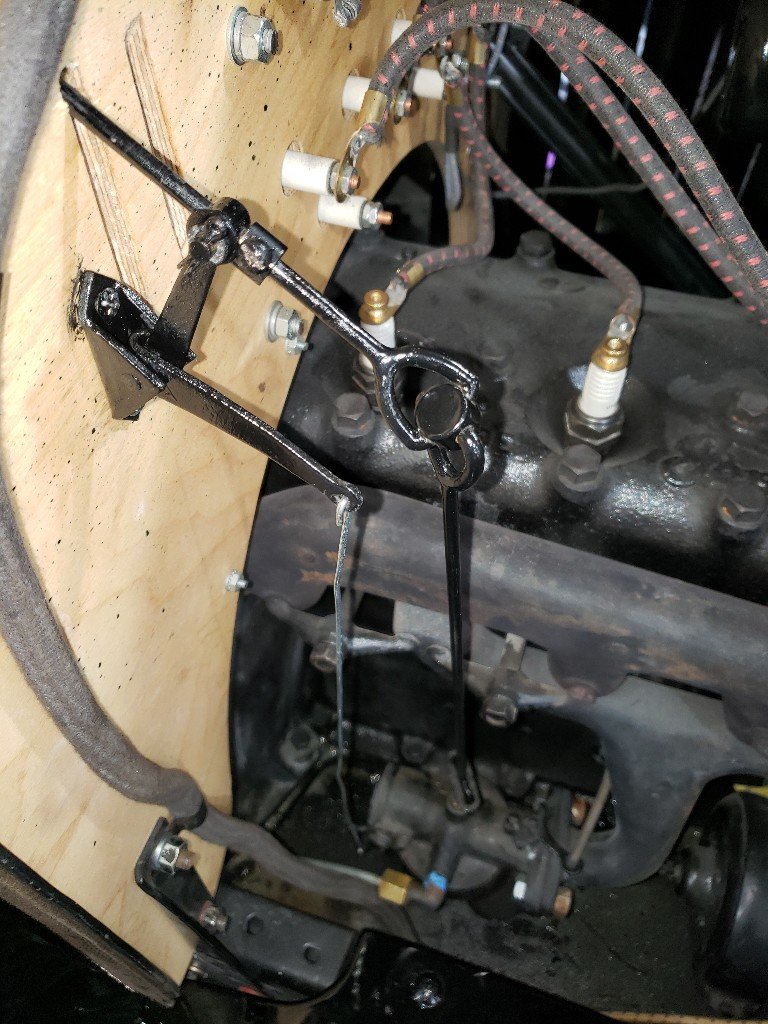

Thanks again to Dan B for the photos of the diagram and instructions he saved I installed the combination choker and adjuster today and it works great!
Attachments

User avatar

Dan B
Posts: 55
Joined: Sun Jan 06, 2019 1:53 pm
First Name: Dan
Last Name: Blaydon
Location: PA

Re: Youngblood combination carburetor and choke adjustment rod aftermarket

Post by Dan B » Sat Aug 31, 2019 9:00 pm

It looks great! Not all neat T accessories are as functional.

Glad I could help.
