***1919-1927 Generator Assembly (4911, 5119)***

Post by VowellArt » Mon Sep 09, 2019 7:57 am

Ok, please look this over and let me know if you see anything wrong or not quite correct

Fun never quits!

User avatar

George N Lake Ozark
Posts: 201
Joined: Sun Jan 06, 2019 2:15 pm
First Name: George P
Last Name: Clipner
Location: LakeOzark,Missourah
MTFCI Number: 18665

Re: ***1919-1927 Generator Assembly (4911, 5119)***

Post by George N Lake Ozark » Mon Sep 09, 2019 3:09 pm

:D

User avatar

Topic author
VowellArt
Posts: 215
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
Location: Sylmar, Commiefornia
MTFCA Number: 9908
Board Member Since: 2012
Contact:

Re: ***1919-1927 Generator Assembly (4911, 5119)***

Post by VowellArt » Mon Sep 09, 2019 5:21 pm

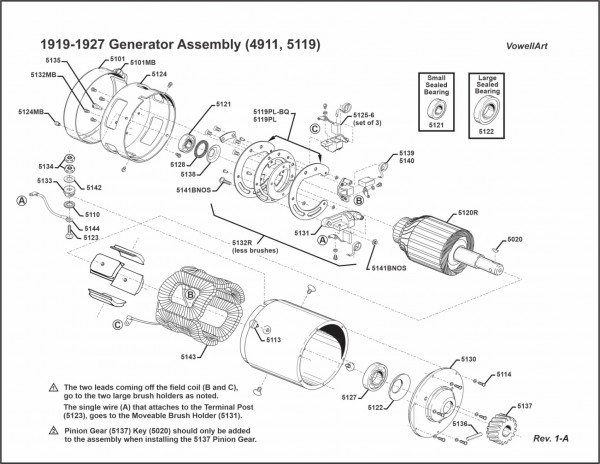

Revision 1-A
Fun never quits!

User avatar

Topic author
VowellArt
Posts: 215
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
Location: Sylmar, Commiefornia
MTFCA Number: 9908
Board Member Since: 2012
Contact:

Re: ***1919-1927 Generator Assembly (4911, 5119)***

Post by VowellArt » Tue Sep 10, 2019 6:42 pm

Revision 1-B...ok, so I'm not an electrical expert, I got everything all mixed up as to where those wires go, hopefully I got it right THIS time...hopefully, lol.

Lets see now, (A) goes to non-grounded large brush brush/holder, (B) goes to moveable brush/holder and (C) goes to the large grounded brush/holder, right? Just give me something mechanical any day of the week other than these electrical gizmos....
Please let me know if I've gone an bungled it again, lol.
Fun never quits!

User avatar

TonyB
Posts: 293
Joined: Fri Jan 04, 2019 11:15 am
First Name: Tony
Last Name: Bowker
Location: Ramona, CA
MTFCA Number: 32
MTFCA Life Member: YES
Board Member Since: 2005

Re: ***1919-1927 Generator Assembly (4911, 5119)***

Post by TonyB » Tue Sep 10, 2019 11:25 pm

Looks correct😊
The connections from the MTFCA Electrical booklet shows:

The field coil connects to the little brush.
The external terminal goes to the ungrounded big brush.
The other end of the field coil goes to the grounded big brush.

There is an extra complication in that wires from the field coil MUST cross which appears to be drawn correctly😊
Tony Bowker
Ramona, California
1909 Touring, 1914 Touring, 1915 Speedster, 1924 Coupe.

User avatar

Topic author
VowellArt
Posts: 215
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
Location: Sylmar, Commiefornia
MTFCA Number: 9908
Board Member Since: 2012
Contact:

Re: ***1919-1927 Generator Assembly (4911, 5119)***

Post by VowellArt » Wed Sep 11, 2019 2:56 am

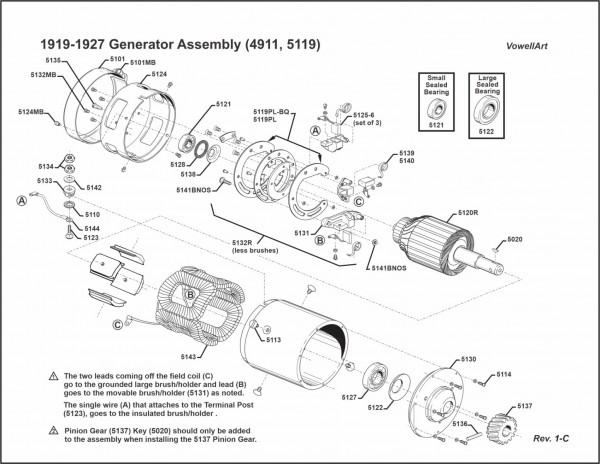

Tony, One thing more I forgot to change, the verbage...so here is Revision 1-C
Fun never quits!

User avatar

Topic author
VowellArt
Posts: 215
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
Location: Sylmar, Commiefornia
MTFCA Number: 9908
Board Member Since: 2012
Contact:

Re: ***1919-1927 Generator Assembly (4911, 5119)***

Post by VowellArt » Wed Sep 11, 2019 6:29 pm

Ok, here is another revision 1-D...had to make a few changes because of some things Ron Patterson brought to my attention and my damned dyslexia (wish I had caught those numbers reversal before)...

Thanks for all the advice Ron, as always you've been a big help. ;)
