Allen HCCT

Post by GG Gregory » Tue Sep 24, 2019 4:44 pm

Does anyone have a diagram of the Allen Coil Tester? I have one I'd like to restore but I'm not sure how some of it comes apart. I'm hoping all it needs is the magnets charged, but I won't be that lucky !
Top

tgiro
Posts: 53
Joined: Mon Jan 07, 2019 7:09 am
First Name: Joseph
Last Name: Amara
* REQUIRED* Type and Year of Model Ts owned: 1917 Touring
Location: MA

Re: Allen HCCT

Post by tgiro » Tue Sep 24, 2019 5:24 pm

Email Ron Patterson. Coilman. His contact info is in the Vintage Ford classifieds. He has what you need.
Top
User avatar

BE_ZERO_BE
Posts: 628
Joined: Sun Jan 06, 2019 12:27 pm
First Name: BOB
Last Name: CASCISA
* REQUIRED* Type and Year of Model Ts owned: 1916 TOURING
Location: POULSBO, WA

Re: Allen HCCT

Post by BE_ZERO_BE » Tue Sep 24, 2019 8:06 pm

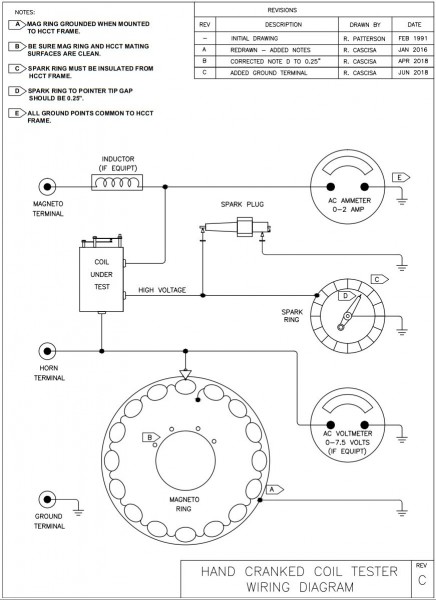

Here is a generic wiring diagram.

_HCCT SCHEMATIC - Rev C.jpg
Respectfully Submitted,
Be_Zero_Be

I drive a Model T ... Microseconds don't matter :D

For every Absolute Model T Fact there are at least three exceptions.
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Allen HCCT

Post by Humblej » Tue Sep 24, 2019 8:27 pm

Mechanically it is pretty straight forward to take apart. I have an allen electric, what do you need to know.
Top
User avatar

BE_ZERO_BE
Posts: 628
Joined: Sun Jan 06, 2019 12:27 pm
First Name: BOB
Last Name: CASCISA
* REQUIRED* Type and Year of Model Ts owned: 1916 TOURING
Location: POULSBO, WA

Re: Allen HCCT

Post by BE_ZERO_BE » Tue Sep 24, 2019 8:57 pm

If the Allen tester in question has a brake drum spark indicator, then assembly is straight forward as Humblej said.
If it has the rotating spark indicator, then contact Ron Patterson for details about those.
Respectfully Submitted,
Be_Zero_Be

I drive a Model T ... Microseconds don't matter :D

For every Absolute Model T Fact there are at least three exceptions.
Top
