An Updraft Manifold Used as a Downdraft

Post by TRDxB2 » Thu Oct 10, 2019 6:34 pm

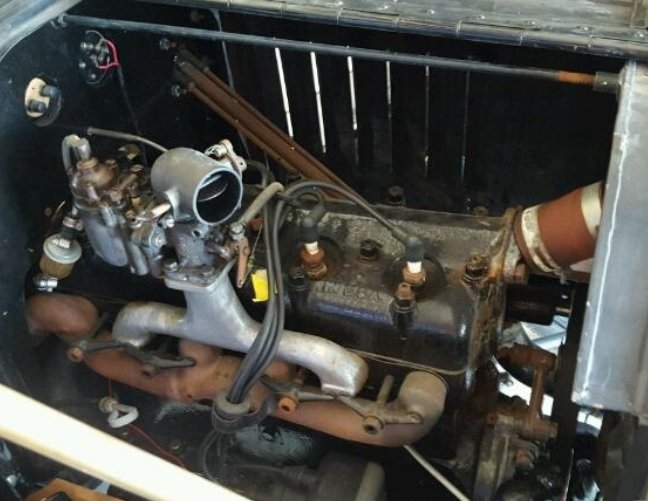

Stumbled on this photo was wondering if any ever tried it.
Attachments


Scott_Conger
Posts: 2731
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: An Updraft Manifold Used as a Downdraft

Post by Scott_Conger » Thu Oct 10, 2019 6:41 pm

Yes

A friend of mine had a '26 with the remains of a vaporizer exhaust and an upside down manifold. He ran an old leaky carb which used fuel fast enough at speed, but ominously dropped raw fuel onto the hot exhaust when parked. It resulted in little gassy "puffs" of smoke when dripping. Scared me to death.

I would not recommend it under any circumstances without some sort of deflector/heat shield.
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

User avatar

Ruxstel24
Posts: 1883
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
Location: NE Ohio
MTFCA Number: 50191
Board Member Since: 2018

Re: An Updraft Manifold Used as a Downdraft

Post by Ruxstel24 » Thu Oct 10, 2019 6:44 pm

Makes a fuel pump “non optional equipment”... :P

User avatar

Mark Gregush
Posts: 2586
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: An Updraft Manifold Used as a Downdraft

Post by Mark Gregush » Thu Oct 10, 2019 8:24 pm

Saw a swamp buggy T that used the same exhaust, flipped the intake over and used standard T carb. The gas tank was mounted up high on the firewall.
I know the voices aren't real but damn they have some good ideas! :shock:

1921 Huckster
1925 Cut down pickup
