1927 Coupe Model T Ford Front Seat Back Panel

Post by daveclause » Sat Oct 05, 2019 6:44 pm

Hello, everyone.

I am looking for the seat back panel for the 1927 Coupe. I have checked ekler's, lang's and a few other sites but am only finding them for the roadster.

Is there a manufacturer for this part or do I need to fab one up?

Thanks in advance,
Dave


Humblej
Posts: 469
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by Humblej » Sat Oct 05, 2019 7:08 pm

Not sure I know what you mean by a coupe seat back panel. There is no metal panel directly behind the seat. The seat back springs mount to a wood frame that is visible through the trunk. There is a package tray that fills the gap between the top of the seat back and the rear window. Several versions over the years, most were metal with different amounts of wood, some were all wood. All were cloth covered. If that is what you need there are no repos, and not the sort of thing you find used. The metal tray has a lot of bends that making a new one from scratch will be a challenge...particularly if you do not have a pattern to copy. But you say the roadster has one, so the roadster does not have a package tray, the piece behind the seat on a roadster is the back of the body. The coupe is a very different body than the roadster.


Humblej
Posts: 469
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by Humblej » Sat Oct 05, 2019 7:41 pm



Topic author
daveclause
Posts: 48
Joined: Sun Apr 28, 2019 2:14 pm
First Name: D
Last Name: R
Location: SoCal
Board Member Since: 2004

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by daveclause » Sat Oct 05, 2019 11:23 pm

Thanks, Humble. I did not know this. Very interesting to find this out. I guess I'll fab one up.

Thank you, again.


Humblej
Posts: 469
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by Humblej » Sat Oct 05, 2019 11:40 pm



Humblej
Posts: 469
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by Humblej » Sun Oct 06, 2019 9:15 am

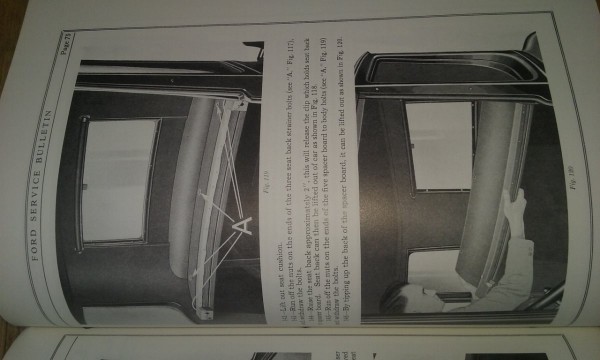

From the Ford Service Bulletin.

User avatar

Mark Gregush
Posts: 2201
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by Mark Gregush » Sun Oct 06, 2019 9:42 am

I am pretty sure he is talking about a panel that would close off the trunk from the cab not the package shelf. The T nor A had one and I do not recall one on the 33 coupe I worked on. You could see the support and springs when you looked in the trunk even on the later coupes and sedans. At some point the trunks became better finished and may have had some extra bracing, but would have had card board type panels added to finish off the trunk and if you took the card board away you would still be able to see the springs.
I know the voices aren't real but damn they have some good ideas! :shock:

1921 Huckster
1925 Cut down pickup


jab35
Posts: 256
Joined: Sun Jan 06, 2019 12:28 pm
First Name: James
Last Name: Bartsch
Location: Dryden, NY 13053
MTFCA Number: 30615

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by jab35 » Mon Oct 07, 2019 9:09 am

If I ever get to this on my '26 coupe, I plan to use hardboard material covered with non woven landscape fabric. The fabric looks old going in, and will likely age gracefully inside the trunk.

FWIW, I have seen pics on this forum of old reupholstering work on '26 seat backs where some type of dark fabric was installed behind the spring but in front of the frame. With that treatment the wooden frame was visible inside the trunk but the interior of the spring was hidden. I think landscape fabric would be good in that application too, it can easily 'breath when the seatback is compressed. jb


Topic author
daveclause
Posts: 48
Joined: Sun Apr 28, 2019 2:14 pm
First Name: D
Last Name: R
Location: SoCal
Board Member Since: 2004

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by daveclause » Tue Oct 08, 2019 1:58 pm

Mark, Exactly what I was talking about. The wall to close the trunk area from the main cabin.
I assumed there would be one like the Roadster has but there isn't one.
I guess that I'll fab one up. I need that area closed off to suite me.

Thanks to all for the reply's. They are very appreciated.


Humblej
Posts: 469
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by Humblej » Tue Oct 08, 2019 3:24 pm

Dave, if you close off the back of the seat area I think you will have some issues with access to the battery.


rickg
Posts: 37
Joined: Sun Jan 06, 2019 2:44 pm
First Name: Richard
Last Name: Goelz
Location: Knoxville, Tn
MTFCA Number: 24965

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by rickg » Thu Oct 10, 2019 1:54 pm

I used a piece of 1/2" plywood on the back of the seat on my 26 coupe, I painted it and attached it to the package shelf with a couple of angle brackets, the battery is in a battery box mounted to the floor, I have a wood floor instead of the sheet metal.

Rick


StanHowe
Posts: 640
Joined: Mon Jan 07, 2019 5:42 pm
First Name: Stan
Last Name: Howe
Location: Helena, MT
MTFCA Number: 19133
Board Member Since: 1999

Re: 1927 Coupe Model T Ford Front Seat Back Panel

Post by StanHowe » Thu Oct 10, 2019 2:31 pm

My 27 coupe came with the seat back support in pieces, it looks like just a few uprights with some cross pieces. We cut a piece of 3/8 plywood to fit in that space and bolted it in to some existing holes as that was much quicker and easier than trying to make a repro of the factory support. It also seals that area very well and made a very solid support for the seat back. I am not so concerned about authenticity anyway. We made a cover for the battery of the same plywood, it fits well and does not need to be removed to access the battery through the trunk opening.

I am gradually gathering up parts for my winter project of rebuilding it. I may end up buying a new top wood kit for it, there is a new but 40 years old kit on it now with no fabric or cover so that is also a project. It has been wet enough times that it is a little warped etc. I'm not sure who has those kits but I think they are in that $500 range.
