Attention all Champion brass top spark plug goo roo, identify this please

Post by FATMAN » Sat Oct 12, 2019 1:51 pm

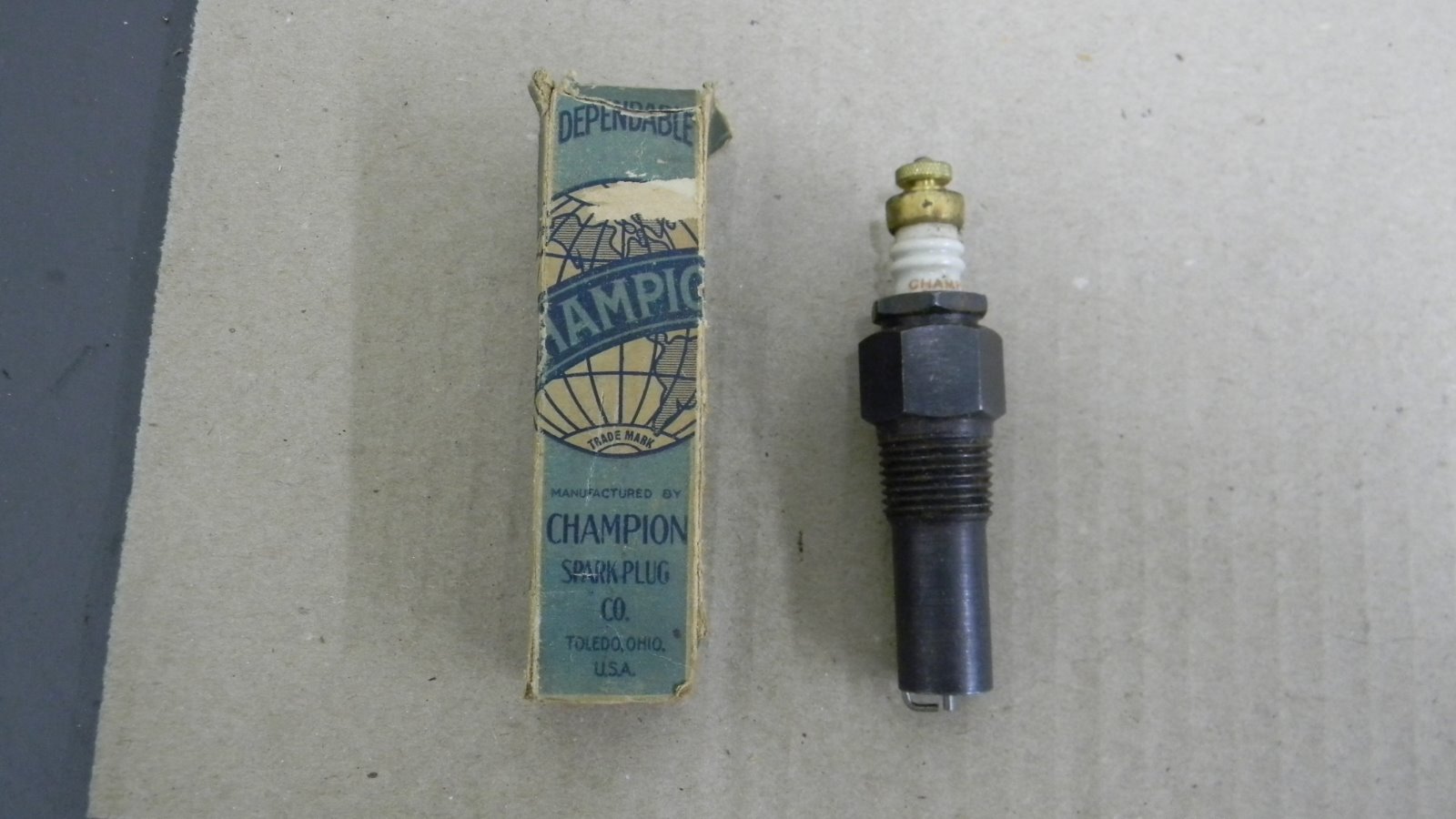

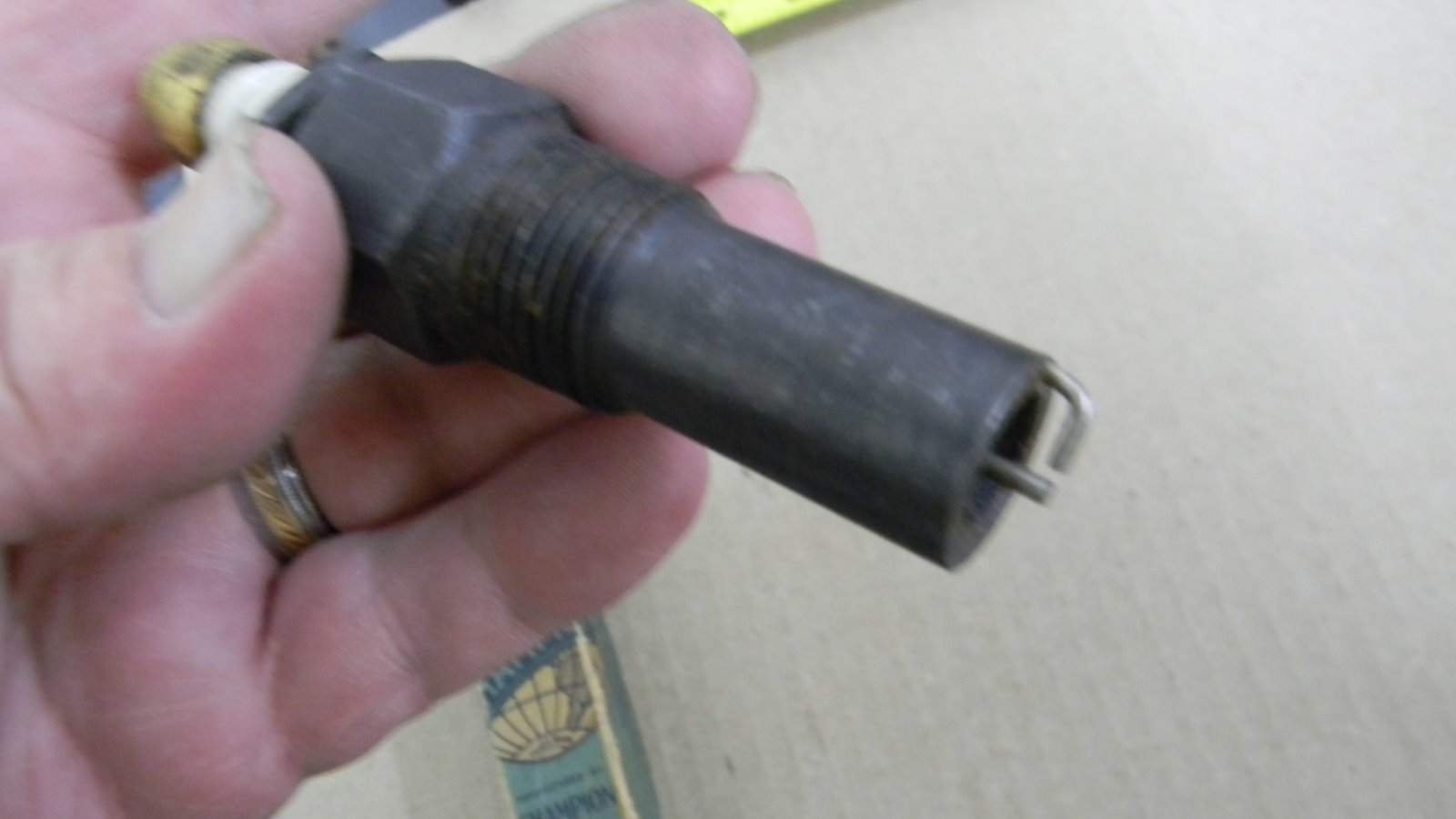

I just opened a box I bought a while back and just found this wild looking brass top nos champion spark plug, can anyone identify please. could be air craft, boat, or weird car
has 1/2" pipe threads jut like the T in a green Champion box, thanks for your input, Bob

Also early coil points if anyone knows will post photos
Attachments
E BAY 1-12-19 EARLY AM 009.JPG
E BAY 1-12-19 EARLY AM 094.JPG
E BAY 1-12-19 EARLY AM 095.JPG
E BAY 1-12-19 EARLY AM 093.JPG
E BAY 1-12-19 EARLY AM 098.JPG


Topic author
FATMAN
Posts: 432
Joined: Sat Jan 19, 2019 9:28 am
First Name: ROBERT
Last Name: BERGSTADT
Location: LOVES PARK IL
MTFCA Number: 1575

Re: Attention all Champion brass top spark plug goo roo, identify this please

Post by FATMAN » Sat Oct 12, 2019 1:52 pm

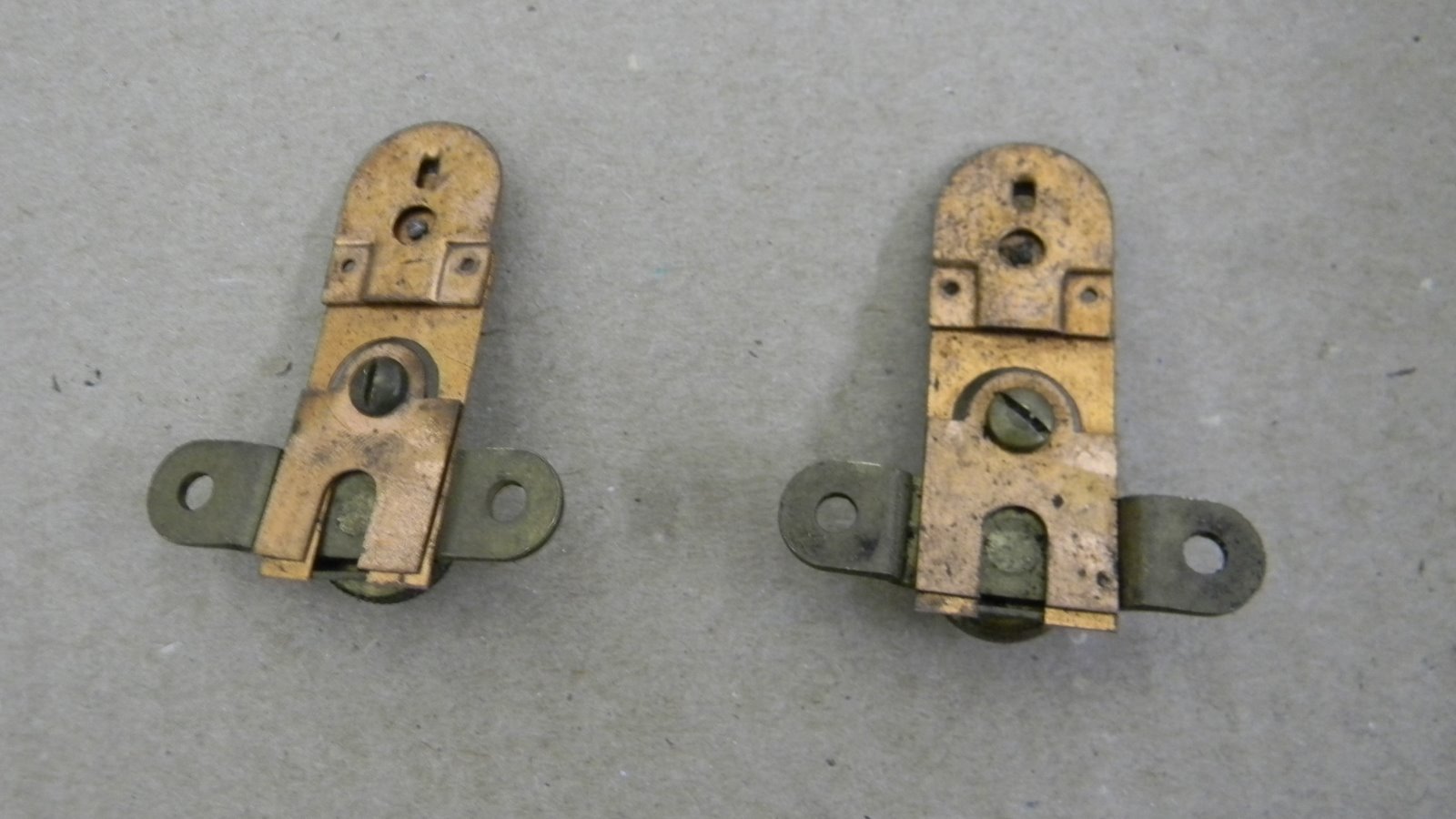

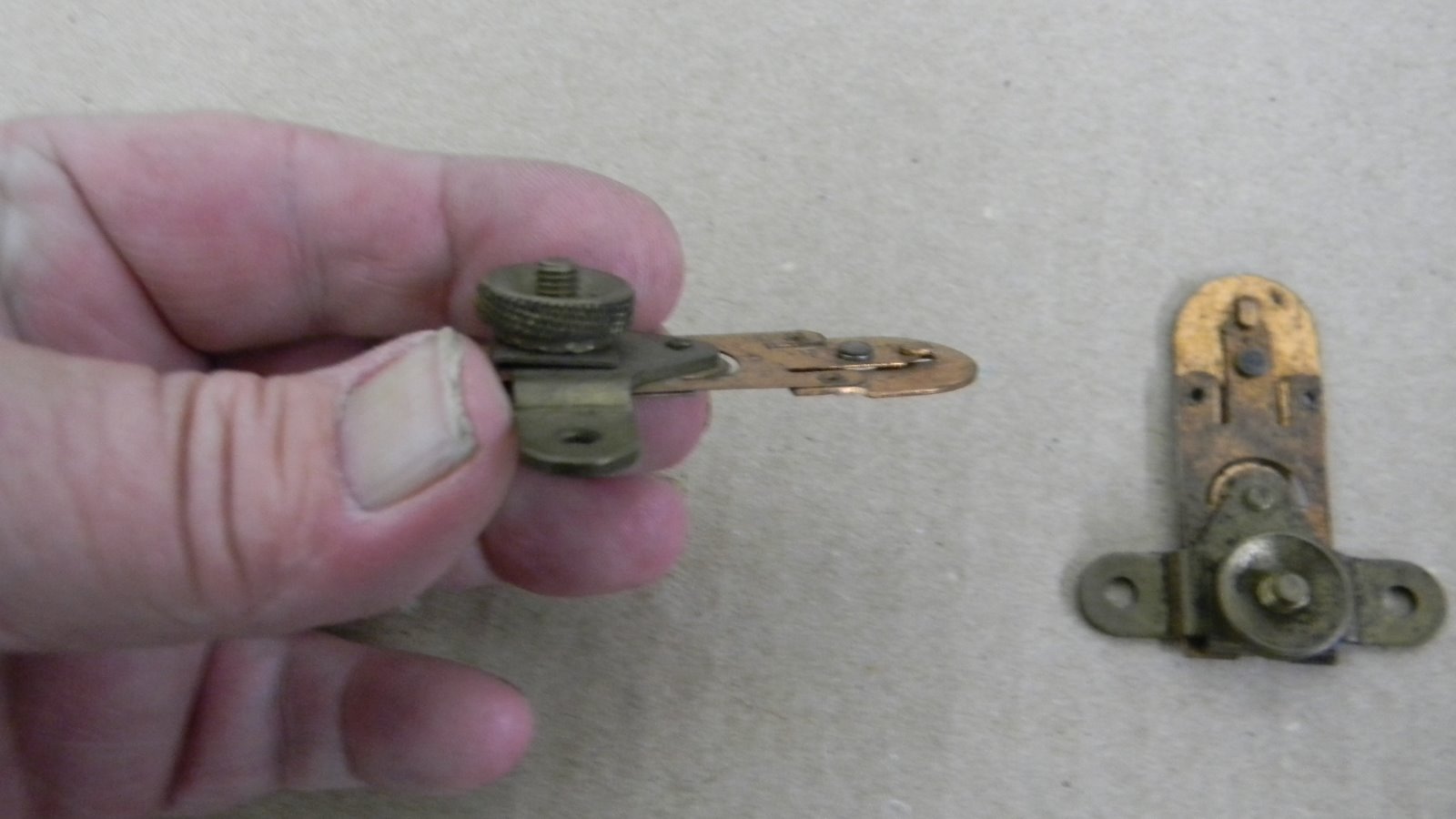

more photos of points
Attachments
E BAY 1-12-19 EARLY AM 013.JPG
E BAY 1-12-19 EARLY AM 012.JPG
E BAY 1-12-19 EARLY AM 011.JPG
E BAY 1-12-19 EARLY AM 010.JPG


wayne sheldon
Posts: 1025
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Attention all Champion brass top spark plug goo roo, identify this please

Post by wayne sheldon » Sat Oct 12, 2019 3:12 pm

The spark plug is for a Metz!

I have a "project pile" of Metz parts myself. Those are fairly hard to find.

The points? I do not know.

User avatar

Rich Eagle
Posts: 1479
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: Attention all Champion brass top spark plug goo roo, identify this please

Post by Rich Eagle » Sat Oct 12, 2019 3:24 pm

Maytag gas engines used a long reach take-apart spark plug but not nearly as long as that one. It could be a stationary or other than automotive application.
Rich
When did I do that?


wayne sheldon
Posts: 1025
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Attention all Champion brass top spark plug goo roo, identify this please

Post by wayne sheldon » Sat Oct 12, 2019 4:05 pm

(W2 LOL ! )
Bob B,I just reread your OP and caught the "weird car"! Metz? Weird? Guess one could say that? But some of us crazies like them!


autoneer
Posts: 14
Joined: Fri Jul 26, 2019 12:46 pm
First Name: Jeff
Last Name: Beaumont
Location: Gardnerville NV 89460
Contact:

Re: Attention all Champion brass top spark plug goo roo, identify this please

Post by autoneer » Thu Oct 17, 2019 8:46 pm

Those deep plugs are for a Model B thru G Buick 2 cylinder from 1904-10, and 2 cyl. chain drive trucks up to 1914. I have owned and driven Metz cars & trucks years ago, and the engine top end & cyl head is almost identical to a T, only one center bolt is slightly different. Gaskets & heads can interchange with a little effort, they used to put Metz heads on T's because of the better compression. I never used plugs like this on a Metz, they take a standard T plug, unless they are talking about the early 2 cylinder models, I never worked on one of those.
Best
Jeff


autoneer
Posts: 14
Joined: Fri Jul 26, 2019 12:46 pm
First Name: Jeff
Last Name: Beaumont
Location: Gardnerville NV 89460
Contact:

Re: Attention all Champion brass top spark plug goo roo, identify this please

Post by autoneer » Thu Oct 17, 2019 8:48 pm

Those deep plugs are for a Model B thru G Buick 2 cylinder from 1904-10, and 2 cyl. chain drive trucks up to 1914. I have owned and driven Metz cars & trucks years ago, and the engine top end & cyl head is almost identical to a T, only one center bolt is slightly different. Gaskets & heads can interchange with a little effort, they used to put Metz heads on T's because of the better compression. I never used plugs like this on a Metz, they take a standard T plug, unless they are talking about the early 2 cylinder models, I never worked on one of those.
Best
Jeff
