Starter drive

Post by blgitn » Thu Oct 17, 2019 6:48 pm

All,

How snug should the bendix stop nut fit in the starter casting?
Mine binds. Shouldn't it spin freely?
Thanks.

Roger.


Scott_Conger
Posts: 1558
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Started drive

Post by Scott_Conger » Thu Oct 17, 2019 7:36 pm

Yes, it should spin freely.

Like all used Model T starters, it was started too many times with spark advanced and the backfire of the engine has bent the output shaft. In some lesser cases, the cast iron has moved ever so slightly out of line.

This is a partial account as to why starter repairs (correct ones) are costly and once fixed, great care should be taken to ensure the car is properly timed at the commutator and the spark lever is all the way "up" when stepping on that darn button!
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Topic author
blgitn
Posts: 37
Joined: Mon Jan 21, 2019 10:36 pm
First Name: Roger
Last Name: Harmon
Location: West Point, VA
MTFCA Number: 16412
Board Member Since: 2007

Re: Started drive

Post by blgitn » Thu Oct 17, 2019 7:56 pm

That's what I was thinking. Thanks.

Roger.


Ron Patterson
Posts: 30
Joined: Sun Jan 06, 2019 12:32 pm
First Name: Ronald
Last Name: Patterson
Location: Nicholasville, KY

Re: Starter drive

Post by Ron Patterson » Sun Oct 20, 2019 9:44 am

This is a common problem with used starters and can be corrected by re-bushing the stop nut running area.
But it is a slippery slope. After doing so, you may also have to install a new main shaft bushing and have it align reamed.
Attachments

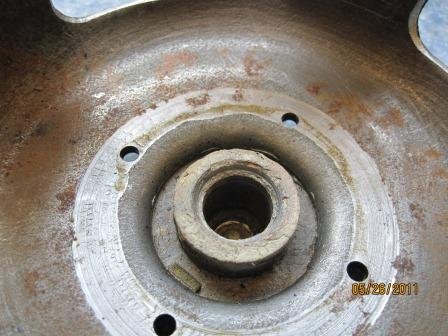

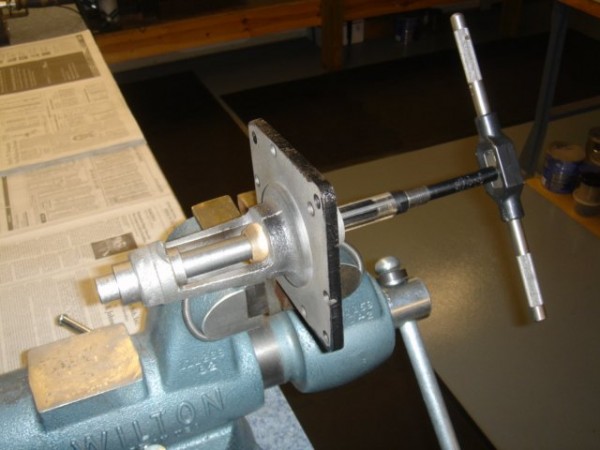

Align Reaming Bracket Bushing-1.jpg

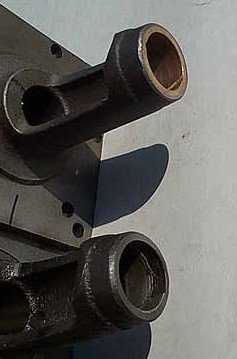

Save-Starter Snout Rebush.jpg
Save-Starter Snout Rebush.jpg (18.48 KiB) Viewed 207 times


Ron Patterson
Posts: 30
Joined: Sun Jan 06, 2019 12:32 pm
First Name: Ronald
Last Name: Patterson
Location: Nicholasville, KY

Re: Starter drive

Post by Ron Patterson » Sun Oct 20, 2019 10:10 am

P.S. While your at it install an oil seal in the mounting bracket main bushing hole.
Attachments

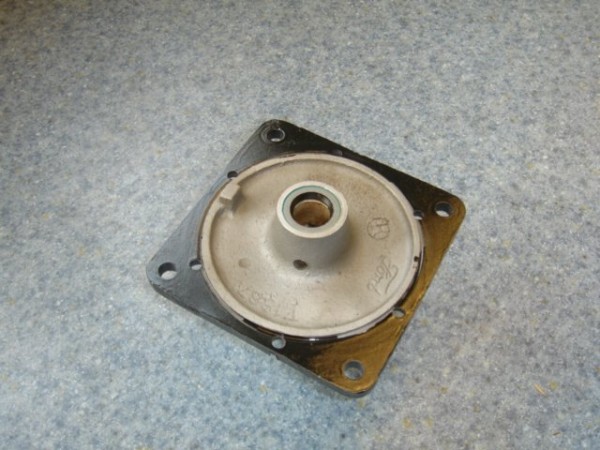

Mounting bracket showing oil seal installed.jpg


Ron Patterson
Posts: 30
Joined: Sun Jan 06, 2019 12:32 pm
First Name: Ronald
Last Name: Patterson
Location: Nicholasville, KY

Re: Starter drive

Post by Ron Patterson » Sun Oct 20, 2019 11:22 am

P.S. While your at it fix this end play problem too.
Attachments

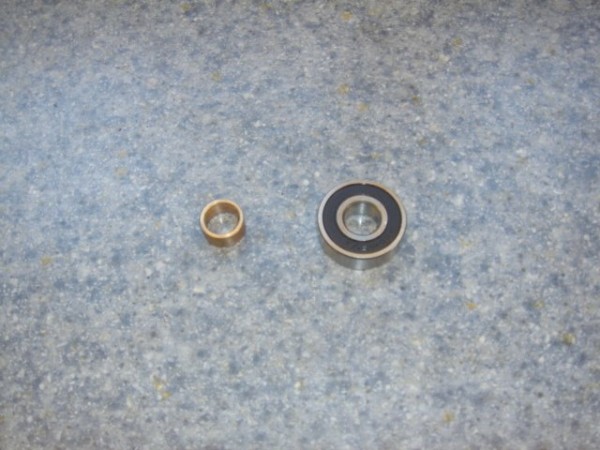

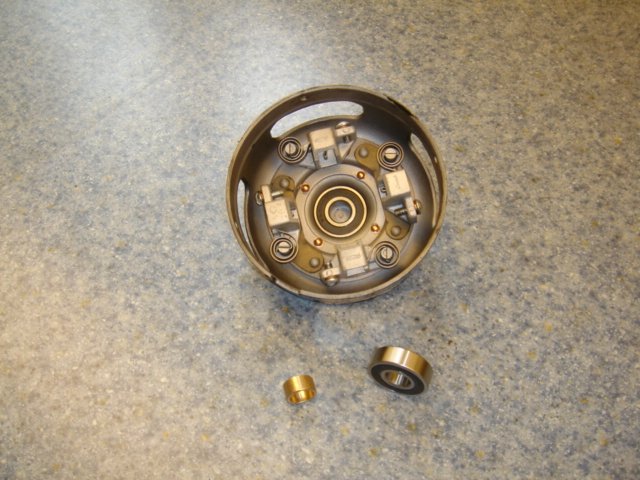

Brush cap bearing kit.jpg

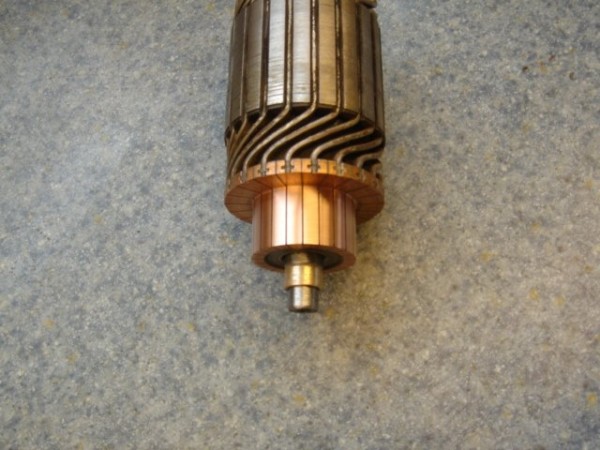

Brush cap bearing & armature spacer.jpg
Armature commutator refinished & bearing spacer installed.jpg

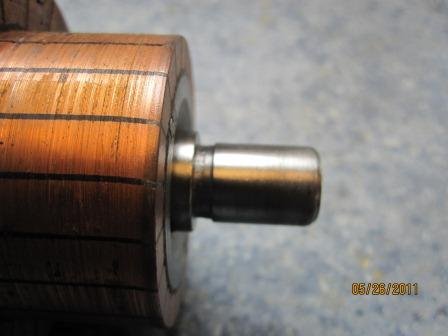

Starter End Play 003.JPG
