A friend is working on a 23 touring car. The brackets that you bolt the top saddle support arms into are missing. I have a set from a 21 touring. Can anyone tell me if these brackets are the same in 1921 and 1923?
IT IS THE BRACKET THAT THIS
https://www.macsautoparts.com/ford_mode ... lsrc=aw.ds
PLUGS IN TO.
THANKS TOM
Brackets for top saddle support arms
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
tom_strickling
Topic author - Posts: 427
- Joined: Tue Jan 08, 2019 10:31 am
- First Name: Tom
- Last Name: Strickling
- * REQUIRED* Type and Year of Model Ts owned: 11 Torpedo, 18 Touring, 21 TT Huckster, 24 Roadster,snowmobile, Shaw tractor conversion
- Location: New Philadelphia Ohio
Brackets for top saddle support arms
“The trouble with retirement is that you never get a day off.” – Abe Lemons.
-
CudaMan
- Posts: 2531
- Joined: Fri Jan 04, 2019 4:17 pm
- First Name: Mark
- Last Name: Strange
- * REQUIRED* Type and Year of Model Ts owned: 1924 Cut Off Touring (now a pickup)
- Location: Hillsboro, MO
- Board Member Since: 2013
Re: Brackets for top saddle support arms
Looking in Bruce's book, wouldn't a 1923 have had the holes in the rear of the body for the straight top saddle support arms to poke through?
https://www.modeltford.com/item/3858B.aspx
https://www.modeltford.com/item/3858B.aspx
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Brackets for top saddle support arms
Does your 23 have the brackets going over the body or through it. The earlier Touring 22 and back, had the brackets going over the body while the later Touring had the bracket (or arm) going through the body. The earlier Tourings had a 5 piece back section. The later Tourings had a 3 piece back which had the arms going THROUGH the body. Hope this helps.
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Brackets for top saddle support arms
Don't forget, the L arms and the straight through top saddle rods use different top saddles.
-
Hap_Tucker
- Posts: 393
- Joined: Sun Jan 06, 2019 4:58 pm
- First Name: Hap
- Last Name: Tucker
- * REQUIRED* Type and Year of Model Ts owned: 1915 cut off touring; 1918 touring; 1922 Speedster
- Location: Sumter, SC
- MTFCA Life Member: YES
Re: Brackets for top saddle support arms
Tom,
Thank you so much for helping your friend with his T. With over 15,000,000 made and many of them modified to keep them in service over the years we all have questions about some part etc.
Photos below should help you see what folks above have been talking about with the earlier style verses later style touring bodies and how the top rest was changed from the old style to the new style. From the factory, both styles were offered with a lot of overlap. And depending on the source you will see the year listed a little differently for when the change occurred. But which ever style body your friend has, that is the style top rest that would have come with that body.
Caution -- if the body was rebuilt, you can mix and match different parts from an earlier body and a later body and come up with one that Ford never originally supplied, but that still functions "OK."
And of course are you sure it is a 1923 T? Engines, bodies, etc.may have been swapped out over the years.
I hope the illustrations below are of some help to you.
Good luck and again thank you for helping a friend with his T.
Respectfully submitted,
Hap l9l5 cut off
Thank you so much for helping your friend with his T. With over 15,000,000 made and many of them modified to keep them in service over the years we all have questions about some part etc.
Photos below should help you see what folks above have been talking about with the earlier style verses later style touring bodies and how the top rest was changed from the old style to the new style. From the factory, both styles were offered with a lot of overlap. And depending on the source you will see the year listed a little differently for when the change occurred. But which ever style body your friend has, that is the style top rest that would have come with that body.
Caution -- if the body was rebuilt, you can mix and match different parts from an earlier body and a later body and come up with one that Ford never originally supplied, but that still functions "OK."
And of course are you sure it is a 1923 T? Engines, bodies, etc.may have been swapped out over the years.
I hope the illustrations below are of some help to you.

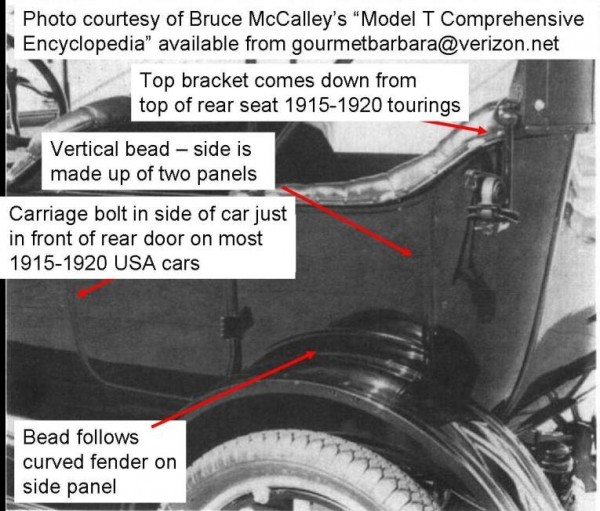

- 1915-1921-ish

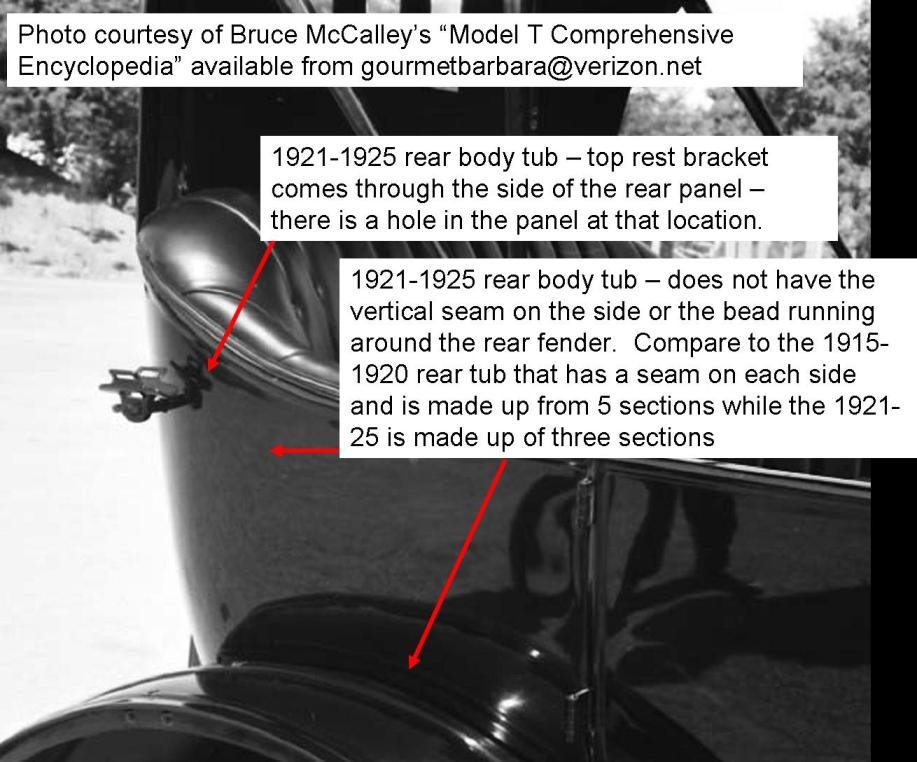

- 1921-ish to 1925
Respectfully submitted,
Hap l9l5 cut off
-
tom_strickling
Topic author - Posts: 427
- Joined: Tue Jan 08, 2019 10:31 am
- First Name: Tom
- Last Name: Strickling
- * REQUIRED* Type and Year of Model Ts owned: 11 Torpedo, 18 Touring, 21 TT Huckster, 24 Roadster,snowmobile, Shaw tractor conversion
- Location: New Philadelphia Ohio
Re: Brackets for top saddle support arms
Thank you one and all. Excellent information.
