Please Id theses parts that I got along with T parts I purchased

Post by Matt in California » Sat Nov 23, 2019 11:45 pm

I always like to find new homes for stuff that I acquire with my T parts. Can anyone ID any of these. I can post new photos if needed.

User avatar

Topic author
Matt in California
Posts: 331
Joined: Sun Jan 06, 2019 5:42 pm
First Name: Matt
Last Name: G
Location: California
MTFCA Number: 30697

Re: Please Id theses parts that I got along with T parts I purchased

Post by Matt in California » Sat Nov 23, 2019 11:49 pm

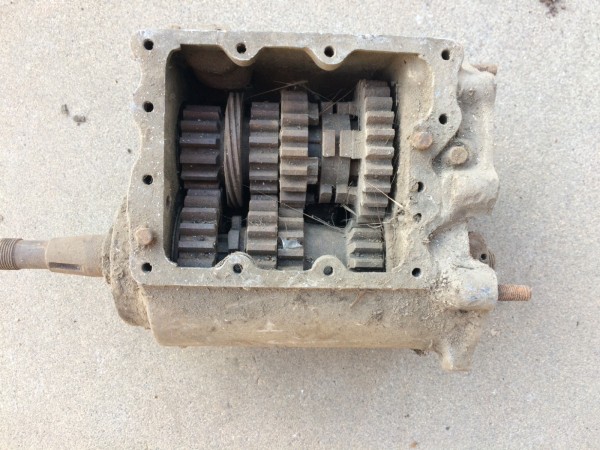

Here is a small transmission.
Is it worth finding a home for these?
Thanks!

Matt

User avatar

TRDxB2
Posts: 499
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Please Id theses parts that I got along with T parts I purchased

Post by TRDxB2 » Sun Nov 24, 2019 2:23 am

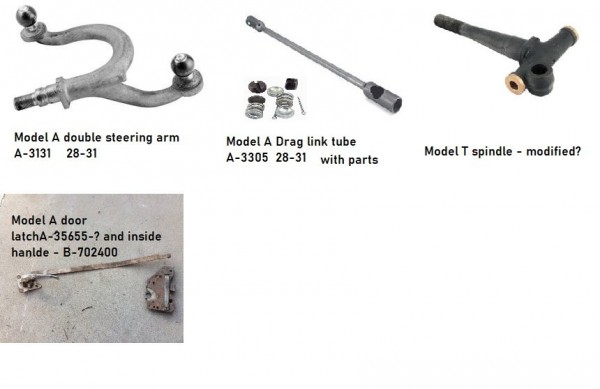

Check Snyder's too
Attachments
model a parts.jpg


Humblej
Posts: 348
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Please Id theses parts that I got along with T parts I purchased

Post by Humblej » Sun Nov 24, 2019 8:53 am

Scrap

User avatar

thom
Posts: 145
Joined: Mon Jan 14, 2019 4:48 pm
First Name: Tommy
Last Name: Coffey
Location: western NC

Re: Please Id theses parts that I got along with T parts I purchased

Post by thom » Sun Nov 24, 2019 11:11 am

Matt in California wrote:
Sat Nov 23, 2019 11:49 pm
Here is a small transmission.

Is it worth finding a home for these?

Thanks!

Matt
You ask "Is it worth finding..." Well if you mean will it put money in your pocket, probably not so much, but it would be a shame to scrap parts that someone else might need to get a project back on the road. Personally, I would rather give parts away for free rather that see them go to the scrap pile to be made into a new Toyota (yuch) part. Maybe you feel the same. (Except the Toyota part?)

User avatar

TRDxB2
Posts: 499
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Please Id theses parts that I got along with T parts I purchased

Post by TRDxB2 » Sun Nov 24, 2019 12:22 pm

Like most parts, new or used, the shipping cost often exceeds their individual value and that value depends on its availability and the someones need for it. A reconditioned double steering arm sells for $63.75 with EXCHANGE. So it has a core charge value. There is a used one listed on Ebay for Make Offer at $49.99 with $13.99 shipping. So if it sells for $26.01 + $13.99 shipping - $40 total. Ebay would get about $4 and PayPal $1.20 commission each. So the seller would net $20.81 - is that worth the time to disassemble it?


ThreePedalTapDancer
Posts: 20
Joined: Sun Nov 24, 2019 2:29 pm
First Name: Ray
Last Name: M.
Location: California

Re: Please Id theses parts that I got along with T parts I purchased

Post by ThreePedalTapDancer » Sun Nov 24, 2019 2:37 pm

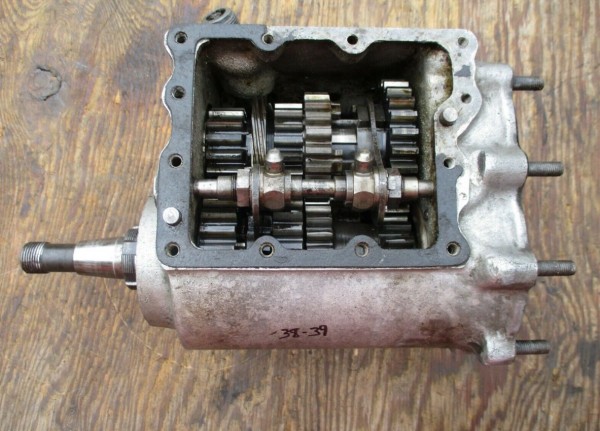

Well, if you listened to some of the guys suggesting you scrap everything, you would be in for a shock. That transmission is from a Harley Knucklehead, and is worth several thousand dollars. There should be a date code cast near the top or some place telling exact year. Here’s an eBay link of a similar transmission. Never scrap anything unless you know what it is.

https://www.ebay.com/i/383184468201?chn ... gJ2RfD_BwE
Attachments

User avatar

Mark Gregush
Posts: 1420
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Please Id theses parts that I got along with T parts I purchased

Post by Mark Gregush » Sun Nov 24, 2019 2:42 pm

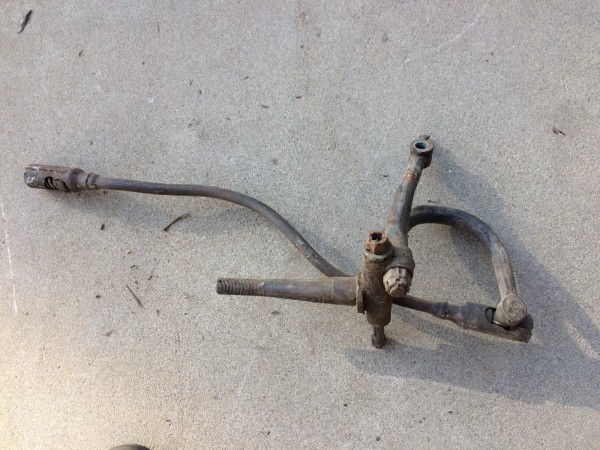

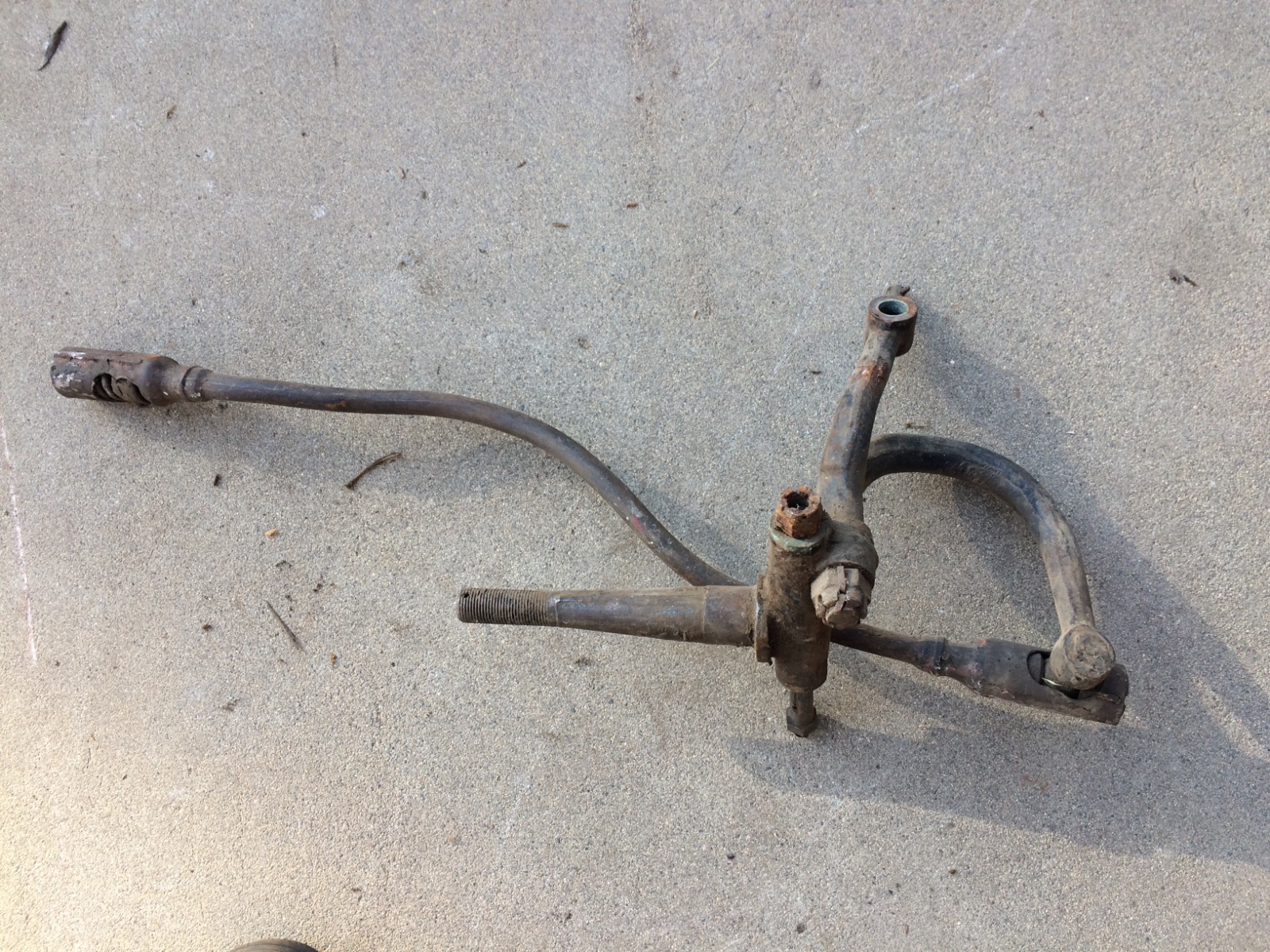

While the spindle MIGHT be model T the steering arm might not even be Ford, might be Chevrolet as could be the spindle. Some of these parts mix and match. What size is the spindle bolt? The drag link kinda looks like Model A but not quite.
I know the voices aren't real but damn they have some good ideas! :roll:

1921 Huckster
1925 Cut down pickup


ThreePedalTapDancer
Posts: 20
Joined: Sun Nov 24, 2019 2:29 pm
First Name: Ray
Last Name: M.
Location: California

Re: Please Id theses parts that I got along with T parts I purchased

Post by ThreePedalTapDancer » Sun Nov 24, 2019 2:45 pm

I forgot to add, that’s cleaned up and working price, but here is a link to the casting dates to tell exactly which year Harley transmission it is.
http://www.hydra-glide.com/joomla/index ... date-codes

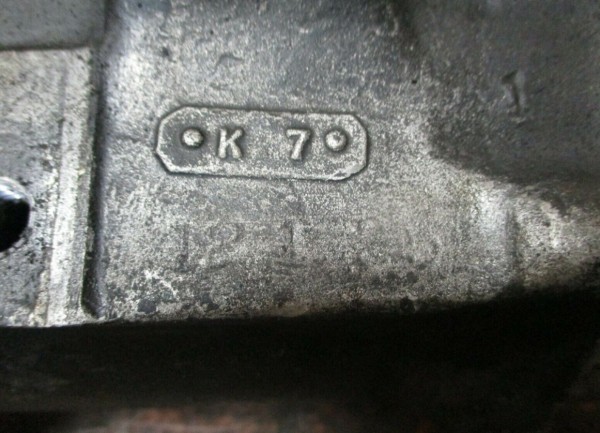

You will find the date on the bottom near the mounting holes. The letter is the month, the number is the year. K7 will be Nov, 1947 for example.
Attachments

User avatar

Topic author
Matt in California
Posts: 331
Joined: Sun Jan 06, 2019 5:42 pm
First Name: Matt
Last Name: G
Location: California
MTFCA Number: 30697

Re: Please Id theses parts that I got along with T parts I purchased

Post by Matt in California » Sun Nov 24, 2019 6:38 pm

Wow! I give thanks to MTFCA!

Ray thanks so much! The transmission that I have is marked “f0” so I believe it is from mid 1940. As far as value I found one in similar condition from1941 that sold for $800 on eBay: https://rover.ebay.com/rover/0/0/0?mpre ... 3948856655

Frank thanks for identifying the other parts! I agree it’s hardly worth trying to sell them on eBay. I just hate to scrap things! Last year I had a free pile in Bakersfield. The person who picked it up seemed happy.

Anyone know what what this is?
Thanks!

Matt

User avatar

Ruxstel24
Posts: 1630
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
Location: NE Ohio
MTFCA Number: 50191
Board Member Since: 2018

Re: Please Id theses parts that I got along with T parts I purchased

Post by Ruxstel24 » Sun Nov 24, 2019 7:01 pm

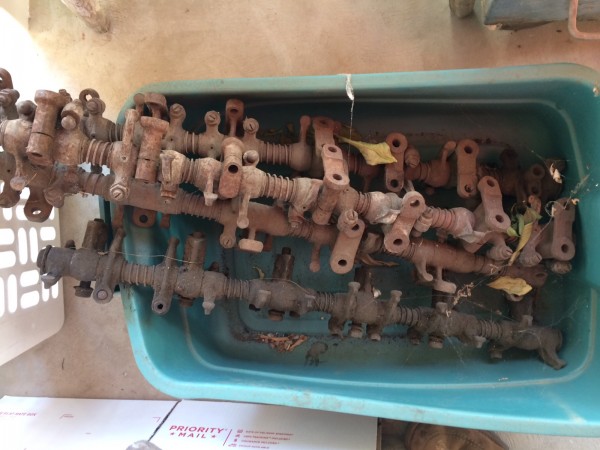

Not positive about the rocker shafts, but the upper ones are for a straight eight and the bottom a six...
I thought maybe Ford V8 at first, till I really looked and counted the rockers.


Allan
Posts: 860
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Please Id theses parts that I got along with T parts I purchased

Post by Allan » Sun Nov 24, 2019 9:44 pm

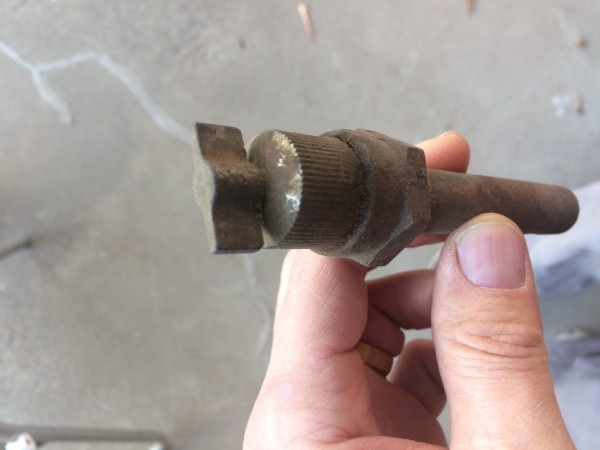

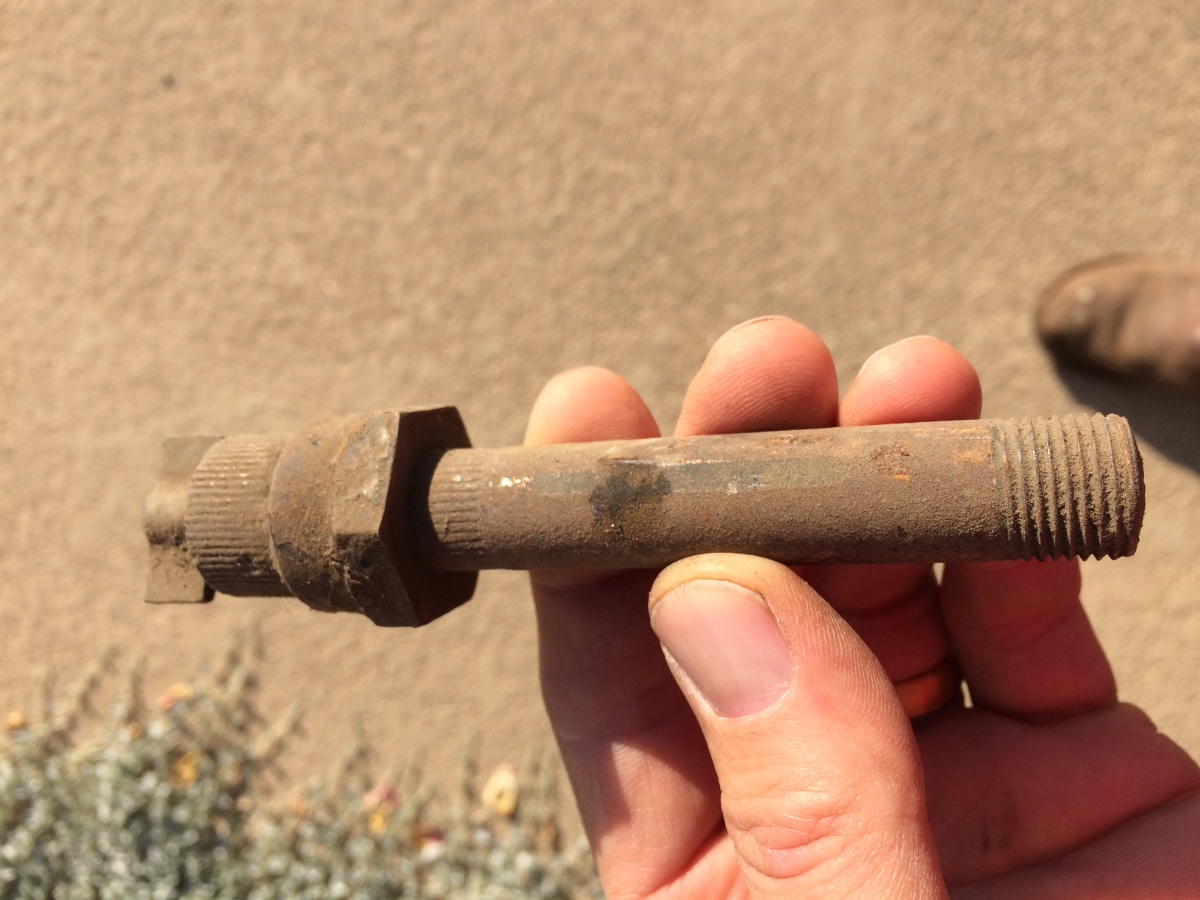

Matt, that looks like a shackle pin to me. The knorled section may screw off to be filled with grease. The wingnut would be wound out to accept the grease in the cup, and wound in somewhat to force grease into the shackle. A more complicated way of doing the same thing as a Ford greaser as used on the outer rear wheel bearings, it is likely from a rather more expensive car than a Ford.

Allan from down under.

User avatar

TRDxB2
Posts: 499
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Please Id theses parts that I got along with T parts I purchased

Post by TRDxB2 » Mon Nov 25, 2019 10:29 am

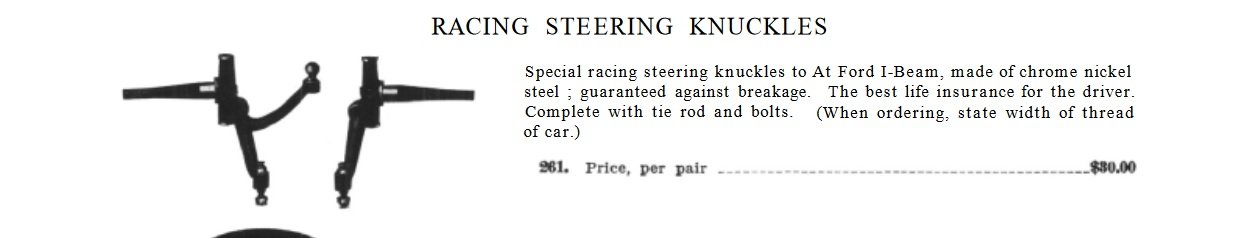

Better compare your spindle arms to this picture and find someone who can id Fronty parts. Hard to get a good perspective of the parts from the picture but the spindle arm end is narrow like yours. lol
Attachments


wayne sheldon
Posts: 1213
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Please Id theses parts that I got along with T parts I purchased

Post by wayne sheldon » Mon Nov 25, 2019 6:38 pm

Like Allan B says, the bolt is a shackle bolt from a larger car or maybe truck. With that type of grease cup, it would likely date from the early '10s into the mid '20s. What it may fit is mostly a size thing. Such shackle bolts were somewhat generic and sold by diameter and length.

That motorcycle transmission is a CLASSIC example of why I get so annoyed by people that just jump in and start throwing everything away. I will likely tell about it for the rest of my days.


J Sundstrom
Posts: 13
Joined: Mon Jan 07, 2019 2:48 pm
First Name: John
Last Name: Sundstrom
Location: Vulcan, MI

Re: Please Id theses parts that I got along with T parts I purchased

Post by J Sundstrom » Tue Nov 26, 2019 8:48 am

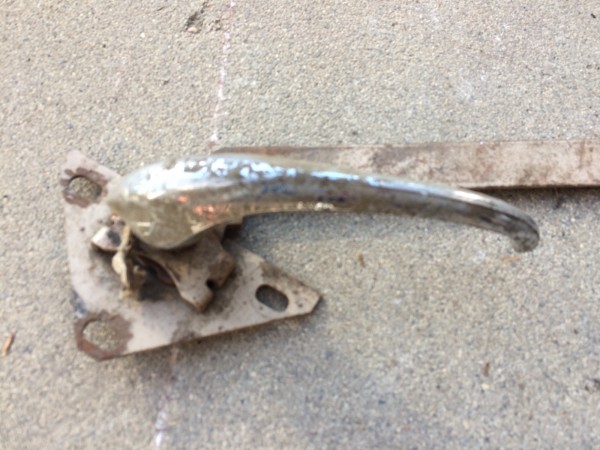

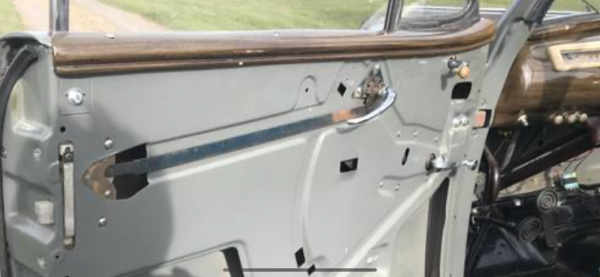

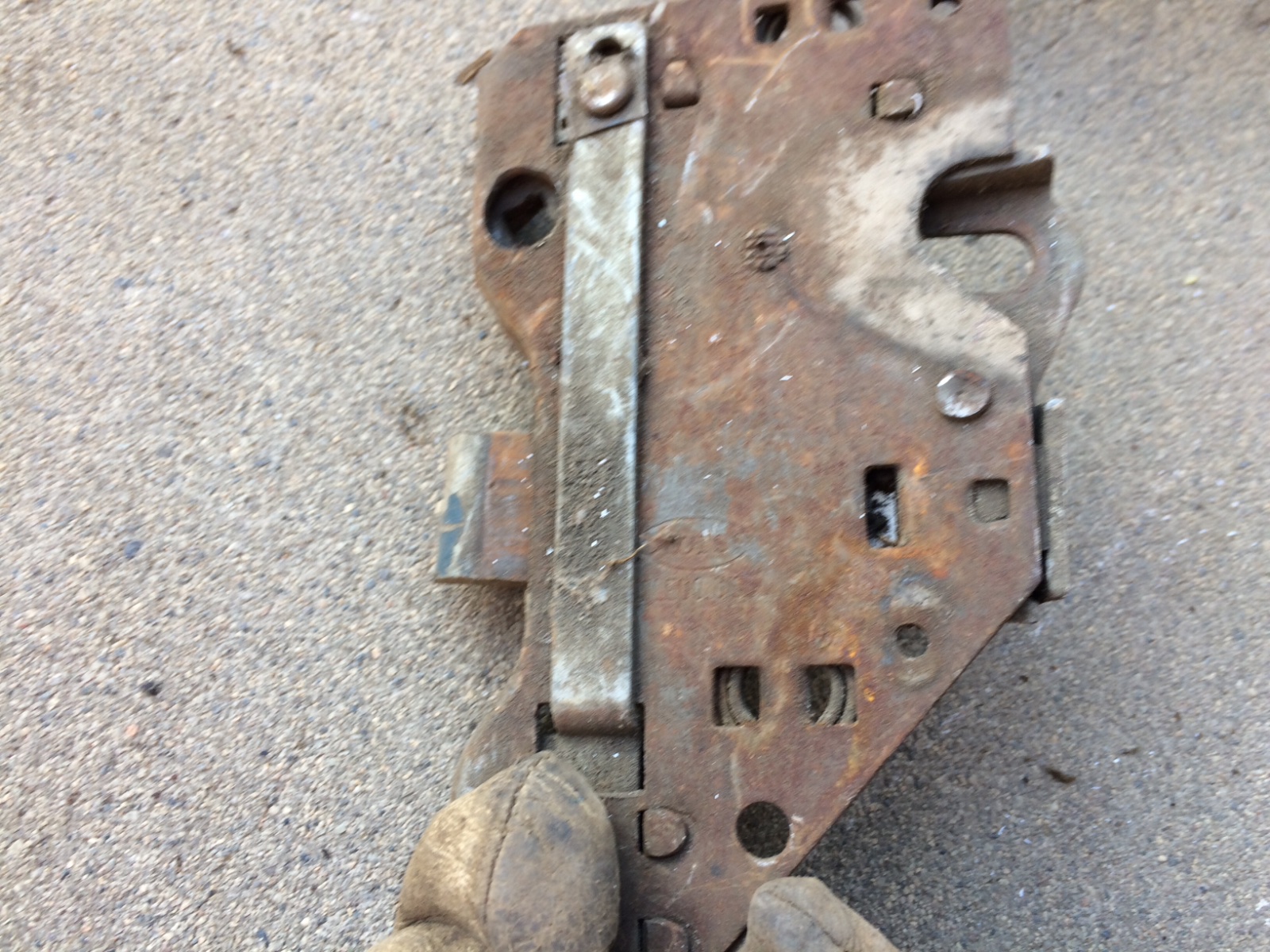

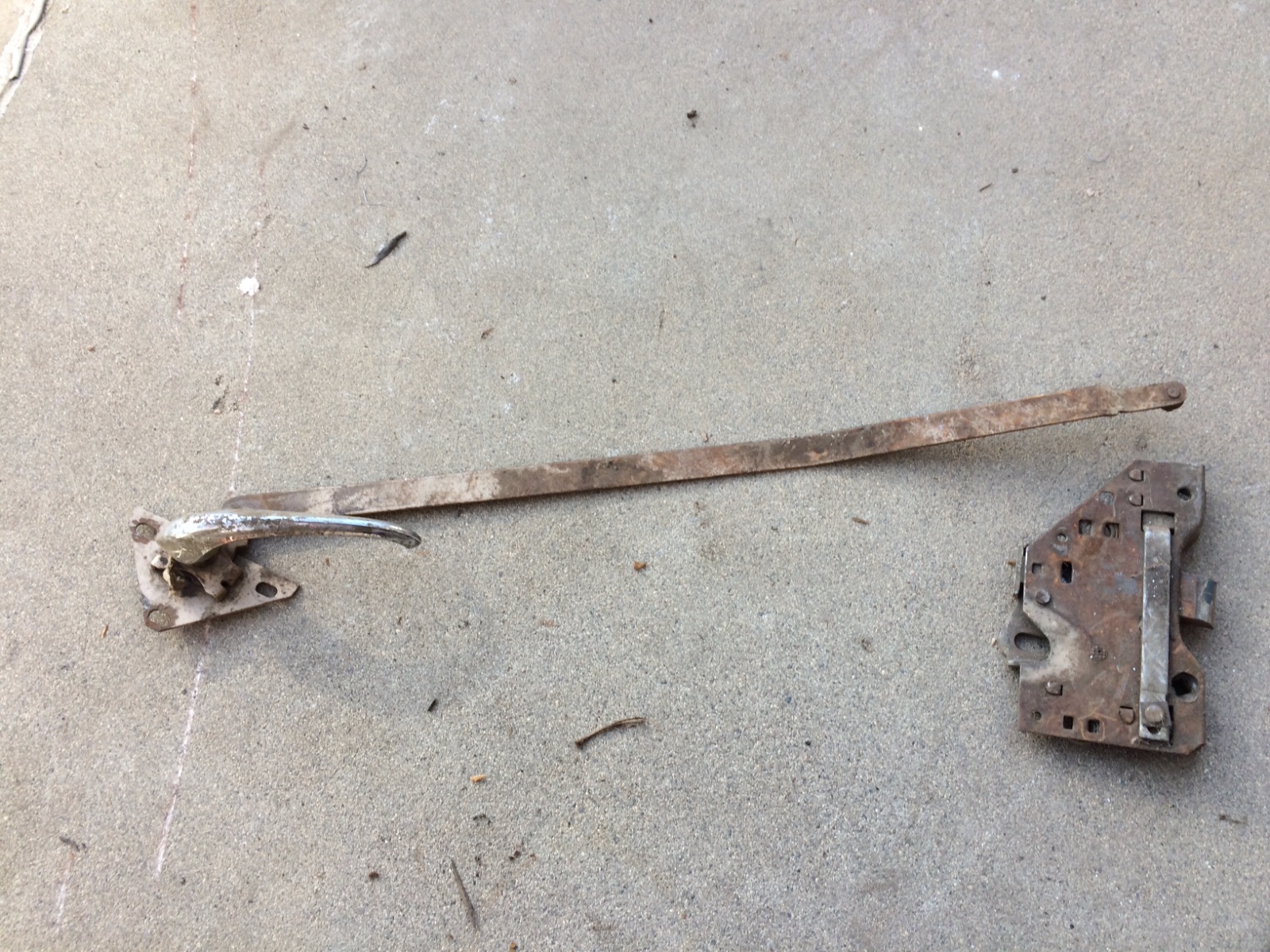

Door latch assembly’41 ford?
Attachments


Chris Haynes
Posts: 89
Joined: Tue Jun 25, 2019 8:00 pm
First Name: Chris
Last Name: Haynes
Location: North Hills. CA
Board Member Since: 2019

Re: Please Id theses parts that I got along with T parts I purchased

Post by Chris Haynes » Wed Nov 27, 2019 12:08 am

ThreePedalTapDancer wrote:
Sun Nov 24, 2019 2:45 pm
I forgot to add, that’s cleaned up and working price, but here is a link to the casting dates to tell exactly which year Harley transmission it is.
http://www.hydra-glide.com/joomla/index ... date-codes

You will find the date on the bottom near the mounting holes. The letter is the month, the number is the year. K7 will be Nov, 1947 for example.
That date code is for October 1947 so it is for a 1948 Big Twin Harley. You can't use the price that someone is asking on eBay to determine a value. Especially if that item has received no bids. If it was a as new, perfect condition if would be worth up to a thousand dollars. Lesser condition lowers the value. As you can see it is not complete and missing a lot of parts. It is not in a motorcycle for a reason. You don't remove a good transmission. It is NOT for a Knucklehead but is for a Panhead or UL model. The letter I was not used in transmission date codes as if could be mistaken for a number 1. Therefore it is not a November casting but October.

https://www.ebay.com/itm/Harley-Davidso ... Yq&vxp=mtr


ThreePedalTapDancer
Posts: 20
Joined: Sun Nov 24, 2019 2:29 pm
First Name: Ray
Last Name: M.
Location: California

Re: Please Id theses parts that I got along with T parts I purchased

Post by ThreePedalTapDancer » Wed Nov 27, 2019 7:59 am

It is a 1940 Harley transmission with an F0 casting mark. The transmission is for a knucklehead. The 47 transmission pictures were just reference.


Chris Haynes
Posts: 89
Joined: Tue Jun 25, 2019 8:00 pm
First Name: Chris
Last Name: Haynes
Location: North Hills. CA
Board Member Since: 2019

Re: Please Id theses parts that I got along with T parts I purchased

Post by Chris Haynes » Thu Nov 28, 2019 3:31 pm

ThreePedalTapDancer wrote:
Wed Nov 27, 2019 7:59 am
It is a 1940 Harley transmission with an F0 casting mark. The transmission is for a knucklehead. The 47 transmission pictures were just reference.
FO is for June of 1940. Most likely it wound up in a 1941 model as July was switch over month. These cases were made by an outside vendor. Had to be delivered to H-D. Be machined, assembled, transported to the final assembly line.

User avatar

Topic author
Matt in California
Posts: 331
Joined: Sun Jan 06, 2019 5:42 pm
First Name: Matt
Last Name: G
Location: California
MTFCA Number: 30697

Re: Please Id theses parts that I got along with T parts I purchased

Post by Matt in California » Fri Nov 29, 2019 3:30 am

I appreciate all the help! You never know what you will find in a pile of T parts! It takes a bunch of T nuts to know what every thing is.

Here is something else that I could not identify.

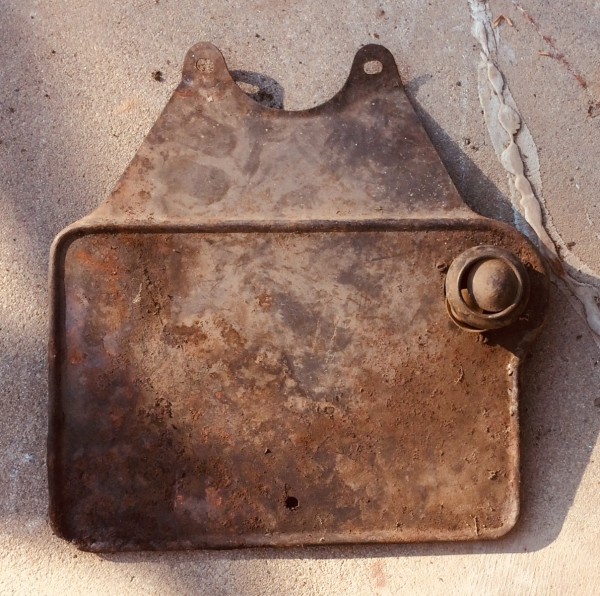

It is some sort of panel with a light.
Matt
