Need heip on front end alignment.

Post by Herb Iffrig » Sat Dec 14, 2019 11:34 pm

I am looking for that diagram of the front end alignment.
I have seen it before but don't know where to find it.

Thanks

Herb
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Need heip on front end alignment.

Post by TRDxB2 » Sun Dec 15, 2019 12:23 am

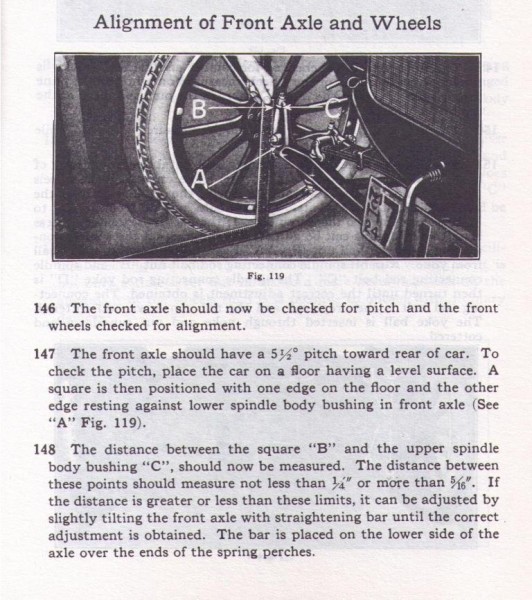

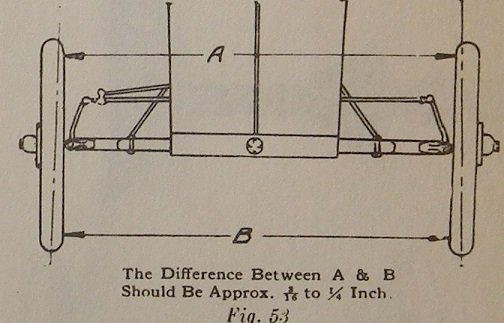

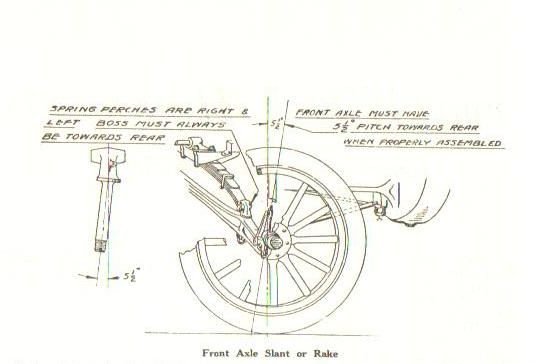

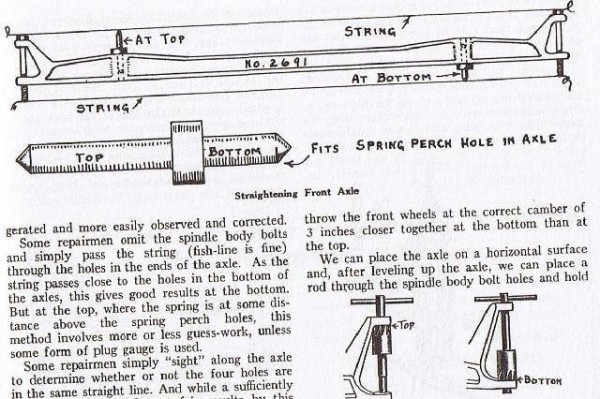

Front end alignment diagrams and some how to's
https://modeltfordfix.com/front-axle-al ... el-t-ford/
https://www.nwvs.org/Technical/MTFCA/Ar ... Wobble.pdf
fromt axel alignment specs.jpg
fromt axel alignment specs.jpg (24.9 KiB) Viewed 1946 times
