RAJO head questions

Post by PetefromTexas » Tue Dec 10, 2019 8:15 pm

Hey all, I have an opportunity to buy a RAJO head. After talking with a few people, we believe it is a model B or a C35 head. It missing the intake, exhaust etc. The rocker and valve assemblies are all there though. I can fabricate most everything but I’m most curious about pushrods. Are they available? Are they hard to find?

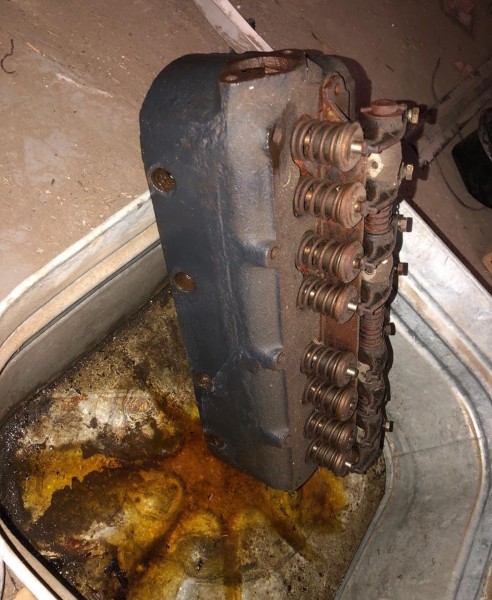

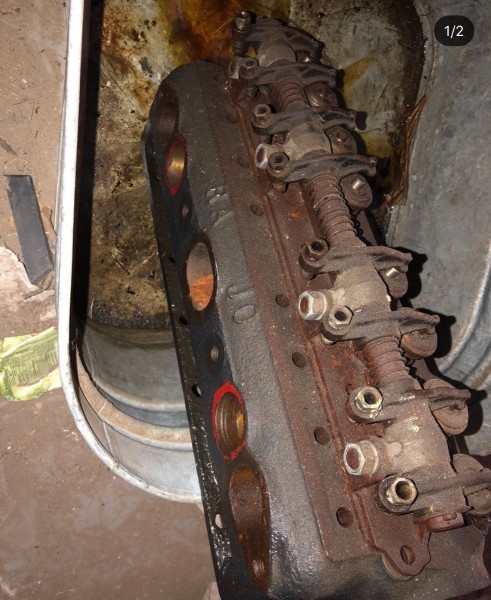

Here are a couple of pics. Waiting on more.
Attachments

User avatar

Henry K. Lee
Posts: 1765
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: RAJO head questions

Post by Henry K. Lee » Tue Dec 10, 2019 9:45 pm

Pete,

A lot of times it is easier to make your own from YB Ford blocks or early Chevy 216 with a removable ball cup. You then can get drill rod material and cut to fit to your own required length.


Hope this Helps,

Hank

User avatar

AndyClary
Posts: 100
Joined: Sun Jan 06, 2019 11:15 am
First Name: Andrew
Last Name: Clary
Location: Usa

Re: RAJO head questions

Post by AndyClary » Wed Dec 11, 2019 12:00 am

Mark Chaffin makes cups that screw into an adjustable lifter, then you can use a standard style pushrod you just need to determine the length.

Andy


Dan McEachern
Posts: 192
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: RAJO head questions

Post by Dan McEachern » Wed Dec 11, 2019 1:49 am

Just FYI, those are Ford 6 cylinder rockers- not original Rajo. They will need some work to get the geometry at the valve stem end to be even close to correct. Also, that's definitely not a B head.

User avatar

Henry K. Lee
Posts: 1765
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: RAJO head questions

Post by Henry K. Lee » Wed Dec 11, 2019 5:33 am

Good catch Dan, I was wonder that myself.

Hank


Kevin Pharis
Posts: 176
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA

Re: RAJO head questions

Post by Kevin Pharis » Wed Dec 11, 2019 11:34 pm

I’m certainly not the RAJO expert... but looks like a C-35 to me. Take a good look at the deck thickness of this, or any, overhead. They have a tendency to have an excessive amount of material removed to increase compression. This one appears to be a bit thin under the plugs, and the short flange too. Maybe someone can post the nominal head height for you to compare


wayne sheldon
Posts: 1213
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: RAJO head questions

Post by wayne sheldon » Thu Dec 12, 2019 3:52 am

More over-head valve heads for model Ts have been ruined by people milling them way too much in order to increase the compression, than almost anything other than being sent for scrap when they were cheap. The really sad thing is, easily half of them never got put onto an engine after they were milled. Many years ago, I knew several people that collected the dern things, and milled every one they ever bought. I met one fellow that had about twenty of the things on the shelf in his garage. He proudly proclaimed how he had milled every one of them! I think in the years I (more or less) knew him, he may have run two of the heads he owned.

User avatar

RajoRacer
Posts: 967
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: RAJO head questions

Post by RajoRacer » Thu Dec 12, 2019 10:51 am

Let us remember that "milling" & "surfacing" are normally two different operations - I wouldn't install any cylinder head without having it "kissed" on a Blanchard grinder.

User avatar

Susanne
Posts: 166
Joined: Sat Apr 13, 2019 6:06 pm
First Name: Susanne
Last Name: Rohner
Location: Northeastern California
MTFCA Number: 49765
MTFCA Life Member: YES
Board Member Since: 1999
Contact:

Re: RAJO head questions

Post by Susanne » Thu Dec 12, 2019 1:38 pm

Exactly. They did a demo in shop class this year on a head milling machine (using a modern, junked, cracked head) to show just how easy it is to overmill a head in to a water jacket. I also remember someone selling a stock T head that had been milled into the water jacket... :shock:

Remember, these parts were good off the shelf. If you feel the need to pu the CR, there's plenty of room to run domed pistons rather than carve away irreplacable metal. Just saying.

User avatar

Henry K. Lee
Posts: 1765
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: RAJO head questions

Post by Henry K. Lee » Thu Dec 12, 2019 2:16 pm

Well put folks on the over milling, Seen way to many destroyed to over the years.

Hank

User avatar

rnkugel
Posts: 26
Joined: Wed Feb 06, 2019 11:52 am
First Name: Reuben
Last Name: Kugel
Location: Pewaukee WI
MTFCA Number: 49871
MTFCI Number: 24323

Re: RAJO head questions

Post by rnkugel » Thu Dec 12, 2019 3:20 pm

My C-35 head has a lot more "meat" between the plug holes and bottom. Just saying.
1915 Touring
1926 RAJO Speedster


Kevin Pharis
Posts: 176
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA

Re: RAJO head questions

Post by Kevin Pharis » Thu Dec 12, 2019 10:04 pm

Kevin Pharis wrote:
Wed Dec 11, 2019 11:34 pm
Maybe someone can post the nominal head height for you to compare
Anybody???

User avatar

AndyClary
Posts: 100
Joined: Sun Jan 06, 2019 11:15 am
First Name: Andrew
Last Name: Clary
Location: Usa

Re: RAJO head questions

Post by AndyClary » Thu Dec 12, 2019 11:47 pm

I have a model 30 (AKA commercial) Rajo head. Single intake four exhaust ports. The thickness of the head at a head bolt boss is 4.660 inches. There is about a quarter inch between the surface to where the spark plug bump begins. I measured my Mark Chaffin Rajo and the head thickness is 4.690. Looking at the original post I would think it has been milled, maybe as much as .200" .

Andy


Tracer
Posts: 19
Joined: Tue Jan 08, 2019 8:23 pm
First Name: Andrew
Last Name: Webb
Location: Sydney
Board Member Since: 2007

Re: RAJO head questions

Post by Tracer » Fri Dec 13, 2019 1:19 am

I have several Rajos and I’m pretty sure that’s a model 30 or the commercial head


Jsteele
Posts: 34
Joined: Sun Jan 06, 2019 11:25 am
First Name: John P.
Last Name: Steele
Location: Montana
MTFCA Number: 374
MTFCA Life Member: YES
MTFCI Number: 137

Re: RAJO head questions

Post by Jsteele » Fri Dec 13, 2019 10:07 pm

It is definitely a "C". No bump out on drivers side and oblong or rounded rectangle center port. As mentioned before the rockers are not correct, but that is not uncommon.
