Failing carb adjustment rod intelligence test.

Post by ivaldes1 » Sat Dec 14, 2019 9:50 pm

Hi, I am failing the intelligence test of how to put the carb adjustment rod through the firewall. How does it go through that little slot? Fork side through or handle side through? How? At what angle? See pictures.
Attachments


tdump
Posts: 441
Joined: Sun Jan 06, 2019 7:00 pm
First Name: Mack
Last Name: Cole
Location: North Carolina

Re: Failing carb adjustment rod intelligence test.

Post by tdump » Sat Dec 14, 2019 9:55 pm

I failed that test twice. On the pickup I just cut the wedge thingy off and modified a bolt to be a knob on it.
If you can't help em, don't hinder em'


Scott_Conger
Posts: 2219
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Failing carb adjustment rod intelligence test.

Post by Scott_Conger » Sat Dec 14, 2019 10:00 pm

You're suffering from the Repro-Rod Connundrum.

Reshape the top end like original and it will hook in through open end and slip up into place from the engine side of things, unless you have one which is also made from too-large diameter rod. If so, do what you think is proper for your car.

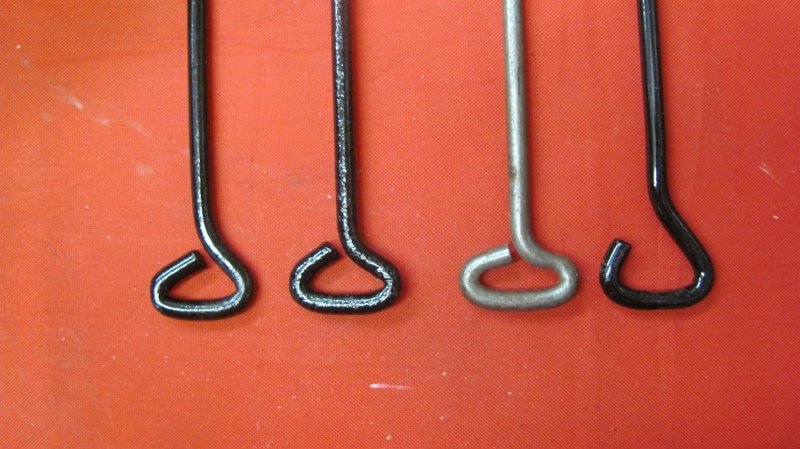

This photo courtesy of Dan Treace...the original is on the left and a bad repro is on the right:
Attachments
carb rod ends.jpg
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


d stroud
Posts: 729
Joined: Sun Jan 06, 2019 10:45 am
First Name: David
Last Name: Stroud
Location: Mound City, MO. 64470
Board Member Since: 2011

Re: Failing carb adjustment rod intelligence test.

Post by d stroud » Sat Dec 14, 2019 11:22 pm

I ran into the same thing on the '23TT years ago with the ropro rod. I finally just straightened out the handle end a bit till it would fit through the firewall and then bent it back. Worked for me. Dallas, have you tried to remove that rod yet? If so,and it wouldn't come out, now you know why. :lol: :lol: Dave
1925 mostly original coupe.
