Moore gearbox

Post by Tracer » Mon Dec 16, 2019 9:36 am

Hi All

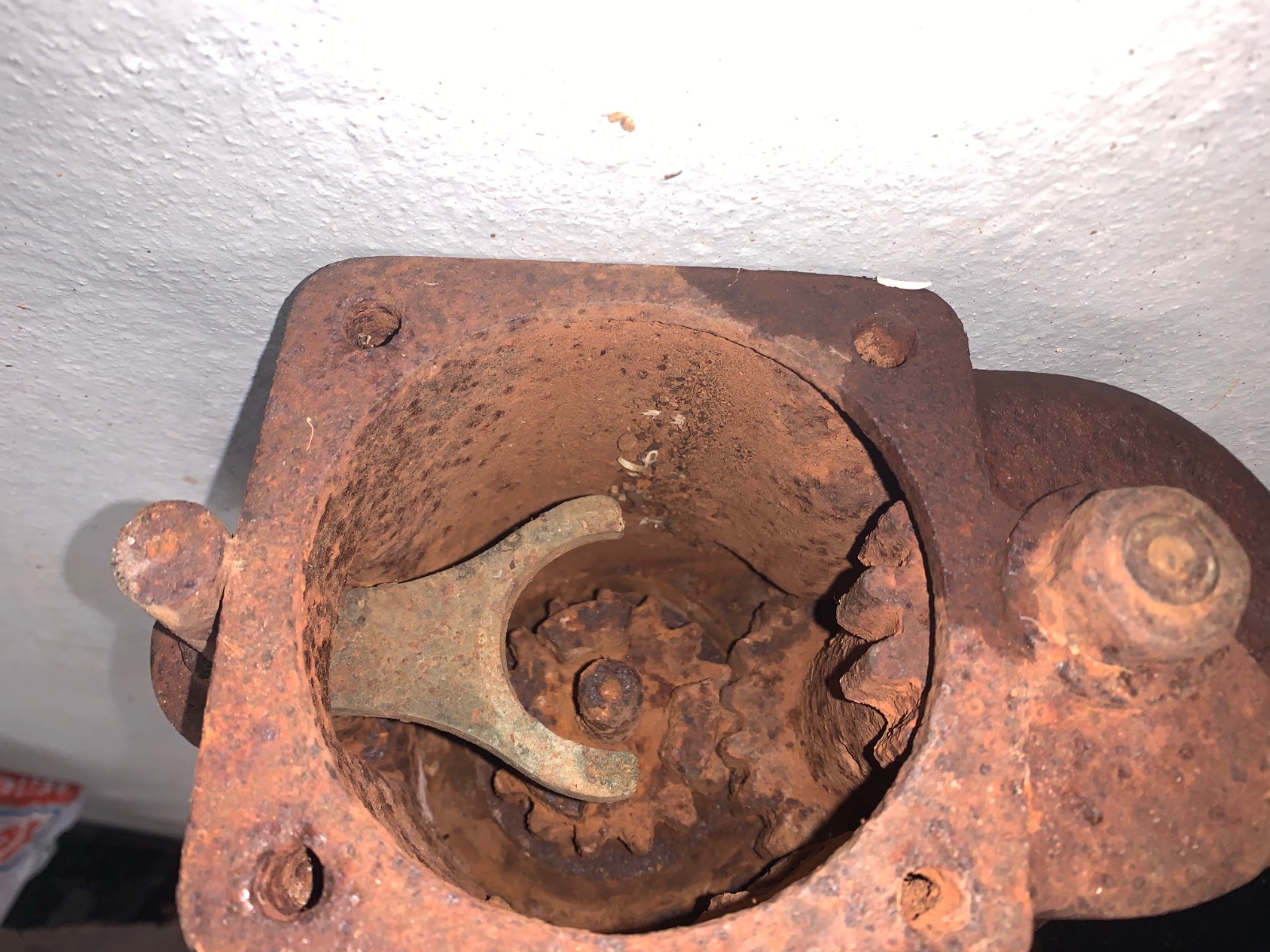

What type of Moore do I have here and what is missing please
Cheers
Andrew
Attachments

User avatar

DanTreace
Posts: 1764
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Board Member Since: 2000
Contact:

Re: Moore gearbox

Post by DanTreace » Mon Dec 16, 2019 9:50 am

Pinion section, shift rod and control lever.

IMG_4534 (660x490).jpg
IMG_4533 (650x589) (620x562).jpg
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Allan
Posts: 1997
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Moore gearbox

Post by Allan » Mon Dec 16, 2019 3:49 pm

The pinion bearing and housing are standard Ford items. You are missing the output shaft, driven gear and the selector dog.

Allan from down under.


RalphS in NE Oregon
Posts: 43
Joined: Sun Jan 06, 2019 2:23 pm
First Name: Ralph
Last Name: Swinehart
Location: Enterprise, Oregon
MTFCA Number: 1386
MTFCI Number: 20289

Re: Moore gearbox

Post by RalphS in NE Oregon » Mon Dec 16, 2019 8:53 pm

Andrew,
I have a Moore that is missing the output shaft as well, so if you find two let me know.
Jay in Northern Ca posted a very complete discussion of the Moore transmission on May 6, 2010. Lots of pictures so you will be able to see what is missing on yours.
Ralph


Topic author
Tracer
Posts: 62
Joined: Tue Jan 08, 2019 8:23 pm
First Name: Andrew
Last Name: Webb
Location: Sydney
Board Member Since: 2007

Re: Moore gearbox

Post by Tracer » Mon Dec 16, 2019 11:06 pm

Thank you all
I will look it up Ralph

User avatar

doodlebugt
Posts: 36
Joined: Sun Jan 06, 2019 3:46 pm
First Name: Bruce
Last Name: Csorba
Location: Melbourne, Australia

Re: Moore gearbox

Post by doodlebugt » Tue Dec 17, 2019 5:40 am

Hi Andrew,
Here's the link.
http://www.mtfca.com/discus/messages/11 ... 1273229770
I have Moores I hope to use one day.
Bruce
Bruce Csorba
Melbourne, Australia

15 4-spring Rajo racer
17 C-cab van
25 "Dalgety" Tourer
