NH Straight Through ID

Post by Mark Osterman » Sun Dec 22, 2019 9:39 pm

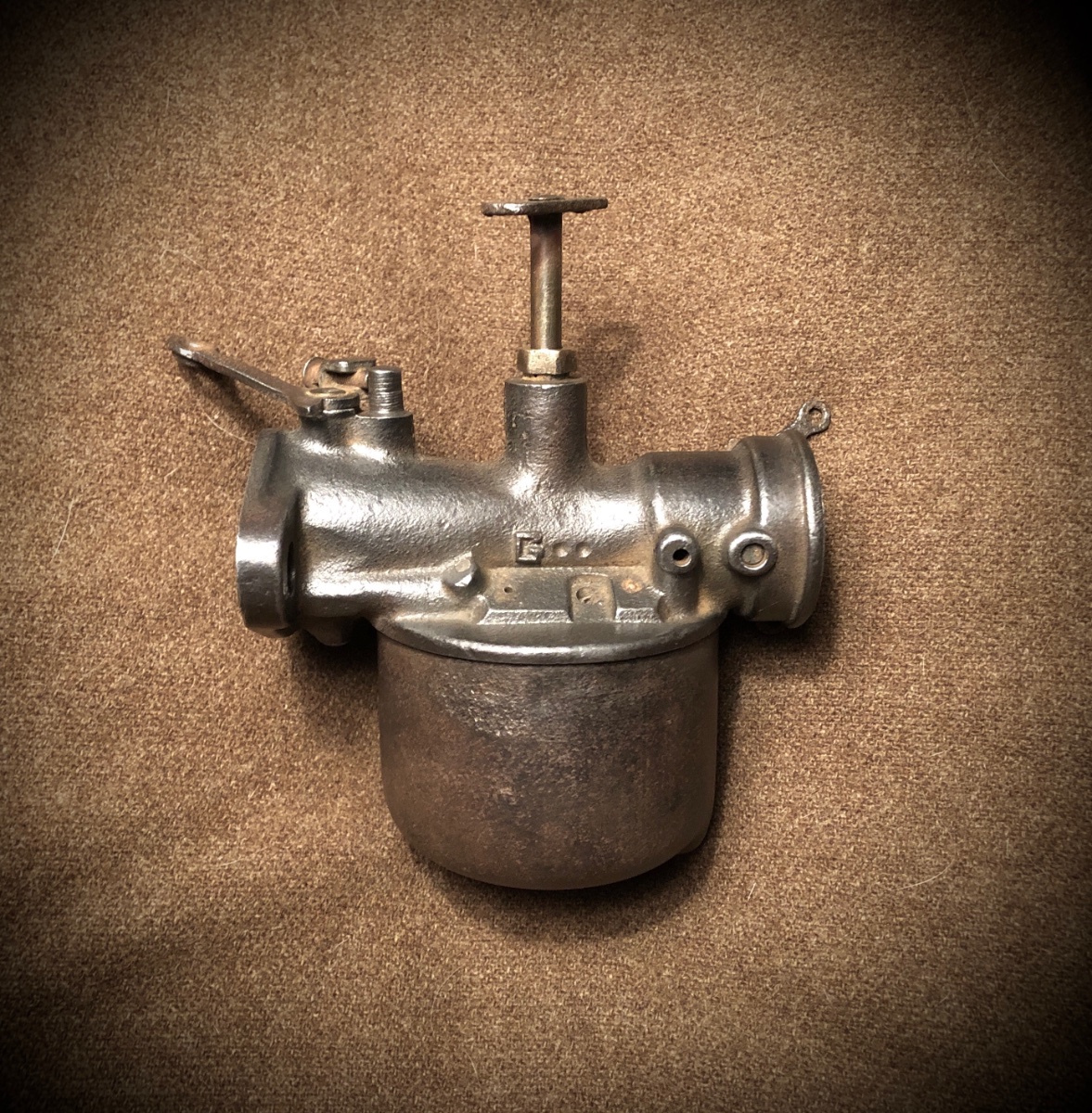

Went out today to buy a front axle assembly I found on Craigslist. There was also a nice frame and a rear axle for a TT, but I went for the front axle assembly. While I was there I found a straight through carburetor and bought that too.

I cleaned it up to evaluate the condition and found this cast-in letter G. Anyone know what that G means. The name plate was torn off.
Attachments


Kenny Edmondson
Posts: 70
Joined: Mon Jan 07, 2019 8:26 am
First Name: Kenny
Last Name: Edmondson
Location: Indianapolis, IN

Re: NH Straight Through ID

Post by Kenny Edmondson » Mon Dec 23, 2019 6:53 am

No idea on what the G means, but have seen it on quite a few of the Holley straight throughs.

User avatar

RajoRacer
Posts: 1024
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: NH Straight Through ID

Post by RajoRacer » Mon Dec 23, 2019 11:30 am

Most likely a casting identification - an "early" straight bore NH has cast throttle & choke arms & a brass button vent where the patent plate would be.


Allan
Posts: 948
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: NH Straight Through ID

Post by Allan » Mon Dec 23, 2019 6:42 pm

Mark, I think your find is a later version of the straigbt through NH. These had the name plate over the vent rather tban the screw in vent. Nice find.
Allan from down under.
