Jacking up a rear wheel: Does it matter which one?

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
User avatar

Topic author
Steve Jelf
Posts: 1917
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Jacking up a rear wheel: Does it matter which one?

Post by Steve Jelf » Tue Dec 31, 2019 3:38 pm

After I posted this video on FB this morning George Clipner wondered if it matters whether you jack up the left or right wheel. Now I'm wondering too. Does it matter?

https://youtu.be/lKERRm95ARI
The inevitable often happens.
1915 Runabout
1923 Touring


Norman Kling
Posts: 498
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: Jacking up a rear wheel: Does it matter which one?

Post by Norman Kling » Tue Dec 31, 2019 4:01 pm

I can't see why, because whichever wheel you leave on the ground will not move and the differential will cause the opposite wheel to turn. However, you would have slightly less friction if you jacked up both wheels.
Norm

User avatar

Kaiser
Posts: 269
Joined: Mon Jan 07, 2019 5:32 am
First Name: Leo
Last Name: van Stirum
Location: Netherlands
Board Member Since: 2016

Re: Jacking up a rear wheel: Does it matter which one?

Post by Kaiser » Tue Dec 31, 2019 4:19 pm

In my experience jacking up either front wheel doesn't do no good at all :mrgreen:

Happy New Year !
When in trouble, do not fear, blame the second engineer ! 8-)
Leo van Stirum, Netherlands
'23 Huckster, '66 CJ5 daily driver

User avatar

Ruxstel24
Posts: 1657
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
Location: NE Ohio
MTFCA Number: 50191
Board Member Since: 2018

Re: Jacking up a rear wheel: Does it matter which one?

Post by Ruxstel24 » Tue Dec 31, 2019 4:33 pm

I agree with Norm and Leo.... :D
I will add the important step of chocking the front wheel ! ;)


Russ T Fender
Posts: 121
Joined: Sun Jan 06, 2019 5:39 pm
First Name: Val
Last Name: Soupios
Location: Jupiter Florida

Re: Jacking up a rear wheel: Does it matter which one?

Post by Russ T Fender » Tue Dec 31, 2019 4:59 pm

With a bad back I often jack up a rear wheel to make cranking easier. I raise whichever wheel is most convenient at the time and have never noticed any difference. I keep a winter jack in each car and can easily raise a wheel using that. Key is chocking a front wheel on both sides of the wheel so it cant roll forward or back.

User avatar

Jeff5015
Posts: 58
Joined: Sat Jan 12, 2019 3:20 pm
First Name: Jeff
Last Name: Schroeder
Location: Pensacola FL
MTFCA Number: 50300
MTFCI Number: 87
Board Member Since: 2019

Re: Jacking up a rear wheel: Does it matter which one?

Post by Jeff5015 » Tue Dec 31, 2019 7:37 pm

As I understand it, in America and places with Left-hand drive (crank goes clockwise) you jack up the left rear wheel.
In England, Australia, etc. where they have Right-hand drive (crank turns counter-clockwise) you jack up the right rear wheel.
1916 Touring


bud delong
Posts: 209
Joined: Tue Feb 26, 2019 9:09 pm
First Name: Kenneth
Last Name: DeLong
Location: wheeler,Mi

Re: Jacking up a rear wheel: Does it matter which one?

Post by bud delong » Tue Dec 31, 2019 7:57 pm

I think the left rear would get you away from most of the exhaust?? :D Bud.

User avatar

Walter Higgins
Posts: 133
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Walter
Last Name: Higgins
Location: Realville, PA
MTFCA Number: 396
MTFCA Life Member: YES
MTFCI Number: 153

Re: Jacking up a rear wheel: Does it matter which one?

Post by Walter Higgins » Tue Dec 31, 2019 8:09 pm


User avatar

George N Lake Ozark
Posts: 205
Joined: Sun Jan 06, 2019 2:15 pm
First Name: George P
Last Name: Clipner
Location: LakeOzark,Missourah
MTFCI Number: 18665

Re: Jacking up a rear wheel: Does it matter which one?

Post by George N Lake Ozark » Tue Dec 31, 2019 11:05 pm

Well I guess someone mis advised me 👨 years ago Thanks for asking the question Steve.

User avatar

AndyClary
Posts: 109
Joined: Sun Jan 06, 2019 11:15 am
First Name: Andrew
Last Name: Clary
Location: Usa
MTFCA Number: 24057

Re: Jacking up a rear wheel: Does it matter which one?

Post by AndyClary » Tue Dec 31, 2019 11:35 pm

I agree with Leo, it has to be a rear wheel.

Andy


Roverdriver
Posts: 29
Joined: Mon Jan 07, 2019 1:24 am
First Name: Dane
Last Name: Hawley
Location: Near Melbourne, Victoria, Australia

Re: Jacking up a rear wheel: Does it matter which one?

Post by Roverdriver » Wed Jan 01, 2020 12:32 am

Clever idea Jeff5015, but no matter what part of the world they are, East or West, North or South, made in USA or made in Canada, T engines only run in a clockwise direction


BobShirleyAtlantaTx
Posts: 64
Joined: Mon Jan 07, 2019 12:44 am
First Name: Bob
Last Name: Shirley
Location: Atlanta Tx

Re: Jacking up a rear wheel: Does it matter which one?

Post by BobShirleyAtlantaTx » Wed Jan 01, 2020 8:51 am

OK , one must remember, a secure jack stand should be used in this procedure. By lifting the right rear wheel, putting the leaver in high gear and cranking over the engine thus spinning the right rear wheel, the air should become more turbulent on the carburetor side of the automobile which in theory would aid in atomization of the fuel. Thusly here in the Eastern area of Texas we are inclined to favor the raising the right rear. Of coarse the substitution of solid disk wheels diminishes the effectiveness, and thus with disk wheels, either side is acceptable.

User avatar

paddy1998
Posts: 36
Joined: Tue Feb 05, 2019 4:28 pm
First Name: Scott
Last Name: Delaney
Location: Joliet, Illinois

Re: Jacking up a rear wheel: Does it matter which one?

Post by paddy1998 » Wed Jan 01, 2020 10:34 am

I just jack up the right rear wheel with the handbrake in the center position, and the steering wheel turned all the way to the right so I only get run over by the left front wheel. :lol:

User avatar

John Warren
Posts: 542
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Jacking up a rear wheel: Does it matter which one?

Post by John Warren » Wed Jan 01, 2020 11:07 am

Leo has a very good point, and Bud has apparently had to remove a jack while the engine is running :lol: Be sure and block the front wheels. Now that the engine is running , in sorta neutral , emergency brake on half way, I mount the Beast and slowly , to keep the engine from stalling, push it into low for a few seconds to brake the clutch free , then let the low peddle up to neutral and slowly put the brake on . With the brake on and wheels stopped I pull the emergency brake all the way on! When the car is finally stable and running, I go after the jack and wheel chocks. Same applys to the starter cars except you can start from the seat. Love you Guys , Be Safe , Happy New Year !!
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P

User avatar

AndyClary
Posts: 109
Joined: Sun Jan 06, 2019 11:15 am
First Name: Andrew
Last Name: Clary
Location: Usa
MTFCA Number: 24057

Re: Jacking up a rear wheel: Does it matter which one?

Post by AndyClary » Wed Jan 01, 2020 11:12 am

Just asking. Do you Jack up a wheel due to the temp or from not adjusting a free neutral. I love in California and I think the coldest i have started my car is the high 30's. I've never had to jack up a wheel. It s a 14 runabout stem winder.

Andy

User avatar

Charlie B in N.J.
Posts: 248
Joined: Mon Jan 07, 2019 7:40 am
First Name: CHARLIE
Last Name: BRANCA
Location: Brick N.J.
MTFCA Number: 28967
Board Member Since: 2010

Re: Jacking up a rear wheel: Does it matter which one?

Post by Charlie B in N.J. » Wed Jan 01, 2020 11:13 am

Every one says this works but how about a plausible explanation as to why?
Forget everything you thought you knew.

User avatar

CudaMan
Posts: 521
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: Jacking up a rear wheel: Does it matter which one?

Post by CudaMan » Wed Jan 01, 2020 11:17 am

So that you don't have to fight the drag of thick oil between the high gear clutch plates. :)
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)


Moxie26
Posts: 113
Joined: Sun Jan 06, 2019 8:20 pm
First Name: Robert
Last Name: Jablonski
Location: New Jersey
MTFCA Life Member: YES
Board Member Since: 1999

Re: Jacking up a rear wheel: Does it matter which one?

Post by Moxie26 » Wed Jan 01, 2020 11:21 am

Back in the day, and today in 2020, if the oil in the crankcase is either of thick viscosity or if the air temperature is freezing, one would jack up the driver side rear wheel, put the speed lever into high gear, and then either crank or use the starter to start the engine. The reason for doing this was to gain flywheel momentum of the entire drive train system to help turn the engine over to start.

User avatar

Topic author
Steve Jelf
Posts: 1917
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Jacking up a rear wheel: Does it matter which one?

Post by Steve Jelf » Wed Jan 01, 2020 11:43 am

I suppose the flywheel effect may help, but the real reason is as Mark says. Cold oil makes the clutch sort of "in gear", so letting a wheel turn lets the engine turn without that resistance. You don't have to put the car in high gear. Neutral (handle straight up) is enough.
The inevitable often happens.
1915 Runabout
1923 Touring


Moxie26
Posts: 113
Joined: Sun Jan 06, 2019 8:20 pm
First Name: Robert
Last Name: Jablonski
Location: New Jersey
MTFCA Life Member: YES
Board Member Since: 1999

Re: Jacking up a rear wheel: Does it matter which one?

Post by Moxie26 » Wed Jan 01, 2020 12:58 pm

And to continue my post... After the engine starts and runs for awhile you can pull the speed lever back to neutral and that will break the bond between the high speed clutch plates.

User avatar

Hap_Tucker
Posts: 142
Joined: Sun Jan 06, 2019 4:58 pm
First Name: Hap
Last Name: Tucker
Location: Sumter, SC
MTFCA Life Member: YES

Re: Jacking up a rear wheel: Does it matter which one?

Post by Hap_Tucker » Wed Jan 01, 2020 1:17 pm

Back in the last century ... OK the middle to earlier last century before the days of routinely using multi-weight oils etc. it was very helpful to jack up the rear wheel. With the multi-weight oil is is not as critical -- but still helps if the temp is below 40 F or so. Below is from page 10 & 11 of Philip Van Doren Stern's "Tin Lizzie" where he shares a slightly different version of E.B. White's also used pen name Lee Strout White's "Farewell My Lovely". Complete article is available at: https://www.newyorker.com/magazine/1936 ... -my-lovely

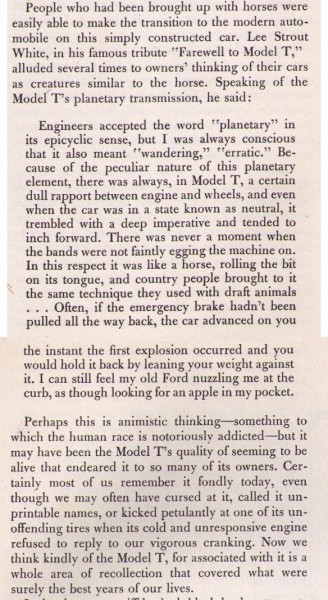

P-10 and 11 - T creeps.jpg
I like to jack up the wheel on the same side as the pedals/steering wheel. It is much easier for me to lean over and see that I have stopped the wheel from spinning when I apply the transmission brake. And that the wheel continues to stay stationary after I put the hand brake on and release the transmission brake.

Caution thread drift:

And if you want to have some fun when it isn't so cold -- change the oil to straight 30 weight. Have the T in good running order, and get it warmed up to the point where it is easy to start. But not fully warmed up -- as it tends not to want to creep as much if it has been driven a little.

Be in a wide open area -- clear of obstacles -- especially young kids. Be on smooth level ground. A little grass or dirt helps keep the car's speed slower. Put the car in neutral, (hand brake off). Don't chock the wheels. Retard the spark, advance the gas a little above idle, switch on, and go hand crank it. Step aside and let the car creep --- roll by you. As you learn this, have a qualified T driver in the front seat. But after you see how your car responds. You can do it without anyone in the car. (Be sure the gas lever isn't loose -- you don't want the throttle to open up.) And you can watch it roll off and then go catch it. It usually gets a good response from on lookers. And when I was in my teens our 1918 would usually give you a free start. And we would set it up for the free start. Put the switch to battery. Get out of the T and go hit the front fender. The spark would move just a little and the coil would get electricity. The engine would start and the car would start rolling slowly away (don't give it a lot of throttle). Caution -- don't loose your T. I can't do that any more as my knee goes out every now and then. And that would not end well if I couldn't catch the car as it went rolling away. And with a non-starter car -- it is even more impressive -- they usually would ask, "How did you do that."

Disclaimer -- I was a bullet proof teenager -- there are probably countless reasons that is a dumb idea. But I really had fun with that one.

Respectfully submitted,

Hap l9l5 cut off

User avatar

John Warren
Posts: 542
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Jacking up a rear wheel: Does it matter which one?

Post by John Warren » Wed Jan 01, 2020 1:54 pm

Always great to hear from you Hap, Love your wisdom. Happy New Year to you.
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P


bud delong
Posts: 209
Joined: Tue Feb 26, 2019 9:09 pm
First Name: Kenneth
Last Name: DeLong
Location: wheeler,Mi

Re: Jacking up a rear wheel: Does it matter which one?

Post by bud delong » Wed Jan 01, 2020 3:16 pm

Hap"s story reminded me of a mistake my dad made 60 years ago.Our crank start tractor liked to start with the spark advanced and the throttle wide open.Dad forgot to check if it was in gear and spun the crank!! He managed to jump clear but the F-20 had ran over a 3 section spike tooth drag,through the barb wire fence,and was in the middle of a 10 acere field before he could catch it!! Do what ever floats your boat! :oops: Bud.


Luke
Posts: 122
Joined: Fri Dec 13, 2019 1:04 am
First Name: Luke
Last Name: P
Location: New Zealand

Re: Jacking up a rear wheel: Does it matter which one?

Post by Luke » Wed Jan 01, 2020 3:54 pm

Jeff5015 wrote:
Tue Dec 31, 2019 7:37 pm
As I understand it, in America and places with Left-hand drive (crank goes clockwise) you jack up the left rear wheel.
In England, Australia, etc. where they have Right-hand drive (crank turns counter-clockwise) you jack up the right rear wheel.
Jeff,

Actually it's much easier for us down here - we just need to kinda hang off the crank to start, rather than stand on the ground and pull :lol:

User avatar

Jeff5015
Posts: 58
Joined: Sat Jan 12, 2019 3:20 pm
First Name: Jeff
Last Name: Schroeder
Location: Pensacola FL
MTFCA Number: 50300
MTFCI Number: 87
Board Member Since: 2019

Re: Jacking up a rear wheel: Does it matter which one?

Post by Jeff5015 » Wed Jan 01, 2020 4:30 pm

I kinda thought it was something like that, but had no proof.Thanks, Luke.
1916 Touring


Kohnke Rebabbitting
Posts: 133
Joined: Sat Jan 26, 2019 3:12 pm
First Name: Herman
Last Name: Kohnke
Location: Clare, Iowa

Re: Jacking up a rear wheel: Does it matter which one?

Post by Kohnke Rebabbitting » Wed Jan 01, 2020 6:17 pm

The Driver side wheel, should always be raised.

1. easy to see, if the wheel stopped, when the brake lever is pulled.

2. if the right wheel is used, you have to walk around the car to see the wheel, in many cases, just because the hand brake lever is pulled, doesn't mean the wheel stopped.

3. The most important reason is, if the left wheel is used, the drive train, consists of Drive shaft, Pinion, ring gear, axle, wheel.

If the right wheel is used, you have to go through the slack, of the spider gears, to the wheel. So when the power pulses happen, the wheel has a tendency to jump forward, and then backward to minimize, the Gyroscopic, or Flywheel effect.

Herm.


Alan Long
Posts: 76
Joined: Tue Jan 08, 2019 2:33 am
First Name: Alan
Last Name: Long
Location: Western Australia

Re: Jacking up a rear wheel: Does it matter which one?

Post by Alan Long » Thu Jan 02, 2020 1:36 am

Herm, us Aussies have the best of both worlds using your principle. Our drivers side wheel is also the right hand wheel.
Bonus!!! Personally, I’ve never had to raise any wheel to start our T’s as they all have a relatively “clean” neutral
(Well as far as Model T’s go anyway)
Alan


Kohnke Rebabbitting
Posts: 133
Joined: Sat Jan 26, 2019 3:12 pm
First Name: Herman
Last Name: Kohnke
Location: Clare, Iowa

Re: Jacking up a rear wheel: Does it matter which one?

Post by Kohnke Rebabbitting » Thu Jan 02, 2020 3:43 pm

OK, thanks, Alan, I don't have to do that any more either, I don't use Ford stock clutches.

Herm.

User avatar

Walter Higgins
Posts: 133
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Walter
Last Name: Higgins
Location: Realville, PA
MTFCA Number: 396
MTFCA Life Member: YES
MTFCI Number: 153

Re: Jacking up a rear wheel: Does it matter which one?

Post by Walter Higgins » Thu Jan 02, 2020 7:23 pm

Kohnke Rebabbitting wrote:
Wed Jan 01, 2020 6:17 pm

3. The most important reason is, if the left wheel is used, the drive train, consists of Drive shaft, Pinion, ring gear, axle, wheel.

If the right wheel is used, you have to go through the slack, of the spider gears, to the wheel. So when the power pulses happen, the wheel has a tendency to jump forward, and then backward to minimize, the Gyroscopic, or Flywheel effect.

Herm.
The Drive Shaft Bone is connected to the, Pinion Bone. The Pinion Bone is connected to the Ring Gear Bone. The Ring Gear Bone is connected to the Differential Case Bone.... whereby the spider is turned and drives the axles.

It doesn't matter whether the ring gear is placed left, right, or center -- both axles are driven off the spider.


Kerry
Posts: 286
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
Location: Rosedale Vic Australia

Re: Jacking up a rear wheel: Does it matter which one?

Post by Kerry » Thu Jan 02, 2020 9:49 pm

Spot on Walter, regardless of which wheel is on the ground the drive of the lifted one is 100percent through the spider gears.

User avatar

AndreFordT
Posts: 151
Joined: Sun Jan 06, 2019 12:25 pm
First Name: Andre
Last Name: Valkenaers
Location: Scherpenheuvel
MTFCA Number: 23792
MTFCI Number: 19330

Re: Jacking up a rear wheel: Does it matter which one?

Post by AndreFordT » Fri Jan 03, 2020 2:26 am

Just willing to wish you all a happy new year .

I add this to the discussion:
It makes no difference which wheel you lift up.
The movement of the drive shaft will always go the same way to the wheel that is lift up and will run forwards as the transmission is in low or high gear.
The only thing that will happen in the differential is that the lift up wheel will make the double of RPM as the differential housing.

Sometimes I use the lift up wheel to start the engine. No kick back. Just set your foot on one of the spokes and kick it.

Andre
Belgium

User avatar

Jeff5015
Posts: 58
Joined: Sat Jan 12, 2019 3:20 pm
First Name: Jeff
Last Name: Schroeder
Location: Pensacola FL
MTFCA Number: 50300
MTFCI Number: 87
Board Member Since: 2019

Re: Jacking up a rear wheel: Does it matter which one?

Post by Jeff5015 » Fri Jan 03, 2020 8:49 am

Alan Long wrote:
Thu Jan 02, 2020 1:36 am
Personally, I’ve never had to raise any wheel to start our T’s
Me too, Alan! I moved to Florida... No more thick oil or hard starting.
1916 Touring


Alan Long
Posts: 76
Joined: Tue Jan 08, 2019 2:33 am
First Name: Alan
Last Name: Long
Location: Western Australia

Re: Jacking up a rear wheel: Does it matter which one?

Post by Alan Long » Fri Jan 03, 2020 9:06 pm

If you view the action of the Differential centre, spider gears and axles from a different prospective, they are always
rotating unless your driving in a very straight line. Maximum “on road” speed / rotation difference when circling dictated by how fast you want to drive your T on full lock!! You will do your head in trying to work out direction and speed of the gear set
with one wheel raised.. Jeff, Florida sounds like a great move to me and with our Summer climate engine oils are still warm
the following morning is common. Alan

Post Reply Previous topicNext topic
