What have you done to your Model T in January?

Post by Steve Jelf » Thu Jan 09, 2020 12:07 am

Unless I missed it nobody else has done it, so I'll kick it off this month.

IMG_4586 copy.JPG

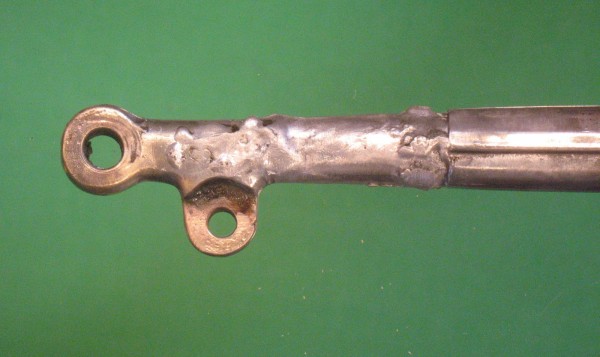

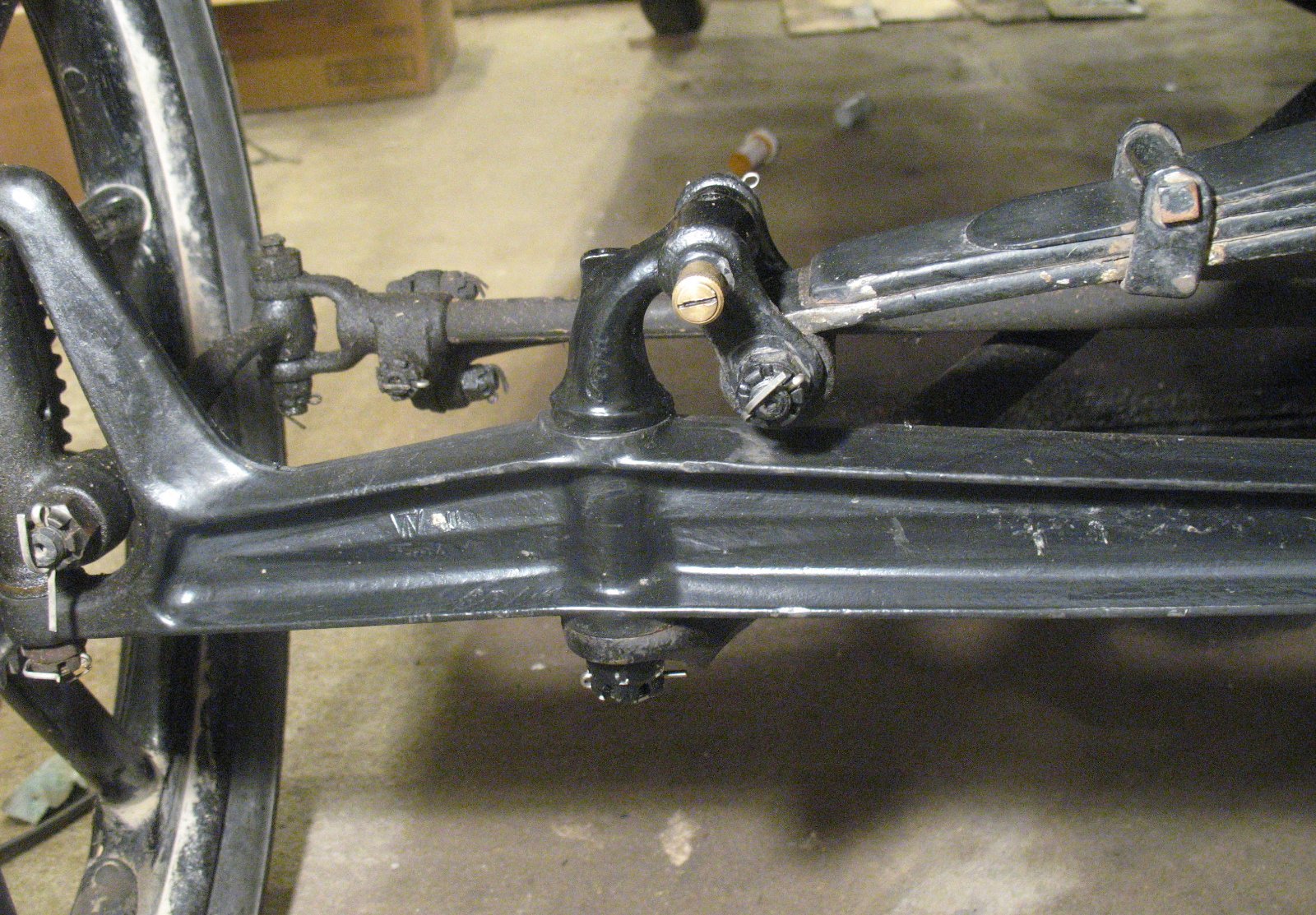

Today I got around to replacing my bad perch with the good one Phil Maurici gave me at OCF. Thanks Phil!

IMG_4588 copy.JPG

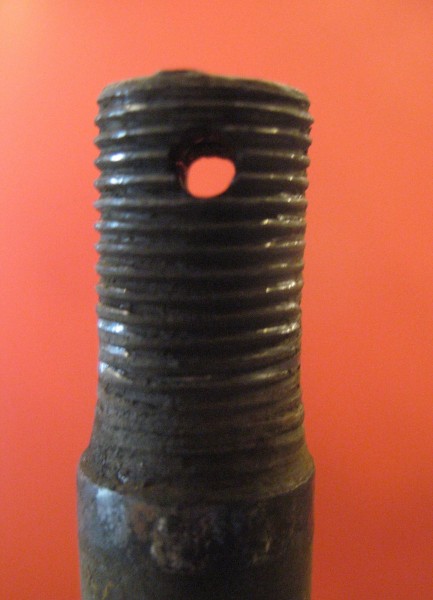

The old perch doesn't have enough threads left to hold a nut.

IMG_4584 copy.JPG

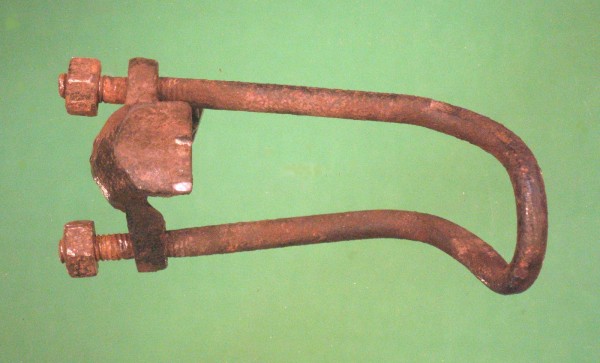

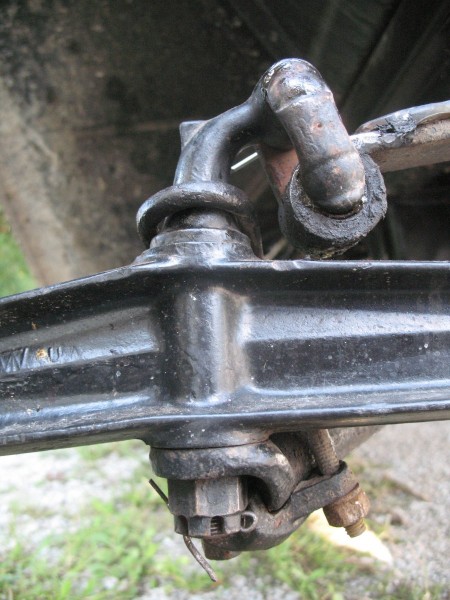

This is the accessory to apply when a perch nut is lost or won't hold. The bend at the top (right) end goes around the perch (on top of the axle) and the clamp goes under the wishbone.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

George N Lake Ozark
Posts: 207
Joined: Sun Jan 06, 2019 2:15 pm
First Name: George P
Last Name: Clipner
Location: LakeOzark,Missourah
MTFCI Number: 18665

Re: What have you done to your Model T in January?

Post by George N Lake Ozark » Thu Jan 09, 2020 12:22 am

Have a pic of how it attached

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Thu Jan 09, 2020 12:31 am

The inevitable often happens.
1915 Runabout
1923 Touring


Scott C.
Posts: 180
Joined: Sun Jan 06, 2019 11:44 am
First Name: Scott
Last Name: Clements
Location: Waynetown Indiana
MTFCA Number: 49592

Re: What have you done to your Model T in January?

Post by Scott C. » Thu Jan 09, 2020 1:05 am

Steve, That looks a lot better! Did the new perch fit good and snug in the axle bore? I was concerned that it might have been a little worn since it twisted around so easily. You were very lucky that day!! Glad I was able to help you get it patched up and back on the road. That was a lot more fun than the auction.

User avatar

HalSched
Posts: 83
Joined: Tue Jan 08, 2019 8:13 pm
First Name: Hal
Last Name: Schedler
Location: Sacramento
MTFCA Number: 16688
MTFCI Number: 19356
Board Member Since: 2005

Re: What have you done to your Model T in January?

Post by HalSched » Thu Jan 09, 2020 1:11 am

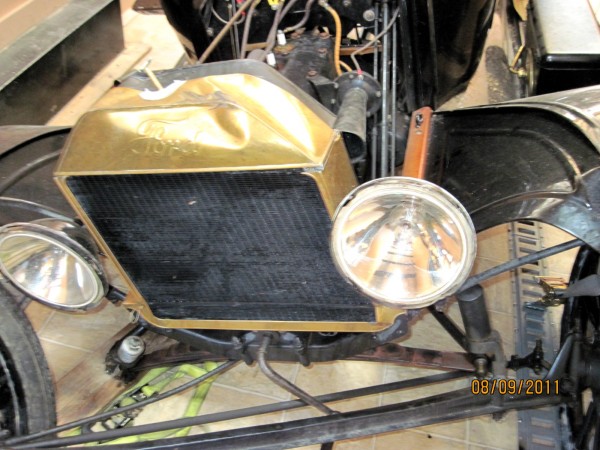

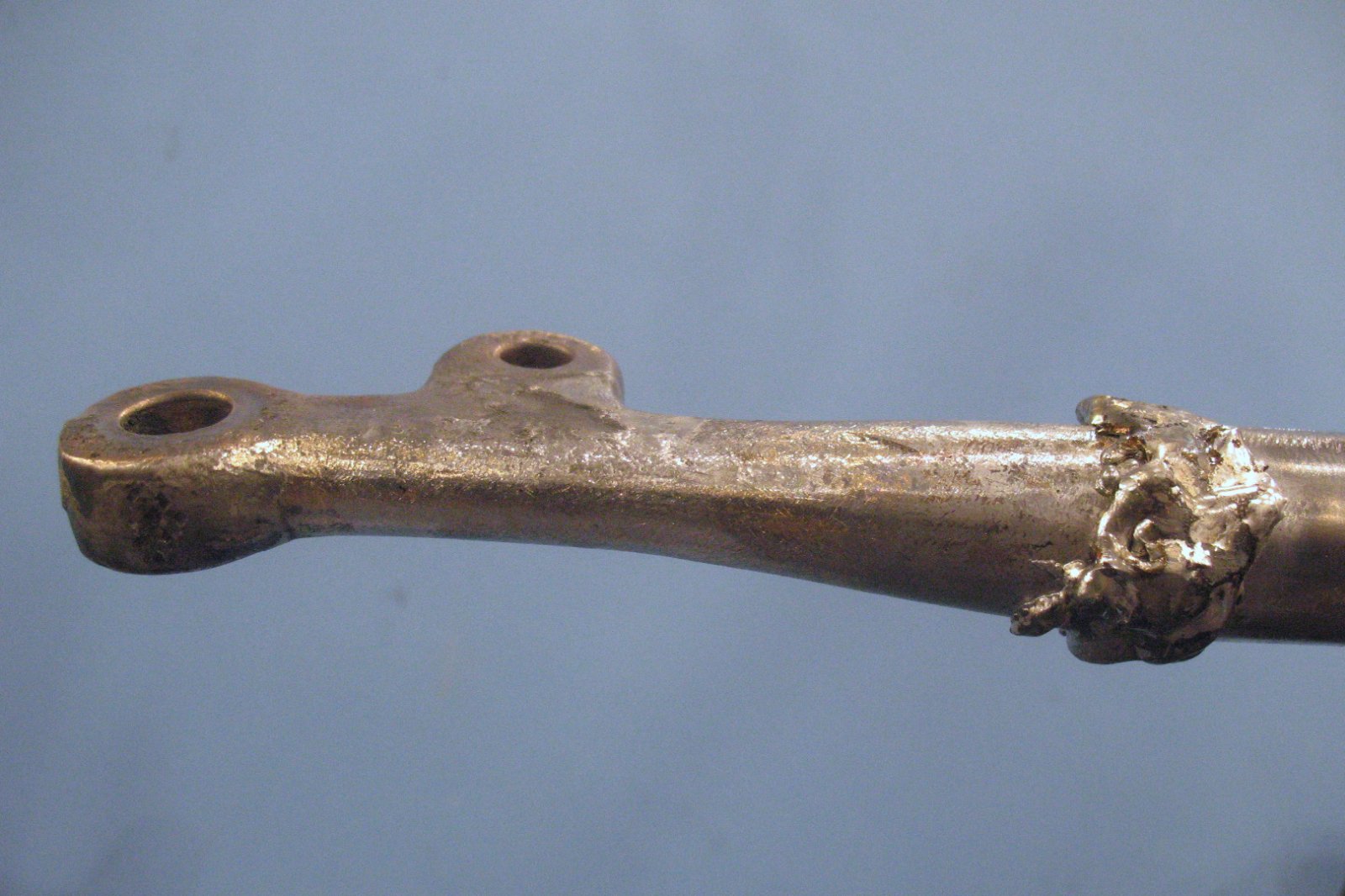

Be caeful about "jerry rigging" perches. A spring perch went away for Meeks and his prestine touring rolled and killed him. (The perch was aftermarket)
Jack 8-9-11 036.jpeg

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Thu Jan 09, 2020 1:23 am

That looks like a combination shock absorber/perch. It seems to me I've heard of more than one failure with those.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Jim_PTC_GA
Posts: 106
Joined: Sun Jan 06, 2019 1:18 pm
First Name: James
Last Name: Fisher
Location: Peachtree City GA
MTFCA Number: 32312
Board Member Since: 2016

Re: What have you done to your Model T in January?

Post by Jim_PTC_GA » Thu Jan 09, 2020 6:33 am

I'm so sorry to hear about the person having the T flip and kill him. There are so few of us left and drives home ( to me ) how dangerous these things can be. My prayers for the family and friends.

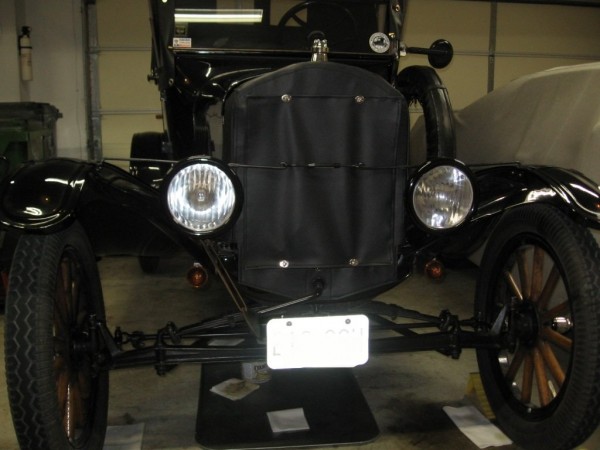

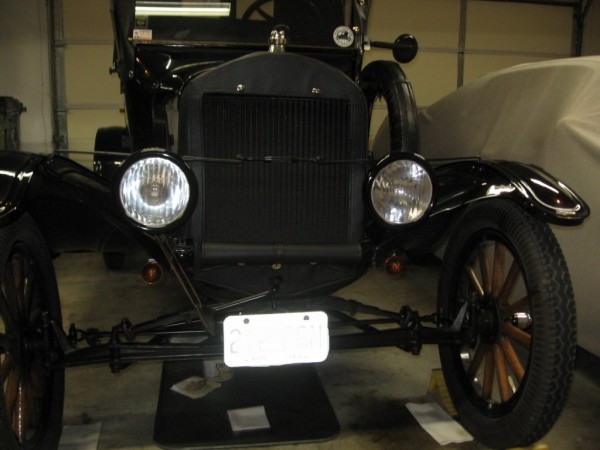

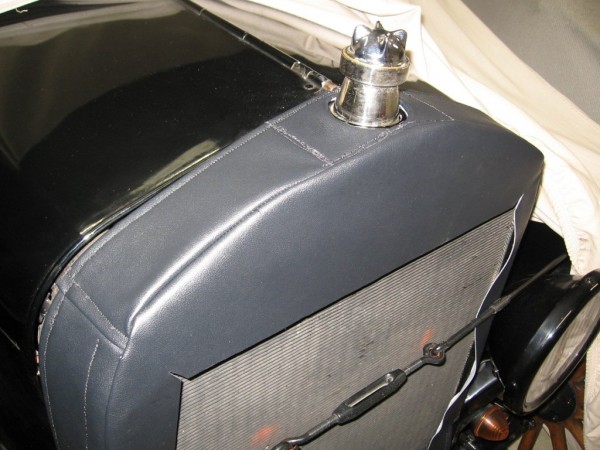

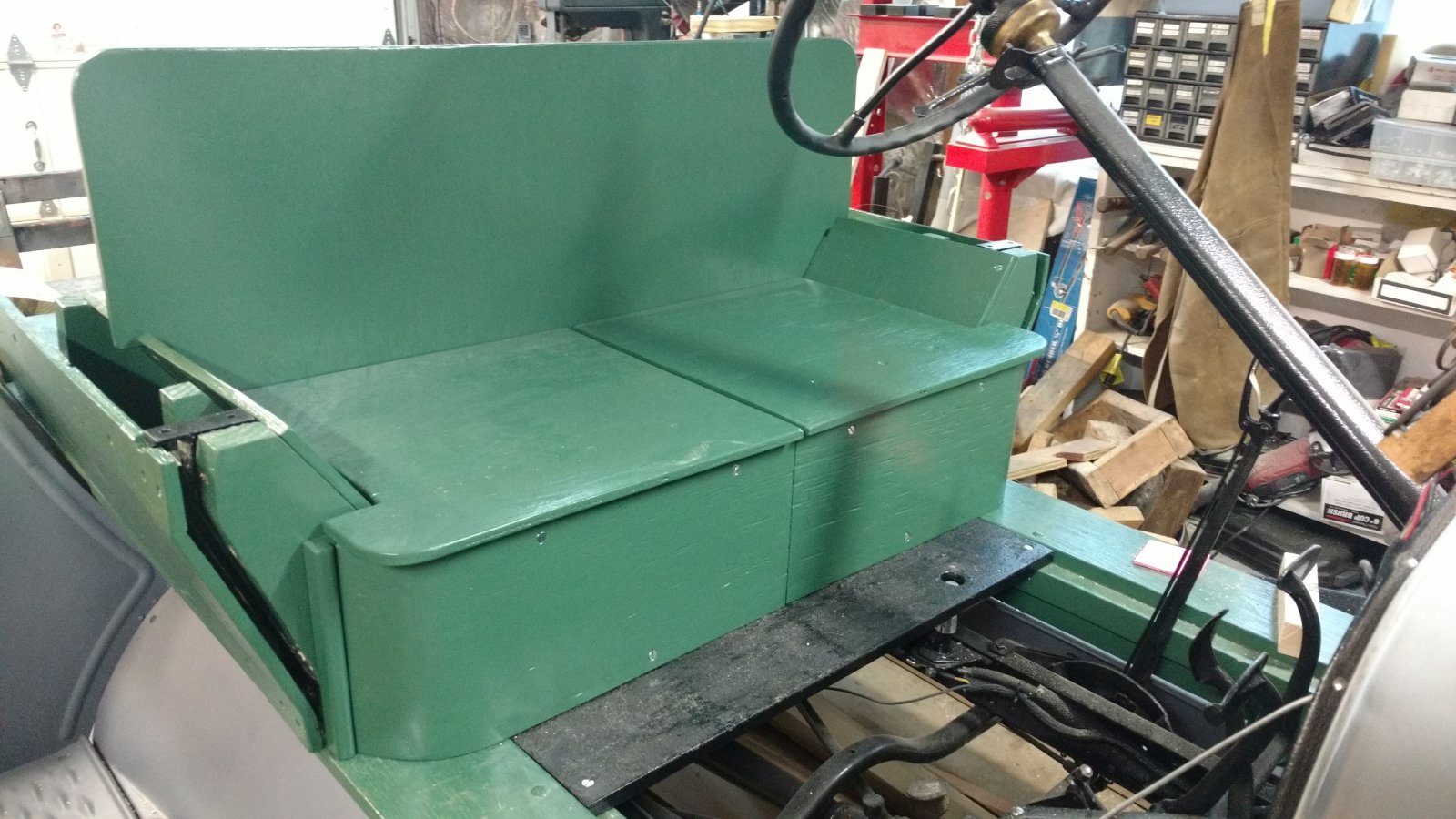

The holidays were a slow T time here. Between sickness and the holidays I didn't get much done. I finished up the frame work for the seating are and now will begin the upper parts and firewall of my T delivery/hack.
Attachments
Just give me time to Rust and I'll be good as new. :) Wabi-Sabi

User avatar

Mark Nunn
Posts: 242
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
Location: Bennington, NE
MTFCA Number: 50321
Board Member Since: 2017

Re: What have you done to your Model T in January?

Post by Mark Nunn » Thu Jan 09, 2020 8:46 am

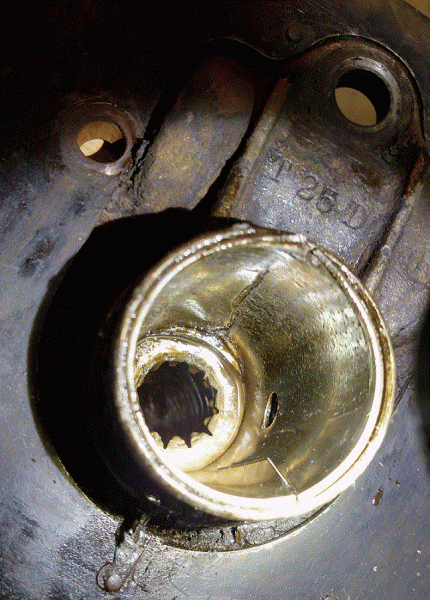

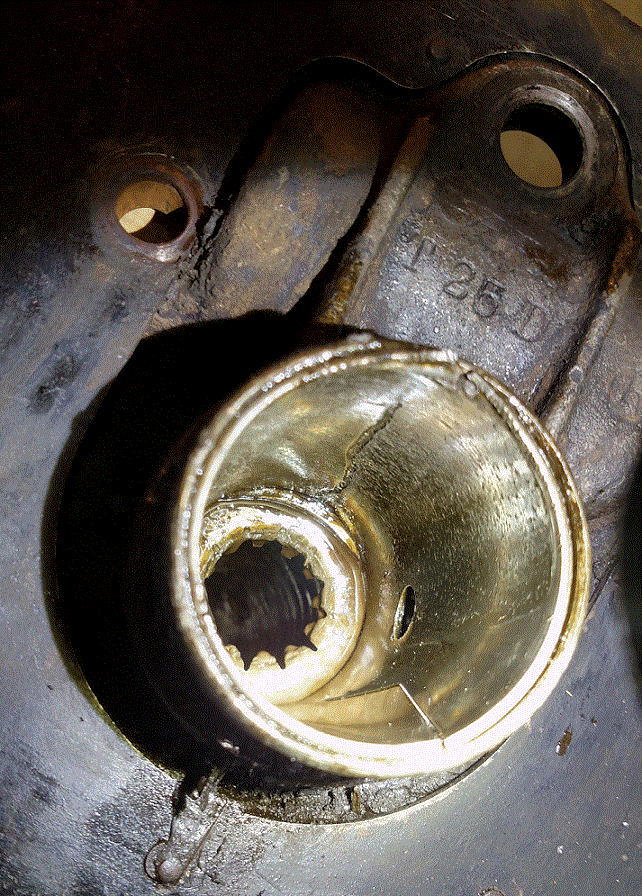

I'm disassembling two rear ends to make a good one for my car. It looks like this bearing sleeve is probably original. The upper surface is worn through and the "V" split is closed. My sleeve removal tool was not useful in this case. It took a hammer, chisel and vice grips to get this out.
outer axle sleeve.gif

User avatar

CudaMan
Posts: 566
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: What have you done to your Model T in January?

Post by CudaMan » Thu Jan 09, 2020 9:59 am

Yup, a crack and extruded material on top where the sleeve carries the weight of the car, pretty much normal wear.

Please be sure to replace that spring steel reinforced inner seal with the modern neoprene seal, those steel "fingers" can rub on the axle shaft, creating an area for cracks to form. :)
Attachments
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)

User avatar

RustyFords
Posts: 986
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: What have you done to your Model T in January?

Post by RustyFords » Thu Jan 09, 2020 11:10 pm

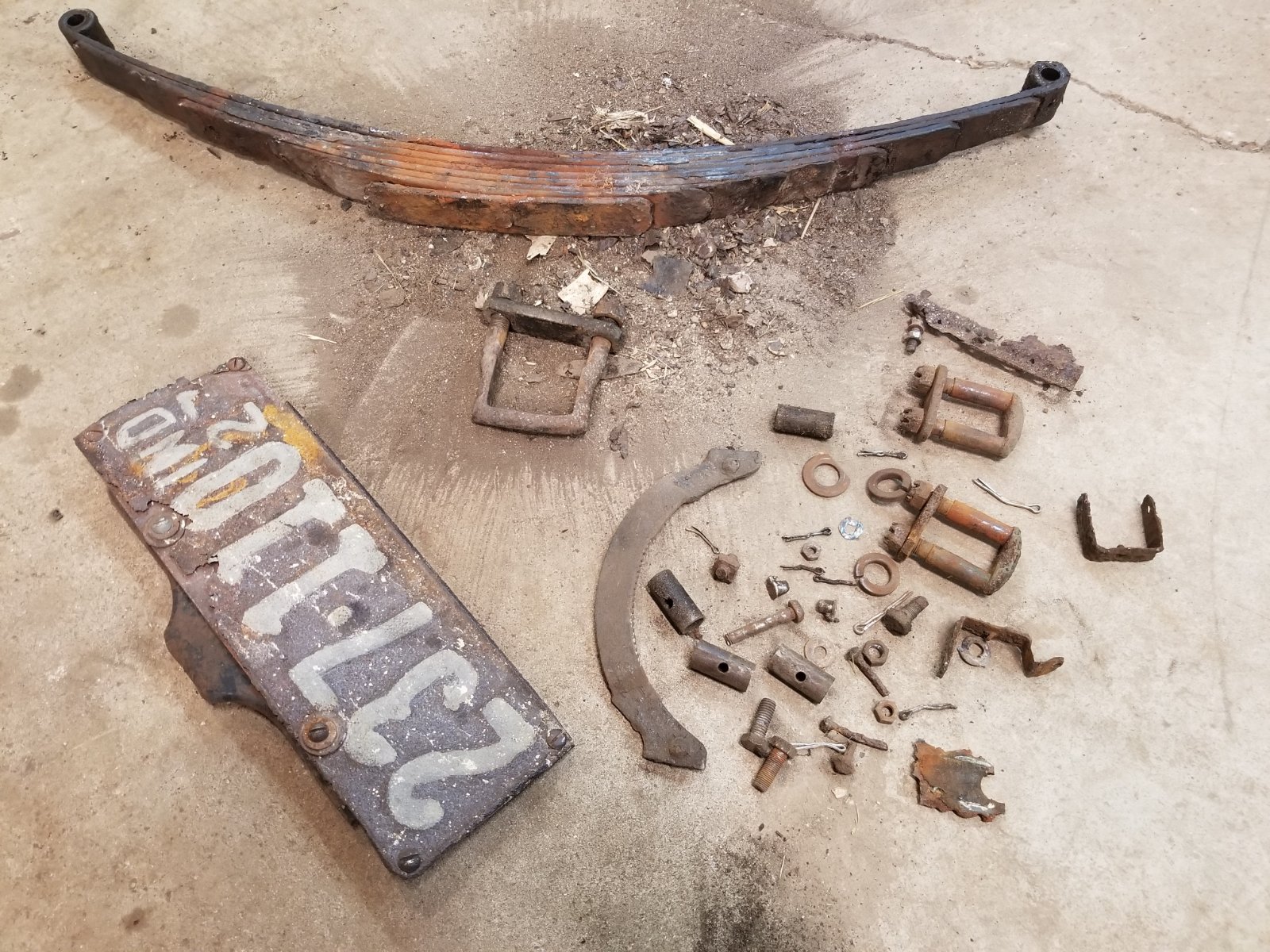

I'm replacing my front spring, perches, bushings, etc.

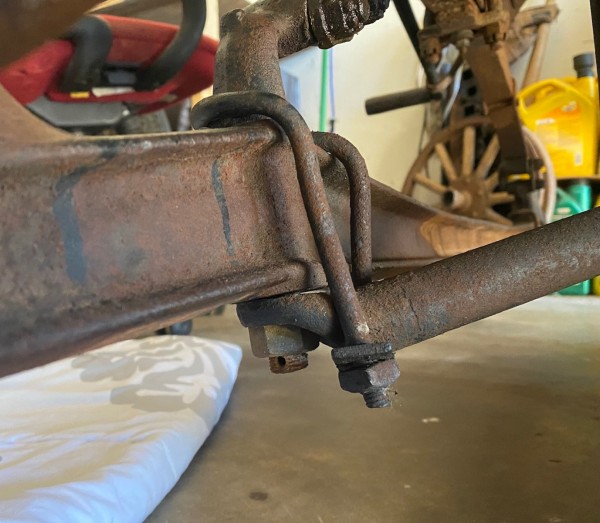

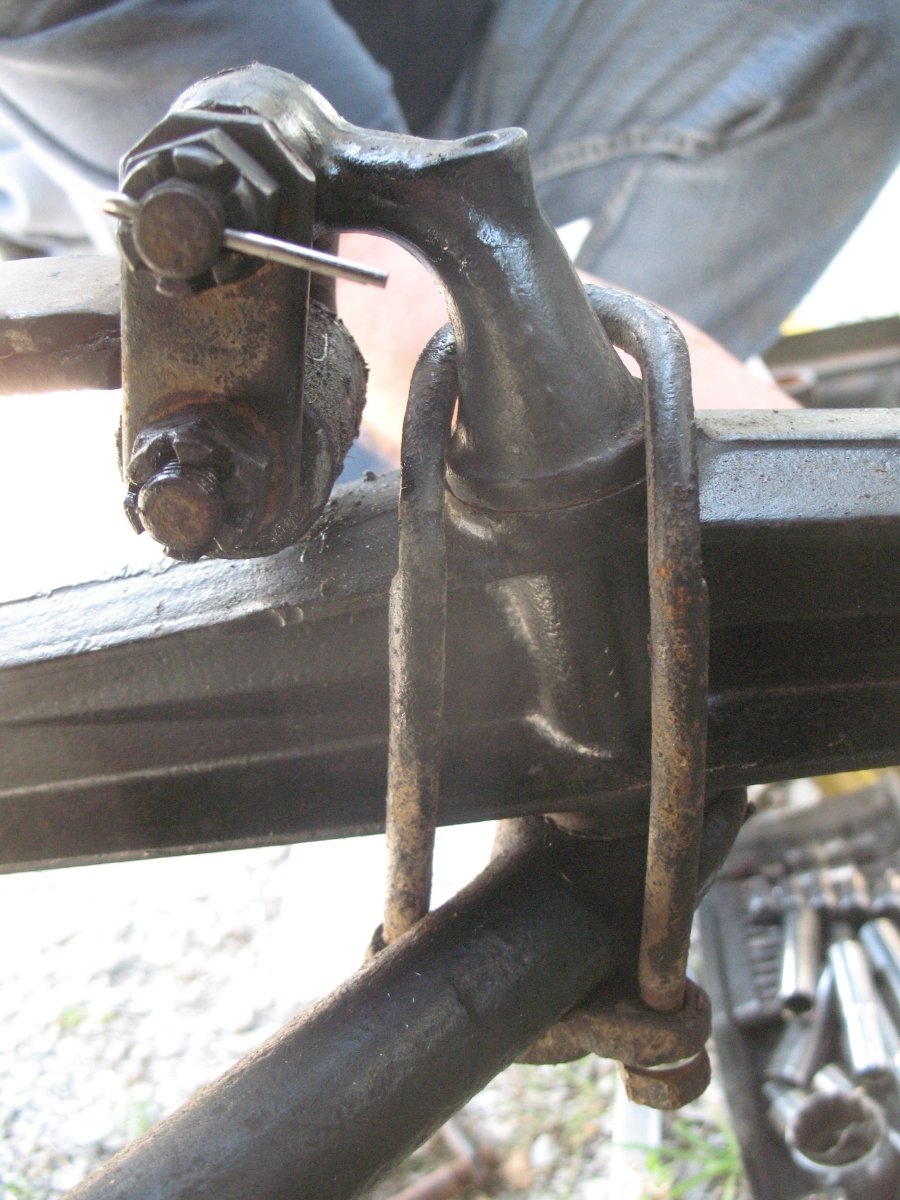

My car also had the same perch brace thingamabobs that Steve's car had, although Steve's looked like an actual aftermarket item. Mine looked homemade.
Attachments
1924 Touring

User avatar

Kaiser
Posts: 378
Joined: Mon Jan 07, 2019 5:32 am
First Name: Leo
Last Name: van Stirum
Location: Netherlands
Board Member Since: 2016

Re: What have you done to your Model T in January?

Post by Kaiser » Fri Jan 10, 2020 7:19 am

Hey Mark, those these newfangled free floating axles huh ? :)
When in trouble, do not fear, blame the second engineer ! 8-)
Leo van Stirum, Netherlands
'23 Huckster, '66 CJ5 daily driver

User avatar

CudaMan
Posts: 566
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: What have you done to your Model T in January?

Post by CudaMan » Fri Jan 10, 2020 8:03 am

:lol:
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)


Beaver1054
Posts: 38
Joined: Fri Jan 18, 2019 9:38 pm
First Name: Hector
Last Name: ESTEVES
Location: Texas
Board Member Since: 2001

Re: What have you done to your Model T in January?

Post by Beaver1054 » Fri Jan 10, 2020 11:41 am

Hello Steve here,

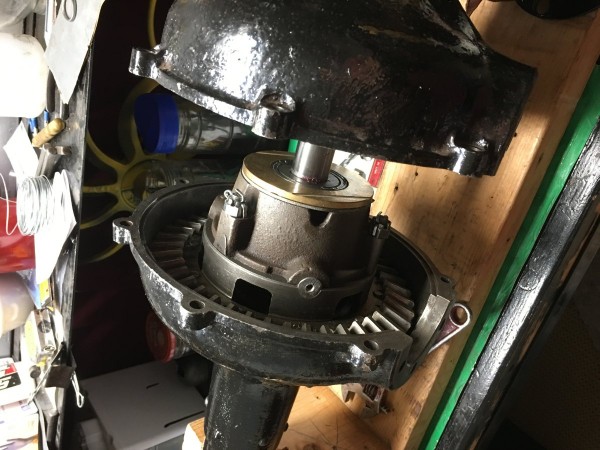

I have started to rebuild my 1926 rear axle. New sleeves, new axles, new brass thrust washers, new pins. Now I'm looking at the drive shaft.
I have a new brass bushing but I don't have the tool to remove the old one. I hate buying these expensive tools when I plan to use then once. On with the build!!!
Attachments

User avatar

Mark Nunn
Posts: 242
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
Location: Bennington, NE
MTFCA Number: 50321
Board Member Since: 2017

Re: What have you done to your Model T in January?

Post by Mark Nunn » Fri Jan 10, 2020 1:08 pm

Beaver1054 wrote:
Fri Jan 10, 2020 11:41 am
Hello Steve here,
I have started to rebuild my 1926 rear axle. New sleeves, new axles, new brass thrust washers, new pins. Now I'm looking at the drive shaft.
I have a new brass bushing but I don't have the tool to remove the old one. I hate buying these expensive tools when I plan to use then once. On with the build!!!

This link has good advice and shows a low-cost bushing removal method. I did as shown in the article and it was easy to remove the bushing.
https://modeltfordfix.com/rebuilding-the-drive-shaft/

I see that you used cotter pins in the differential housing nuts. Chaffins book shows that but the service manual says to wire the three nuts per paragraph 607 and figure 349.

Anyone want to weigh in on which is preferred?

User avatar

Jeff Perkins
Posts: 117
Joined: Sun Jan 06, 2019 4:40 pm
First Name: Jeff
Last Name: Perkins
Location: Lakeland MN
MTFCA Number: 10642
MTFCI Number: 17799
Board Member Since: 1999

Re: What have you done to your Model T in January?

Post by Jeff Perkins » Fri Jan 10, 2020 5:17 pm

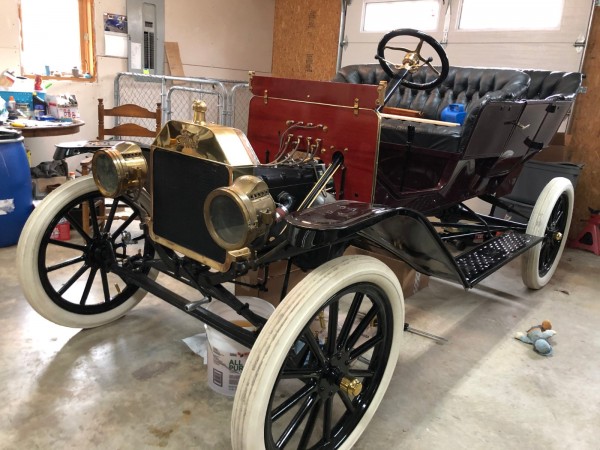

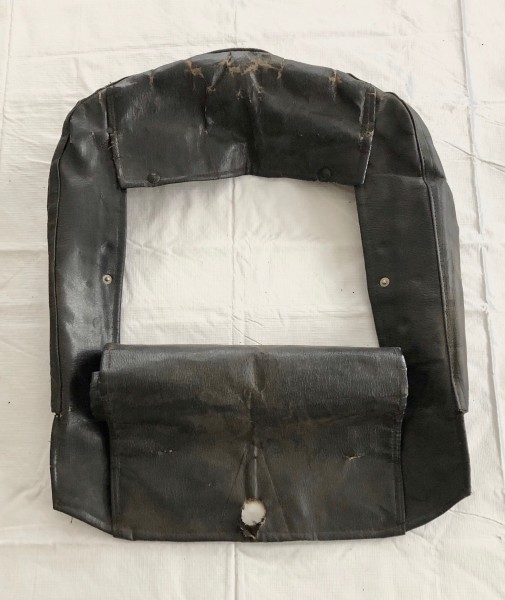

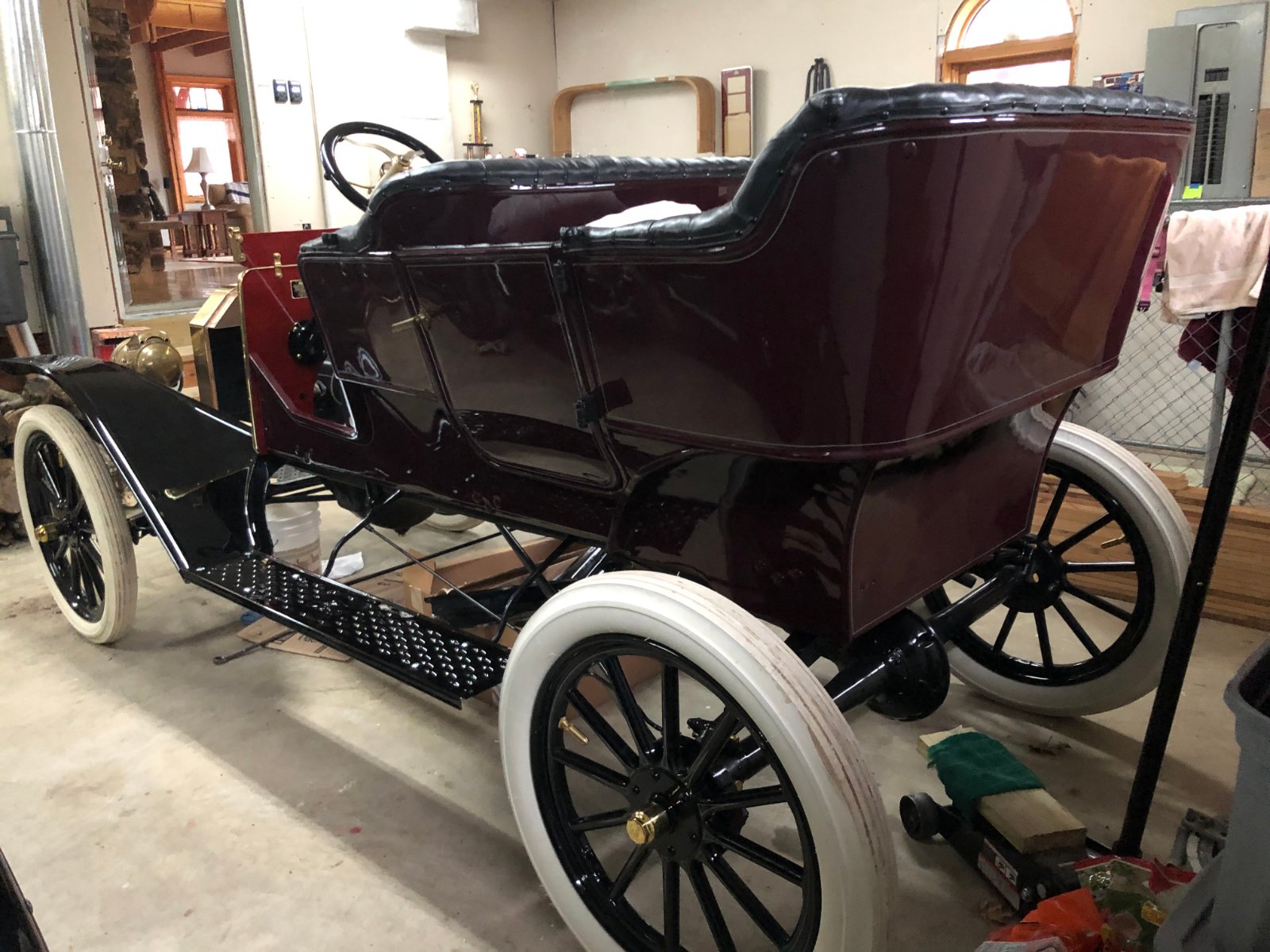

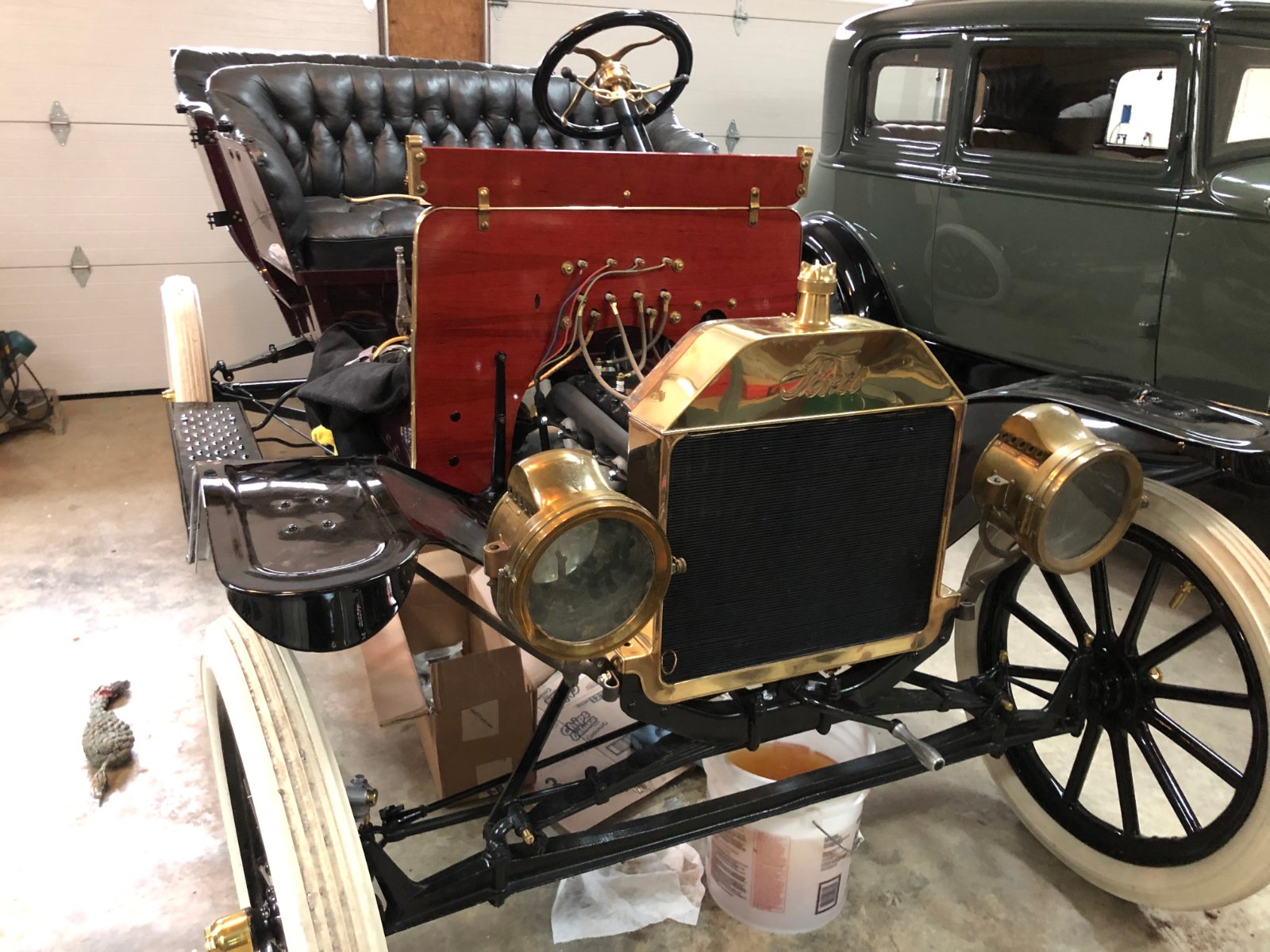

This past Wednesday I stopped by Classtique to see Mike and pick up my new top boot for my runabout. Fits perfectly.
Attachments
1913 Model T Runabout, 1930 Model A Tudor, 1991 Mazda Miata


got10carz
Posts: 114
Joined: Sun Jan 06, 2019 6:37 pm
First Name: Steve
Last Name: Meixner
Location: Moorhead MN
MTFCA Number: 28023
MTFCI Number: 20471

Re: What have you done to your Model T in January?

Post by got10carz » Fri Jan 10, 2020 8:42 pm

To answer Mark's question, if there are thru bolts, cotter pins are fine. If studs, safety wire.That is my opinion.


JEC
Posts: 74
Joined: Sun Jan 06, 2019 12:34 pm
First Name: John
Last Name: Cox
Location: Tucson, Arizona

Re: What have you done to your Model T in January?

Post by JEC » Fri Jan 10, 2020 9:02 pm

Steve is correct.
When you cotter pin a stud you turn it into an un safetied bolt.
I made an off field landing because of two studs that held the rocker stand to the head that had cotter pins.


blgitn
Posts: 68
Joined: Mon Jan 21, 2019 10:36 pm
First Name: Roger
Last Name: Harmon
Location: West Point, VA
MTFCA Number: 16412
Board Member Since: 2007

Re: What have you done to your Model T in January?

Post by blgitn » Fri Jan 10, 2020 10:01 pm

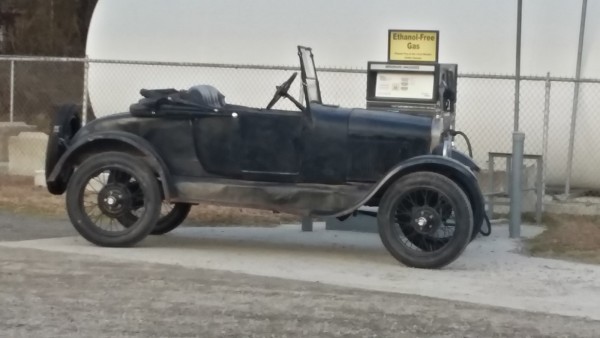

Well, I got some gas and went driving today. I'm going to do it again tomorrow too!
Attachments


dmdeaton
Posts: 186
Joined: Mon Oct 21, 2019 9:43 pm
First Name: Danny
Last Name: Deaton
Location: Ohio

Re: What have you done to your Model T in January?

Post by dmdeaton » Fri Jan 10, 2020 10:04 pm

My inspectors are checking my work

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Fri Jan 10, 2020 10:05 pm

... I got some gas and went driving...

That's what they're for. :)
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

varmint
Posts: 102
Joined: Mon Jan 07, 2019 2:02 pm
First Name: Vernon
Last Name: Worley
Location: New Orleans, LA
MTFCA Number: 49462
Contact:

Re: What have you done to your Model T in January?

Post by varmint » Fri Jan 10, 2020 10:08 pm

First post in eight months.

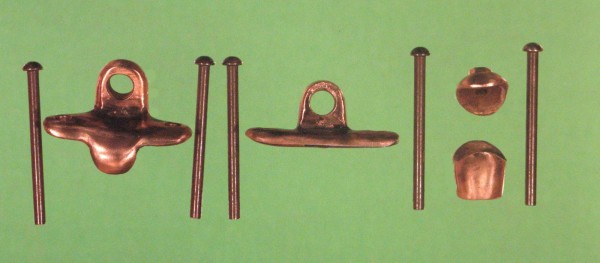

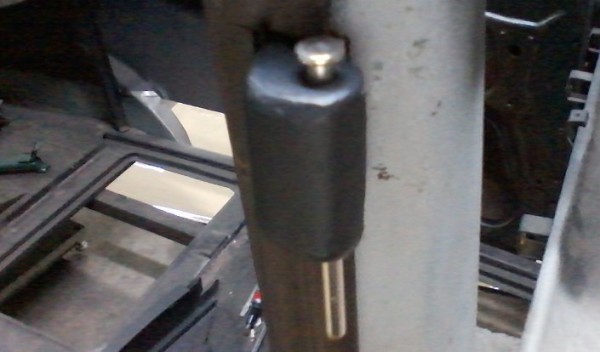

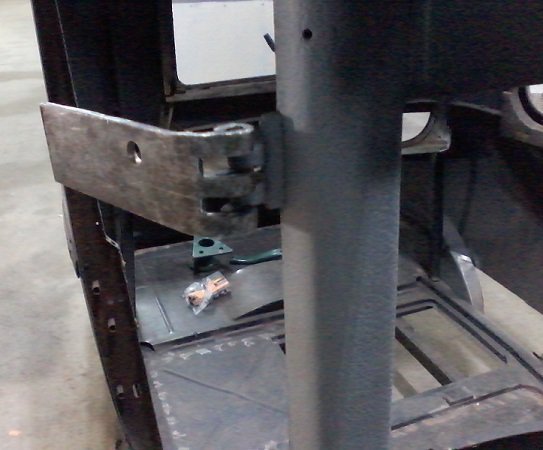

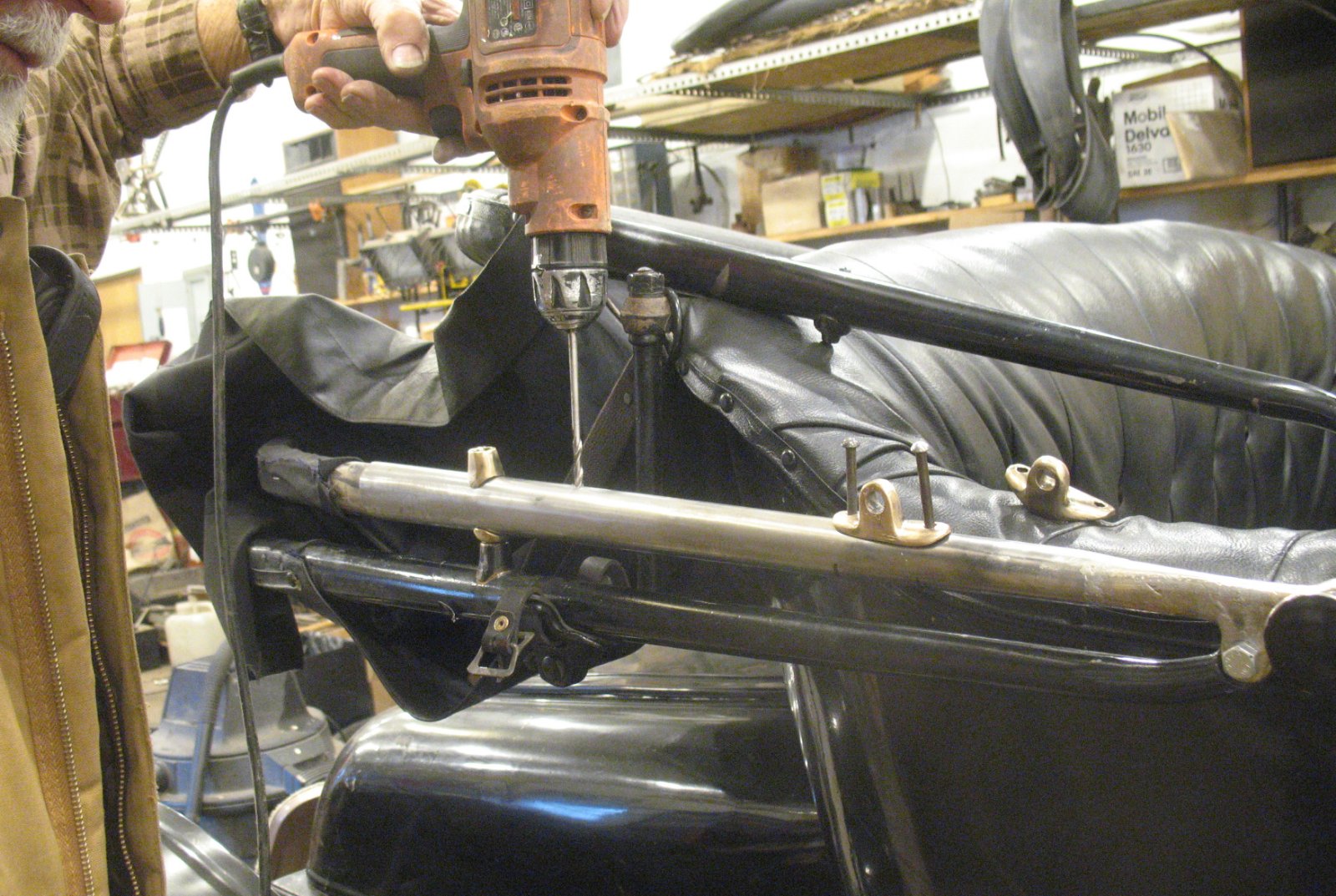

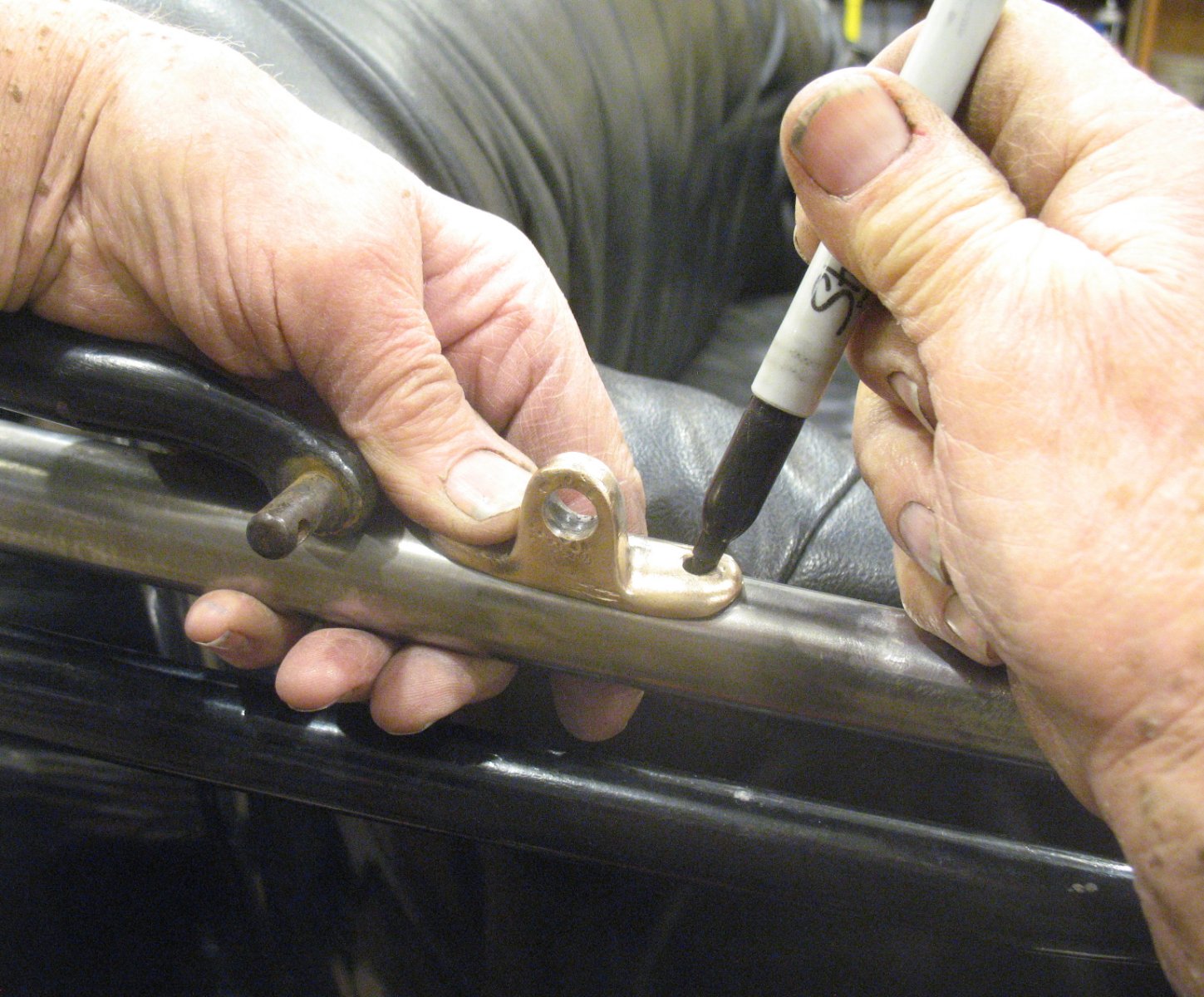

Making a top hinge from scrap steel.
Vern (Vieux Carre)


Dallas Landers
Posts: 1366
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: What have you done to your Model T in January?

Post by Dallas Landers » Fri Jan 10, 2020 10:21 pm

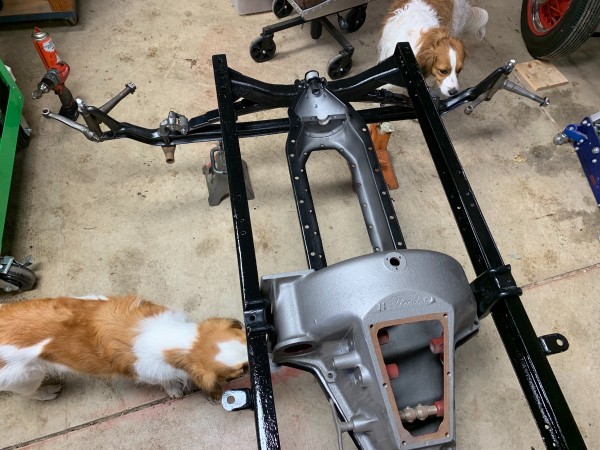

I tore down my frame. Maybe went too far?

User avatar

Chris Instness
Posts: 51
Joined: Sun Jan 06, 2019 6:49 pm
First Name: Christopher
Last Name: Instness
Location: Roseville, Ca

Re: What have you done to your Model T in January?

Post by Chris Instness » Fri Jan 10, 2020 11:24 pm

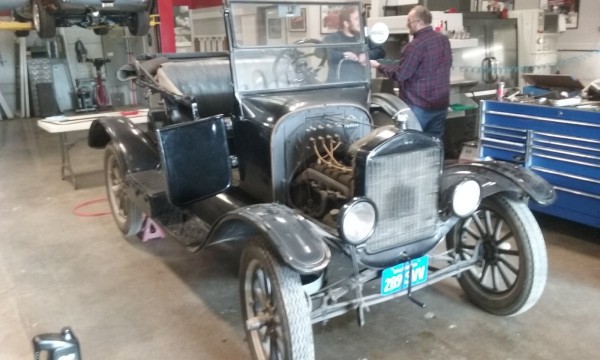

We'll this one is not my T, but I helped some friends at a local shop get this 25 roadster running and driving after a several decade long hibernation.
Attachments


Beaver1054
Posts: 38
Joined: Fri Jan 18, 2019 9:38 pm
First Name: Hector
Last Name: ESTEVES
Location: Texas
Board Member Since: 2001

Re: What have you done to your Model T in January?

Post by Beaver1054 » Sat Jan 11, 2020 1:45 am

Thanks Mark,

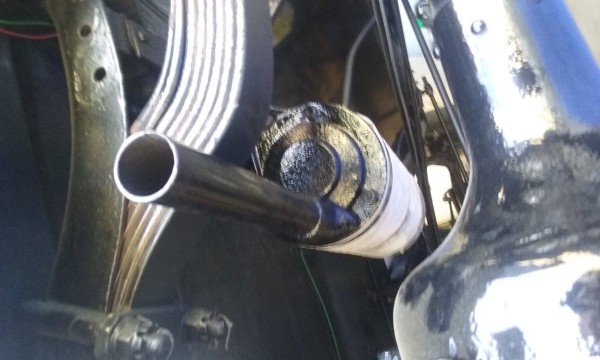

This is Steve, the post helped allot I will try the pipe trick to remove the bushing.
Looking at my drive shaft tube I noticed that the old bushing has already been replaced with a brass one. I also noticed that the oil hole was never drilled.
Again Thanks!!

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Tue Jan 14, 2020 10:25 pm

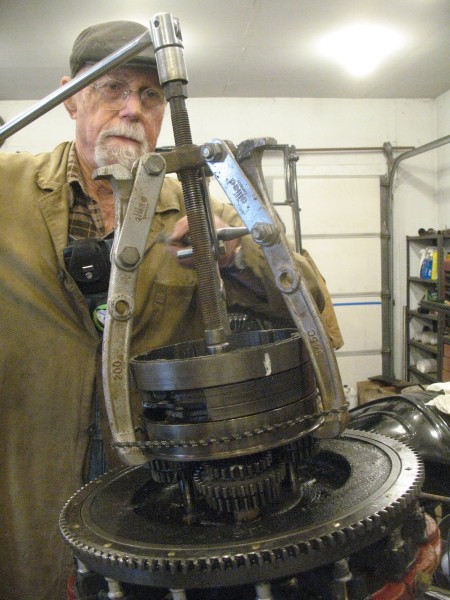

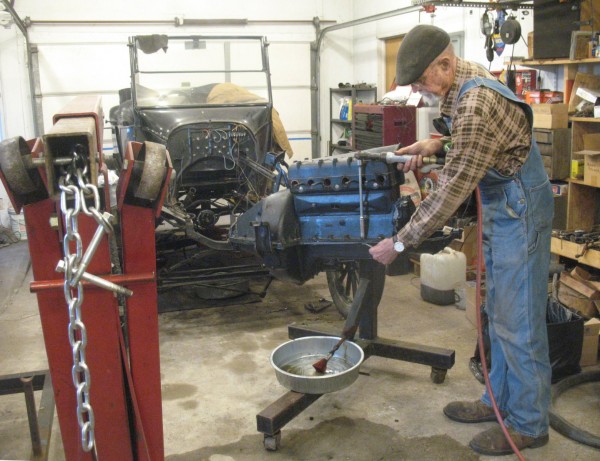

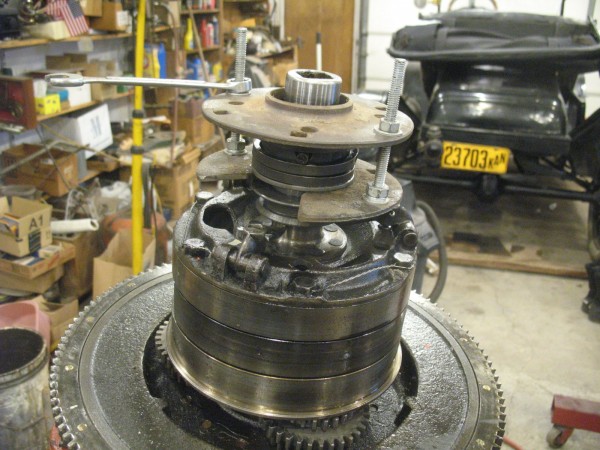

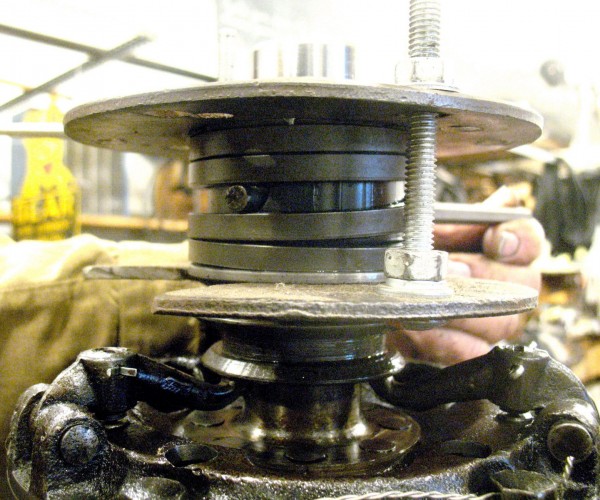

The time study in the service manual says it should take 38 minutes to pull the engine. Ha!

IMG_4597 copy.JPG

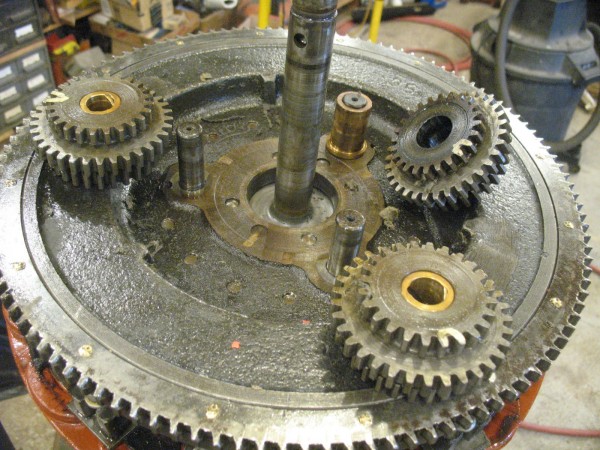

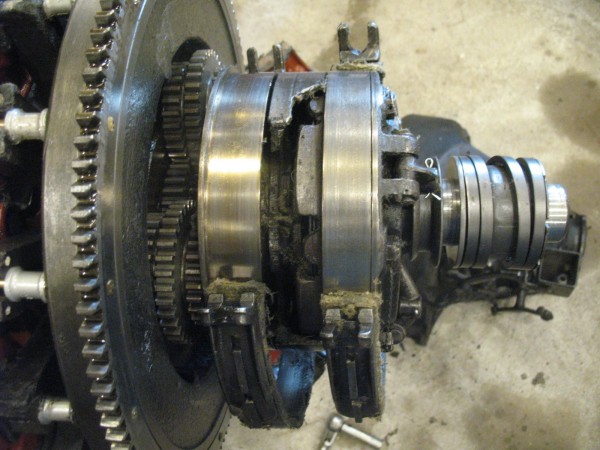

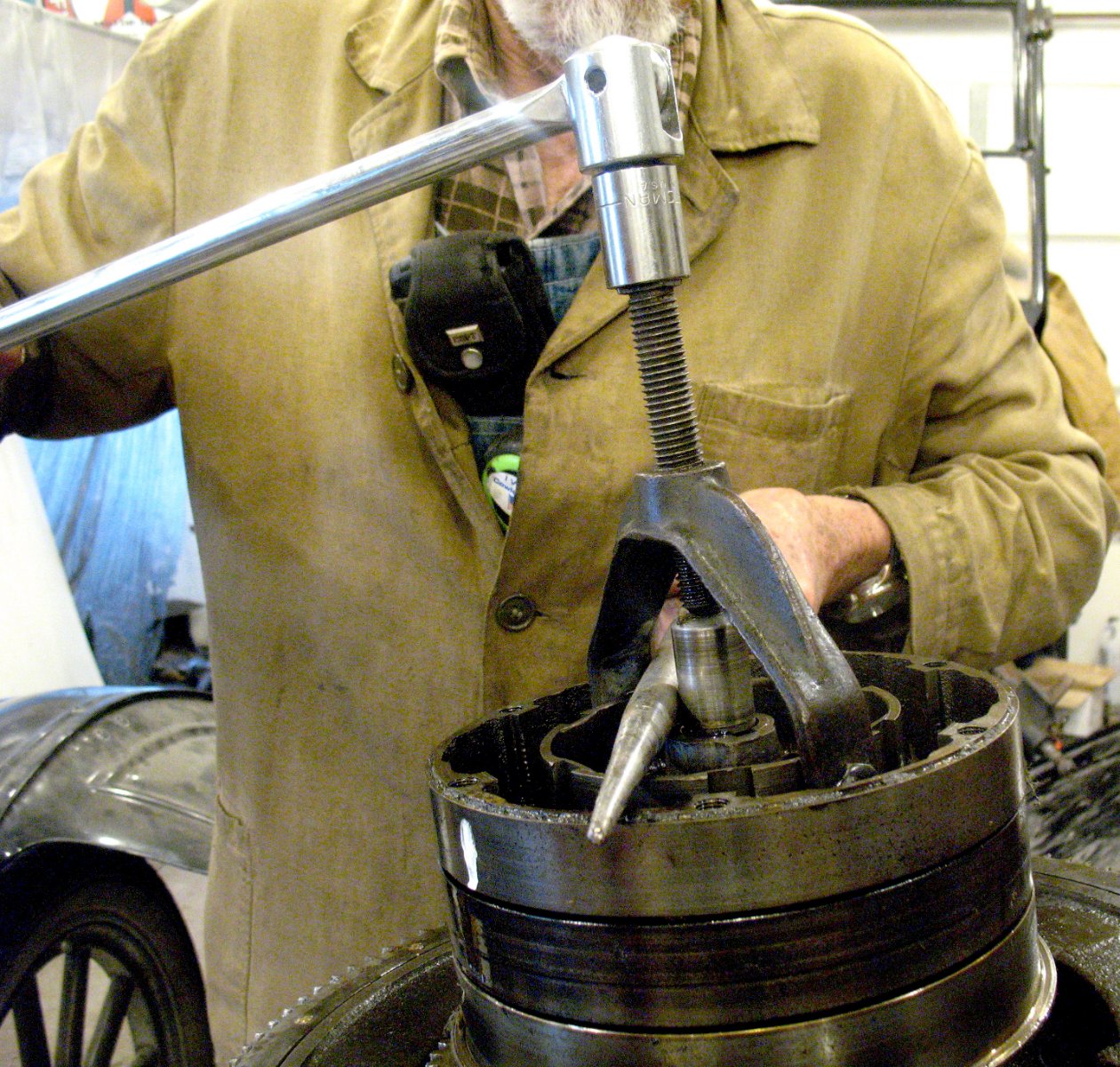

Anyway, I finally got it out today. The car has been waiting for me to get to it since it came home on a trailer last summer.

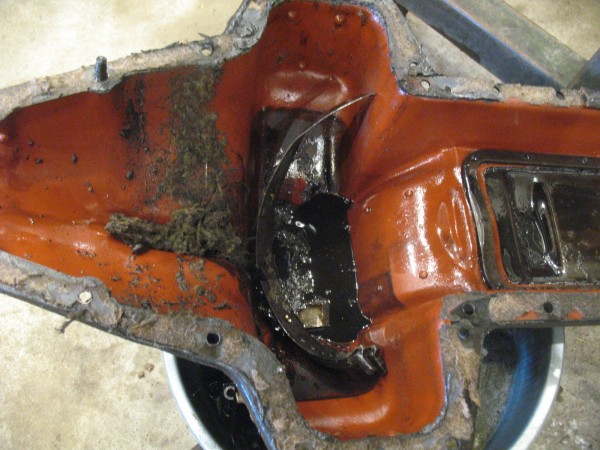

I drained the oil (most of it) before I pulled the engine, and had to use a piece of wire to clear the drain several times. Only one band lining was damaged, but it was thoroughly shredded. The band was broken in two.

IMG_4599 copy.JPG
The low drum may need to be resurfaced. :)
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Wed Jan 15, 2020 10:25 pm

Today I continued the dismantlement.

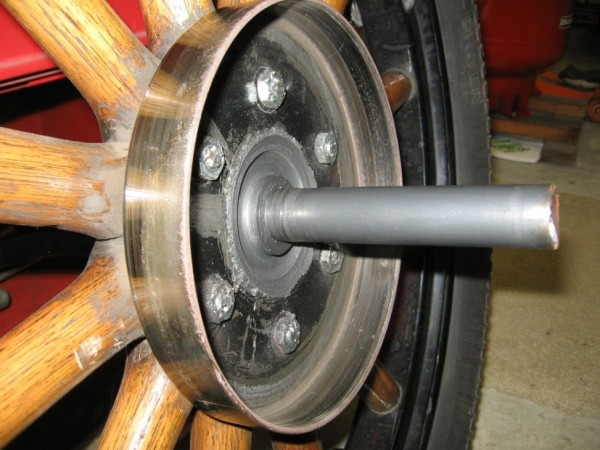

The old hub plate tool is still handy.

IMG_4601 copy.JPG
Sometimes you're lucky and things line up just right.

IMG_4602 copy.JPG

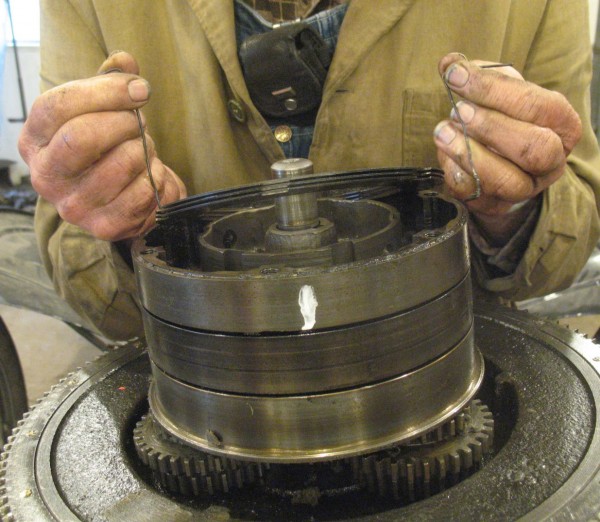

Fishing out the clutch disks was easy enough.

The Ford clutch puller was adequate for the job this time.

Raising the transmission off the main shaft took some persuasion.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Wed Jan 15, 2020 10:26 pm

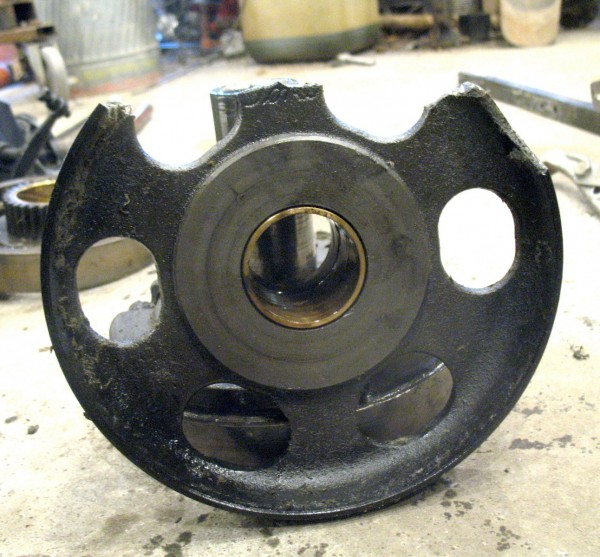

Uh-oh. I don't like that.

IMG_4609 copy.JPG
I think I'll get one of Dave Nolting's new drums. It won't be cheap, but it will be less worrisome than an old drum.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Mopar_man
Posts: 164
Joined: Sat Jan 12, 2019 9:24 pm
First Name: Robert
Last Name: Govoni
Location: Fredericksburg, VA
MTFCA Number: 32331
Board Member Since: 2016

Re: What have you done to your Model T in January?

Post by Mopar_man » Wed Jan 15, 2020 10:58 pm

Wow! That's a lot of work Jeff. It took me a few days to take my motor out. It was my first time.


Mike Robinson
Posts: 41
Joined: Sun Feb 24, 2019 11:36 pm
First Name: MICHAEL
Last Name: ROBINSON
Location: Escalon Ca

Re: What have you done to your Model T in January?

Post by Mike Robinson » Thu Jan 16, 2020 1:59 am

Made some racks for my Roadster pickup.
Attachments


Allan
Posts: 1003
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: What have you done to your Model T in January?

Post by Allan » Thu Jan 16, 2020 7:04 am

Steve, I presume the blow-up caused the transmission drums to be difficult to lift off the shaft. Using a puller on the reverse drum as you show is not something I would recommend, unless conditions demanded it. Any real pressure applied is likely to damage the drum. I would suggest that it be spun in a lathe to see if it runs true before contemplating re-using it.

Allan from down under.

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Thu Jan 16, 2020 9:37 am

I would suggest that it be spun in a lathe to see if it runs true...

Good idea. I will check it out.
The inevitable often happens.
1915 Runabout
1923 Touring


Rich Bingham
Posts: 922
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: What have you done to your Model T in January?

Post by Rich Bingham » Thu Jan 16, 2020 12:01 pm

Steve, thanks for the post. It’s always a treat to see your shop and your work. Same for all you fellers getting stuff done. It’s an inspiration !! :D

:shock: what have I done in January? :shock:
So far, not a frolickin’ thing !! :(

(So much for New Year’s resolutions - I have plowed a lot of snow, however.)
"Get a horse !"


Art Ebeling
Posts: 130
Joined: Sun Jan 06, 2019 10:43 am
First Name: Art
Last Name: Ebeling
Location: Hillsboro IL
MTFCA Number: 50718

Re: What have you done to your Model T in January?

Post by Art Ebeling » Fri Jan 17, 2020 4:55 pm

Today I trial fitted the front fenders and running boards. My fender braces are going to need a lot of tweaking. Neither brace is close to the bracket under the fender. The left front fender really points outward at the front. The bottom of the firewall is just touching the top of the fender and the running board braces are in a bind to reach the holes in the running boards. All in all a pretty good day. Art
Attachments


Russ T Fender
Posts: 141
Joined: Sun Jan 06, 2019 5:39 pm
First Name: Val
Last Name: Soupios
Location: Jupiter Florida

Re: What have you done to your Model T in January?

Post by Russ T Fender » Fri Jan 17, 2020 5:24 pm

Art what is the paint you used on the body? It's just what I have been looking for! Beautiful!


Art Ebeling
Posts: 130
Joined: Sun Jan 06, 2019 10:43 am
First Name: Art
Last Name: Ebeling
Location: Hillsboro IL
MTFCA Number: 50718

Re: What have you done to your Model T in January?

Post by Art Ebeling » Fri Jan 17, 2020 5:29 pm

I wish I could tell you, It came painted the dark maroon with black fenders and black wheels. I am going to take a door to the paint store to have the color scanned because I have a couple of areas to touch up so I will let you know what they come up with. Art

User avatar

D.Yoder
Posts: 262
Joined: Sun Jan 06, 2019 2:50 pm
First Name: DEAN
Last Name: YODER
Location: Iowa
MTFCA Number: 20778
MTFCA Life Member: YES
MTFCI Number: 127
Board Member Since: 1999

Re: What have you done to your Model T in January?

Post by D.Yoder » Fri Jan 17, 2020 10:51 pm

Set the engin back in the frame.
Pulled the front end for rebuild/ new bushings and king pins.
w


wayfarer
Posts: 38
Joined: Fri Jan 03, 2020 10:04 pm
First Name: cory
Last Name: woerth
Location: colorado springs colorado
Board Member Since: 2020

Re: What have you done to your Model T in January?

Post by wayfarer » Sat Jan 18, 2020 2:25 pm

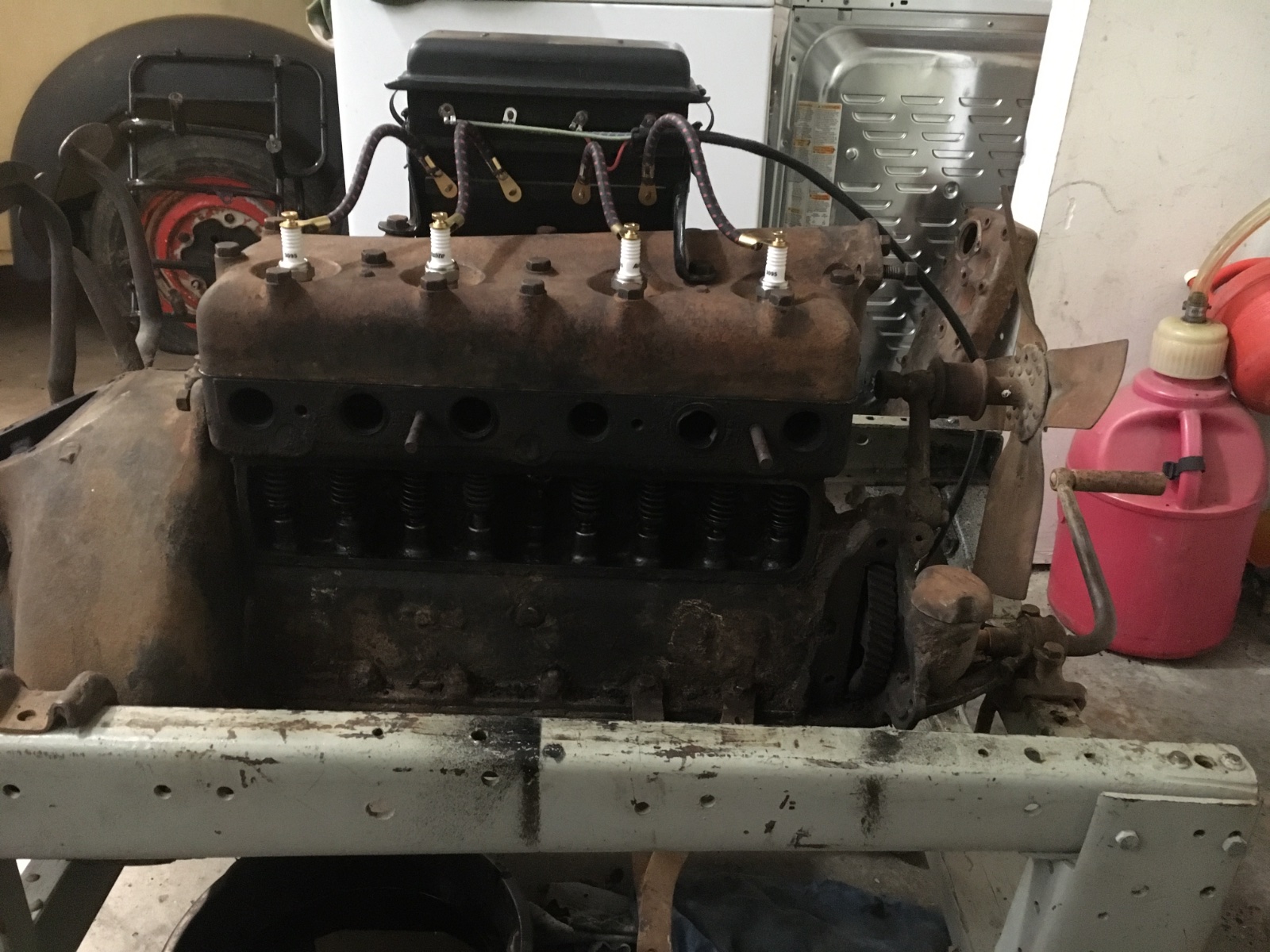

I've been picking at this thing.

It got its new head gasket, and passed the compression test. coil box (thanks AdminJeff) coils, plugs and wires in. Setting up the timer this weekend.
oil pan inspection plate straightened, ready to install.

need generator mount, generator, and carburetor (mine is bad, can't get the main jet out)

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Sat Jan 18, 2020 2:53 pm

...can't get the main jet out...

Try the heat wrench. Turn the body red and let it cool.
The inevitable often happens.
1915 Runabout
1923 Touring


Dallas Landers
Posts: 1366
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: What have you done to your Model T in January?

Post by Dallas Landers » Sat Jan 18, 2020 5:11 pm

I have most of the suspension parts rebuilt and painted. Assembled the springs today. Waiting to get the frame blasted and front axle. After those are painted it all goes back under the roadster pichup aka Swamp Donkey.

User avatar

varmint
Posts: 102
Joined: Mon Jan 07, 2019 2:02 pm
First Name: Vernon
Last Name: Worley
Location: New Orleans, LA
MTFCA Number: 49462
Contact:

Re: What have you done to your Model T in January?

Post by varmint » Mon Jan 20, 2020 4:49 pm

Upper hinge will do.
1926 Right upper coupe hinge
1926 Right upper coupe hinge
Looks like I will have to modify the pin to make it look right as we cannot buy one.
Vern (Vieux Carre)


jab35
Posts: 169
Joined: Sun Jan 06, 2019 12:28 pm
First Name: James
Last Name: Bartsch
Location: Dryden, NY 13053
MTFCA Number: 30615

Re: What have you done to your Model T in January?

Post by jab35 » Mon Jan 20, 2020 5:54 pm



Mark Osterman
Posts: 652
Joined: Mon Jan 07, 2019 10:18 pm
First Name: Mark
Last Name: Osterman
Location: Rochester, NY

Re: What have you done to your Model T in January?

Post by Mark Osterman » Mon Jan 20, 2020 10:13 pm

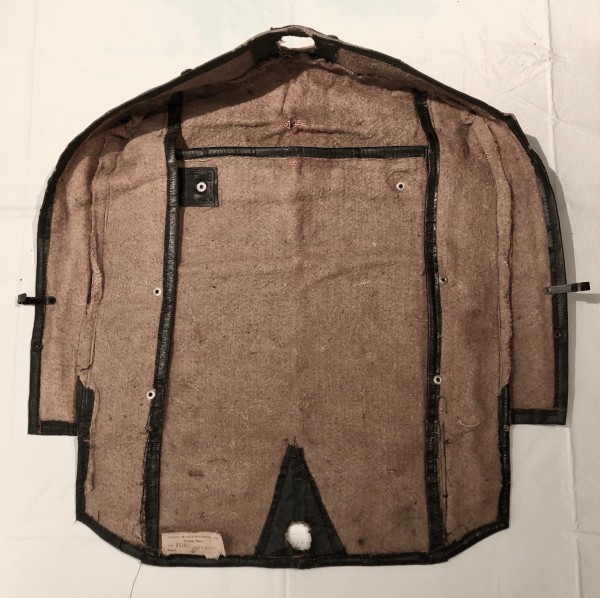

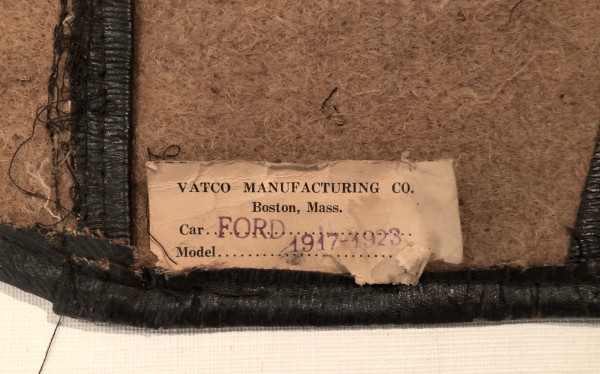

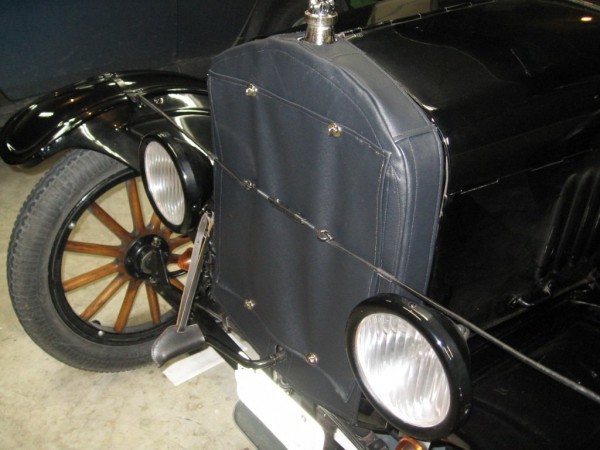

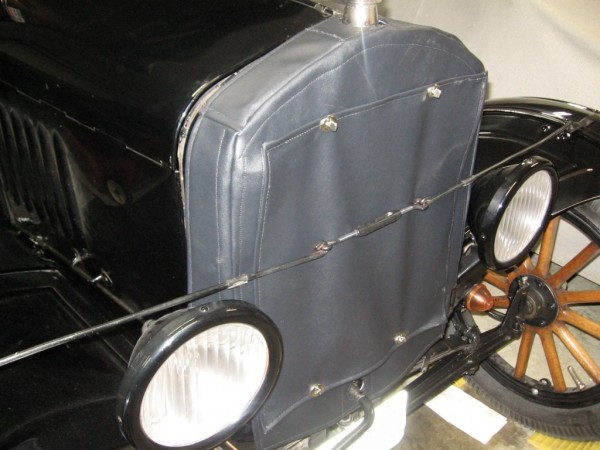

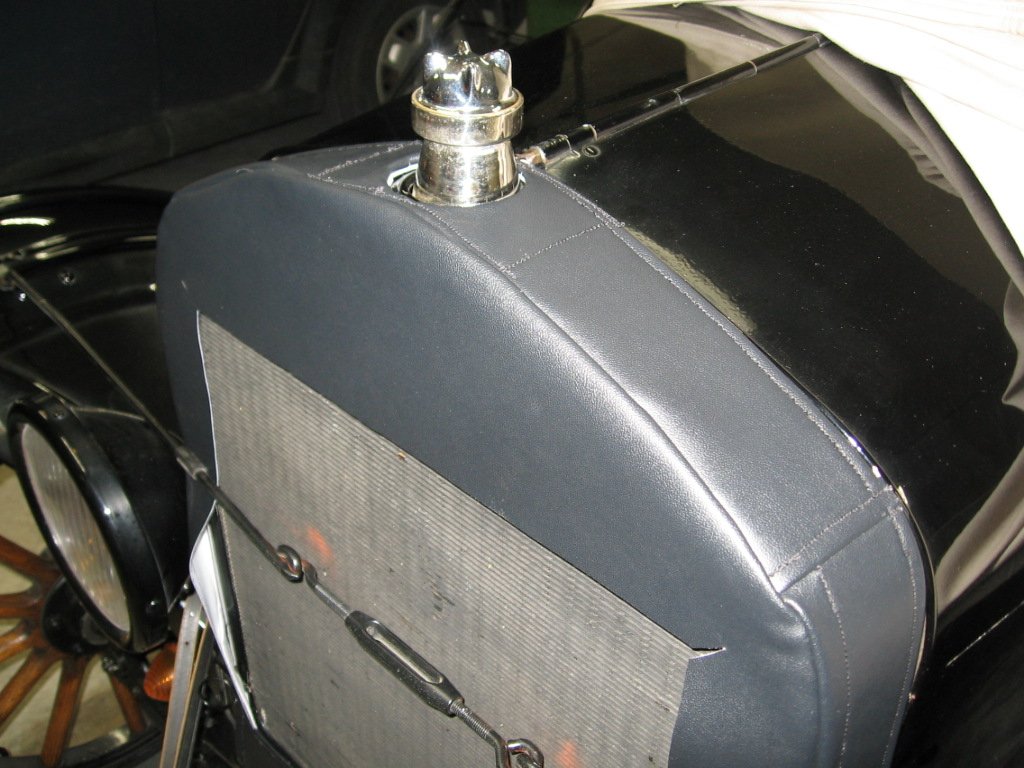

Did some repairs on a vintage winterfront radiator cover.
Attachments


Don ellis
Posts: 56
Joined: Sun Jan 06, 2019 8:51 pm
First Name: Don
Last Name: Ellis
Location: Julian nc

Re: What have you done to your Model T in January?

Post by Don ellis » Tue Jan 21, 2020 6:48 am

I got my rear axle built. I have a Ruxtell ,high speed ring and pinion, Rocky’s, floating hubs, modern bearing in the pinion. Can’t wait to get it on the road. Going under a 23 touring.

User avatar

CudaMan
Posts: 566
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: What have you done to your Model T in January?

Post by CudaMan » Tue Jan 21, 2020 8:50 am

Mark, thank you for posting those winter front pictures! I may try to make one like it on my old sewing machine using some top material I have around. :)
Attachments
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)


Banjoe
Posts: 66
Joined: Sat Mar 23, 2019 8:17 am
First Name: Joe
Last Name: Lucas
Location: Winnipeg
MTFCA Number: 50498

Re: What have you done to your Model T in January?

Post by Banjoe » Tue Jan 21, 2020 9:15 am

Dismantled the front spring, had it sandblasted and powder coated. Pressed in new bushings, painted the moving sections with graphite paint, and finally reassembled with a new bolt to replace the rusty, misshapen original.

Came up with an issue trying to fit new spring clips and finding that they weren't wide enough to slip into place. Some wise folks sent me down the learning trail and the discovery that, some time in the foggy past, someone had slipped in a Model A spring. Not sure yet what they did to the frame to fit in this wider spring but hoping that's not going to be the bad news that I think it could be.

The upside is that this project has resulted in one of the best looking mistakes I've ever made. I've certainly worked much harder to create much worst outcomes so maybe I am learning something after all.

Front springs for 1927 T -- another item to add to the Chickasha Swap Meet wish list.
None of us is as smart as all of us.

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Wed Jan 22, 2020 12:11 am

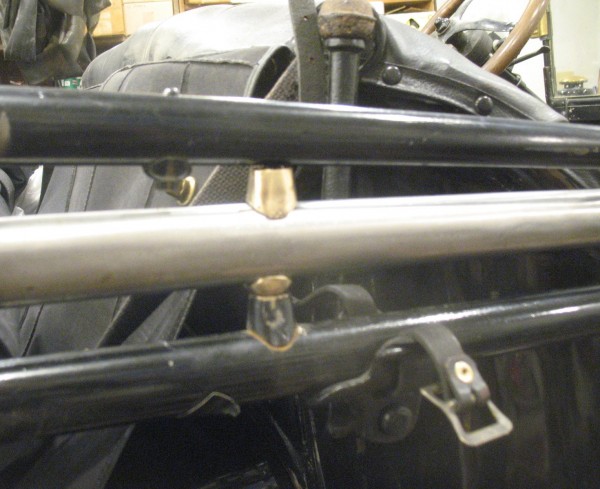

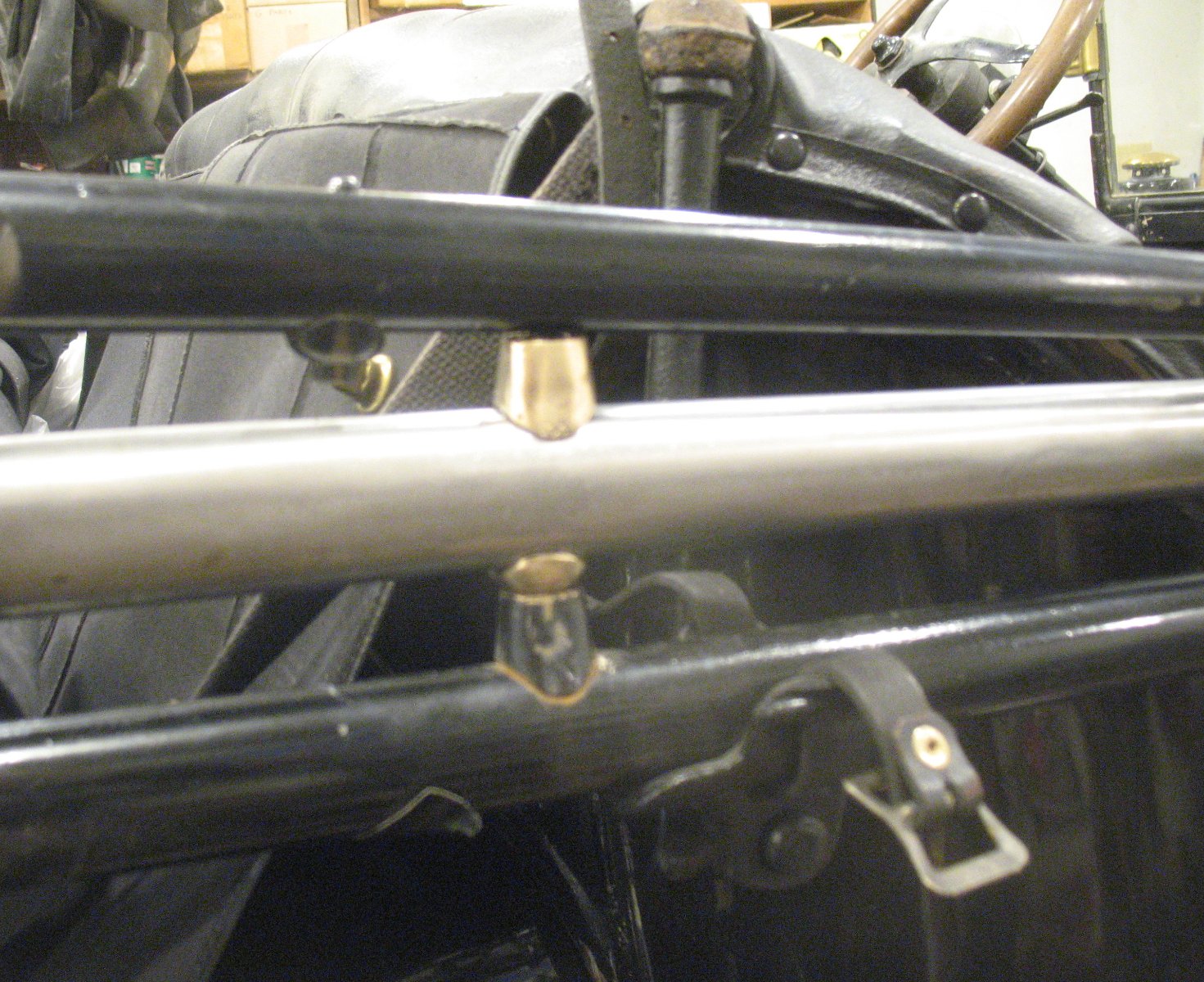

Today I got back to work on my new top socket.

IMG_4614 copy.JPG
Using body solder is not one of my skills, at least not yet, so this took more time and solder than it should have. Recently I had the socket come loose from the base because I applied too much heat, so the first step was to reattach the two parts solidly.

IMG_4616 copy.JPG

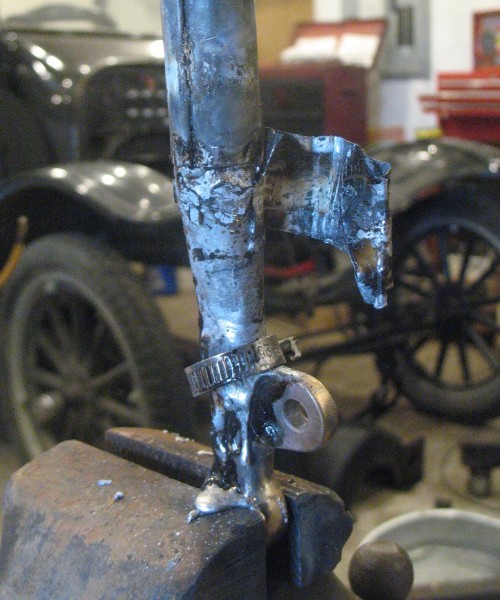

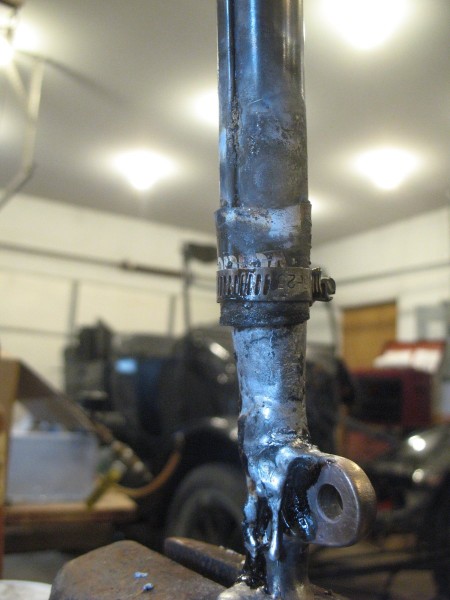

I clamped a strip of can around the joint to keep the hot solder from leaking out as it had been doing.

IMG_4618 copy.JPG

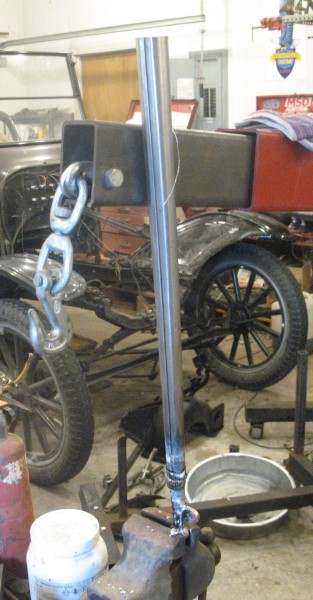

After dripping plenty of solder down into the tube and heating the joint to make sure the solder had melted into it, I let it cool and pulled off the strip of can..

IMG_4620 copy.JPG
The two parts are solidly connected, but the joint looks pretty rough.

IMG_4621 copy.JPG
So, using a 000 tip with the smallest flame I could manage, I built a glob of solder around the joint.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Wed Jan 22, 2020 12:11 am

IMG_4623 copy.JPG

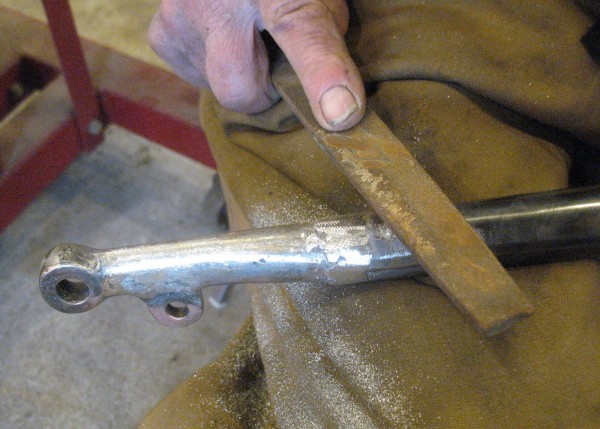

Then came lots and lots of filing.

IMG_4624 copy.JPG
In the end I got a joint I'm calling good enough. An application of primer should fill the pits.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Thu Jan 23, 2020 12:11 am

IMG_4630 copy.JPG
All the T work I got done today was cleaning up the hardware for the new top socket. Maybe I can get the thing assembled tomorrow.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

CudaMan
Posts: 566
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: What have you done to your Model T in January?

Post by CudaMan » Thu Jan 23, 2020 2:30 pm

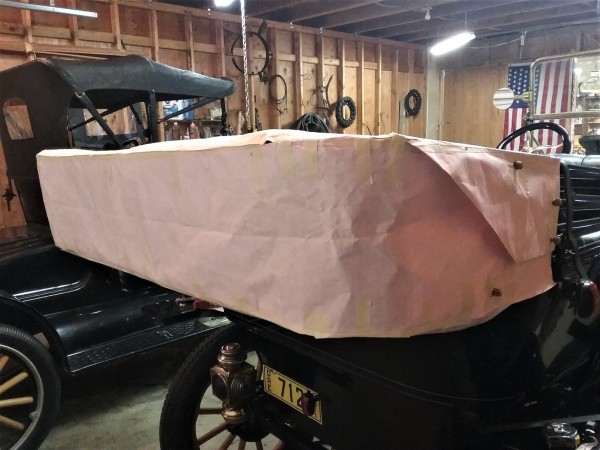

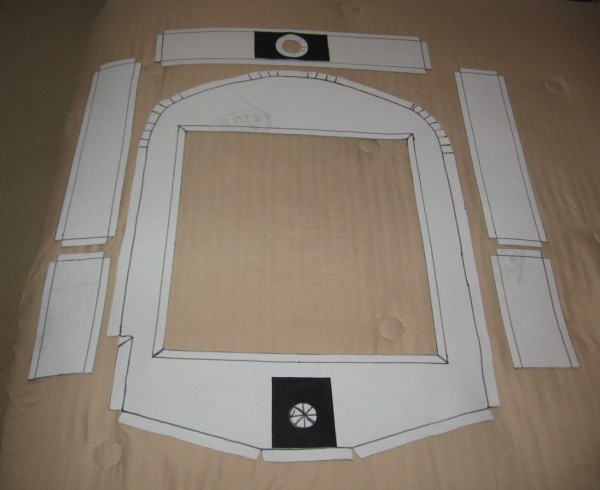

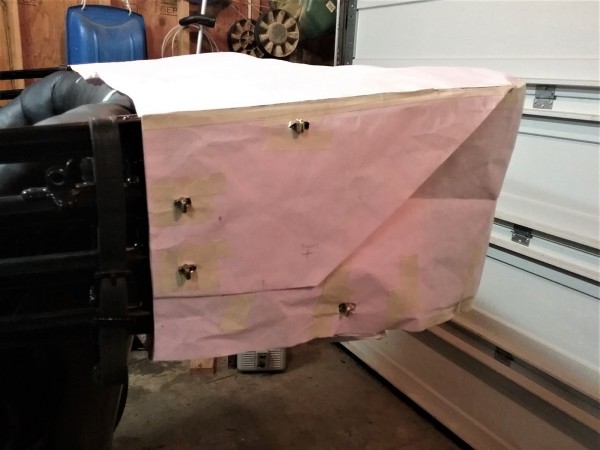

I'm cutting out the pieces of black vinyl needed to make a winter front for Betsy. The sides will have more seams than absolutely necessary, but I wanted to make maximum use of the material I have available. I still need to cut out the part for the center roll-up flap and make a strap to hold the flap in the rolled up position. I may also go looking for some lining material to make the winter front a little less floppy and more resistant to the heat of the radiator shell.

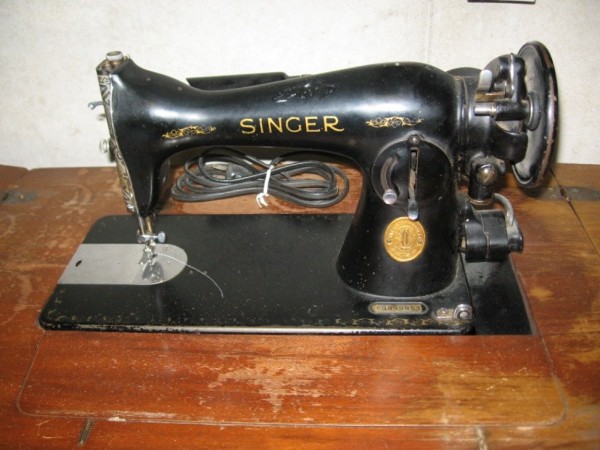

Once all the pieces are cut and marked, it will be time to start sewing! :)
Attachments
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)


Scott_Conger
Posts: 2209
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: What have you done to your Model T in January?

Post by Scott_Conger » Thu Jan 23, 2020 2:56 pm

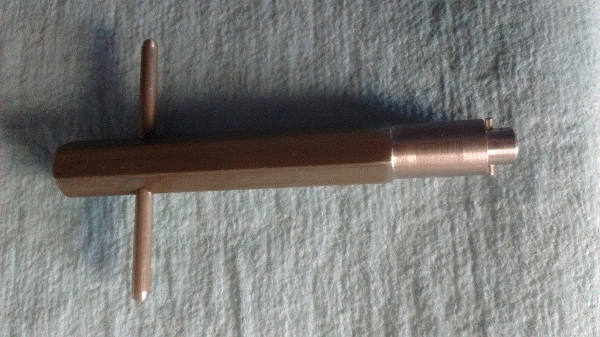

Not my T specifically, but made a batch of NH float valve tools. I ended up scrapping the "pin" design pictured, for a machined from solid and case-hardened design with a little heavier handle. Overall looks the same though. Wasn't happy with the cheapened design and went with what has worked for me over the last 15 or so years.

Gotta stay busy.

Oh, and Mark...really like the radiator shroud. That's cool.




Float Valve install_removal tool.gif
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

User avatar

Topic author
Steve Jelf
Posts: 2087
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What have you done to your Model T in January?

Post by Steve Jelf » Fri Jan 24, 2020 12:56 am

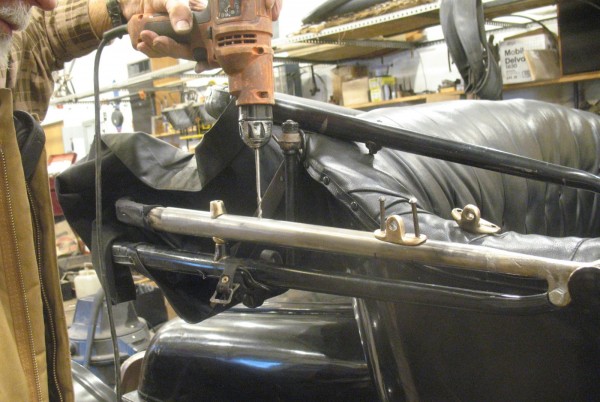

I spent most of the day on the new top socket. Being a clumsy oaf, I took it verrrrry slowww so as to not mess it up. I should have it assembled and ready to paint tomorrow.

IMG_4632 copy.JPG
IMG_4633 copy.JPG
IMG_4635 copy.JPG
The inevitable often happens.
1915 Runabout
1923 Touring


Chris Barker
Posts: 47
Joined: Sun Jan 06, 2019 5:08 pm
First Name: Chris
Last Name: Barker
Location: Somerset, Eng;and

Re: What have you done to your Model T in January?

Post by Chris Barker » Fri Jan 24, 2020 7:41 am

I noticed increasing areas of erosion on the contacts of my TW timer - at the start and finish of each segment.
I removed it and carefully set it up in my 4-jaw lathe chuck and made very fine cuts across the track. Then polished it.
I was surprised to find that it required removal of almost 0.015" to clean it up. I guess that the rate of erosion increases with use. The brush will not easily follow the eroded area, so more sparking and faster erosion.
I have the rectangular section brush, not the round one.

Nevertheless, the TW maintains performance longer (and is easier to fix) than the Anderson.


dunoon
Posts: 69
Joined: Sun Jan 06, 2019 9:47 pm
First Name: Richard
Last Name: Davis
Location: Lexington, Va

Re: What have you done to your Model T in January?

Post by dunoon » Fri Jan 24, 2020 2:15 pm

My car a 26 coupe is still at the upholstery shop getting a complete interior and top.

User avatar

CudaMan
Posts: 566
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: What have you done to your Model T in January?

Post by CudaMan » Fri Jan 24, 2020 2:38 pm

Continuing with my winterfront project, I finished cutting out all of the vinyl pieces and bought some heavy interfacing (backing) material to help give the vinyl some stiffness so that it will hold its shape (except for the roll-up center flap, of course). I also sewed the pieces together for the sides that wrap around the radiator shell.
Attachments
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)


gla448
Posts: 13
Joined: Mon Jan 07, 2019 11:46 pm
First Name: bernie
Last Name: glass
Location: glaslyn sask

Re: What have you done to your Model T in January?

Post by gla448 » Sat Jan 25, 2020 10:37 pm

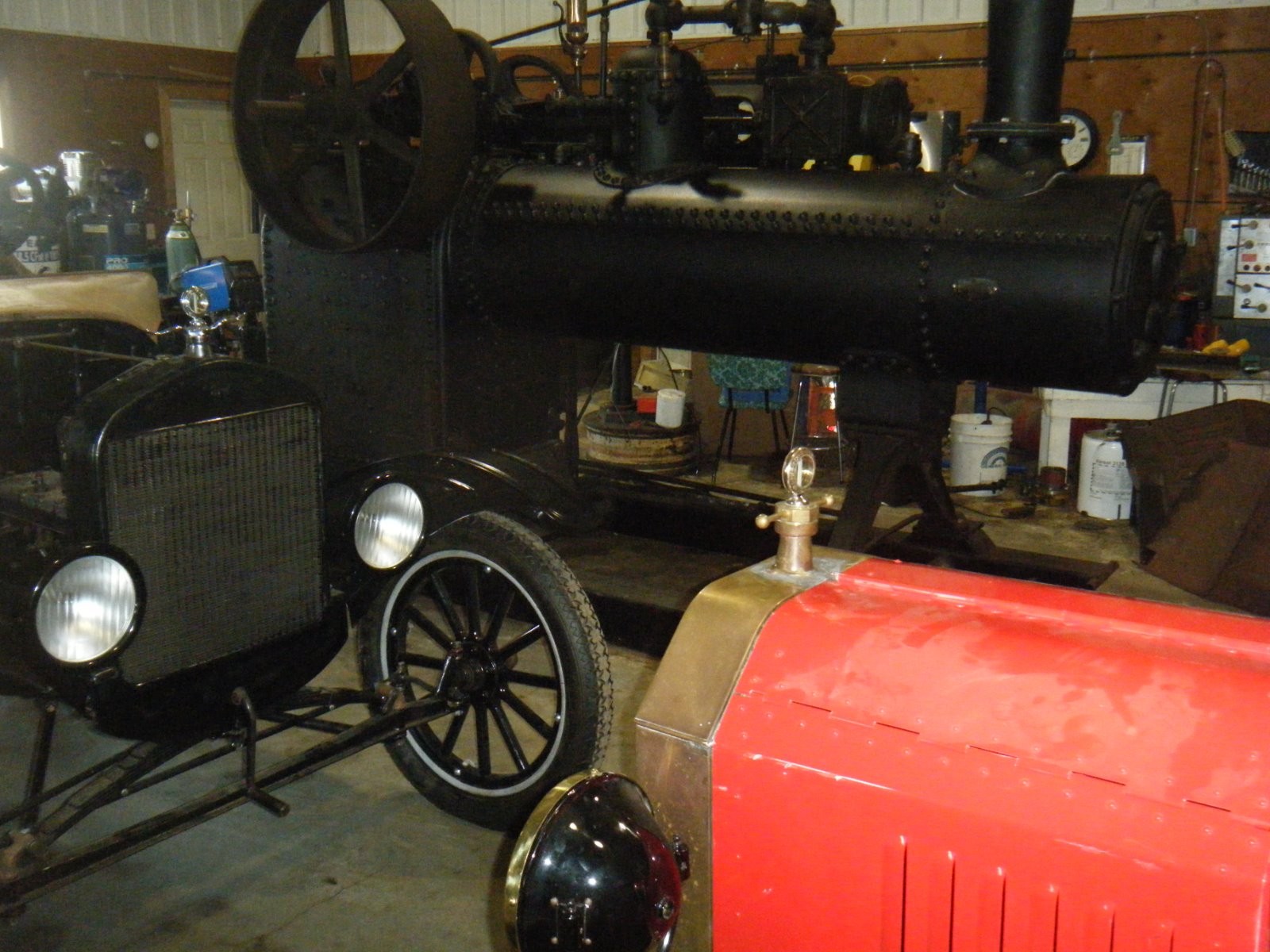

not much done here bernie[image]
[/image]

User avatar

KWTownsend
Posts: 364
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
Location: Gresham, Orygun
MTFCA Number: 14778
MTFCA Life Member: YES
MTFCI Number: 16305
Board Member Since: 1999

Re: What have you done to your Model T in January?

Post by KWTownsend » Sun Jan 26, 2020 3:09 am

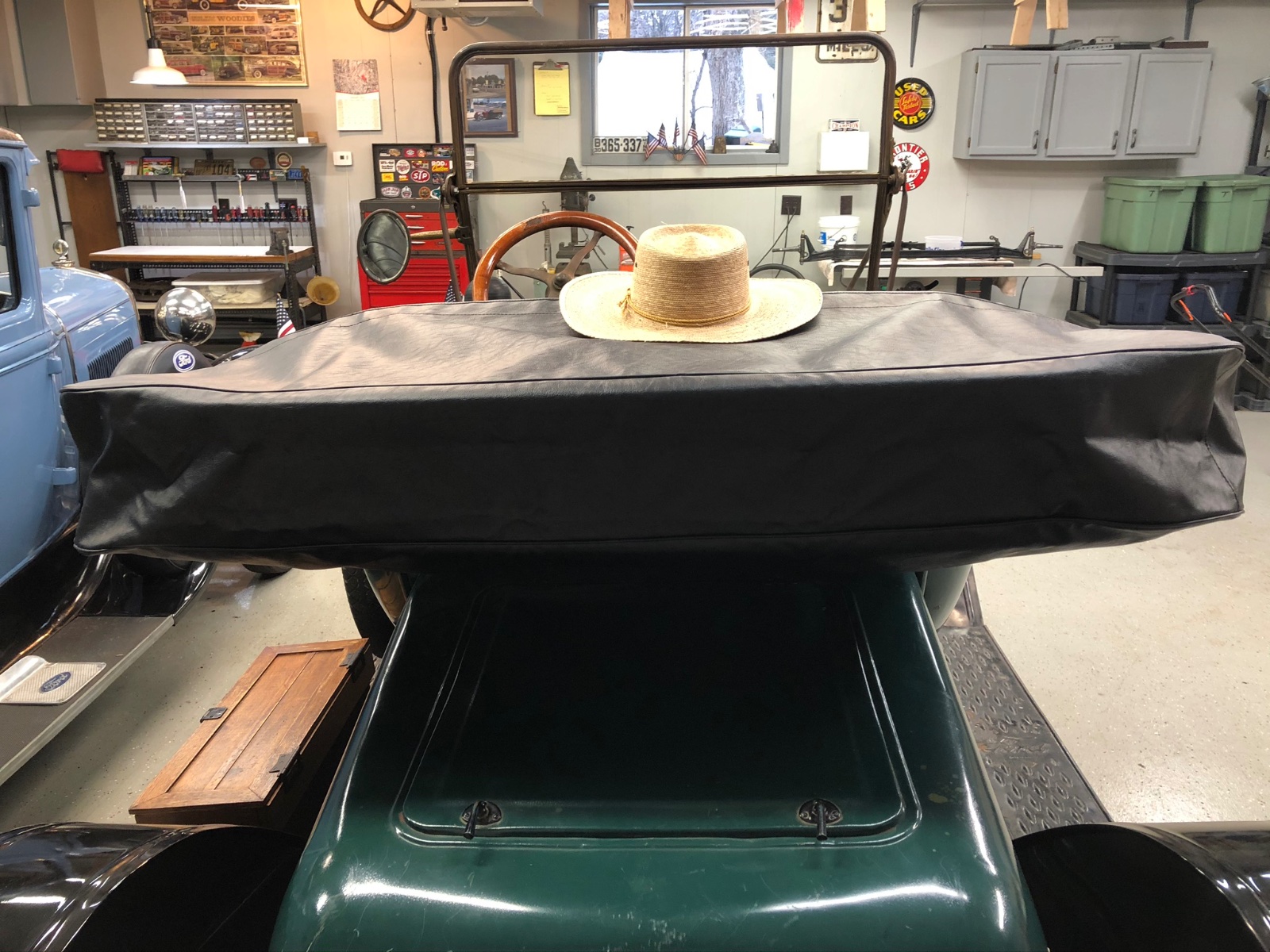

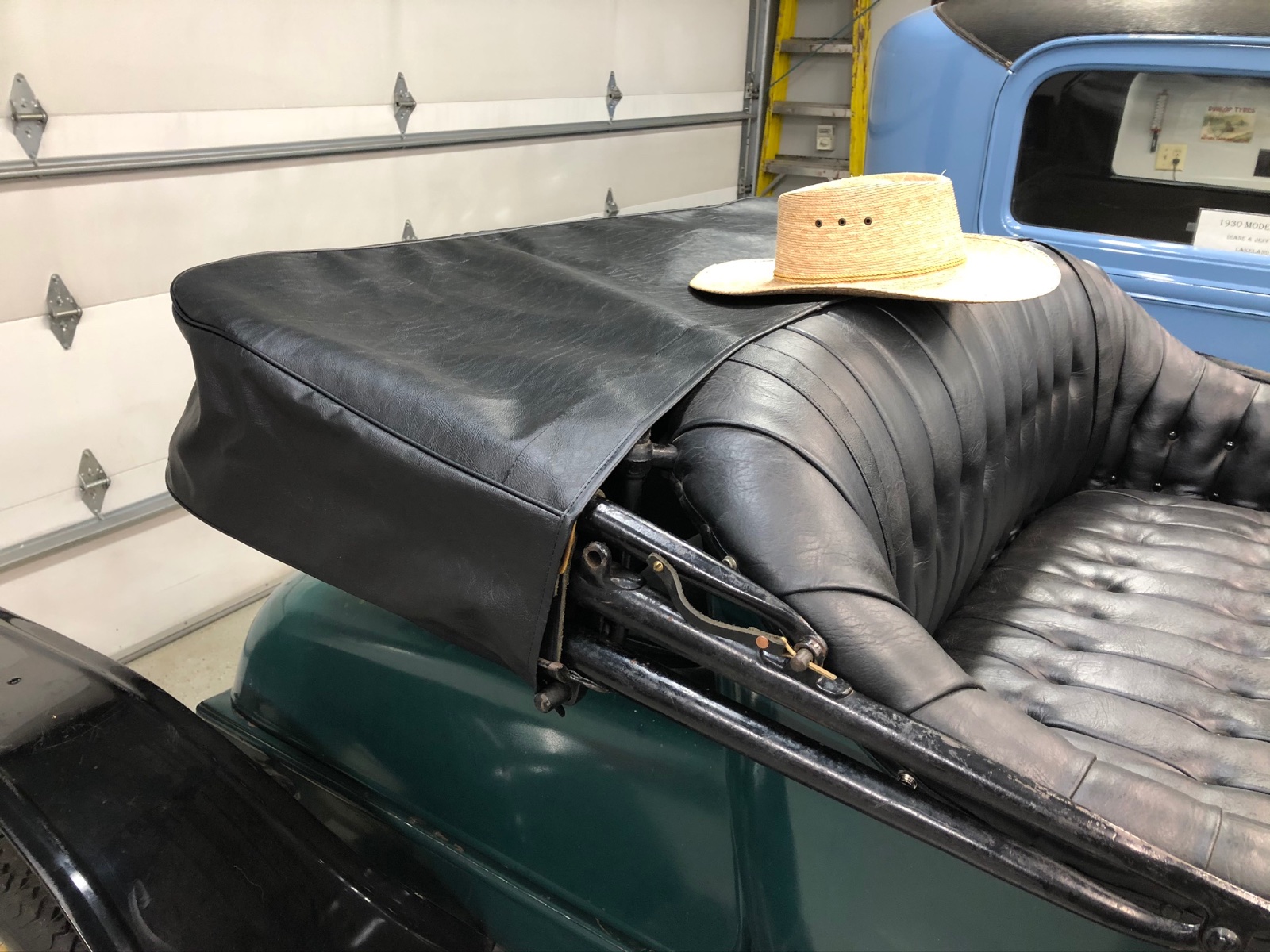

I've been working on a pattern for a top cover for my 1911 touring. Since they were not a factory item, but were available aftermarket, I am taking some creative liberties. The cover is held in place by the Murphy fasteners on the top sockets that hold the side curtains in place. After I finish the pattern, I will send it off to Mike at Classtique.
pattern 1.jpg
pattern 2.jpg
: ^ )


hah
Posts: 28
Joined: Sun Jan 06, 2019 1:57 pm
First Name: john
Last Name: hardiman
Location: stoughton, ma

Re: What have you done to your Model T in January?

Post by hah » Sun Jan 26, 2020 7:41 pm

Made new crank for my t..lol

User avatar

Will_Vanderburg
Posts: 216
Joined: Sun Jan 06, 2019 3:59 pm
First Name: William
Last Name: Vanderburg
Location: Jackson, NJ
MTFCA Number: 28382

Re: What have you done to your Model T in January?

Post by Will_Vanderburg » Mon Jan 27, 2020 10:22 am

Rebuilding the wooden structure of my 22 center door sedan in my basement.

When it warms up, I'll start building it on its frame outside. (Still have to pick that up)
William L Vanderburg

1925 Touring
1922 Center Door Sedan

User avatar

CudaMan
Posts: 566
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: What have you done to your Model T in January?

Post by CudaMan » Fri Jan 31, 2020 1:17 pm

I just barely made it by the end of January, but I finished the winter front for Betsy today. I used common sense fasteners instead of snaps to attach the main flap. :)
Attachments
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)

User avatar

CudaMan
Posts: 566
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: What have you done to your Model T in January?

Post by CudaMan » Fri Jan 31, 2020 2:19 pm

A few more pics of the finished winter front. :)
Attachments
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)


Stu Tomlinson
Posts: 10
Joined: Tue Mar 19, 2019 3:35 pm
First Name: Stuart
Last Name: Tomlinson
Location: Paola, KS
MTFCA Number: 27355

Re: What have you done to your Model T in January?

Post by Stu Tomlinson » Fri Jan 31, 2020 5:42 pm

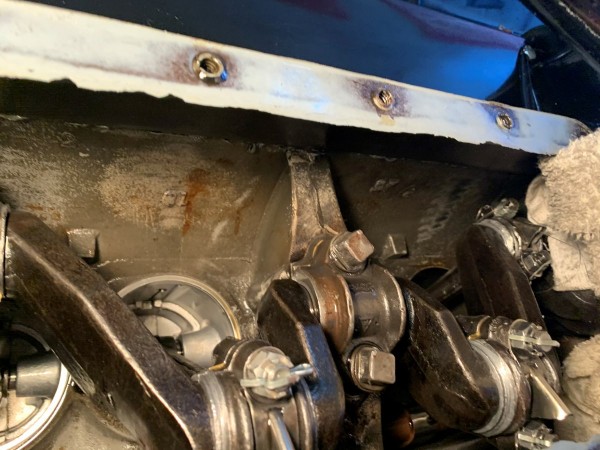

This January 2020 I took up the connecting rod bearings on a 1911 Touring. As you know the miserable number 4 bearing on a 3 dip pan is always a bear. For some reason this is one went very well. I removed one shim (0.002"), but the remaining shim pack was still thick. These shims would not stay in place with grease as I attempted to replace the cap in the 3 O'clock position as viewed from the front. I finally held the shims in place with dental floss that I had hammered out to less than 0.005" inch. The caps went right on, the shims stayed in place and the bearing fit was excellent. Have a look at the right side of the photo and you will see the dental floss holding the shim pack, and all the rags of course, which totaled 7, are to keep anything falling into the transmission. The older I get, the more I enjoy a 4 dip pan.
Stu Tomlinson
Taking Up Bearings January 2020 Number 4.jpg


RxGPoblet
Posts: 20
Joined: Fri Jan 11, 2019 3:25 pm
First Name: Garland E
Last Name: Pobletts
Location: Naples, FL

Re: What have you done to your Model T in January?

Post by RxGPoblet » Fri Jan 31, 2020 7:53 pm

I got my wheels back from Stutzman's and mounted all four new liners/tubes/tires on newly painted rims without a scratch Yeah!
I had all four wheels rebuilt and Stutzman's did a fantastic job.
Ready (almost) to tour!!
Highly recommend the use of plastic rim guards like the motorcycle guys use to mount the tires with irons without scratching the rims. Available on Amazon pretty cheap.

User avatar

Chris Instness
Posts: 51
Joined: Sun Jan 06, 2019 6:49 pm
First Name: Christopher
Last Name: Instness
Location: Roseville, Ca

Re: What have you done to your Model T in January?

Post by Chris Instness » Sat Feb 01, 2020 12:04 am

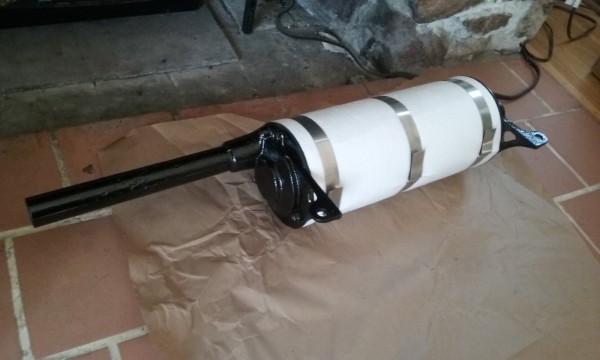

Not much, but I rebuilt and installed the muffler on my 1915.
Attachments

Post Reply Previous topicNext topic
