Freeze Crack Repair

Post by blgitn » Wed Jan 22, 2020 7:08 pm

I found some water in my lifter galley, and an old repair in the water jacket between 2 & 3. The repair is oil-colored and lifting around the edges. I can't tell if its JB Weld or Marine Tex. One of the freeze plugs is covered in white epoxy; pretty sure that's Marine tex.

it will be impossible to get the crack really (welding) clean, and I believe there will be too much rust damage in the crack area(s). I'm trying to decide whether to chip it off and use epoxy again or chip it off and go with good ol' Permatex #1. Reviewing old posts brings up the question of poly-glycols affecting the epoxies; I couldn't find a real conclusion to the discussion. What say Ye?

I've used both JB weld and ol' #1 successfully many times on the outside of the water jacket, but never inside the valve cover. I can see the chevron-shaped crack through the oval hole in the head-gasket surface: I intend to attack it with a long burr bit and then try to seal it from the top too. I'm happy to hear your opinions.

R/ Roger.


Altair
Posts: 129
Joined: Thu Jan 17, 2019 11:52 am
First Name: David
Last Name: Menzies
Location: British Columbia
MTFCA Number: 27825
Board Member Since: 2012

Re: Freeze Crack Repair

Post by Altair » Wed Jan 22, 2020 8:04 pm

If it is a concerning issue, replace the block, there are lots of them out there.

User avatar

Henry K. Lee
Posts: 1873
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: Freeze Crack Repair

Post by Henry K. Lee » Wed Jan 22, 2020 8:07 pm

Roger,

You would want to find the end of that crack or close to it at both ends. Then drill a 1/16" hole where you think it is. This relieves particles from re-expanding and causing more fractures. Clean the area before and after using a burr, it must be cleaned very, very well. Race the burr in the area inspecting for other spider fractures coming from the main crack. Clean again, I would pre heat the area with a hair dryer for awhile and then use JB Weld. Let fully cure for a few days. I have seen some equipment come back from the dead worst. It might only be temporary but it should get you going.


Hope this Helps,

Hank in Tin-A-See


SurfCityGene
Posts: 218
Joined: Wed Jan 23, 2019 3:00 pm
First Name: Gene
Last Name: Carrothers
Location: Huntington Beach, Ca
MTFCA Number: 22905
MTFCI Number: 23068
Board Member Since: 1999

Re: Freeze Crack Repair

Post by SurfCityGene » Thu Jan 23, 2020 2:03 am

You will find that the Permatex Ultra Black will work very well. It cures to a very durable and tough rubber like material. The epoxies and JB weld are too brittle and will not flex with the engine temps. My repairs have now lasted several years. Super clean the surface of any oil. I sort of cheated and used a piece of brass shim stock for extra strength. It has great adhesion strength.
1912 Torpedo Roadster


Joe Bell
Posts: 249
Joined: Thu Feb 21, 2019 1:20 pm
First Name: Joe
Last Name: Bell
Location: Tiffin Ohio
MTFCI Number: 24066

Re: Freeze Crack Repair

Post by Joe Bell » Thu Jan 23, 2020 8:23 am

I bet it is a 26-7 block, that is real common on them, I quit buying them at auctions from being burnt on a bad block, must of been something different on the cores to of caused this.


Dan Hatch
Posts: 594
Joined: Tue Jan 08, 2019 7:31 pm
First Name: Dan
Last Name: Hatch
Location: Alabama
MTFCA Number: 49974

Re: Freeze Crack Repair

Post by Dan Hatch » Thu Jan 23, 2020 8:46 am

I find them cracked in the valve guides too. Dan


John kuehn
Posts: 663
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Freeze Crack Repair

Post by John kuehn » Thu Jan 23, 2020 9:31 am

The original block in my 24 Coupe was cracked in the valve gallery and the crack extended Into the valve seat area. Money wise I thought it was cheaper to get a replacement block which I did. I did save the original for posterity I guess. I don’t know if it could be successfully repaired because of the location.
I didn’t see the crack toward the valve area until I used a mirrow to check it.


Joe Bell
Posts: 249
Joined: Thu Feb 21, 2019 1:20 pm
First Name: Joe
Last Name: Bell
Location: Tiffin Ohio
MTFCI Number: 24066

Re: Freeze Crack Repair

Post by Joe Bell » Thu Jan 23, 2020 1:20 pm

I see them there also Dan, you need to sleeve it and seat it to keep it from leaking there, might as well find another block!


Chris Haynes
Posts: 103
Joined: Tue Jun 25, 2019 8:00 pm
First Name: Chris
Last Name: Haynes
Location: North Hills. CA
Board Member Since: 2019

Re: Freeze Crack Repair

Post by Chris Haynes » Thu Jan 23, 2020 3:17 pm

My water jackets also have rust holes in them. I am stripping the block and having them furnace welded.


Joe Bell
Posts: 249
Joined: Thu Feb 21, 2019 1:20 pm
First Name: Joe
Last Name: Bell
Location: Tiffin Ohio
MTFCI Number: 24066

Re: Freeze Crack Repair

Post by Joe Bell » Thu Jan 23, 2020 3:44 pm

You can get a block for 100. or spend a thousand dollars chasing cracks, just my thoughts, unless it is an early block!


John bevardos
Posts: 61
Joined: Mon Jan 07, 2019 1:58 am
First Name: John
Last Name: bevardos
Location: Los Angeles

Re: Freeze Crack Repair

Post by John bevardos » Thu Jan 23, 2020 3:59 pm

Chris ,
who is doing the welding for you?

john


Dan Hatch
Posts: 594
Joined: Tue Jan 08, 2019 7:31 pm
First Name: Dan
Last Name: Hatch
Location: Alabama
MTFCA Number: 49974

Re: Freeze Crack Repair

Post by Dan Hatch » Fri Jan 24, 2020 9:26 am

Joe: That is what I do. Have a pickup load for the scrap yard. Dan


Joe Bell
Posts: 249
Joined: Thu Feb 21, 2019 1:20 pm
First Name: Joe
Last Name: Bell
Location: Tiffin Ohio
MTFCI Number: 24066

Re: Freeze Crack Repair

Post by Joe Bell » Fri Jan 24, 2020 2:33 pm

Dan, I have a local foundry that loves this old iron and in return every once in while I need something casted and they are more than happy to do it.


2nighthawks
Posts: 106
Joined: Sun Jul 21, 2019 2:53 am
First Name: Harold
Last Name: Schwendeman
Location: Seattle
MTFCA Number: 0
Board Member Since: 2005

Re: Freeze Crack Repair

Post by 2nighthawks » Fri Jan 24, 2020 7:46 pm

This is sort of an "aside" in regard to this topic, but however does apply in regard to stripping metal of dirt, grease, grime and any lubricant in preparation of repair products such as Permatex Ultra Black and such:

A company named Birchwood Casey makes a firearm cleaning product called "GUN SCRUBBER". It is much like brake cleaner, however, I have used it for years in cleaning firearms (as well as automotive use) and while it seems to be similar in action to brake cleaner, I personally believe that it works even better than brake cleaner. It is available from gun shops and is widely known and used by any good gunsmith as it has a fine reputation for complete removal of all oil and such to the degree that gunsmiths commonly use it in preparation for "bluing" processing of metal firearm parts and such. Not sure if it comes in any other form but pressurized aerosol spray cans, however, the pressure spray is actually probably best for "blasting" into, and cleaning out oil and such from engine block cracks. FWIW,.....harold

User avatar

CJB
Posts: 27
Joined: Fri Jan 04, 2019 10:01 pm
First Name: Chris
Last Name: Bamford
Location: Edmonton AB Canada

Re: Freeze Crack Repair

Post by CJB » Fri Jan 24, 2020 10:43 pm

SurfCityGene wrote:
Thu Jan 23, 2020 2:03 am
You will find that the Permatex Ultra Black will work very well. It cures to a very durable and tough rubber like material. The epoxies and JB weld are too brittle and will not flex with the engine temps. My repairs have now lasted several years. Super clean the surface of any oil. I sort of cheated and used a piece of brass shim stock for extra strength. It has great adhesion strength.
Gene's suggestion works well. I prefer Right Stuff sealant, but either way it can be a simple, effective and potentially long-lasting repair for water jacket cracks and then like. Agree on "glueing" a strip of brass shim stock over the crack with a skim of sealant.I've repaired three or four cracks over the years (one in a T engine pan, others were water jacket) with this method and no failures to date.

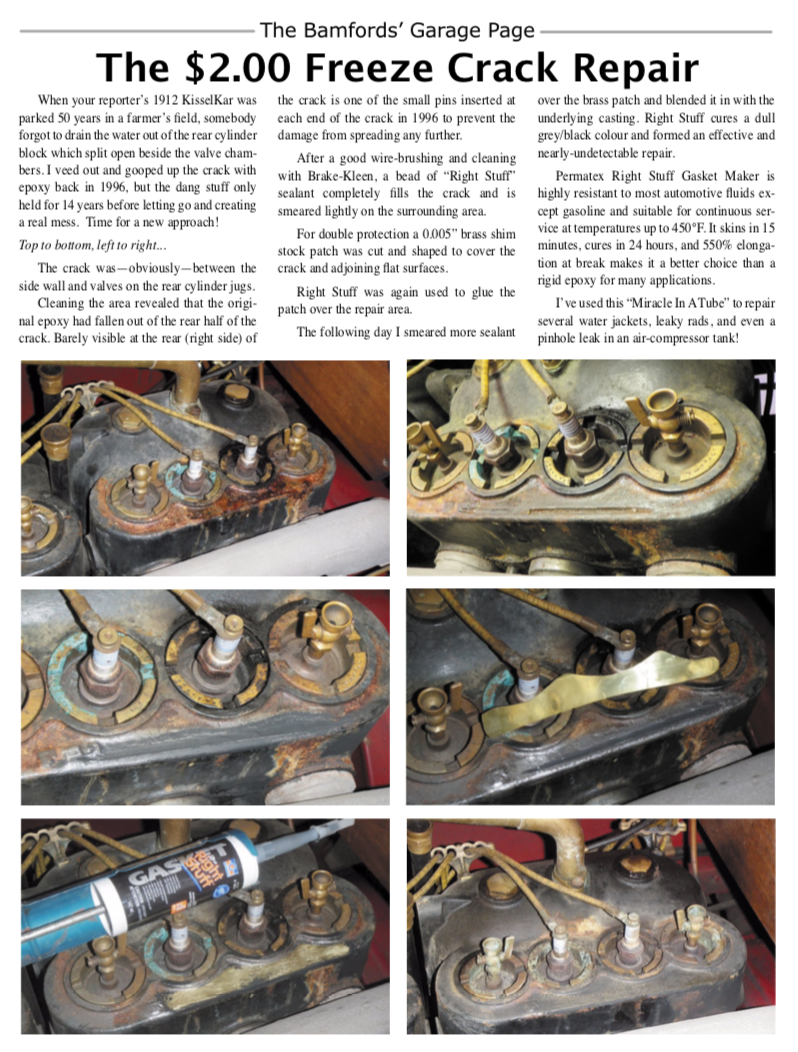

This excerpt from our local club newsletter explains the technique.
Note: when I previewed this post the text below was almost unreadable, however, clicking on the graphic both expand and sharpened the text nicely

K12 freeze crack repair.png


Topic author
blgitn
Posts: 54
Joined: Mon Jan 21, 2019 10:36 pm
First Name: Roger
Last Name: Harmon
Location: West Point, VA
MTFCA Number: 16412
Board Member Since: 2007

Re: Freeze Crack Repair

Post by blgitn » Mon Jan 27, 2020 4:27 pm

Dang. Strike one.

I located and sealed 4 cracks. Some had been brazed up, some puttied. I had to use a composite head gasket to put the new (good) head on. When I re-torqued it this morning; more water in the valve chamber!! :cry:

It's a durn shame too; hardened seats, stainless valves, adjustable lifters, sleeved to standard and lots of shims left. :x
I don't know how many times this thing froze up over the years but some PO put some work ($) into this engine.

I'm scared try that water-glass stuff or something like it. Won't it ruin my babbit?

Any suggestions?

R/ Roger.


Scott_Conger
Posts: 1948
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Freeze Crack Repair

Post by Scott_Conger » Mon Jan 27, 2020 8:26 pm

where is the leak? And I know valve chamber, but where in the chamber?

Initially, you said between 2-3, but have now repaired 4 places...are you able to see specifically where it is coming from?

A gentle pressure on the block and some Snoop® Liquid Leak Detector will spot it if not obvious.

https://www.ebay.com/i/192771539231?chn ... rlEALw_wcB
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


SurfCityGene
Posts: 218
Joined: Wed Jan 23, 2019 3:00 pm
First Name: Gene
Last Name: Carrothers
Location: Huntington Beach, Ca
MTFCA Number: 22905
MTFCI Number: 23068
Board Member Since: 1999

Re: Freeze Crack Repair

Post by SurfCityGene » Tue Jan 28, 2020 3:17 am

Roger, Yes, Please be more specific about where your crack is. If you need more info about using the Right Stuff or Ultra Black please let me know.
I don't think you will be successful trying any type of stop leak in the radiator but am sure that the typical freeze crack in the T block can be fixed like Chris has also suggested. Four Cracks???? We'll need some better discriptions
1912 Torpedo Roadster


J and M Machine
Posts: 13
Joined: Wed Jan 09, 2019 6:46 pm
First Name: John
Last Name: Gulbankian
Location: Massachusetts
Contact:

Re: Freeze Crack Repair

Post by J and M Machine » Tue Jan 28, 2020 9:08 am

blgitn wrote:
Wed Jan 22, 2020 7:08 pm
I found some water in my lifter galley, and an old repair in the water jacket between 2 & 3. The repair is oil-colored and lifting around the edges. I can't tell if its JB Weld or Marine Tex. One of the freeze plugs is covered in white epoxy; pretty sure that's Marine tex.

it will be impossible to get the crack really (welding) clean, and I believe there will be too much rust damage in the crack area(s). I'm trying to decide whether to chip it off and use epoxy again or chip it off and go with good ol' Permatex #1. Reviewing old posts brings up the question of poly-glycols affecting the epoxies; I couldn't find a real conclusion to the discussion. What say Ye?

I've used both JB weld and ol' #1 successfully many times on the outside of the water jacket, but never inside the valve cover. I can see the chevron-shaped crack through the oval hole in the head-gasket surface: I intend to attack it with a long burr bit and then try to seal it from the top too. I'm happy to hear your opinions.

R/ Roger.

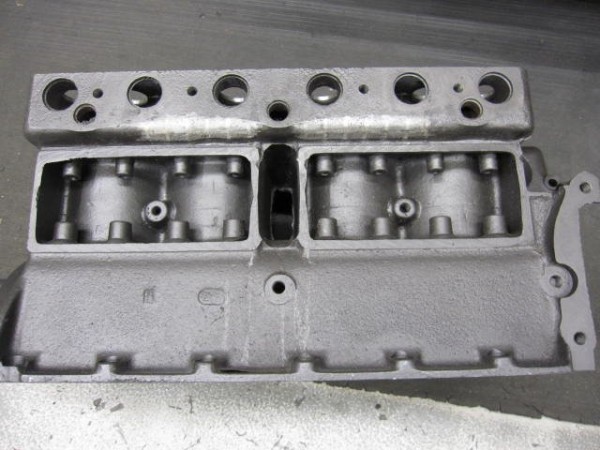

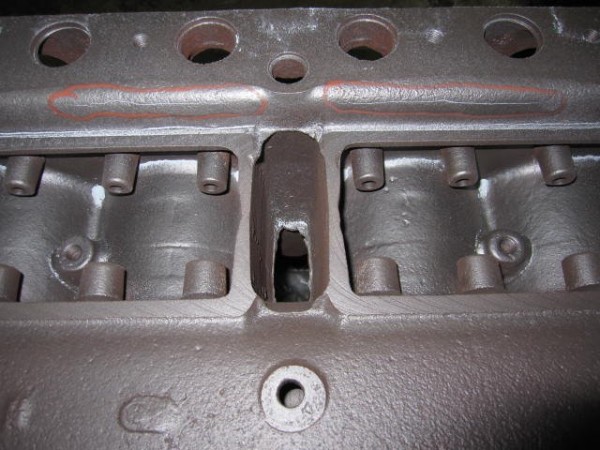

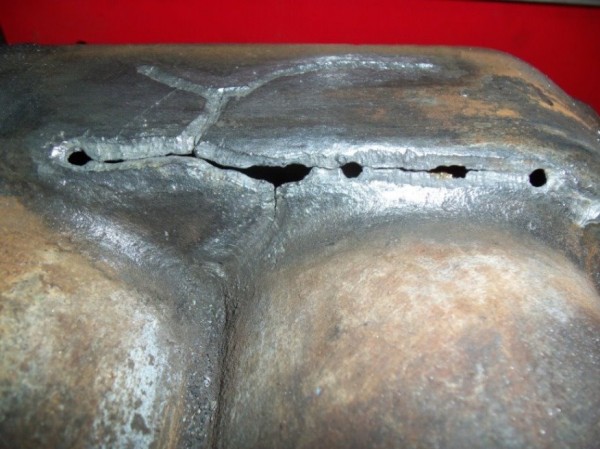

The crack can be reapired by metal stitching as seen in our pictures below even if it goes through th efreeze plug hole we can fix it permanently.
Attachments


Les Schubert
Posts: 405
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Freeze Crack Repair

Post by Les Schubert » Tue Jan 28, 2020 9:29 am

The “stitch” method is how I’ve always had it done. Never regretted it. Guys talk about it being so easy to buy another GOOD block for a $100.00. That sure hasn’t been my experience. Sure for a ‘16-25 maybe. Early and good ‘26-7 make in Canada are getting scarce. Just my experience


Topic author
blgitn
Posts: 54
Joined: Mon Jan 21, 2019 10:36 pm
First Name: Roger
Last Name: Harmon
Location: West Point, VA
MTFCA Number: 16412
Board Member Since: 2007

Re: Freeze Crack Repair

Post by blgitn » Thu Jan 30, 2020 5:37 pm

I thought I could see all the cracks... I fixed one chevron-shaped crack on the roof of the valve box (previously puttied), one long crack (previously brazed) running through the center freeze plug above the valve box, one under the fan, and one rear of the water inlet on the drivers side (previously brazed).

I'm thinking about isolating the block and circulating some water-glass type stuff under about 5psi. I'm working on a Rube Goldberg device to do that.

I just need one (or two) more seasons out of this engine while a replacement touring engine is built.

R/ Roger.


Scott_Conger
Posts: 1948
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Freeze Crack Repair

Post by Scott_Conger » Thu Jan 30, 2020 6:07 pm

So, trying a product which requires 212F heat to transition, on a cold block in hopes of patching one or more cracks which from reading posts, you haven't found, is preferable to actually identifying and locating a crack with SNOOP?

Good luck with that.

I'm always intrigued when someone asks for advice and then rejects proven processes or products off hand. I am now guessing that Sodium Silicate Solution was always going to be the repair of choice prior to the initial Jan 22 question.
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Topic author
blgitn
Posts: 54
Joined: Mon Jan 21, 2019 10:36 pm
First Name: Roger
Last Name: Harmon
Location: West Point, VA
MTFCA Number: 16412
Board Member Since: 2007

Re: Freeze Crack Repair

Post by blgitn » Thu Jan 30, 2020 7:26 pm

Durn. :oops:

What is this SNOOP you speak of?

R/ Roger.


tdump
Posts: 277
Joined: Sun Jan 06, 2019 7:00 pm
First Name: Mack
Last Name: Cole
Location: North Carolina

Re: Freeze Crack Repair

Post by tdump » Thu Jan 30, 2020 8:12 pm

I know everyone wants to haul every block with a crack off to the junk yard nowadays. But T engines may not be as plentiful in 20 + years as they are now.New methods may be divised to repair them or what not.
I would like to see a pic of the actuall crack. There is no pressure on the cooiling system. even a poor weld will hold back some water to allow rust to block off the rest or some type of leak stop. I have never saw a bottle of that liquid glass stuff but I would like to have a bottle of it.I heard it used to come from the drug store?
If you can't help em, don't hinder em'


SurfCityGene
Posts: 218
Joined: Wed Jan 23, 2019 3:00 pm
First Name: Gene
Last Name: Carrothers
Location: Huntington Beach, Ca
MTFCA Number: 22905
MTFCI Number: 23068
Board Member Since: 1999

Re: Freeze Crack Repair

Post by SurfCityGene » Sat Feb 01, 2020 8:43 pm

Big,

Snoop is a leak detection liquid made by the Nupro company. It comes in a small bottle with a dispensing tube coiled inside so when you squeeze out the liquid you don't get any bubbles. The liquid is a surfactant so when it is applied over an area you want to check for a leak you see bubbles. of course the contents must be under pressure ao you'll see bubbles where the crack or leak is.

You can put some air pressure in your system and use a mixture of liquid soap and water to do the same. Scott gave you a great idea although I've never tried on a T cooling system. Not too Much Air!!!
1912 Torpedo Roadster


Scott_Conger
Posts: 1948
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Freeze Crack Repair

Post by Scott_Conger » Sat Feb 01, 2020 10:41 pm

Just follow the link I provided.

Soap acts similarly, though if the leak is just a weep, SNOOP will bubble and foam, where dish soap may pop prematurely leading to difficulty in determining exact/precise location.

As Gene mentions, go easy with the air pressure. You're simply trying to speed up a natural weep.
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

Post Reply Previous topicNext topic
