Looking for pitman info

Post by Craig E. Luton » Tue Nov 14, 2023 10:21 pm

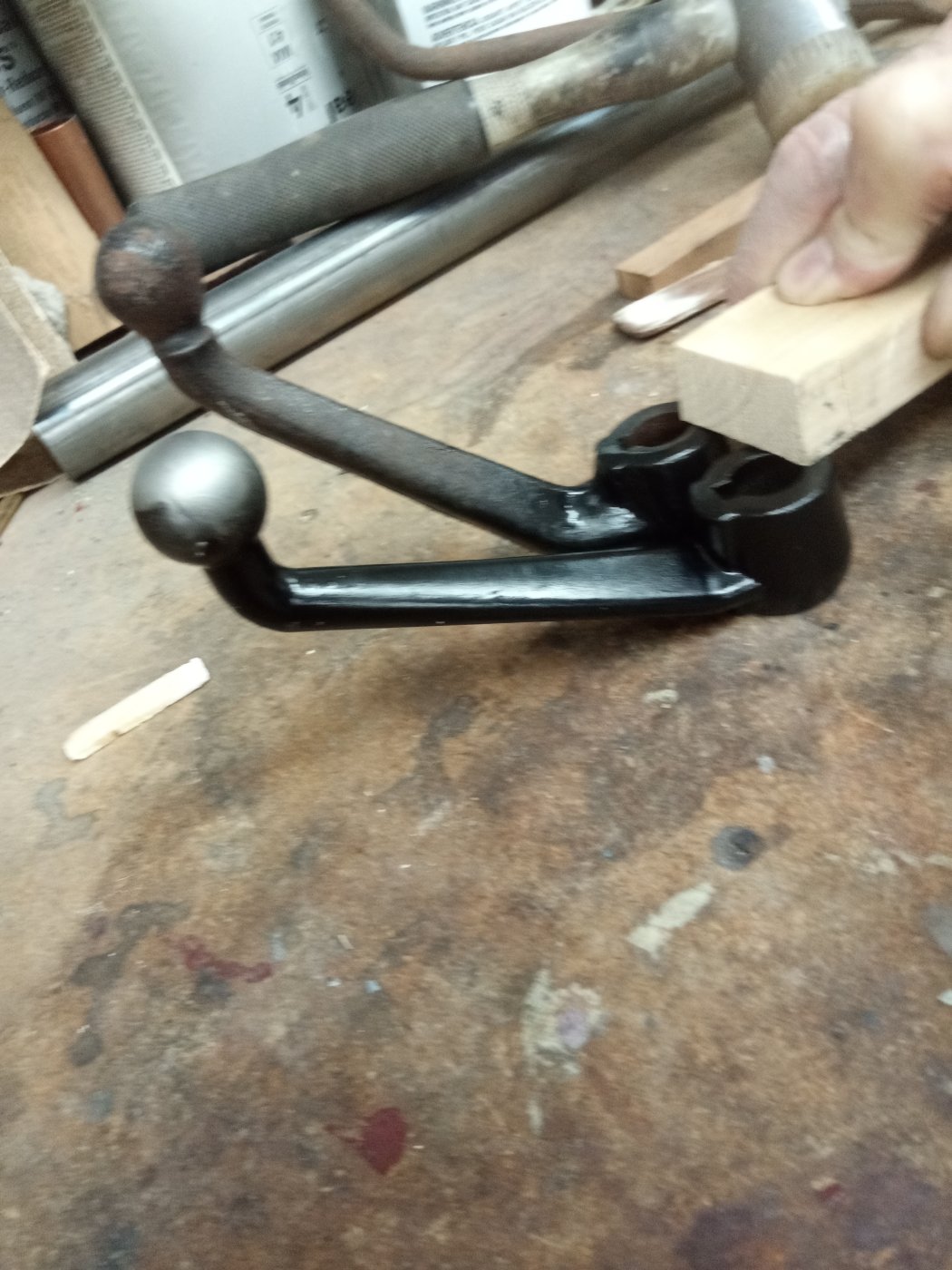

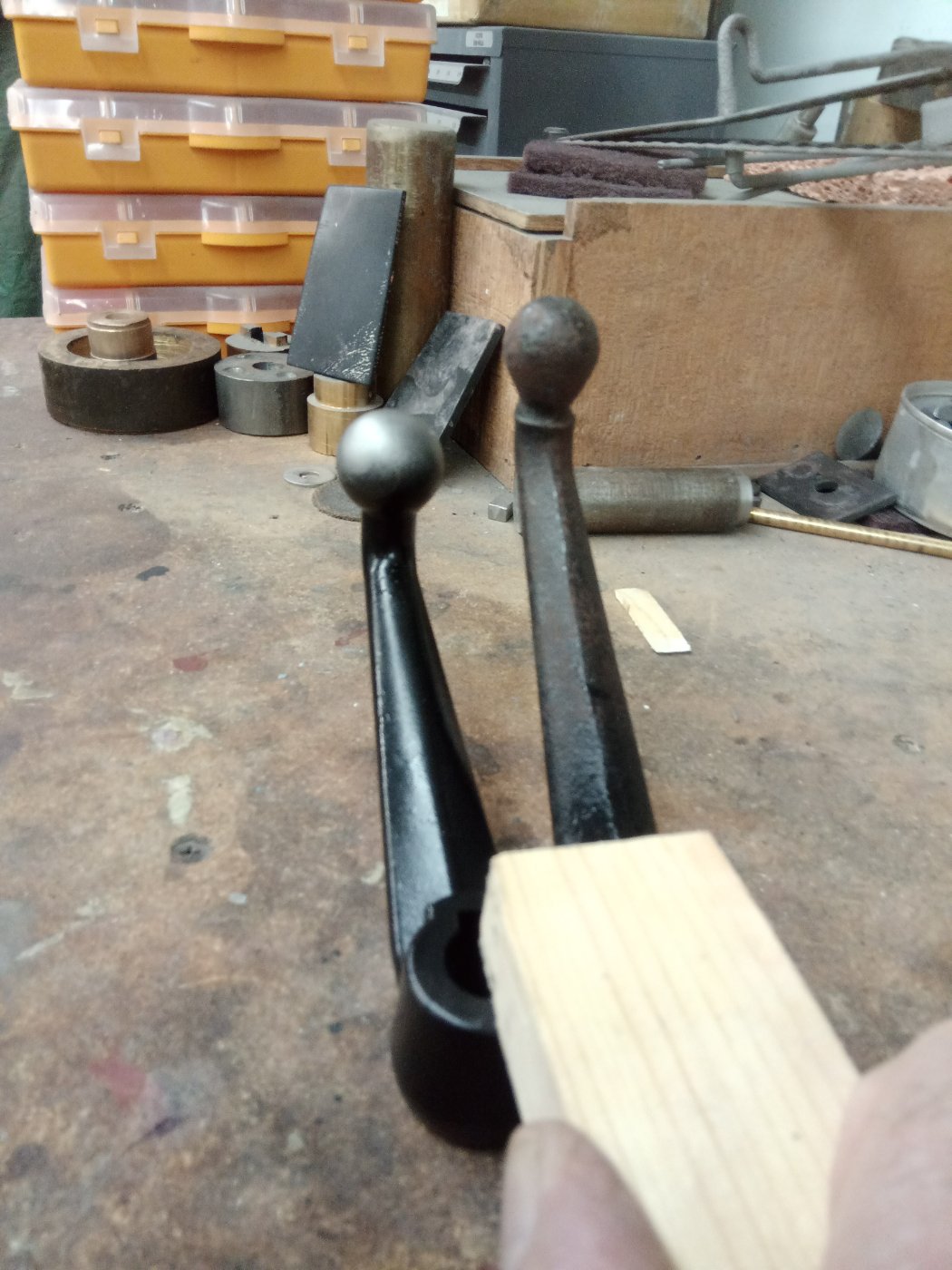

The pictures are of 2 pitman arms I have. The short on is a repro and a very good looking one at that. The long one came off my 1914 steering column. The short one is the same as the one I have on my 1915. I checked the parts books and the same part number is used from 13 through 26 and appears to be the short one. Does anyone know what I have here and even if the long one is even a model T Ford? The ball on the short on is 1” and the ball on the short one appears to be 7/8”
Thank you, Craig
Attachments
Pitman arm 3.jpg
Pitman arm 2.jpg
Pitman arm 1.jpg
Top

Topic author
Craig E. Luton
Posts: 183
Joined: Sun Jan 20, 2019 1:40 pm
First Name: Craig
Last Name: Luton
* REQUIRED* Type and Year of Model Ts owned: 1914 Ford Runabout; 1915 Ford Touring; 1936 Ford Pick-up
Location: Clancy Montana

Re: Looking for pitman info

Post by Craig E. Luton » Tue Nov 14, 2023 10:22 pm

Wrong forum, sorry
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Looking for pitman info

Post by TRDxB2 » Wed Nov 15, 2023 11:40 am

Craig E. Luton wrote: ↑
Tue Nov 14, 2023 10:21 pm
 The pictures are of 2 pitman arms I have. The short on is a repro and a very good looking one at that. The long one came off my 1914 steering column. The short one is the same as the one I have on my 1915. I checked the parts books and the same part number is used from 13 through 26 and appears to be the short one. Does anyone know what I have here and even if the long one is even a model T Ford? The ball on the short on is 1” and the ball on the short one appears to be 7/8”
Thank you, Craig

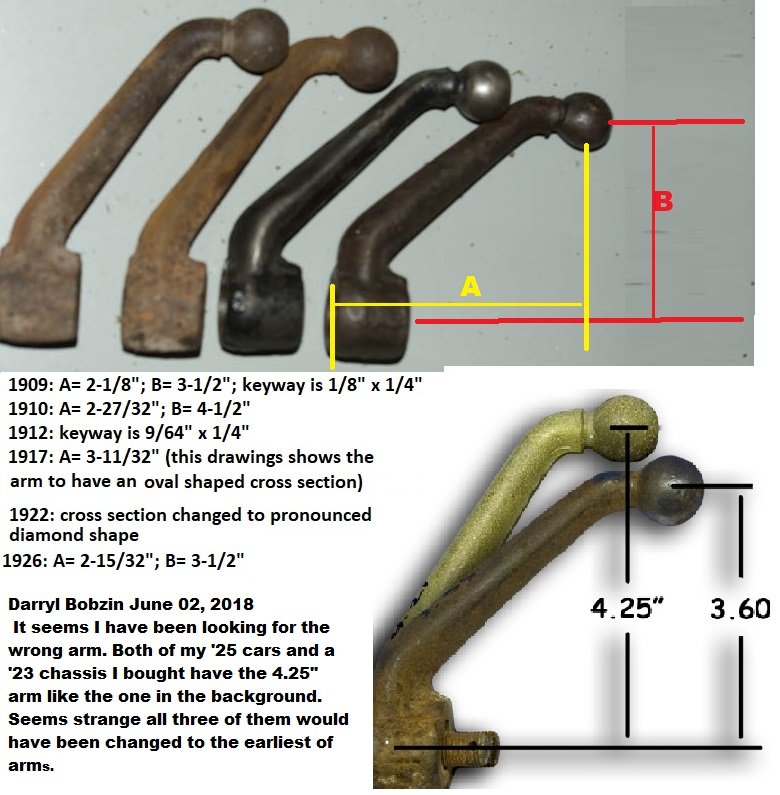

Th "ball" on the long one looks pear shaped - if so it may be worn out
From the Forum not me looking
Attachments
Drag link.png
Drag link.png (162.23 KiB) Viewed 467 times
