- IMG_1451.jpeg (32.52 KiB) Viewed 1139 times
WTB: 1912 top bow iron clamps?????
-
michaelb2296
Topic author - Posts: 254
- Joined: Tue Sep 13, 2022 4:01 pm
- First Name: Michael
- Last Name: Bunner
- * REQUIRED* Type and Year of Model Ts owned: 1912 Torpedo Roadster 1917 Smith Form-a-Truck
- Location: Cary, NC
- Board Member Since: 2007
- Contact:
WTB: 1912 top bow iron clamps?????

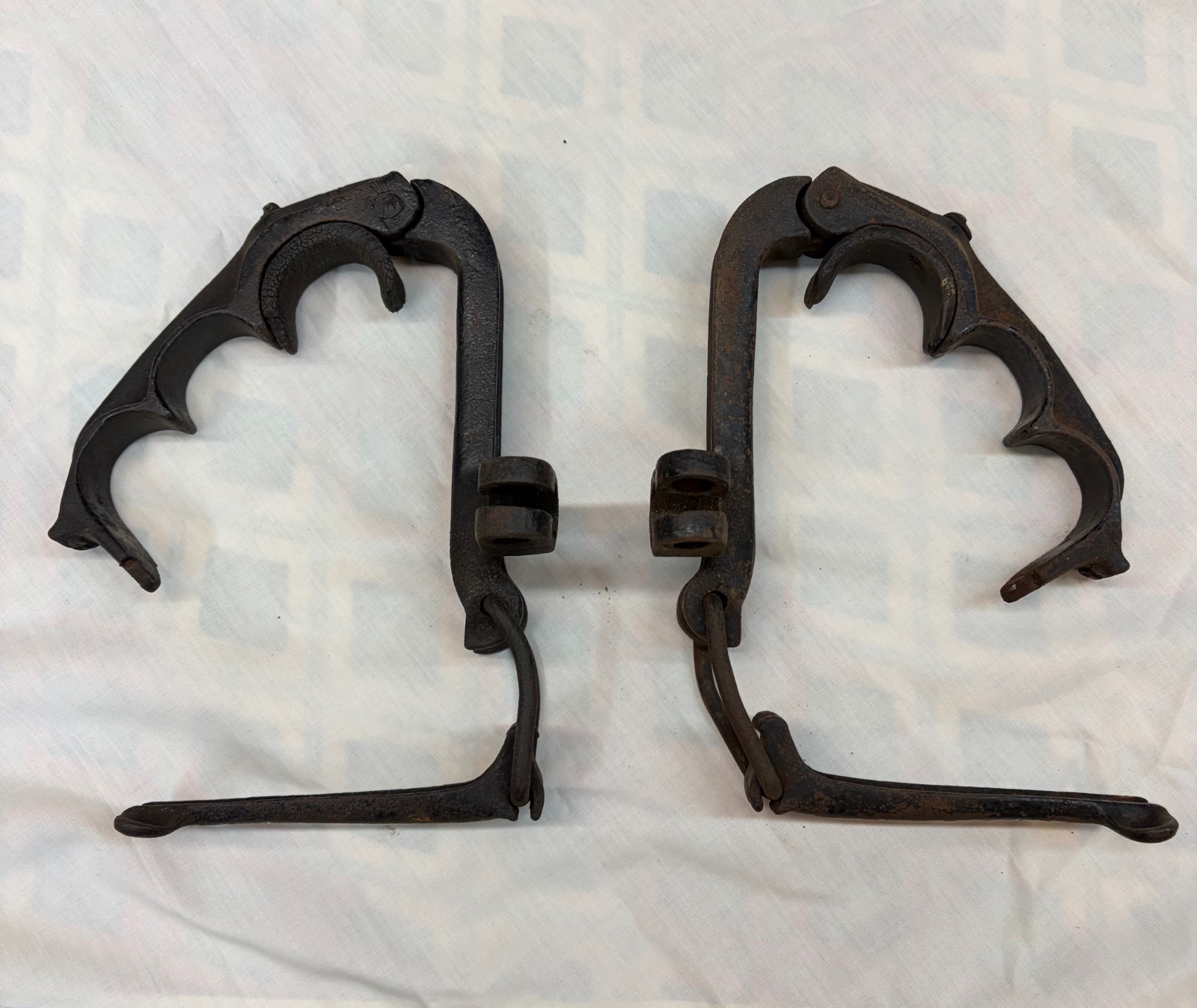

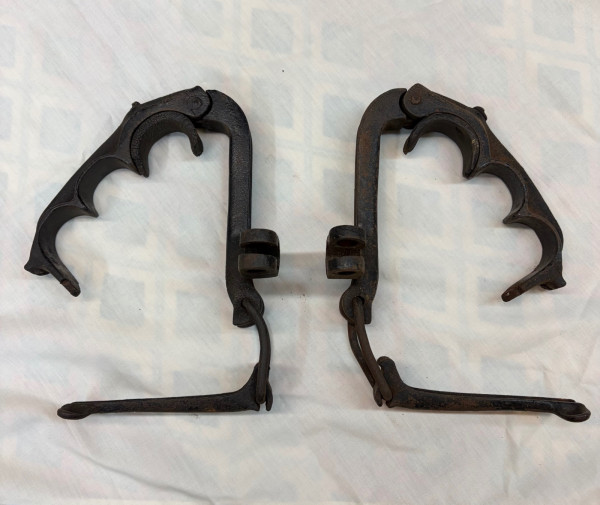

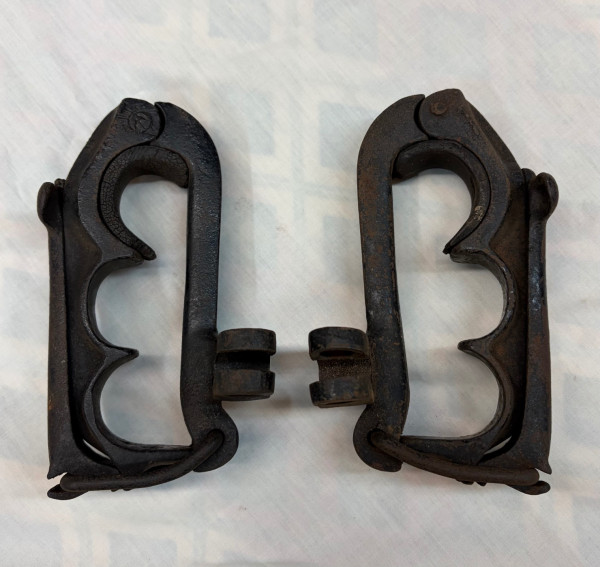

I dont know what these are called but if you have them please let me know:
I think they are steel???? Seems like it. It doesnt look like straps.
I think they are steel???? Seems like it. It doesnt look like straps.
-
Karl Von Neumann
- Posts: 841
- Joined: Thu Jan 06, 2022 10:52 am
- First Name: Karl
- Last Name: VonNeumann
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring 1927 tudor 1926 hotrod 1913 speedster (project) 1926 coupe (project)
- Location: Pleasant prairie Wisconsin
- Board Member Since: 2022
Re: WTB: 1912 top bow iron clamps?????

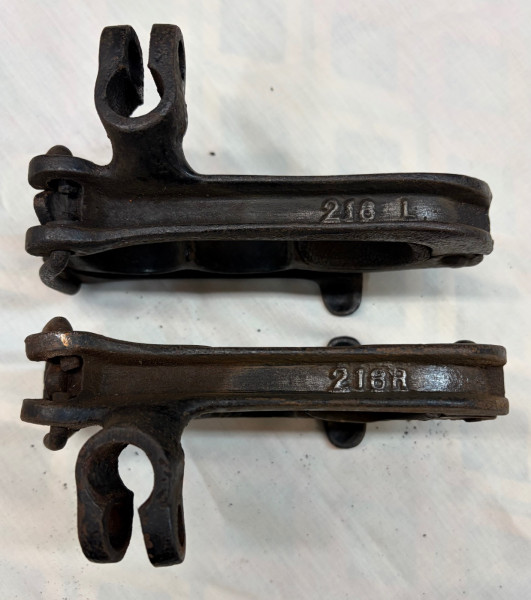

They are called saddle clamps by some or top clamps most have a number on the back and they are left and right beware like my 1919 dodge I got a pair that fit but held the top up really high before find the correct ones. They are pretty specific to car and body style
Please hold the other 6 voices are taking a vote
-
michaelb2296
Topic author - Posts: 254
- Joined: Tue Sep 13, 2022 4:01 pm
- First Name: Michael
- Last Name: Bunner
- * REQUIRED* Type and Year of Model Ts owned: 1912 Torpedo Roadster 1917 Smith Form-a-Truck
- Location: Cary, NC
- Board Member Since: 2007
- Contact:
Re: WTB: 1912 top bow iron clamps?????
Thanks Karl! I have a 1912 Torpedo Roadster!
-
SurfCityGene
- Posts: 681
- Joined: Wed Jan 23, 2019 3:00 pm
- First Name: Gene
- Last Name: Carrothers
- * REQUIRED* Type and Year of Model Ts owned: 1912 Torpedo Roadster
- Location: Huntington Beach, Ca
- Board Member Since: 1999
Re: WTB: 1912 top bow iron clamps?????
What's the purpose of those clamps? I have a Torpedo also and and have never used any clamps other that the leather hold down strap. My bows have a socket and pin that nest together when folded down. Would sure be nice to have something to keep the window from resting on top of the gas cap and getting all marred up though!
1912 Torpedo Roadster
-
michaelb2296
Topic author - Posts: 254
- Joined: Tue Sep 13, 2022 4:01 pm
- First Name: Michael
- Last Name: Bunner
- * REQUIRED* Type and Year of Model Ts owned: 1912 Torpedo Roadster 1917 Smith Form-a-Truck
- Location: Cary, NC
- Board Member Since: 2007
- Contact:
Re: WTB: 1912 top bow iron clamps?????
I think you pretty much nailed it. Sag.
-
JTT3
- Posts: 1966
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: John
- Last Name: Tannehill
- Location: Hot Coffee, MS
- Board Member Since: 2002
Re: WTB: 1912 top bow iron clamps?????
Gene what you need is a top boot!
-
michaelb2296
Topic author - Posts: 254
- Joined: Tue Sep 13, 2022 4:01 pm
- First Name: Michael
- Last Name: Bunner
- * REQUIRED* Type and Year of Model Ts owned: 1912 Torpedo Roadster 1917 Smith Form-a-Truck
- Location: Cary, NC
- Board Member Since: 2007
- Contact:
Re: WTB: 1912 top bow iron clamps?????
To the top. Anyone?
-
michaelb2296
Topic author - Posts: 254
- Joined: Tue Sep 13, 2022 4:01 pm
- First Name: Michael
- Last Name: Bunner
- * REQUIRED* Type and Year of Model Ts owned: 1912 Torpedo Roadster 1917 Smith Form-a-Truck
- Location: Cary, NC
- Board Member Since: 2007
- Contact:
Re: WTB: 1912 top bow iron clamps?????
I still need saddle clamps.
-
Allan
- Posts: 7156
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: WTB: 1912 top bow iron clamps?????
A torpedo roadster will require clamps with just three curved sections to support the bows. The more common type for tourers have four. The other variable is the height of the mounting point for the clamp. Most have that point cast in place, so it cannor be varied to make a better fit, or height of the bow stack.
I don't believe they were ever used on Ford cars from the factory, so you are looking for accessories.
Allan from down under.
I don't believe they were ever used on Ford cars from the factory, so you are looking for accessories.
Allan from down under.
-
RajoRacer
- Posts: 5490
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: WTB: 1912 top bow iron clamps?????
I've seen Canadian cars with clamps - accessory for an American car - I have several different sets.
-
Allan
- Posts: 7156
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: WTB: 1912 top bow iron clamps?????
William's are roadster clamps for three bows. Whether your car has t.he mounting bracket for them is the next question. Whether to height of the bracket on the car will be acceptable is the next question. His are good in one aspect. The mountings are off-set, so they can be swapped from one side to the other to dodge fittings on the irons.
As others mention, they are accessories on US model T's.
Allan from down under
As others mention, they are accessories on US model T's.
Allan from down under
