FS cowl gas tank

[Karl Von Neumann]

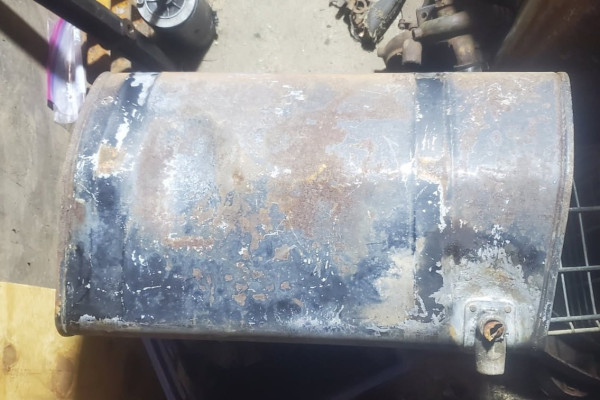

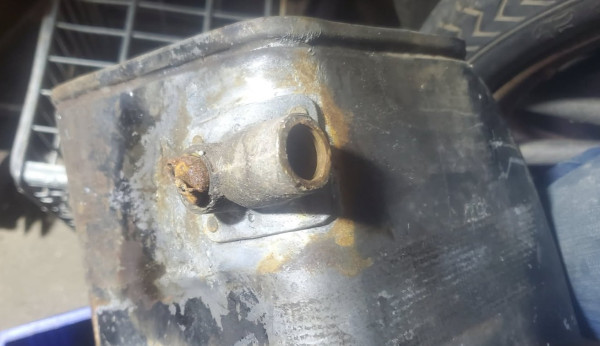

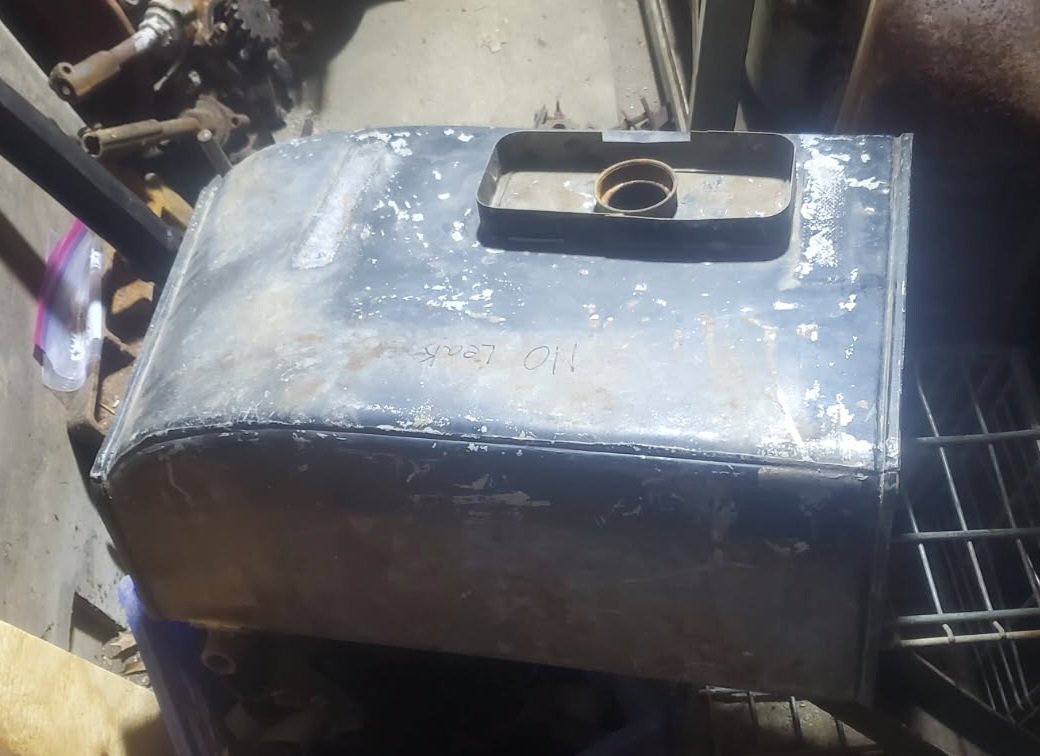

Cowl gas tank does not leak solder has been touched up round the outlet. Over flow tube is broken off at the outlet Decent looking usable tank $200 plus the ride or local pick up pleasant prairie wisconsin can sell you the straps for an additional 50$

[Karl Von Neumann]

Move to top

[Karl Von Neumann]

Move to top

[schwabd1]

Is this an open car or closed car tank?

[Karl Von Neumann]

Is this an open car or closed car tank?

26 27 is all the same goes under the cowl

[TXGOAT2]

Isn't the four door closed car tank on the 26-27 under the seat?

[Karl Von Neumann]

Isn't the four door closed car tank on the 26-27 under the seat?

Yes! I was just thinking about that the 4 door is under the seat thebrest are cowl mount

[schwabd1]

I always thought they were the same, but doing a little research led me to information the open cars were a little shorter and the radius was different. A note on the VowellArt illustration also notes this and advises they cannot be interchanged.

[Mike Silbert]

The 26-27 Cowl tank fits the Roadster, Touring, Coupe, and 2dr sedan.
The TT Truck, Car Chassis, and Fordor kept the Oval Tank of previous years.
The Fordor sedan body was just a modified cowl with general improvements body that was introduced in 1923.
These were still made by outside suppliers and have lots of variances and improvements over the years.
The differences between the years and makers could fill pages of print.

That said, the "1926" and "1927" cowl tanks are different in the outlet fitting casting, overflow tube, and where the overflow lock screw is located.
The screw was moved to make assembly easier coming down the production line.
It is a subtle change and not usually noticed, the whole tank and overflow tube assembly interchange.

Model T parts are a rolling evolution of improvements through the years.
For every "rule" there is at least one exception.
Mike

[TXGOAT2]

I don't think any two of them were actually 100% identical, contrary to the legend.
