WTB oil tube/funnel
-
Paperman
Topic author - Posts: 48
- Joined: Fri Jan 27, 2023 2:17 pm
- First Name: Robert
- Last Name: Kesling
- * REQUIRED* Type and Year of Model Ts owned: 1927 Tudor
- Location: Michigan
WTB oil tube/funnel

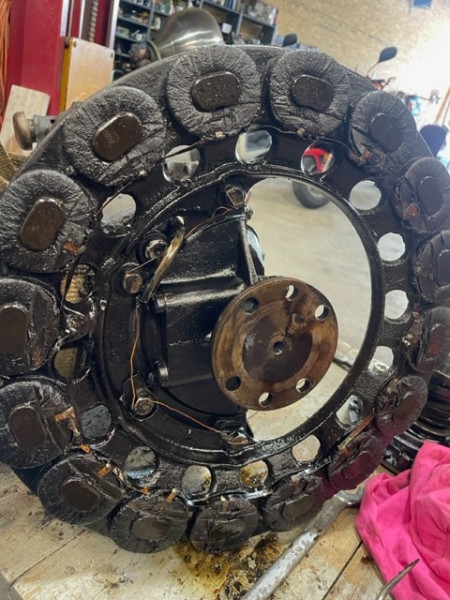

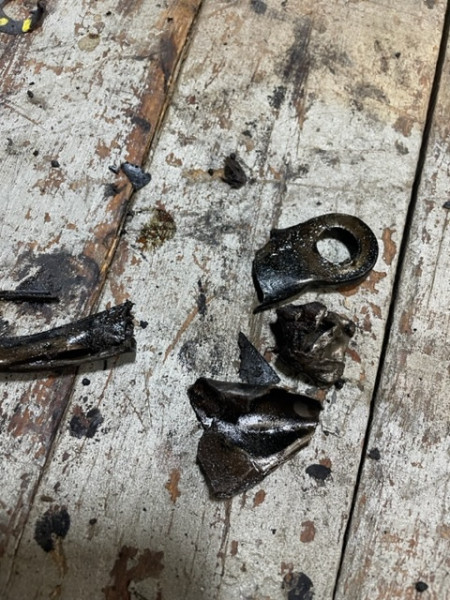

Pulled a runner apart for inspection before doing an engine swap. Found a magnet retainer, bolt broken that ate the oil funnel. Looking for a good oil tube. Shipped to 49431 MI.
- Attachments
-
-
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: WTB oil tube/funnel
Magneto still functional?
Large funnels are available new from our parts vendors.
I prefer new, as used ones will typically have dents & creases to help clog the tube.
Large funnels are available new from our parts vendors.
I prefer new, as used ones will typically have dents & creases to help clog the tube.
-
Paperman
Topic author - Posts: 48
- Joined: Fri Jan 27, 2023 2:17 pm
- First Name: Robert
- Last Name: Kesling
- * REQUIRED* Type and Year of Model Ts owned: 1927 Tudor
- Location: Michigan
Re: WTB oil tube/funnel

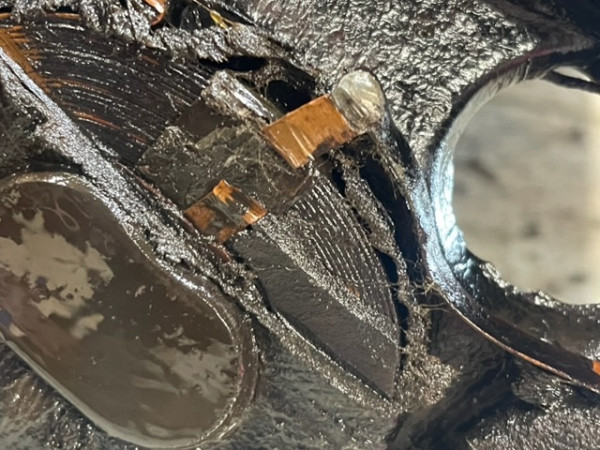

Sadly no, “minor” damage but still damage. It cut one of the leads off of a coil. Still on the the fence weather I rewind it now or just patch it until this engine gets a rebuild.
- Attachments
-
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: WTB oil tube/funnel
It's exposed now - easier to replace than patch.
-
Art M
- Posts: 964
- Joined: Wed Jun 19, 2019 12:57 pm
- First Name: Art
- Last Name: Mirtes
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring
- Location: Huron, Ohio
- Board Member Since: 2016
Re: WTB oil tube/funnel
Fix it properly. A rebuild might be a long ways away.
-
Nv Bob
- Posts: 799
- Joined: Mon Jan 07, 2019 11:04 pm
- First Name: Bob
- Last Name: Middleton
- * REQUIRED* Type and Year of Model Ts owned: 18 roadster 1810 brand X
- Location: Western nv
Re: WTB oil tube/funnel
Hi I have a new large bill oil Funnel $20 + postage
-
AZTerry
- Posts: 102
- Joined: Wed Jan 16, 2019 11:18 pm
- First Name: Terry
- Last Name: Loftus
- * REQUIRED* Type and Year of Model Ts owned: 26 Speedster
- Location: Phoenix, AZ
- MTFCA Life Member: YES
Re: WTB oil tube/funnel
Hello Robert,
I am going to give advice like others above, but based on recent experience. I suggest you do a complete magneto rebuild which should include but not limited to:
1) Replace the magneto ring with a rebuilt unit. The existing unit is past its useful life. very few people have the resources to rebuild them themself.
2) Remove all magnets from the fly wheel and check for cracked magnets. I found 4 cracked magnets in my recent rebuild. When one breaks,and they have, it can cause MAJOR and expensive damage.
3) Replace all brass mounting screws. Original ring gears and new ring gears use different size brass screws.
4) Replace all original cast magnet support spools with new machined aluminum spools. Original cast spools crumble.
5) Individually recharge all magnets.
I hope this gives you some additional information so you can make the correct decision for yourself on how to proceed.
Terry
I am going to give advice like others above, but based on recent experience. I suggest you do a complete magneto rebuild which should include but not limited to:
1) Replace the magneto ring with a rebuilt unit. The existing unit is past its useful life. very few people have the resources to rebuild them themself.
2) Remove all magnets from the fly wheel and check for cracked magnets. I found 4 cracked magnets in my recent rebuild. When one breaks,and they have, it can cause MAJOR and expensive damage.
3) Replace all brass mounting screws. Original ring gears and new ring gears use different size brass screws.
4) Replace all original cast magnet support spools with new machined aluminum spools. Original cast spools crumble.
5) Individually recharge all magnets.
I hope this gives you some additional information so you can make the correct decision for yourself on how to proceed.
Terry
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: WTB oil tube/funnel
If you buy a new reproduction large funnel tube from the vendors, check the joint between the funnel and the tube. I have broken two of the spot welds just positioning the bolt hole on the bracket. As a matter of course, I now braze the funnel to the tube.
Allan from down under.
