FS Winfield H Side Draft Carburetor

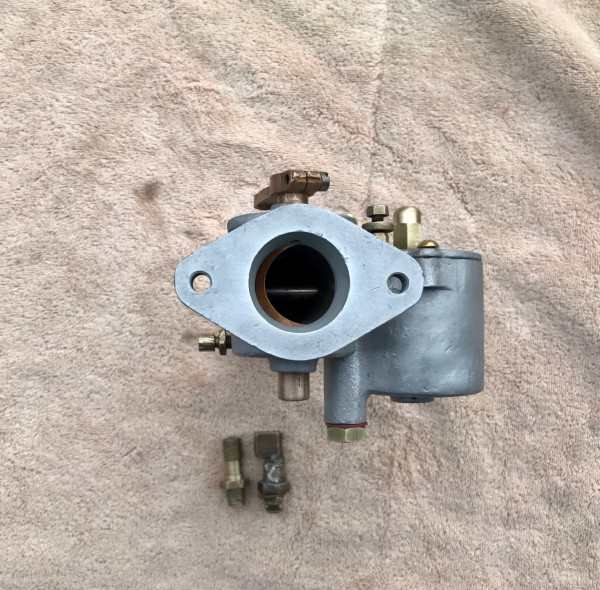

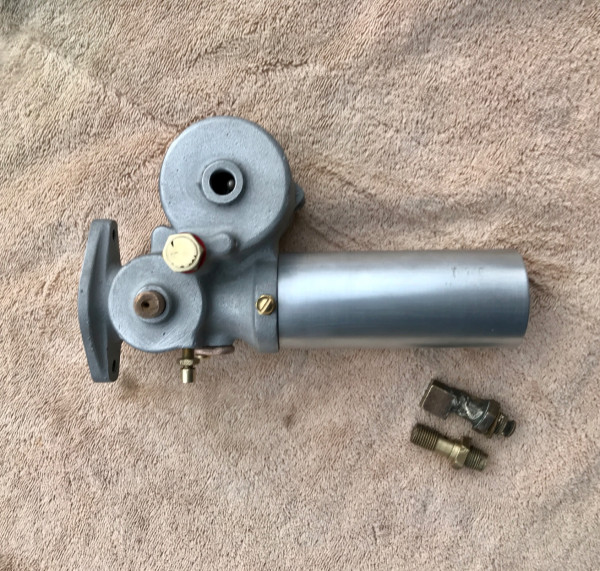

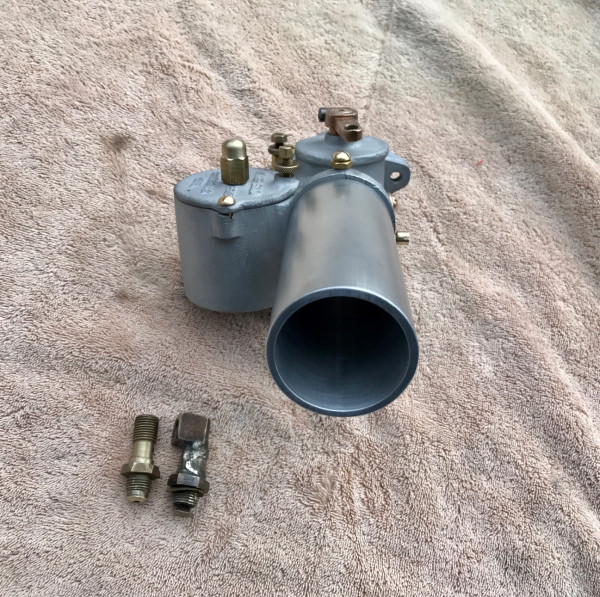

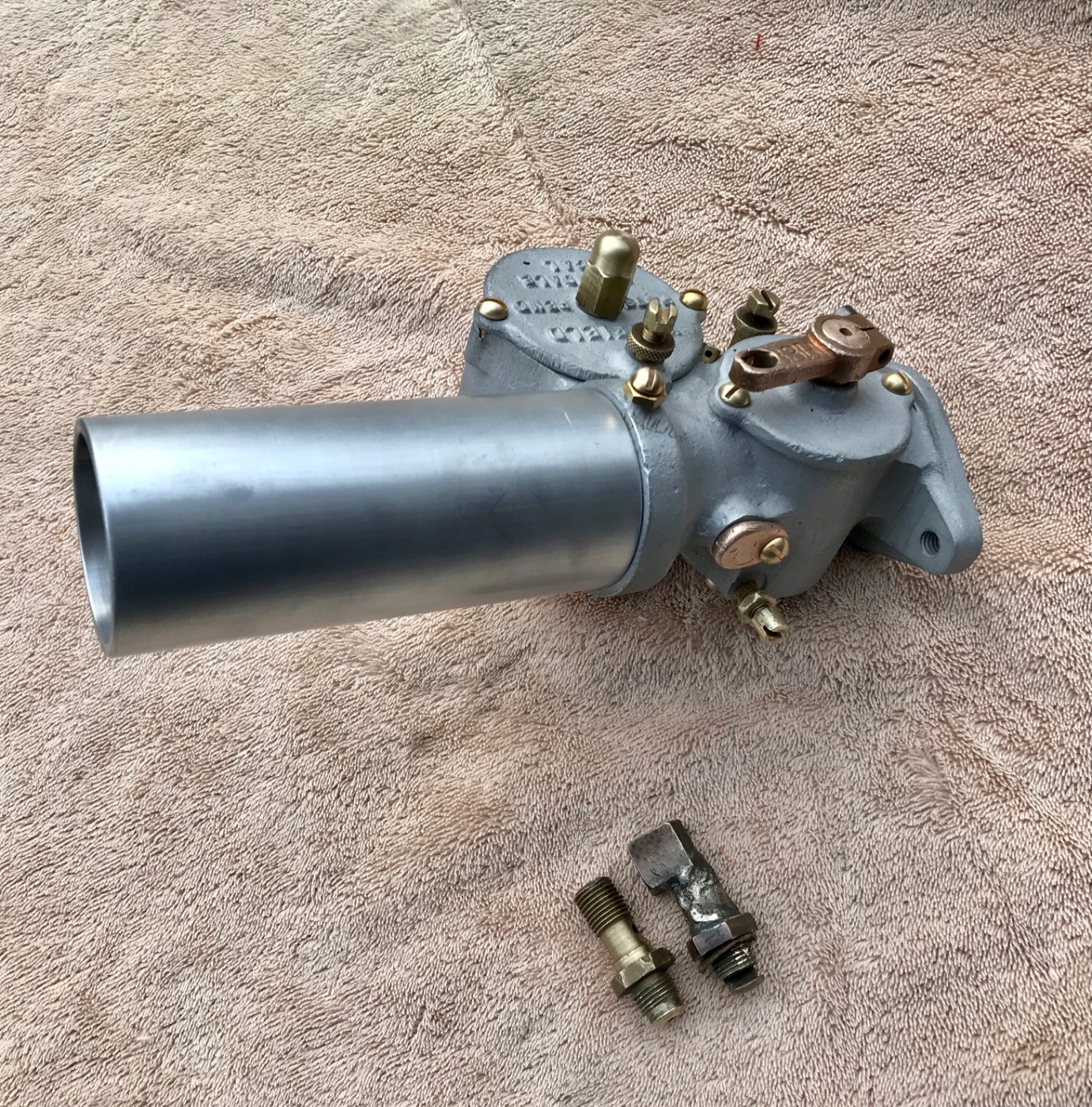

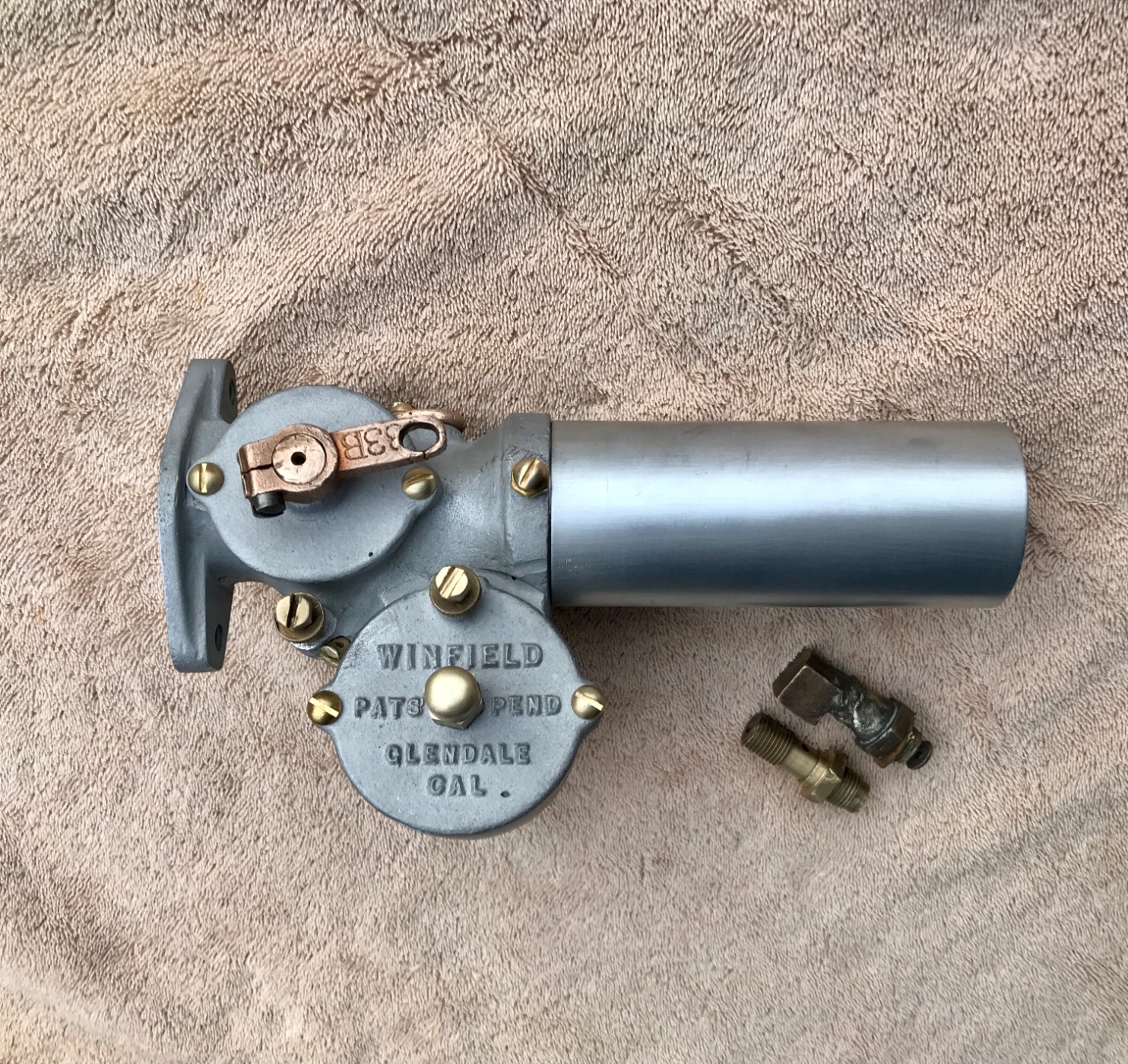

Original Ed Winfield H side draft racing carburetor. The rarest of them all. Good rebuildable condition, complete with barrel float. Throttle barrel nice, turns smooth in bore. Brass throttle arm will need worn oval hole on end brazed and re-drilled back to shape for desired throttle linkage. Cast aluminum body, no pot metal. 2-11/16 between mounting holes, 1-3/8 opening. Included two float needle seats, one modified, one unmodified so the needle can be sealed and reset. 600 includes shipping.
- Attachments
-
-
-
-
Last edited by ThreePedalTapDancer on Tue Dec 19, 2023 6:58 pm, edited 6 times in total.
-
ThreePedalTapDancer
Topic author - Posts: 1631
- Joined: Sun Nov 24, 2019 2:29 pm
- First Name: Ed
- Last Name: Martin
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
- Location: Idaho
-
ThreePedalTapDancer
Topic author - Posts: 1631
- Joined: Sun Nov 24, 2019 2:29 pm
- First Name: Ed
- Last Name: Martin
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
- Location: Idaho
Re: FS Winfield H Side Draft Carburetor
Still available, very rare carburetor
