$120 plus shipping. Prefer PayPal to friend/family but will accept a personal check. If interested email me via the Forum
--
--
--
--
--
FS: Imperial Manifold Primer
-
TRDxB2
Topic author - Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
FS: Imperial Manifold Primer

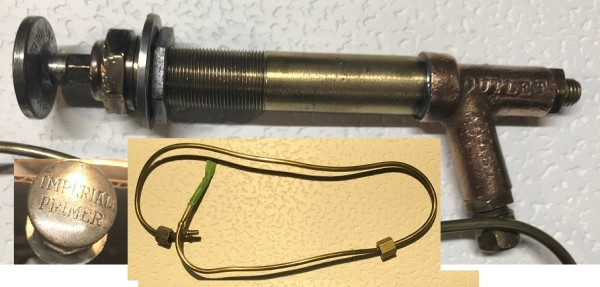

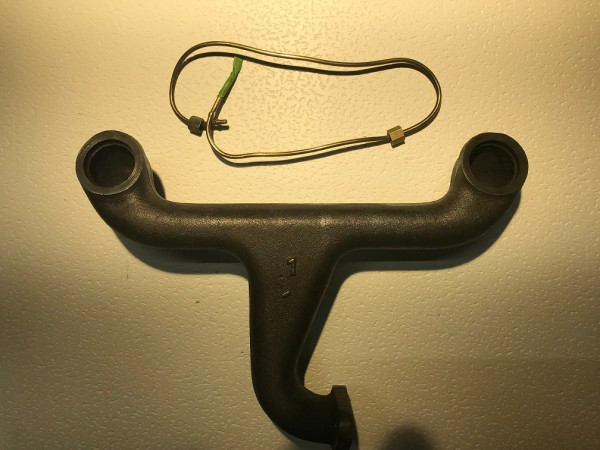

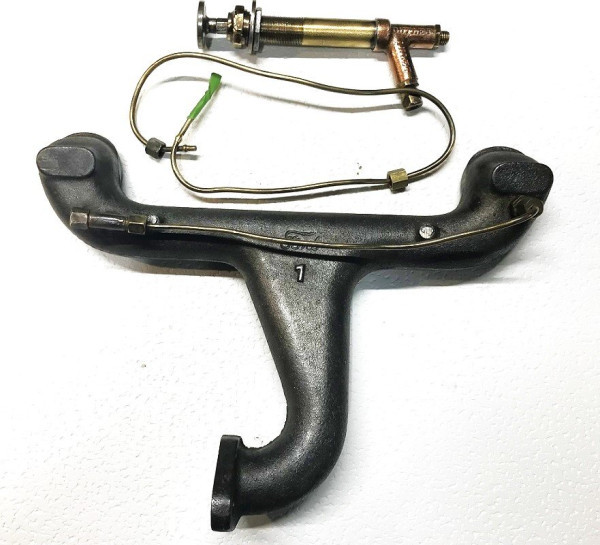

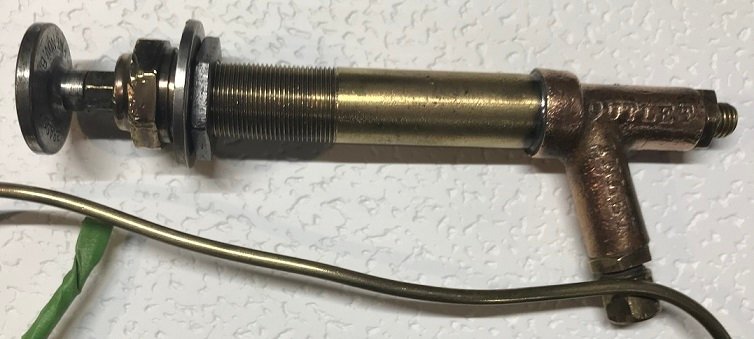

The manifold is in excellent condition, the ports look unused. The plunger spring takes more effort than first expected but it needs to cause the short burst of fuel. The green tap is preventing a new ferrule from sliding off. Have everything else per the parts list except the supply elbow and 3/8 supply line. These parts, from the plunger to your fuel line, would need to be adapted to your carburetor feed setup anyway. T I will print off the instructions .
$120 plus shipping. Prefer PayPal to friend/family but will accept a personal check. If interested email me via the Forum
--
-- --
-- -- --
-- --
--
$120 plus shipping. Prefer PayPal to friend/family but will accept a personal check. If interested email me via the Forum
--
-- --
-- -- --
-- --
--
- Attachments
-
- 193165.jpg (68.22 KiB) Viewed 1730 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
TRDxB2
Topic author - Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: FS: Imperial Manifold Primer

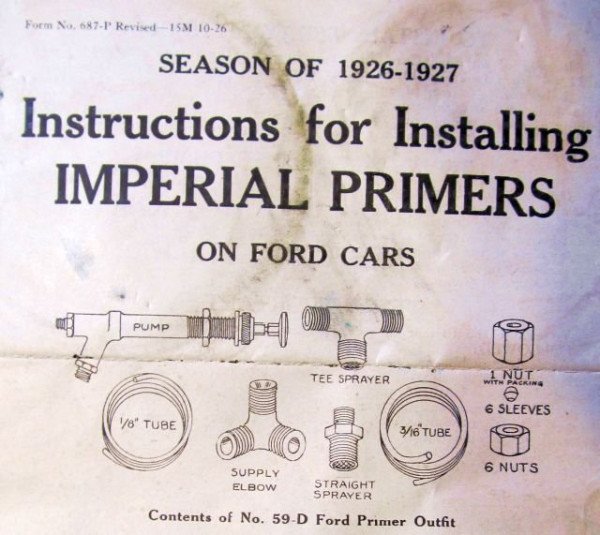

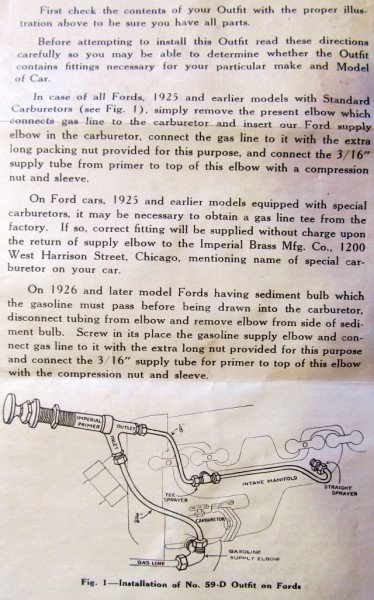

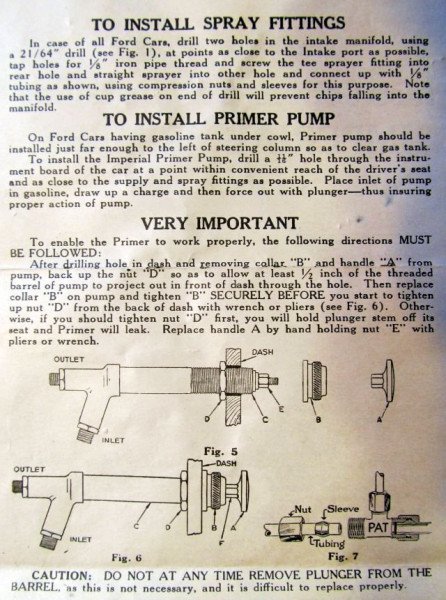

Instructions..............
--
-
-
-

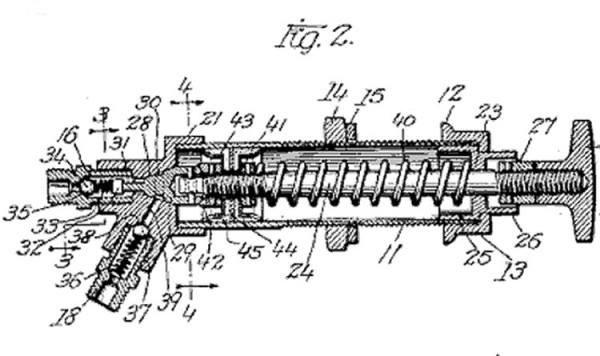

The diagram shows several check valves for siphon and squirt
-
--
- 193165.jpg (68.22 KiB) Viewed 1729 times
- 193166.jpg (73.85 KiB) Viewed 1729 times
- 193167.jpg (88.52 KiB) Viewed 1729 times
The diagram shows several check valves for siphon and squirt
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
TRDxB2
Topic author - Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: FS: Imperial Manifold Primer
jump....jump.... bump....
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Shannon_in_Texas
- Posts: 186
- Joined: Tue Nov 05, 2019 10:40 pm
- First Name: Shannon
- Last Name: Helm
- Location: Arlington TX
Re: FS: Imperial Manifold Primer
Frank, shouldn't that be pump....pump....bump (the starter)?!?
-
TRDxB2
Topic author - Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: FS: Imperial Manifold Primer
pump..pump..pump.
