I am looking for a Fun Projects/Birdhaven converted closed spool pinion bearing. I would prefer the adjustable version, but am open to the nonadjustable kind. Birdhaven still does these conversions, but it is my understanding that the customer needs to provide a crack free housing and my closed spool has a crack.
Please send me an email through the forum if you have one that you would be willing to sell. No PM please, as I will not see it.
Thanks,
Neal
WTB Fun Projects/Birdhaven closed spool pinion bearing
-
Adam
- Posts: 1553
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: Adam
- Last Name: Doleshal
- * REQUIRED* Type and Year of Model Ts owned: ‘13 Touring, ‘24 Touring, ‘25 TT dump truck, ‘26 Tudor, ‘20 Theiman harvester T powerplant, ‘20 T Staude tractor
- Location: Wisconsin
- Board Member Since: 2000
Re: WTB Fun Projects/Birdhaven closed spool pinion bearing
Fyi… The area where the two housings come together often transfer a “rub mark” to the pinion housing that looks like a crack but isn’t. If this is the case with yours, it would still be a good core.
-
NealW
Topic author - Posts: 488
- Joined: Sun Jan 13, 2019 6:20 pm
- First Name: Neal
- Last Name: Willford
- * REQUIRED* Type and Year of Model Ts owned: 1911 Touring, 1929 Model A Tudor
- Location: Kansas
- Contact:
Re: WTB Fun Projects/Birdhaven closed spool pinion bearing
Thanks for the information, but it is a 1" long crack between one of the holes and down the inner wall with the sleeve removed.
-
RajoRacer
- Posts: 5216
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: WTB Fun Projects/Birdhaven closed spool pinion bearing
I have several closed spools - I'll dig one out & check it if you'd like - I don't have any early, no bump type. A T buddy of mine is doing up a new Timken spool kit but it's for the later open spool.
-
TRDxB2
- Posts: 6308
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: WTB Fun Projects/Birdhaven closed spool pinion bearing
Yes they have a core charge. What year spool do you need. I have some. Email me via the ForumNealW wrote: ↑Wed Aug 13, 2025 9:26 amI am looking for a Fun Projects/Birdhaven converted closed spool pinion bearing. I would prefer the adjustable version, but am open to the nonadjustable kind. Birdhaven still does these conversions, but it is my understanding that the customer needs to provide a crack free housing and my closed spool has a crack.
Please send me an email through the forum if you have one that you would be willing to sell. No PM please, as I will not see it.
Thanks,
Neal
The one early one I have to give up showed some hairline cracks around the outside of the lip. So its in scrap now.
Have later model spools in good shape.
Last edited by TRDxB2 on Thu Aug 14, 2025 4:34 pm, edited 1 time in total.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
NealW
Topic author - Posts: 488
- Joined: Sun Jan 13, 2019 6:20 pm
- First Name: Neal
- Last Name: Willford
- * REQUIRED* Type and Year of Model Ts owned: 1911 Touring, 1929 Model A Tudor
- Location: Kansas
- Contact:
Re: WTB Fun Projects/Birdhaven closed spool pinion bearing

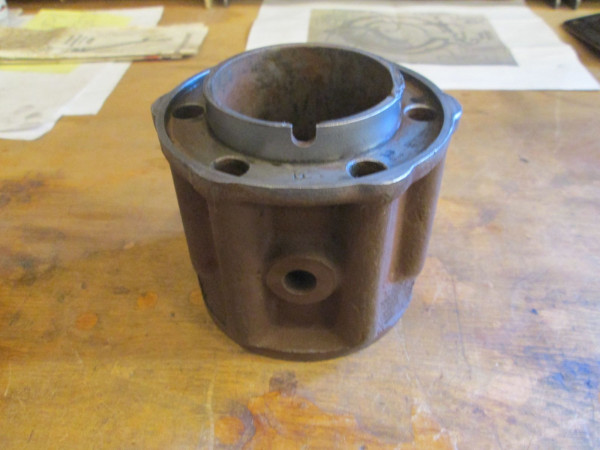

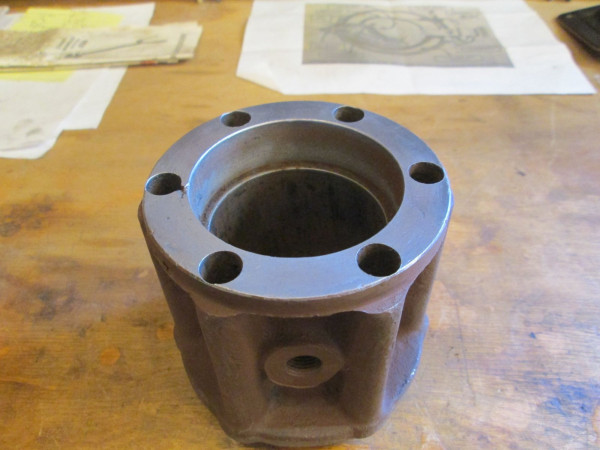

The spool is for an early 1914 T, equipped with a two piece drive shaft. Here are some pictures showing the pinion. If you mean by bumps having extra meat around each bolt hole, then yes.
- Attachments
-
-
-
RajoRacer
- Posts: 5216
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: WTB Fun Projects/Birdhaven closed spool pinion bearing

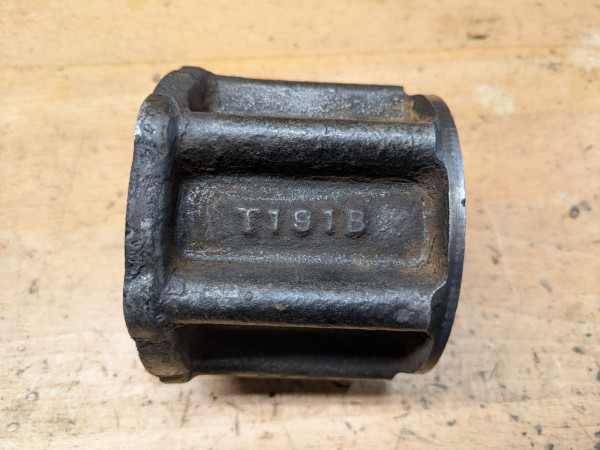

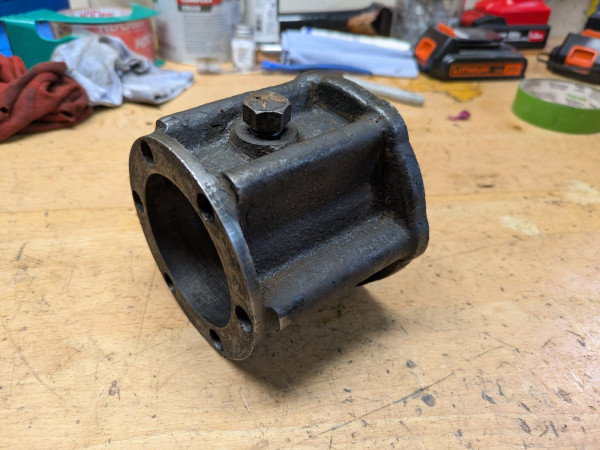

I replied to your email, Neal - I have a nice one here.
- Attachments
-
-
-
NealW
Topic author - Posts: 488
- Joined: Sun Jan 13, 2019 6:20 pm
- First Name: Neal
- Last Name: Willford
- * REQUIRED* Type and Year of Model Ts owned: 1911 Touring, 1929 Model A Tudor
- Location: Kansas
- Contact:
Re: WTB Fun Projects/Birdhaven closed spool pinion bearing
Birdhaven reached out to me and they have a core to build up an adjustable spool, so I am going that route. Thanks to those who checked for one for me.
