Found what I was looking for - WTB - bracket that mounts on front frame crossmember
-
milkman
Topic author - Posts: 6
- Joined: Wed Jan 09, 2019 3:09 pm
- First Name: Lee
- Last Name: Kilmer
- Location: Iowa
Found what I was looking for - WTB - bracket that mounts on front frame crossmember
I am in need of the bracket and mounting u-bolts that goes on front frame cross member and holds the front springs in place as well as supports the nose of the engine pan on a '27 touring.
Last edited by milkman on Mon Sep 08, 2025 8:43 pm, edited 1 time in total.
-
Mike Silbert
- Posts: 91
- Joined: Sat Feb 08, 2020 11:30 pm
- First Name: Mike
- Last Name: Silbert
- Location: Sykesville Md
- MTFCA Life Member: YES
Re: WTB - bracket that mounts on front frame crossmember
If this is for the stated '27 Touring then the front mount is the late style with two built in studs.
The dual loose u bolt style was discontinued many years before.
Verify what you are looking for, both styles are out there.
Mike
The dual loose u bolt style was discontinued many years before.
Verify what you are looking for, both styles are out there.
Mike
-
TRDxB2
- Posts: 6344
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: WTB - bracket that mounts on front frame crossmember

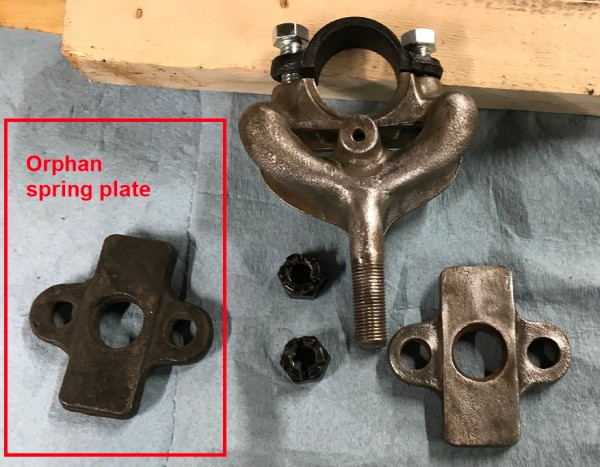

I have all 3 styles of the front engine mount/spring clip. Some painted others surface rustThe 25' 27' had a hole for a bolt. These are some that I had sold. I'll need to get a picture of what you need.
--
This the '26 -27' style
--
--
This the '2 to '25 style
--
--
This is the earlier style
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Allan
- Posts: 6814
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: WTB - bracket that mounts on front frame crossmember
The first photo shows the correct mounting for a 1927 model T. the threaded hole in the front accepts a bolt which fastens the radiator apron in place.
Allan from down under.
Allan from down under.
