Help with seat spring dimensions

Post by Ruxstel24 » Thu Sep 02, 2021 1:21 pm

I have numerous seat springs, some I’m sure are are for a Model T.
Can anyone please help with some sizes of them ?
I’m thinning out stuff that isn’t for a T and hopefully someone can use the T stuff.
I also have what I think is a Center door folding seat, I’ll post a picture of it later.

User avatar

Rich Eagle
Posts: 6895
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
* REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
Location: Idaho Falls, ID

Re: Help with seat spring dimensions

Post by Rich Eagle » Thu Sep 02, 2021 2:02 pm

If no forum member comes forward with them Snyder's makes new ones and surely could have a list with dimensions. They have always been most helpful to me and might be willing to help you.
When did I do that?

User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:

Re: Help with seat spring dimensions

Post by DanTreace » Thu Sep 02, 2021 5:48 pm

Dave

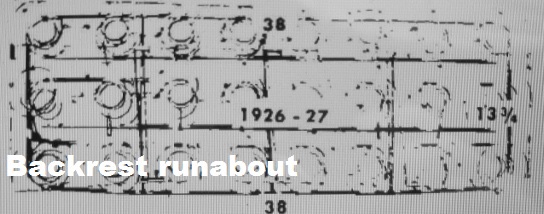

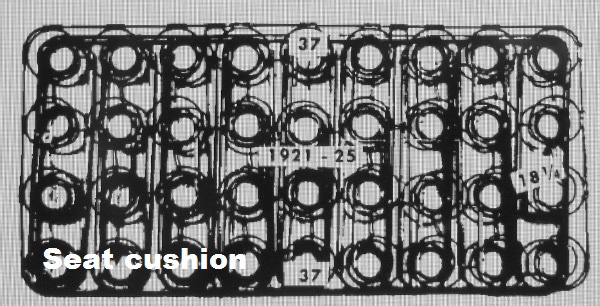

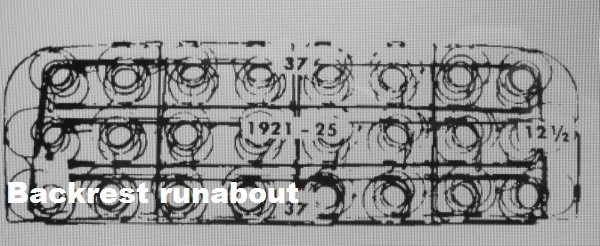

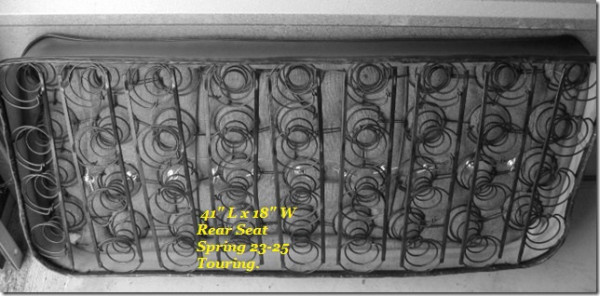

Here are the dimensions of some of the common runabout and touring Model T seat and back rest springs. Hope this helps some.


to793 (600x323).jpg
to793 (600x323).jpg (126.05 KiB) Viewed 2075 times
uio788 (600x306).jpg
uio788 (600x306).jpg (118.03 KiB) Viewed 2075 times
yuo92 (600x450).jpg
yuo92 (600x450).jpg (77.61 KiB) Viewed 2075 times
lk787 (600x306).jpg
lk787 (600x306).jpg (135.89 KiB) Viewed 2075 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford

User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:

Re: Help with seat spring dimensions

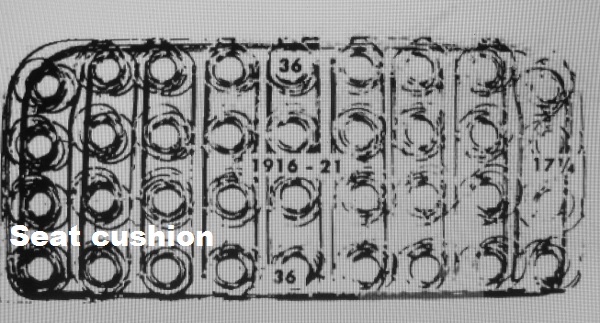

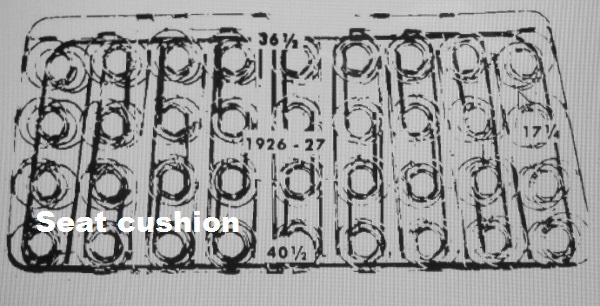

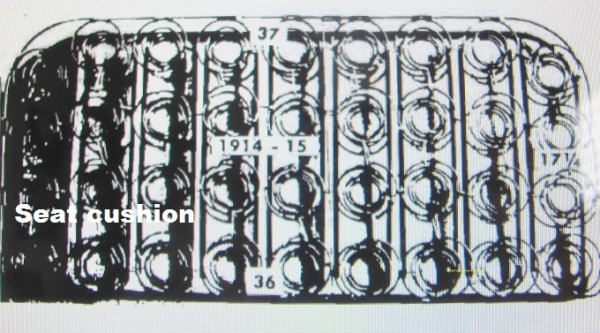

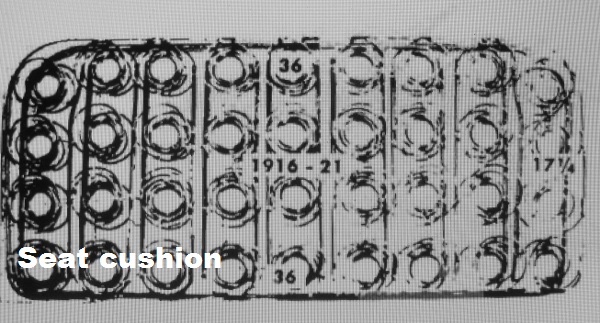

Post by DanTreace » Thu Sep 02, 2021 5:48 pm

jkl791 (600x246).jpg
jkl791 (600x246).jpg (100.92 KiB) Viewed 2074 times
fup (680x377).jpg
ebn0793 (600x323).jpg
ebn0793 (600x323).jpg (125.89 KiB) Viewed 2074 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford

User avatar

Topic author
Ruxstel24
Posts: 2345
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
* REQUIRED* Type and Year of Model Ts owned: 24 Touring car
Location: NE Ohio
Board Member Since: 2018

Re: Help with seat spring dimensions

Post by Ruxstel24 » Thu Sep 02, 2021 6:27 pm

Excellent Dan ! Good idea Rich but this should do it. ;)

User avatar

Topic author
Ruxstel24
Posts: 2345
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
* REQUIRED* Type and Year of Model Ts owned: 24 Touring car
Location: NE Ohio
Board Member Since: 2018

Re: Help with seat spring dimensions

Post by Ruxstel24 » Sat Sep 04, 2021 11:12 am

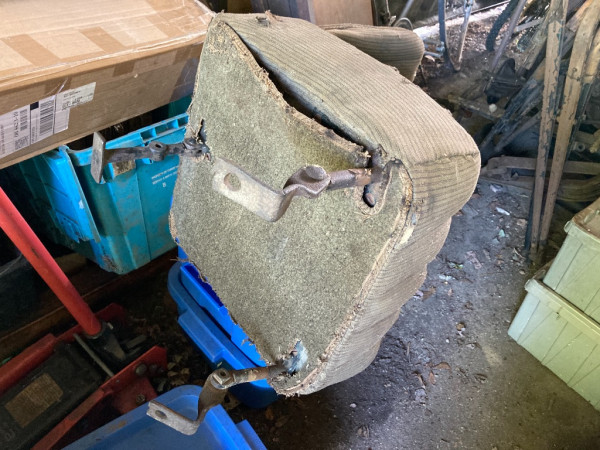

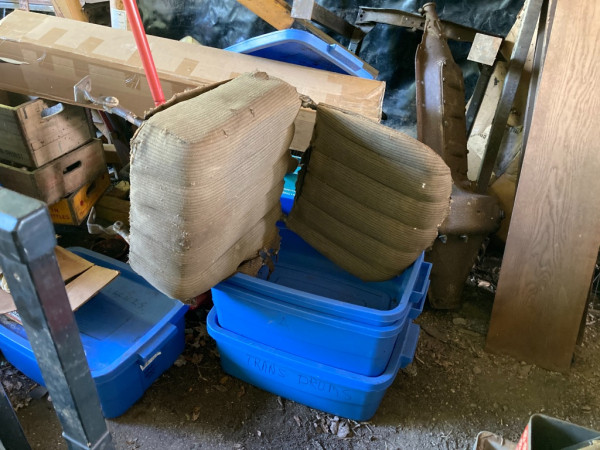

Here is the folding seat I have.
I think it’s for a Centerdoor, what say you ?
Attachments

User avatar

Will_Vanderburg
Posts: 925
Joined: Sun Jan 06, 2019 3:59 pm
First Name: William
Last Name: Vanderburg
* REQUIRED* Type and Year of Model Ts owned: 2
Location: Jackson, NJ

Re: Help with seat spring dimensions

Post by Will_Vanderburg » Sat Sep 04, 2021 12:49 pm

Ruxstel24 wrote:
Sat Sep 04, 2021 11:12 am
Here is the folding seat I have.
I think it’s for a Centerdoor, what say you ?
It's similar to my Centerdoor passenger seat, but the bottom hardware is a tiny bit different.
William L Vanderburg

1925 Touring
