Differentials

Post by jeffstag » Fri Oct 08, 2021 3:31 pm

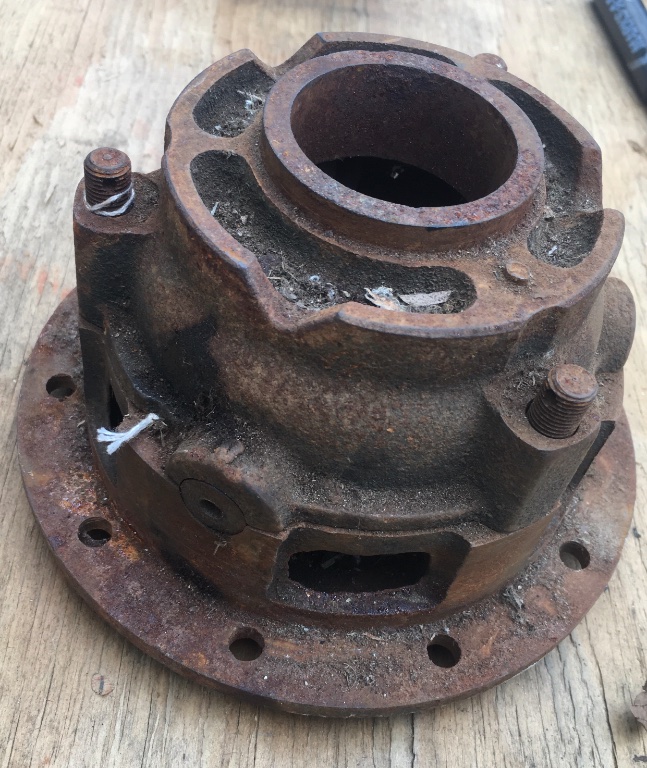

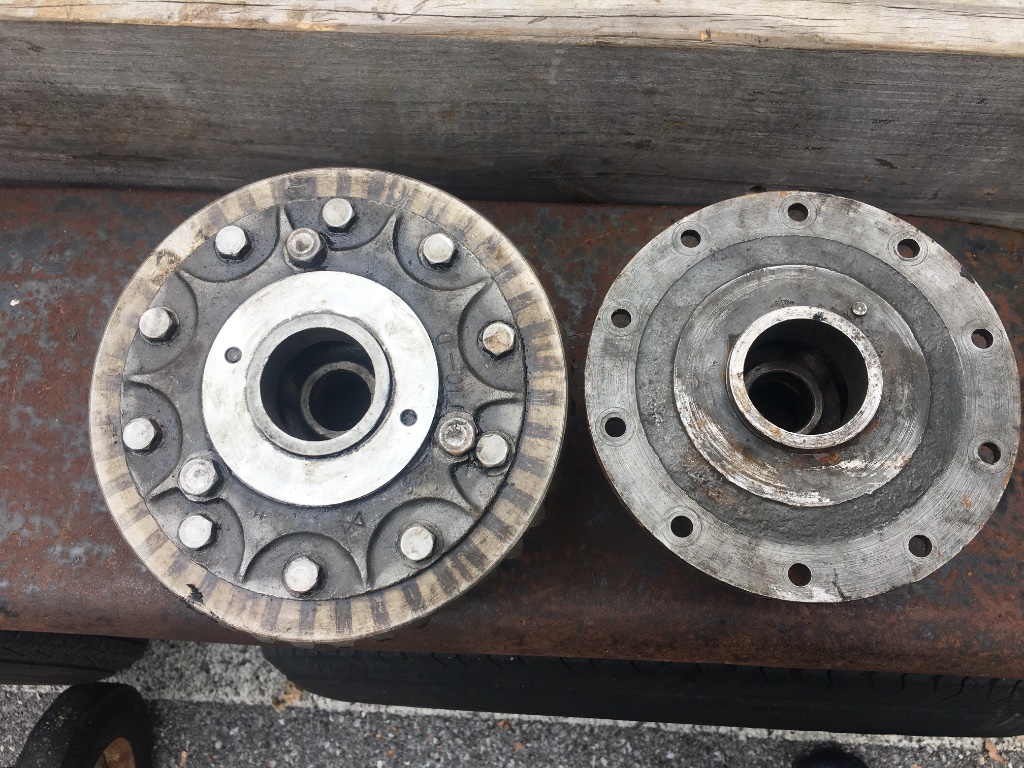

What is the difference in these differentials ?
23 Touring
23 Fordor
25 TT
27 TT
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Differentials

Post by speedytinc » Fri Oct 08, 2021 3:35 pm

Flip em over. One probably has the long thru bolts (left?). The other studs?
Top

Topic author
jeffstag
Posts: 142
Joined: Thu Mar 14, 2019 12:53 pm
First Name: Jeff
Last Name: Versteeg
* REQUIRED* Type and Year of Model Ts owned: '27 TT, '25 TT, '23 Fordor, '23 Touring
Location: Petersburg, MI
Contact:
Contact jeffstag

Re: Differentials

Post by jeffstag » Fri Oct 08, 2021 3:39 pm

Correct
23 Touring
23 Fordor
25 TT
27 TT
Top

Topic author
jeffstag
Posts: 142
Joined: Thu Mar 14, 2019 12:53 pm
First Name: Jeff
Last Name: Versteeg
* REQUIRED* Type and Year of Model Ts owned: '27 TT, '25 TT, '23 Fordor, '23 Touring
Location: Petersburg, MI
Contact:
Contact jeffstag

Re: Differentials

Post by jeffstag » Fri Oct 08, 2021 3:40 pm

But what does that mean in terms of yeas used?
23 Touring
23 Fordor
25 TT
27 TT
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Differentials

Post by speedytinc » Fri Oct 08, 2021 3:43 pm

I prefer the security of the thru bolt style. If you use the stud type, the wire nuts together, no cotter pins.
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Differentials

Post by speedytinc » Fri Oct 08, 2021 3:45 pm

jeffstag wrote: ↑
Fri Oct 08, 2021 3:40 pm
 But what does that mean in terms of yeas used?
Left is later style. Dont know the year they changed off the top. A trip to McCally will be in order.
Top

DHort
Posts: 2826
Joined: Sun Jan 06, 2019 1:30 pm
First Name: Dave
Last Name: Hjortnaes
* REQUIRED* Type and Year of Model Ts owned: 24 Speedster, 20 touring
Location: Men Falls, WI

Re: Differentials

Post by DHort » Fri Oct 08, 2021 4:05 pm

The one on the left has grooves cut in the top and the spider gear appears to be out of alignment.
Top

Topic author
jeffstag
Posts: 142
Joined: Thu Mar 14, 2019 12:53 pm
First Name: Jeff
Last Name: Versteeg
* REQUIRED* Type and Year of Model Ts owned: '27 TT, '25 TT, '23 Fordor, '23 Touring
Location: Petersburg, MI
Contact:
Contact jeffstag

Re: Differentials

Post by jeffstag » Fri Oct 08, 2021 4:18 pm

I have several with those grooves. If we’re looking at the same thing those are supposed to be there. Here’s another one with the grooves
23 Touring
23 Fordor
25 TT
27 TT
Top

Topic author
jeffstag
Posts: 142
Joined: Thu Mar 14, 2019 12:53 pm
First Name: Jeff
Last Name: Versteeg
* REQUIRED* Type and Year of Model Ts owned: '27 TT, '25 TT, '23 Fordor, '23 Touring
Location: Petersburg, MI
Contact:
Contact jeffstag

Re: Differentials

Post by jeffstag » Fri Oct 08, 2021 4:22 pm

It looks like I can mix and match the different styles of differential halves. I can used the bottom half with the thru bolts, and then go with a top half with or without grooves. Both look good in terms of wear.
23 Touring
23 Fordor
25 TT
27 TT
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Differentials

Post by speedytinc » Fri Oct 08, 2021 4:40 pm

jeffstag wrote: ↑
Fri Oct 08, 2021 4:22 pm
 It looks like I can mix and match the different styles of differential halves. I can used the bottom half with the thru bolts, and then go with a top half with or without grooves. Both look good in terms of wear.
I have switched tops. The axle gear hole is/was originally 1.812" Measure them, to know for sure.
A best guess on the stud type usage is 14-20,21. The first gen after the 1.807" axle gears.
Top
