Measurements on Auxiliary Transmission Support U Bolts

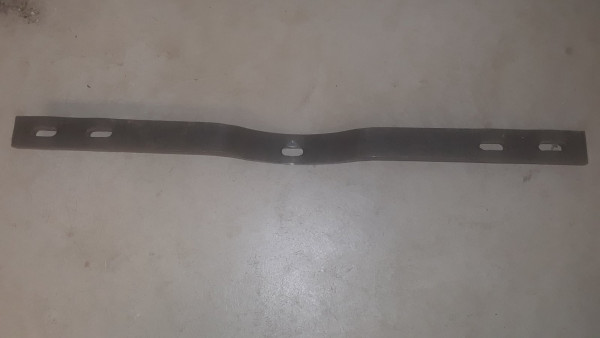

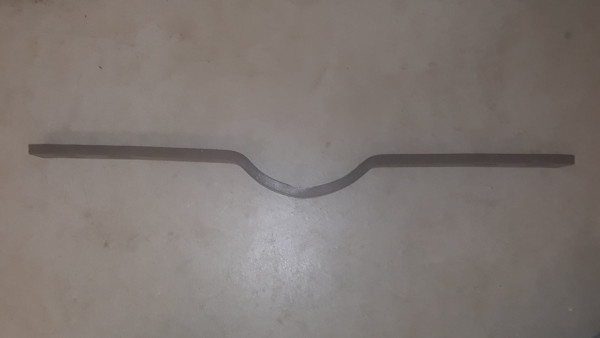

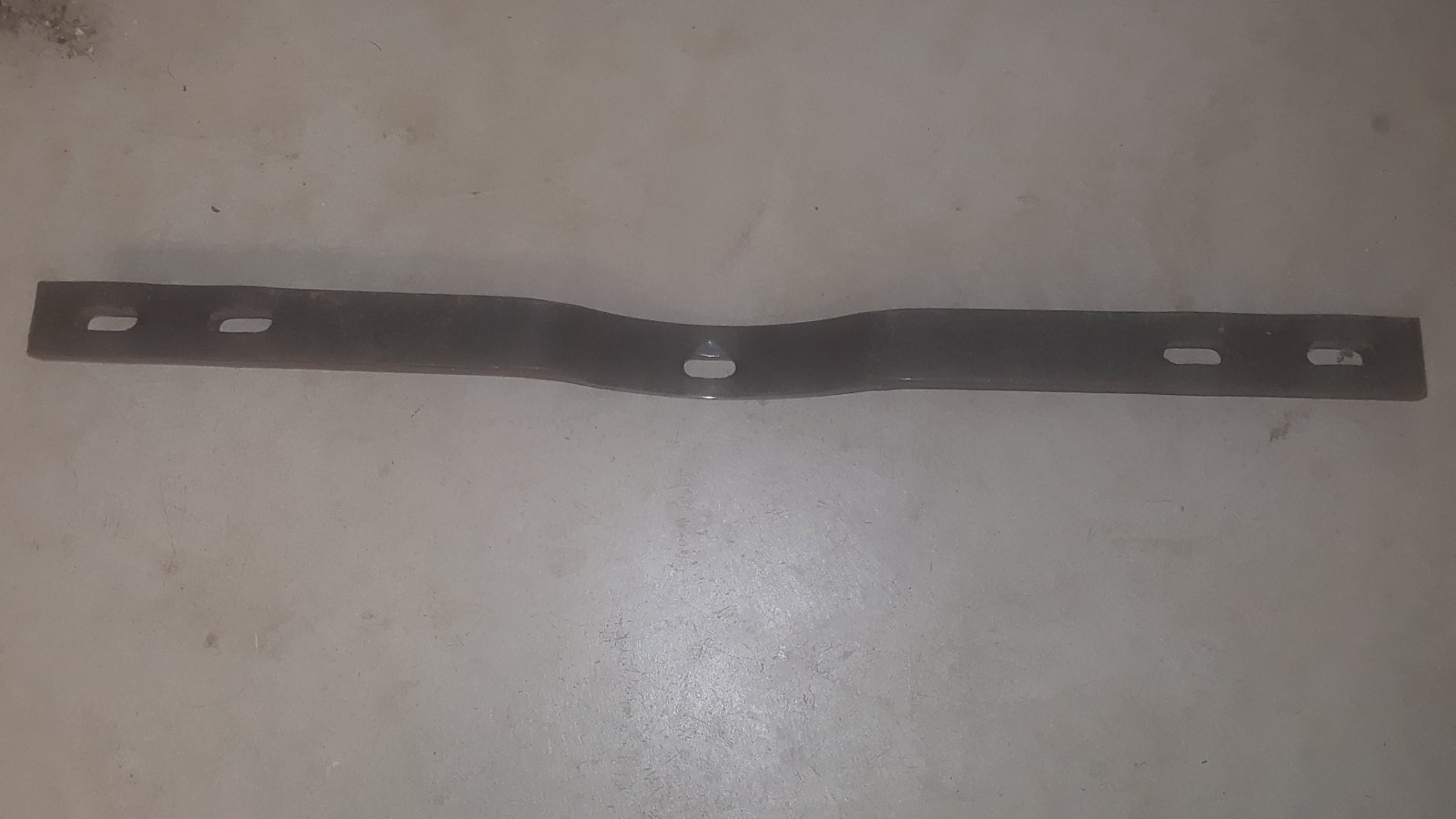

Does anyone have an auxiliary transmission support like the one pictured? It is suspended from the frame by two U bolts. I have the bar but need the dimensions to make U bolts to fit. The slotted holes in the support are big enough for 3/8 to 7/16 bolts. The measurements of the slotted holes in the support bar vary from a minimum of 1 1/2" between slots, to a maximum of 3 3/4".
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Measurements on Auxiliary Transmission Support U Bolts
Terry

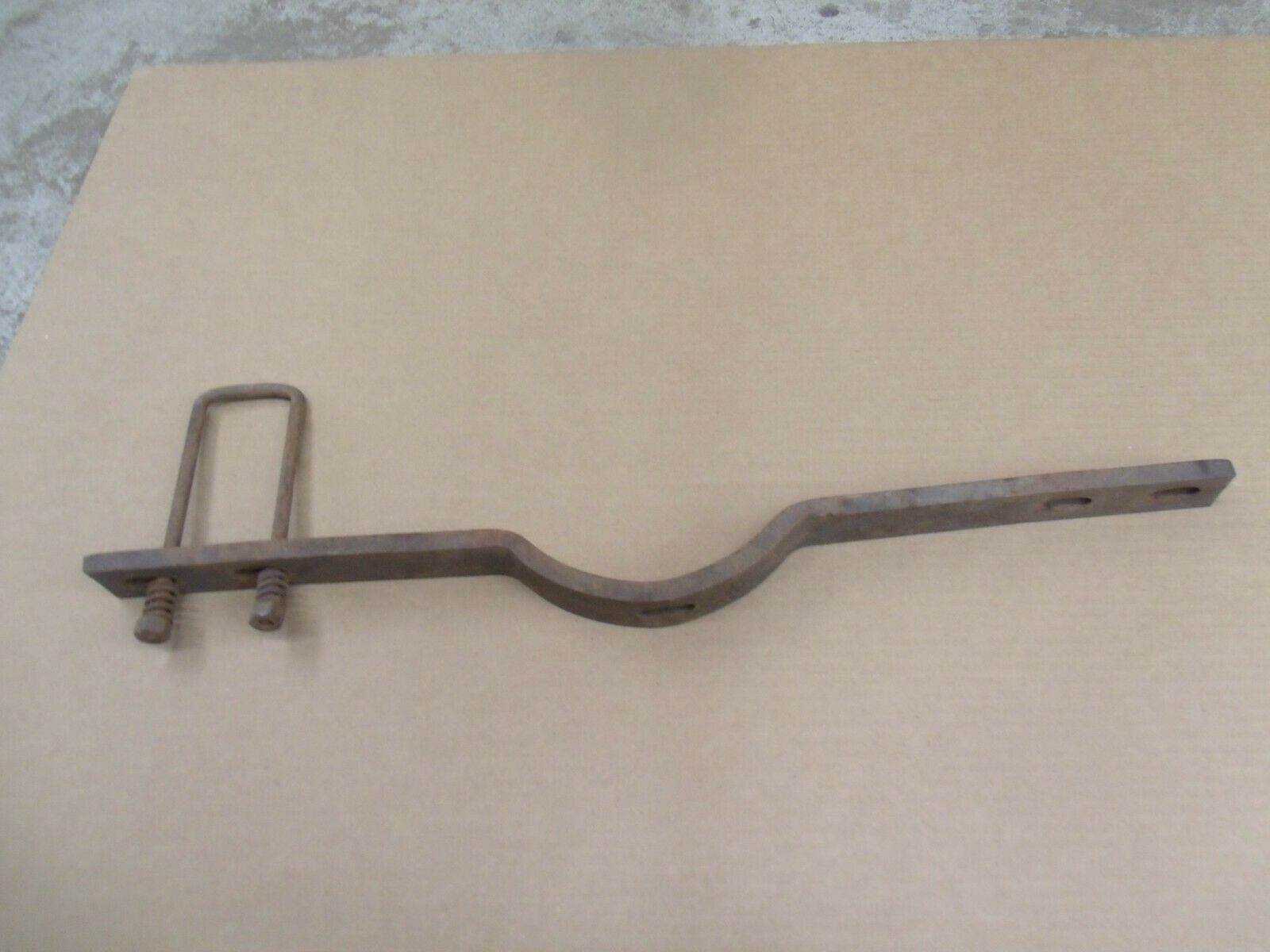

Don't have any measure, but this photo is from eBay on one listed now.
Maybe you can extrapolate the length of the U bolts from this photo.
Don't have any measure, but this photo is from eBay on one listed now.
Maybe you can extrapolate the length of the U bolts from this photo.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Shane Lach
- Posts: 246
- Joined: Sun Jan 06, 2019 2:36 pm
- First Name: Shane
- Last Name: Lach
- * REQUIRED* Type and Year of Model Ts owned: 1927 Tudor and 1921 speedster in progress
- Location: Milford, NH
Re: Measurements on Auxiliary Transmission Support U Bolts
Hey Terry I have some warford u bolts and a cross member if that would help you? Not the same cross member but if you need the whole thing I'd let it go. I also sent you a pm about a manifold setup you had mentioned a while back.
-
ModelTWoods
Topic author - Posts: 1419
- Joined: Tue Jan 08, 2019 10:53 am
- First Name: Terry
- Last Name: Woods
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
- Location: Cibolo (San Antonio), TX
Re: Measurements on Auxiliary Transmission Support U Bolts
Dan, the support that you pictured is at model T haven. I have messaged mark through EBAY to get the measurements from him for the U bolt, but after two requests, he still has not responded, so I posted here.
-
ModelTWoods
Topic author - Posts: 1419
- Joined: Tue Jan 08, 2019 10:53 am
- First Name: Terry
- Last Name: Woods
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
- Location: Cibolo (San Antonio), TX
Re: Measurements on Auxiliary Transmission Support U Bolts
Shane, I think I'll stick to the type of support that I have. I can make U bolts for it. I will send private message about Model A/Model B manifold setup.
