Model A motor into a T?

Post by Sarikatime » Fri Jul 10, 2020 2:42 pm

My friend wants to replace a worn out T motor with a model A motor in his 25 pickup. Any suggestions and advice on the exchange and things to watch out for. Would appreciate any and all advice, pro or con. Frank


J1MGOLDEN
Posts: 111
Joined: Sun Jan 06, 2019 5:39 pm
First Name: James
Last Name: Golden
Location: Bowie, MD
MTFCA Number: 14294
MTFCI Number: 13562

Re: Model A motor into a T?

Post by J1MGOLDEN » Fri Jul 10, 2020 3:44 pm

Replace the frame too.


David Mazza
Posts: 161
Joined: Sun Jan 06, 2019 3:04 pm
First Name: David
Last Name: Mazza
Location: North Adams ma

Re: Model A motor into a T?

Post by David Mazza » Fri Jul 10, 2020 6:01 pm

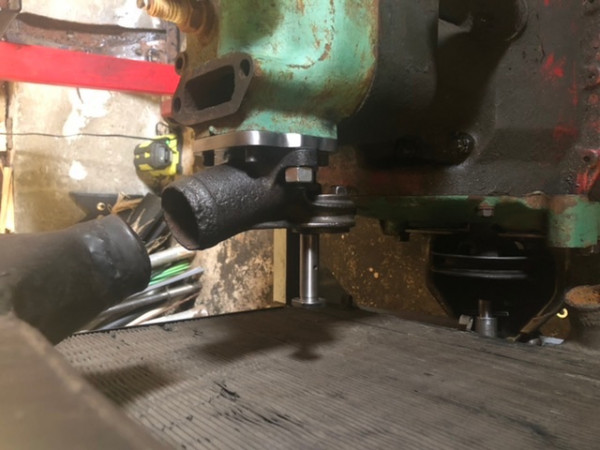

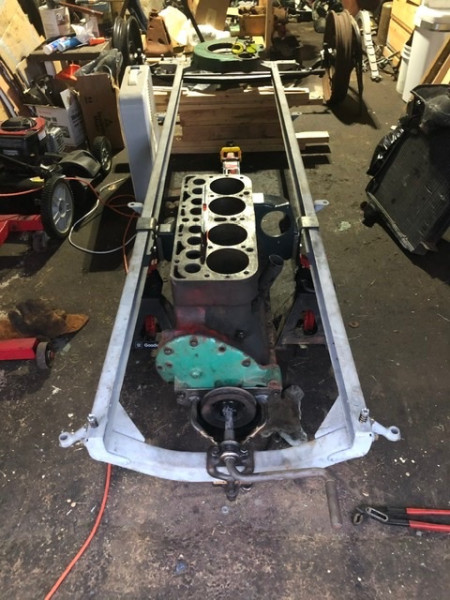

I’m doing it now. I love both the t and the a, so I’m going for it. I’m using the a trans as well. Custom motor mounts will need to be made. An aluminum spacer on either side of the a flywheel housing 5/8 will space the new motor mounts and allow the engine to be mounted like the t. I haven’t gotten to the front motor mount design yet. Another thing is that the a engine is longer and also taller. The hand brake cross shaft will need to be moved rearward and down lower. 5 inches back one inch down to clear the model a trans. The driveshaft and torque tube will need to be cut and adapted depending what you will do for the rear axle. I’m using a large drum t axle with Rockies, you will loose the t trans brake so good brakes are imperative! I will cut the t tube and use the front section on a model a tube welded to it and do the same for the driveshaft. Obviously the entire car is being built around all these changes, not simple, not easy, completely custom. But the end result will be a fun and interesting car. If you like early style hotrods( gow job) then this is a good project for you and may open your mind to a whole new, yet ancient forgotten segment of old fords.
Attachments


David Mazza
Posts: 161
Joined: Sun Jan 06, 2019 3:04 pm
First Name: David
Last Name: Mazza
Location: North Adams ma

Re: Model A motor into a T?

Post by David Mazza » Fri Jul 10, 2020 6:04 pm

Also I will use a model t water pump mounted to the side of the a engine and block off the water outlet on the top of the head. I will make a 1/2 plate to adapt the 26/27 t water outlet to that. Just lots of stuff to engineer as you go.


David Mazza
Posts: 161
Joined: Sun Jan 06, 2019 3:04 pm
First Name: David
Last Name: Mazza
Location: North Adams ma

Re: Model A motor into a T?

Post by David Mazza » Fri Jul 10, 2020 6:21 pm

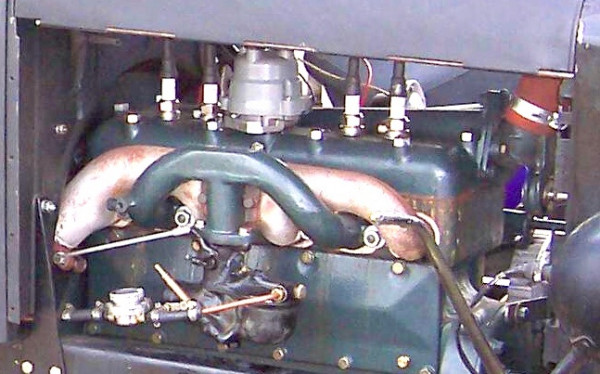

Someone on here did it long ago, wish I knew more about this one! They used a model b exhaust manifold
Attachments


bud delong
Posts: 255
Joined: Tue Feb 26, 2019 9:09 pm
First Name: Kenneth
Last Name: DeLong
Location: wheeler,Mi

Re: Model A motor into a T?

Post by bud delong » Fri Jul 10, 2020 6:37 pm

Yes and no,That"s a model B engine! Bud. :D


David Mazza
Posts: 161
Joined: Sun Jan 06, 2019 3:04 pm
First Name: David
Last Name: Mazza
Location: North Adams ma

Re: Model A motor into a T?

Post by David Mazza » Fri Jul 10, 2020 6:41 pm

Your right. No outside oil pipe!

User avatar

Susanne
Posts: 437
Joined: Sat Apr 13, 2019 6:06 pm
First Name: Susanne
Last Name: Rohner
Location: Northeastern California
MTFCA Number: 464
MTFCA Life Member: YES
Board Member Since: 1999
Contact:

Re: Model A motor into a T?

Post by Susanne » Fri Jul 10, 2020 7:20 pm

It looks nice, except there's this strange protrusion between the 2 and 3 spark plug... :lol:

Something else to remember - the front wishbone (which anchors on the T pan) determines your caster... you don't get that right, you're in a world of squirrley hurt. As you're building motor mounts et al, don't forget this... otherwise your first ride may be your last...


David Mazza
Posts: 161
Joined: Sun Jan 06, 2019 3:04 pm
First Name: David
Last Name: Mazza
Location: North Adams ma

Re: Model A motor into a T?

Post by David Mazza » Fri Jul 10, 2020 7:36 pm

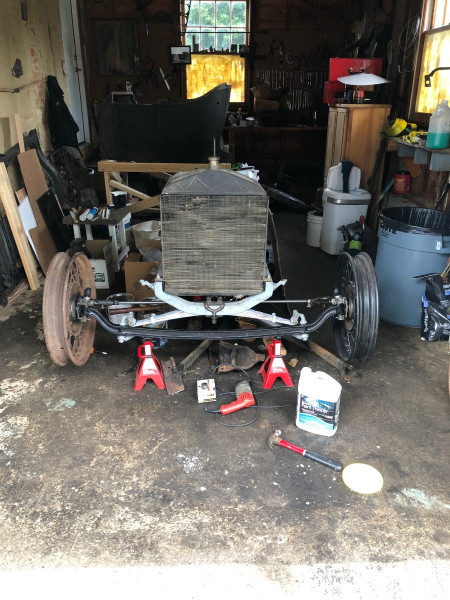

Yes, your right the wishbone up front and the radius rods will also need modifications. I need to get the engine in exactly where it needs to be and everything built around that before the front wishbone can be properly determined to be sure the geometry is correct. So it’s a ton of work, needing to be done one step at a time. I actually made of detailed list of things needing to be done and what effects another system or part, to not mess up and have to go back to correct something. The protrusion is either the model a brake cross shaft straps or a digital caliper. I’m sure something else will come up that I haven’t thought of. Probably exhaust system and fuel system.

User avatar

John iaccino
Posts: 225
Joined: Mon Jan 07, 2019 5:25 am
First Name: John
Last Name: Iaccino
Location: Rhinebeck, NY
MTFCA Number: 17802

Re: Model A motor into a T?

Post by John iaccino » Fri Jul 10, 2020 8:22 pm

About 20 years ago, a friend of mine mated a model a ford block to a model t pan and tranny. Truly a work of art. I think the car is in Kansas now. It was a black era touring.


George Hand
Posts: 88
Joined: Sun Jan 06, 2019 12:02 pm
First Name: George
Last Name: Hand
Location: Preble NY
MTFCA Number: 28114
MTFCI Number: 21834

Re: Model A motor into a T?

Post by George Hand » Fri Jul 10, 2020 8:35 pm

Wouldn't it be smarter to use the Model A chassis and get real brakes and steering.


David Mazza
Posts: 161
Joined: Sun Jan 06, 2019 3:04 pm
First Name: David
Last Name: Mazza
Location: North Adams ma

Re: Model A motor into a T?

Post by David Mazza » Fri Jul 10, 2020 8:37 pm

Yes indeed it would have been smarter! But I love building things that are different, and having fun with old fords.

User avatar

John Warren
Posts: 652
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Model A motor into a T?

Post by John Warren » Fri Jul 10, 2020 9:15 pm

4-1-13 k.jpg
4-9-16 b.jpg

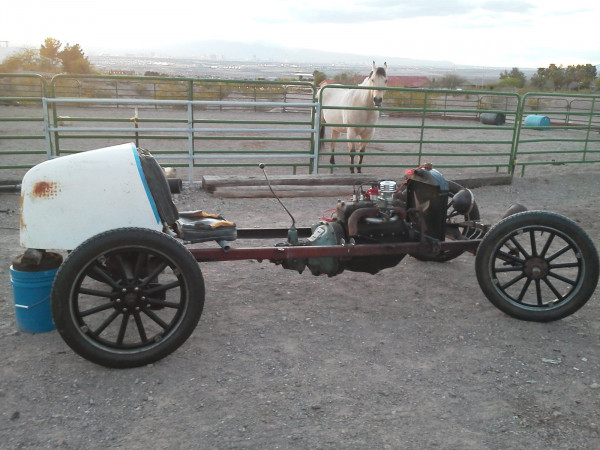

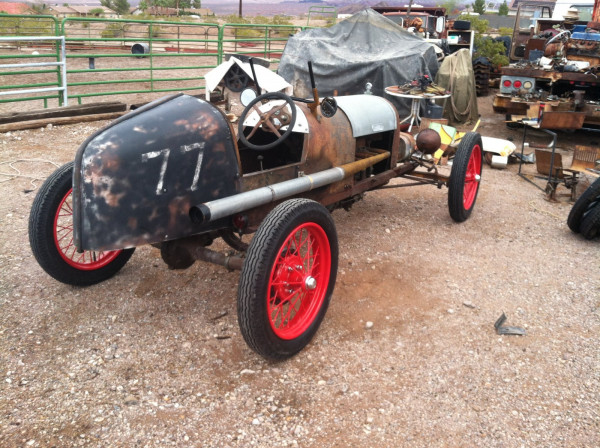

My race car is a hybred, I call it a TA race car
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P


David Mazza
Posts: 161
Joined: Sun Jan 06, 2019 3:04 pm
First Name: David
Last Name: Mazza
Location: North Adams ma

Re: Model A motor into a T?

Post by David Mazza » Sat Jul 11, 2020 4:40 am

John, seeing your car burning the tires launching at the speedster reunion is what gave me the confidence that the model t rear axle is strong enough! My driving style is definitely more relaxed so I will be fine.
Last edited by David Mazza on Sun Jul 12, 2020 8:38 am, edited 1 time in total.

User avatar

John Warren
Posts: 652
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Model A motor into a T?

Post by John Warren » Sat Jul 11, 2020 10:33 pm

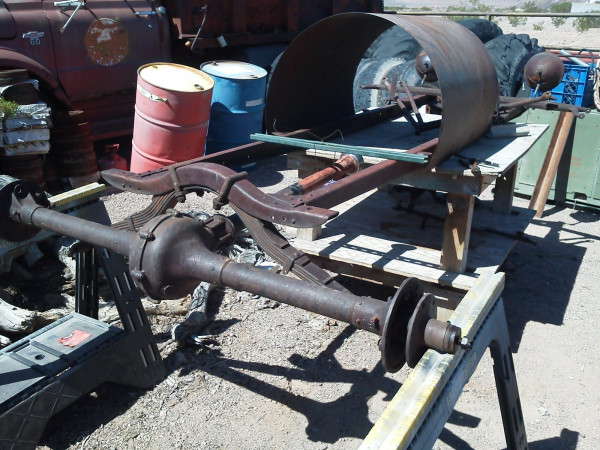

Dave, you do remember that I broke down. I twisted off an axle. It was mostly because it was a bad axle. Please take lots of photos of your build and share. The big drum brakes work well, adding rocky mountains is a great move.
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P

User avatar

Henry K. Lee
Posts: 3058
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Model A motor into a T?

Post by Henry K. Lee » Sat Jul 11, 2020 10:40 pm

I think John got his PhD while building his! LOL!!!!!

Hank


Luxford
Posts: 55
Joined: Wed Jan 23, 2019 6:30 pm
First Name: Peter
Last Name: Kable
Location: Australia
MTFCA Number: 4
MTFCA Life Member: YES

Re: Model A motor into a T?

Post by Luxford » Sun Jul 12, 2020 2:03 am

There was a very well known T here n Australia which had a Model B motor in it at one stage.
This 1912 Australian bodied T was restored and then sold to one of our members after the restorer passed.
He used it for a number of years and it was featured on the cover of the Vintage Ford.

It was then sold to a person who owned a Brothel in Sydney who intended to use it to help promote his business. The girls found it difficult to start and drive so it was sent to a Antique car resorter who removed it's original "B" numbered motor (an thankfully kept it aside) The girls then drove it around the red light district for a few years.

The previous owner then brought it back and reinstated the original motor. A friend who was doing a speedster purchased the brass radiator which had been modified as the water pump shaft fouled the core and a section had been removed.

Very little else needed alteration or was damaged in the transplant., only the motor was altered, not sure about the brakes but as a vehicle it drove and accelerated really well. It was still deemed a alteration "too Far" and potentially unsafe to be left as it was.
Attachments
Nellie Grace cover.JPG


David Mazza
Posts: 161
Joined: Sun Jan 06, 2019 3:04 pm
First Name: David
Last Name: Mazza
Location: North Adams ma

Re: Model A motor into a T?

Post by David Mazza » Sun Jul 12, 2020 8:52 am

John, Seems even with a stock model a engine your is pretty fast. I’m not concerned with going very fast but the added power will be nice, as with the extra gear in the trans. But for the most part I really love both cars the model t and the model a. I also love fenderless model t roadsters. The main goal is to build something that someone could have done back in the period, using only parts available then.

User avatar

DanTreace
Posts: 1376
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: Model A motor into a T?

Post by DanTreace » Sun Jul 12, 2020 10:19 am

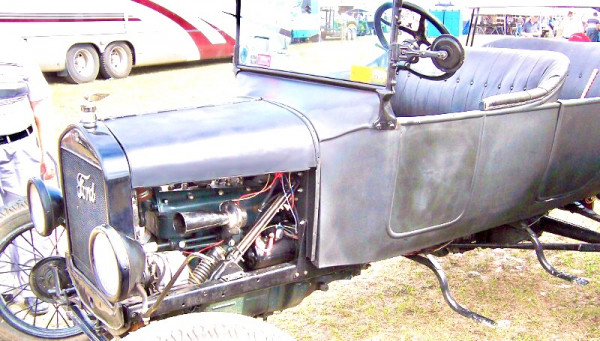

Saw this '27 sedan on tour years ago.

Asked the owner how it ran and he said good, but lots of work to many details, like A water pump hits the T radiator, so side pump added. Model A engine, and of course all Model A running gear. Model A front end with juice brakes, Model A rear with added Mitchell Overdrive, other wise pretty much T frame and stuff.

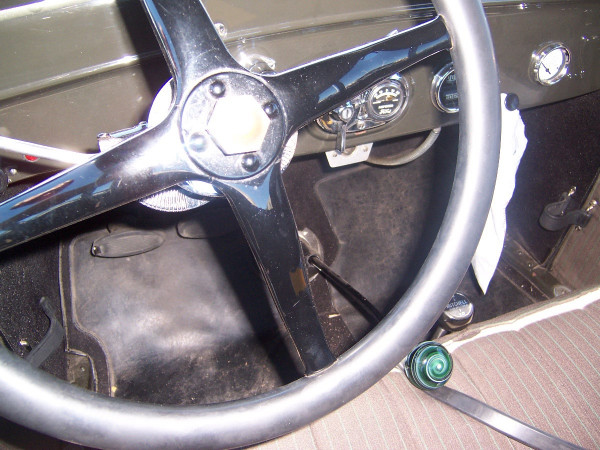

Model A clutch and brake, 3 speed shift, and overdrive lever too.

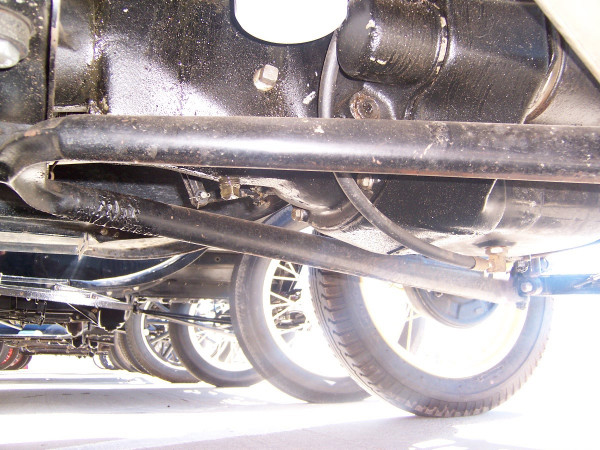

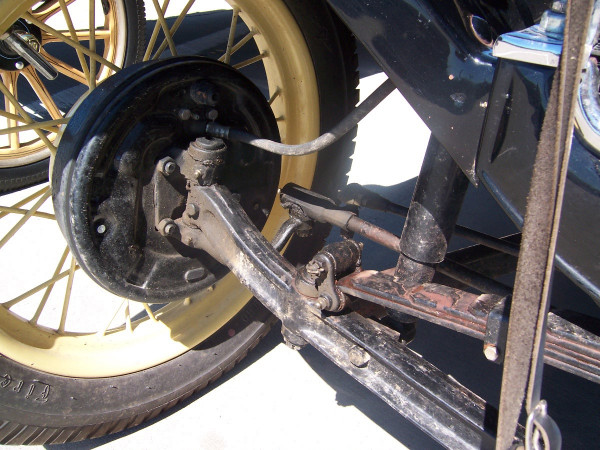

Model A front axle
Wishbone stock Model A to axle

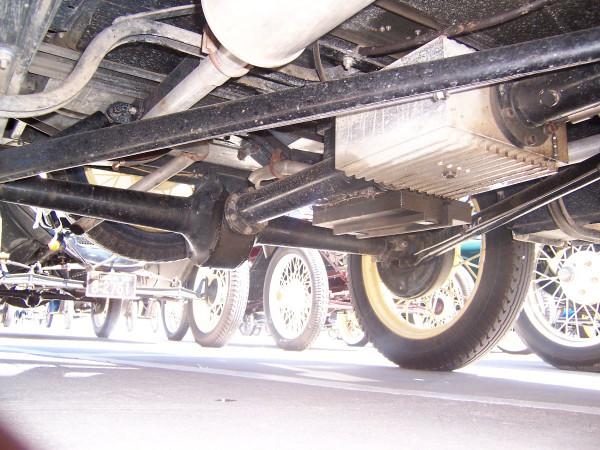

Model A rear with overdrive unit
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford

User avatar

Rich Eagle
Posts: 2685
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: Model A motor into a T?

Post by Rich Eagle » Sun Jul 12, 2020 12:46 pm

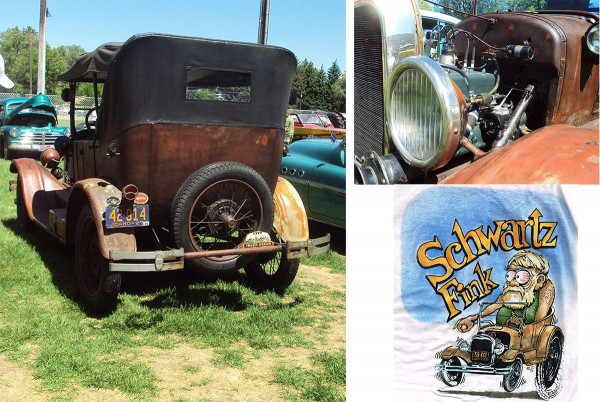

Our buddy Gary put this '27 body on an A chassis. He complained a lot about things that didn't fit. Duh!
I screened some shirts for the local guys and made him a celebrity.
When did I do that?


Topic author
Sarikatime
Posts: 230
Joined: Sun Jan 06, 2019 12:47 pm
First Name: Frank
Last Name: Seress
Location: Prescott, Arizona
MTFCA Number: 27707

Re: Model A motor into a T?

Post by Sarikatime » Mon Jul 13, 2020 7:33 pm

Sounds like a lot of fantastic advice from folks that have actually done it. Thank you.
Now Dennis wants to do the whole nine yards but he wants to keep the wood wheels. How can he accomplish putting back the wood spoke wheels onto the model A front and rear axles.? He doesn’t want to fool anyone but he likes the look of the wood wheels on a model T so it is more of a sentimental thing. Frank


Rich Bingham
Posts: 1154
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: Model A motor into a T?

Post by Rich Bingham » Mon Jul 13, 2020 7:41 pm

How about putting a Model T engine in a Model A ?
:roll:
"Get a horse !"
