Under bed spare tire carrier

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules

Topic author
Dallas Landers
Posts: 1961
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Under bed spare tire carrier

Post by Dallas Landers » Tue Jul 28, 2020 9:37 am

Im getting ready to make an under bed spare tire carrier for the 23 TT. I have two sizes. 32x4 1/2 rear and 30x3 1/2 front. The 8in1 bed is long enough for this. Just asking to see what others have come up with on their T pickup or TT. Im leaning toward a hinged front mount that swings down in the rear so Im not lifting both rims and tires to the ground for access. Any photos would be great. Thank you.

User avatar

ModelTSpeedster
Posts: 48
Joined: Mon Jan 07, 2019 7:13 am
First Name: Randy
Last Name: Brown
Location: Austin, Texas
MTFCA Number: 7352
Contact:

Re: Under bed spare tire carrier

Post by ModelTSpeedster » Tue Jul 28, 2020 10:42 am

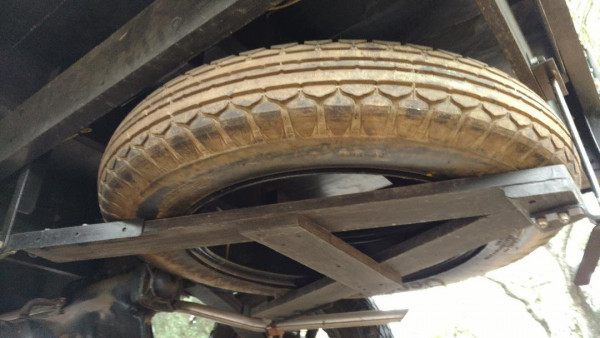

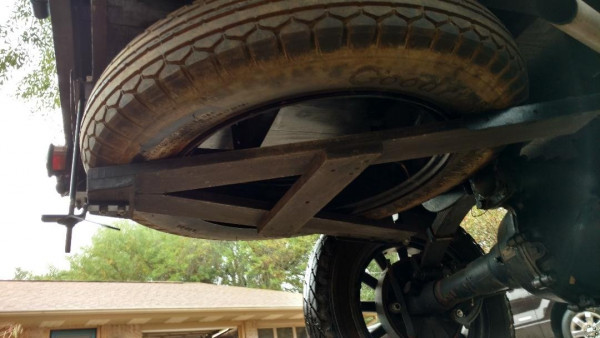

This is what my brother had on his TT, years ago.
Attachments
TT spare 2.jpg
TT spare 1.jpg


HPetrino
Posts: 491
Joined: Sun Jan 06, 2019 11:14 am
First Name: Henry
Last Name: Petrino
Location: Modesto, CA

Re: Under bed spare tire carrier

Post by HPetrino » Tue Jul 28, 2020 11:26 am

When I started working on my TT I found a spare tire and rim (30 X 3 1/2 which matched none of the other wheels, was flat and the rubber as hard as a rock) wedged up under the bed on top of the rear chassis cross member. I dunno if there's room on your truck to do this, but if there is you might consider putting the lighter front wheel spare up under the bed an rest the weight on the chassis cross member then put the heavier rear wheel spare on the hinged assembly you mentioned. In this manner you'd never need to lift the weight of both at the same time.

Anyhow, a thought.....


bud delong
Posts: 348
Joined: Tue Feb 26, 2019 9:09 pm
First Name: Kenneth
Last Name: DeLong
Location: wheeler,Mi

Re: Under bed spare tire carrier

Post by bud delong » Tue Jul 28, 2020 11:38 am

With all the features that truck bed has to offer i"m wondering if the maker did not offer anything??Bud. :D

User avatar

Steve Jelf
Posts: 3301
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Under bed spare tire carrier

Post by Steve Jelf » Tue Jul 28, 2020 1:53 pm

I very much dislike the idea of lying on my back in the mud to wrestle a heavy spare in or out, which is what's required by some under-bed spare carriers I've seen. I like the swing-down idea in Randy's photos, but I would put the hinges toward the rear so that when it's down the tire would be easy to reach. I would put a latch at the front end with a control rod to the rear. Pull the rod to undo the latch and let the carrier swing down. I imagine this would eliminate the aforementioned mud wrestling. But how about raising the carrier up to the latch with that heavy spare on it? Maybe a cable winding onto a shaft with a crank at the rear. I haven't tried this, but I think it would work if designed properly. Maybe it could be made to accommodate both a rear and a front spare.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Angmar
Posts: 209
Joined: Sun Jan 06, 2019 7:11 pm
First Name: Mark
Last Name: Bailey
Location: Colorado
MTFCA Number: 50335
Board Member Since: 2016

Re: Under bed spare tire carrier

Post by Angmar » Tue Jul 28, 2020 6:36 pm

Perhaps an AA spare tire carrier similar to the one above. I put one on one of my TTs a long time ago

Gave it a factory look and worked well, pain to use but I figured I would not use it often.
Still crankin old iron


Les Schubert
Posts: 684
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Under bed spare tire carrier

Post by Les Schubert » Tue Jul 28, 2020 8:01 pm

Ford offered a spare tire carrier for 26-7 pickups that bolted to the left side top mount and bolted to the running board. Yes it did block the drivers door but it certainly made the spare very handy. I have one for my project and could certainly take a picture if you are interested

User avatar

RajoRacer
Posts: 1858
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Under bed spare tire carrier

Post by RajoRacer » Tue Jul 28, 2020 10:00 pm

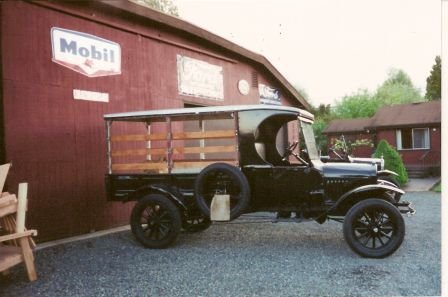

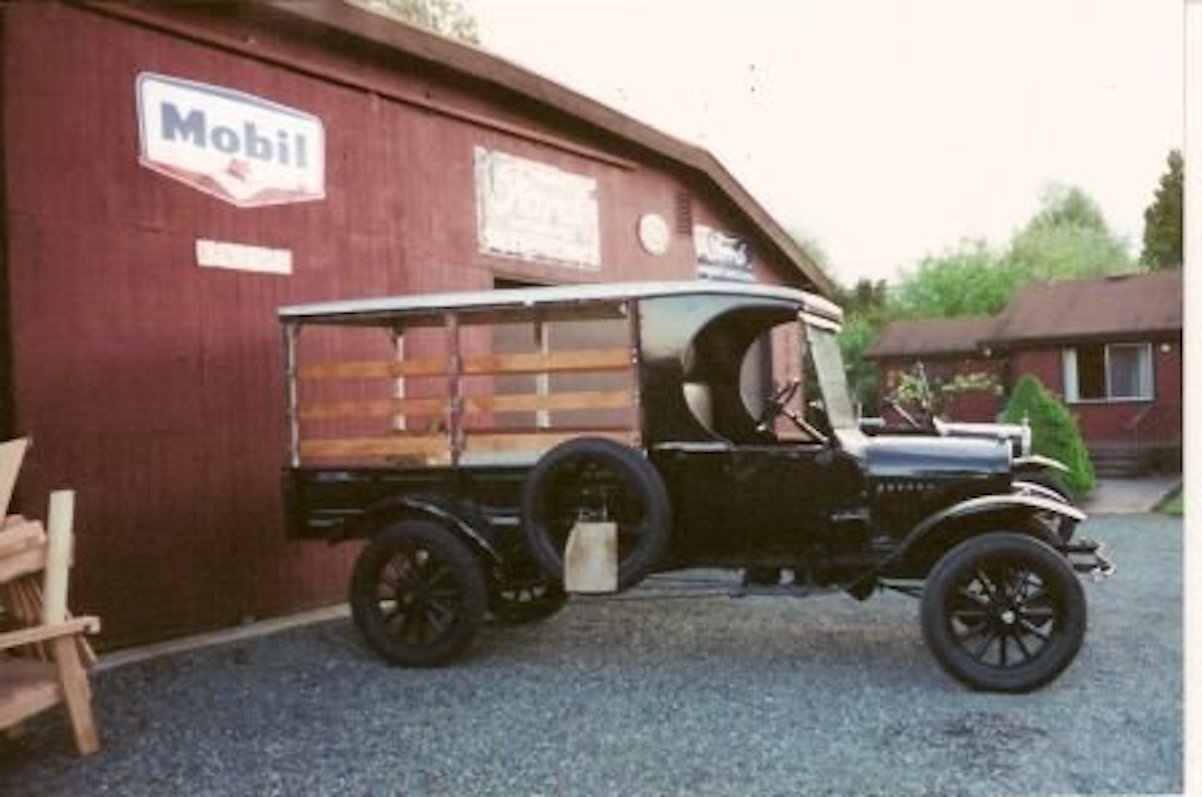

This is the "side" mount on my Gramps' Express bed TT he bought new in Seattle - I've never seen another and it was made specific for the Express box - the body of the carrier matches the beading in the box sides ! It's only for a 32 x 4.5. - my Gramps had the front wheels & tires exchanged for "baloons" as soon as they became available - there are stories of him getting the 30 x 3.5 fronts stuck in the streetcar tracks around downtown Seattle !
