Kingston 5 Ball for 1909

Post by StanHowe » Fri Aug 14, 2020 12:45 pm

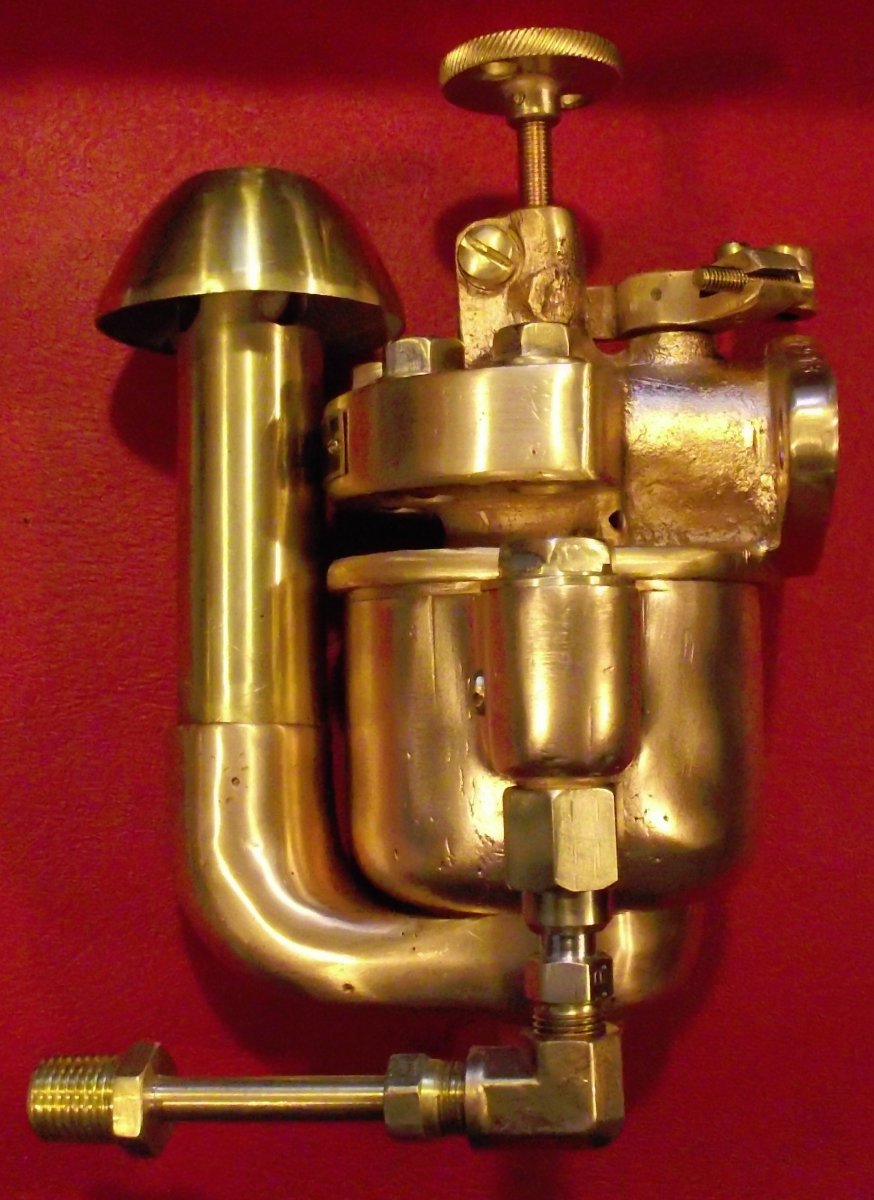

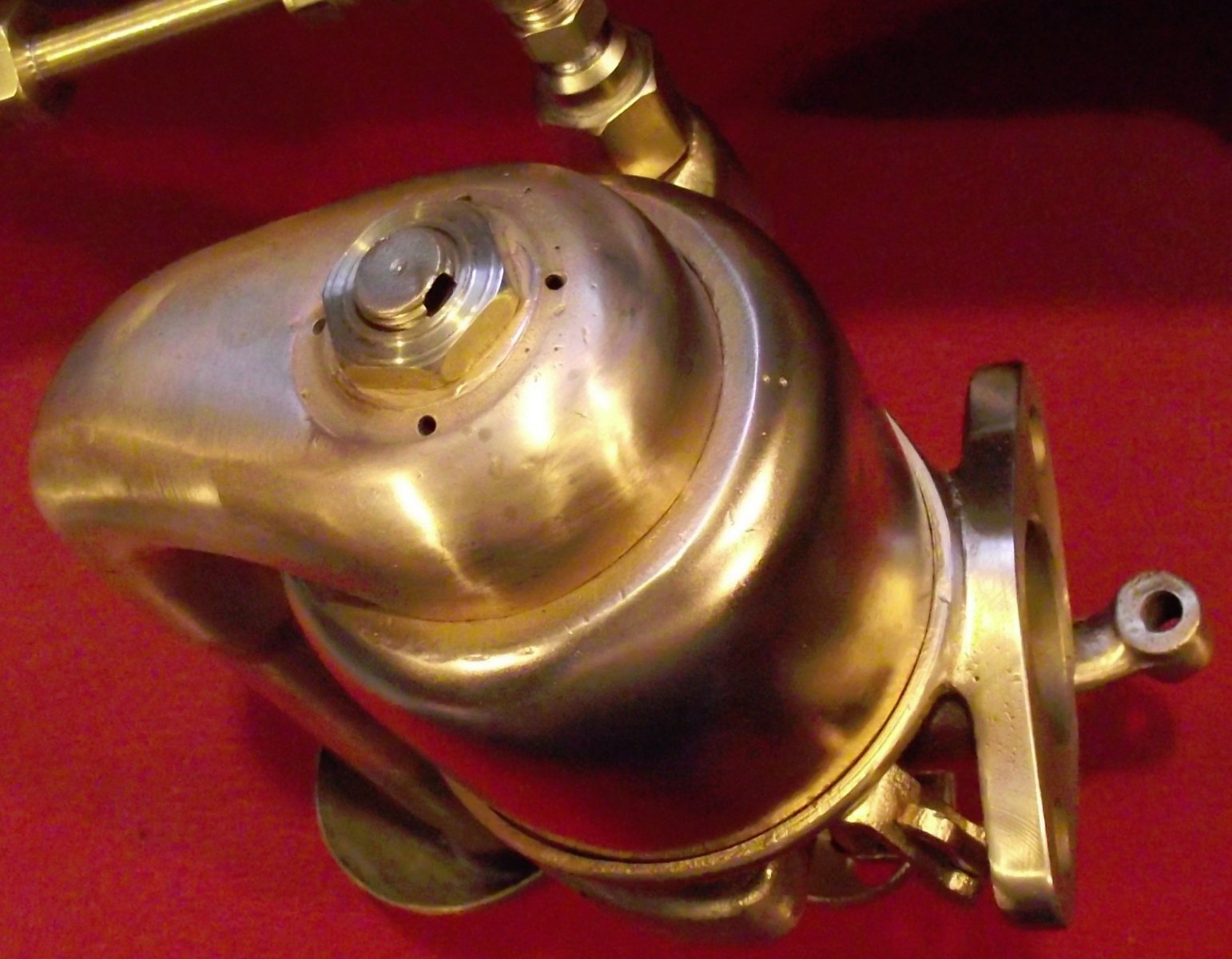

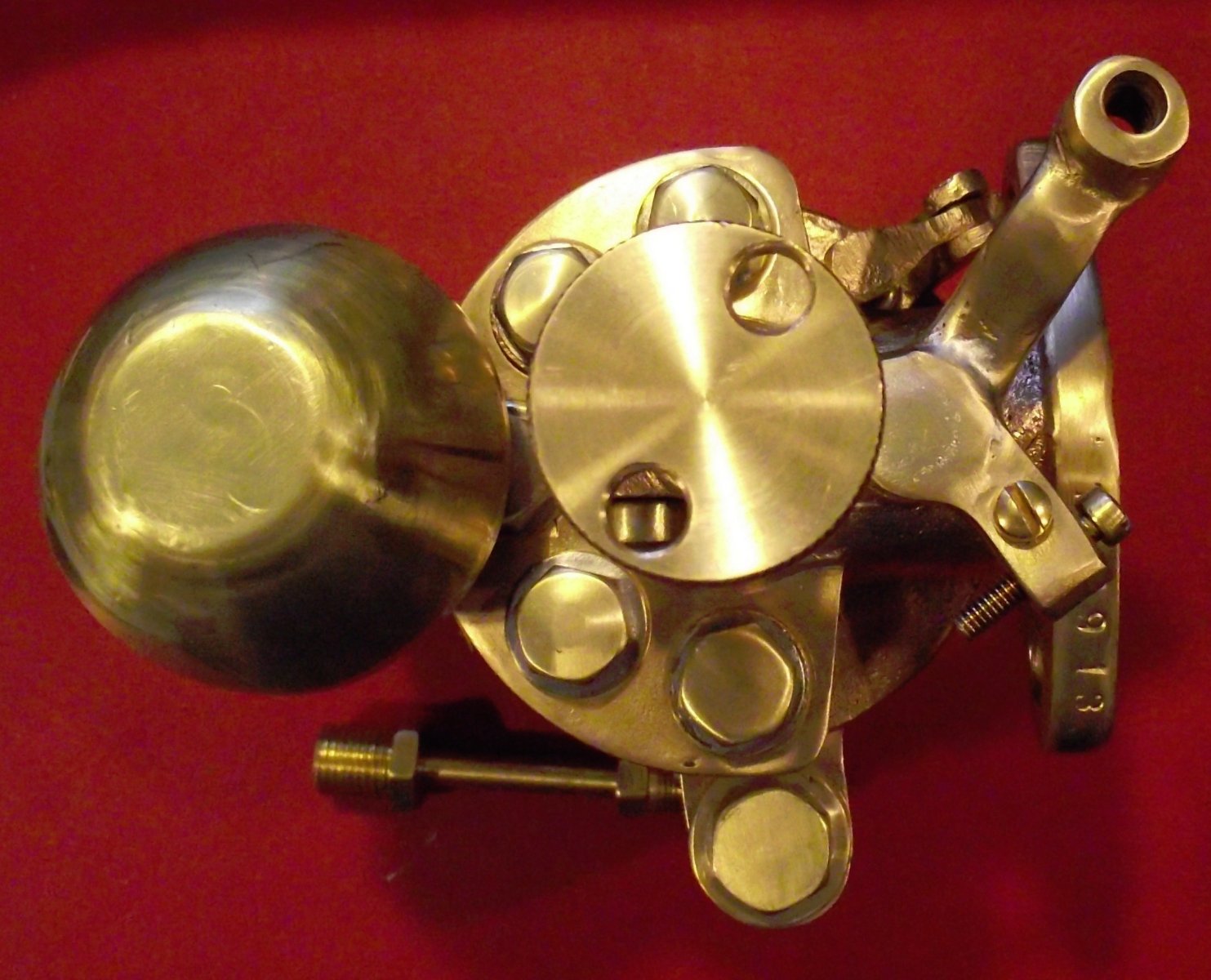

I posted a couple pics of the new caps for this a week or two ago, thought I post a pic or two of it done and off to the owner. It had been whacked with a wrench, a hammer and whatever else, lotsa bruises that hadn't healed on their own, took a little massage to get it looking good.

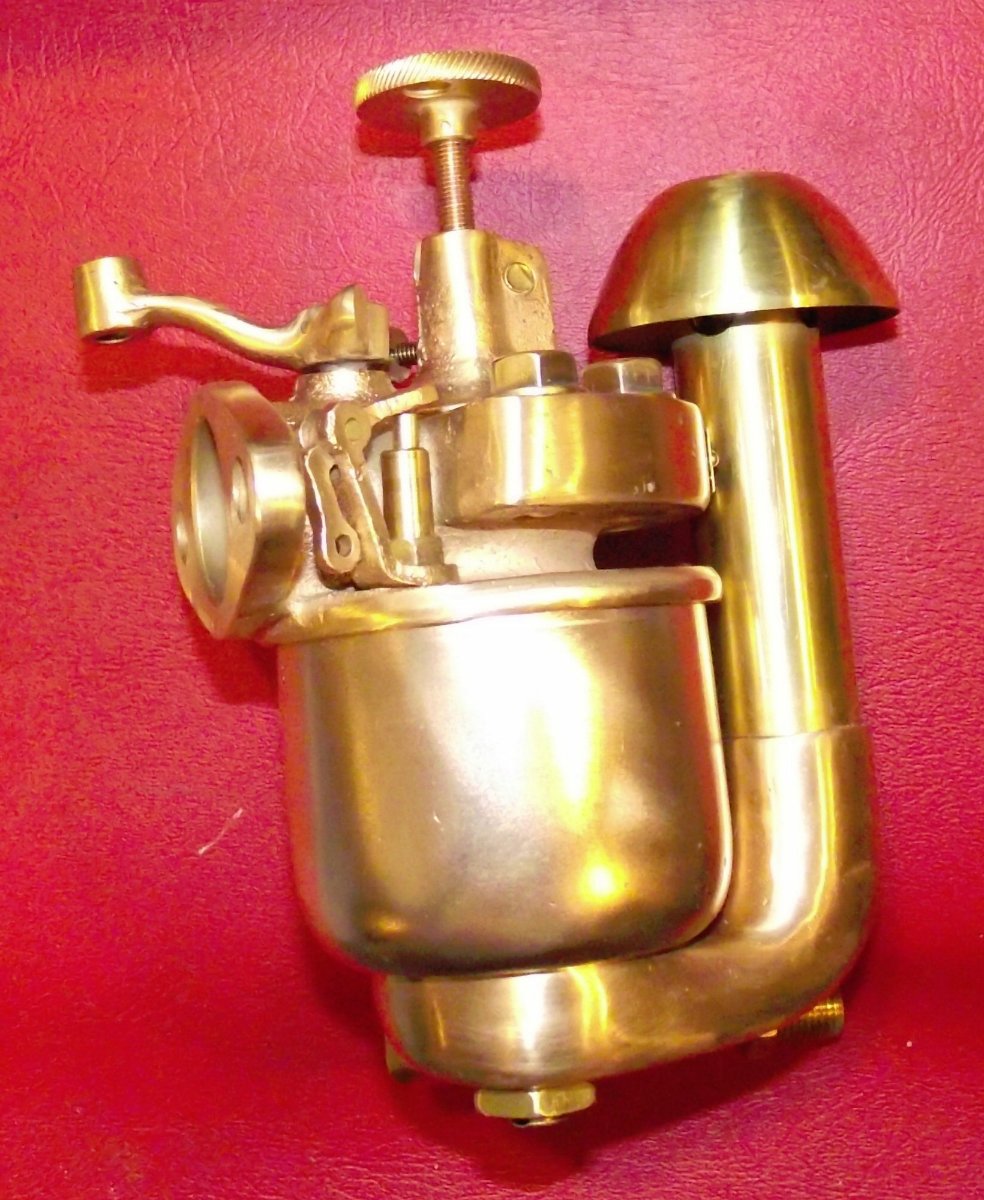

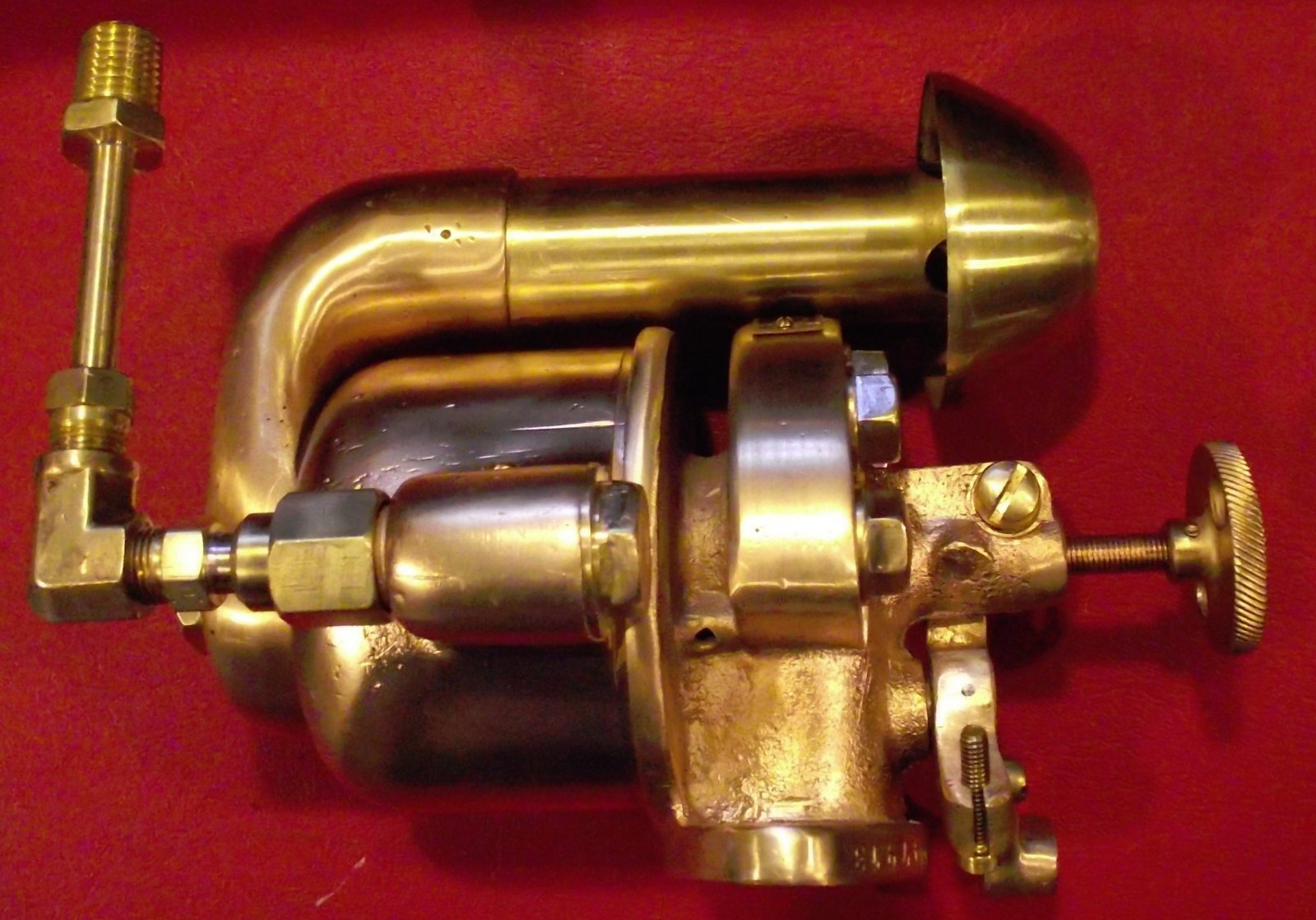

There is always some controversy over the air inlet tube and design. This is how it came in except the hat was squished flat. This is how it goes out. Right or wrong, correct or not, it went away.

User avatar

Quickm007
Posts: 726
Joined: Mon Jan 07, 2019 10:58 am
First Name: Mario
Last Name: Brossard
Location: Canada
MTFCA Number: 30981
MTFCI Number: 30981
Board Member Since: 1999

Re: Kingston 5 Ball for 1909

Post by Quickm007 » Fri Aug 14, 2020 12:54 pm

Splendid! Nice Work Stan!
Super Mario Bross ;)

1911 Touring
1914 race car project


otrcman
Posts: 221
Joined: Sun Jan 06, 2019 2:25 pm
First Name: Dick
Last Name: Fischer
Location: Arroyo Grande, CA

Re: Kingston 5 Ball for 1909

Post by otrcman » Fri Aug 14, 2020 12:58 pm

Like most men, fancy diamonds and jewelry don't excite me much. But a perfectly cleaned up and operational brass carburetor ? Now, that really turns my crank !

Bravo, Stan !


R.V.Anderson
Posts: 515
Joined: Tue Jan 08, 2019 6:01 pm
First Name: R.V.
Last Name: Anderson
Location: Kennedy, NY

Re: Kingston 5 Ball for 1909

Post by R.V.Anderson » Fri Aug 14, 2020 2:02 pm

Well if that works half as good as it looks....

User avatar

Rich Eagle
Posts: 3420
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: Kingston 5 Ball for 1909

Post by Rich Eagle » Fri Aug 14, 2020 2:16 pm

It is always a treat to see things we will never have or clean up that nicely.
I feel I owe something to just look at it but......
I'm perpetually in awe of you accomplishments.
Rich
When did I do that?

User avatar

George House
Posts: 901
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
Location: Northern Caldwell County TX
MTFCA Number: 115
MTFCA Life Member: YES

Re: Kingston 5 Ball for 1909

Post by George House » Fri Aug 14, 2020 2:53 pm

....should be in the Smithsonian with all the other national treasures. Gorgeous work Stan !!
May your character not be a writing in the sand but an inscription upon the rock.

User avatar

VowellArt
Posts: 366
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
Location: Sylmar, Commiefornia
MTFCA Number: 9908
Board Member Since: 2012
Contact:

Re: Kingston 5 Ball for 1909

Post by VowellArt » Fri Aug 14, 2020 8:41 pm

Stan...does it have some other designation other than 1909, Kingston 5 ball? Anything different about it other than the air intake?
Fun never quits!


Topic author
StanHowe
Posts: 901
Joined: Mon Jan 07, 2019 5:42 pm
First Name: Stan
Last Name: Howe
Location: Helena, MT
MTFCA Number: 19133
Board Member Since: 1999

Re: Kingston 5 Ball for 1909

Post by StanHowe » Sat Aug 15, 2020 1:31 am

Not that I know of. The air intake varies from year to year but the body of the carb is the same as near as I can tell. The later ones also added a butterfly choke but that is also part of the air intake.

User avatar

Bob McDaniel
Posts: 277
Joined: Sun Jan 06, 2019 1:44 pm
First Name: Bob
Last Name: McDaniel
Location: Logansport In.
MTFCA Number: 28428
Board Member Since: 2007

Re: Kingston 5 Ball for 1909

Post by Bob McDaniel » Sun Aug 16, 2020 1:23 am

So how does the 5 ball compare to later Kingston's as far as performance?
Give an old car guy a barn and he won't throw anything away.


Joe Bell
Posts: 562
Joined: Thu Feb 21, 2019 1:20 pm
First Name: Joe
Last Name: Bell
Location: Tiffin Ohio
MTFCI Number: 24066

Re: Kingston 5 Ball for 1909

Post by Joe Bell » Sun Aug 16, 2020 6:57 am

The mushroom seems to be always missing, they must of vibrated off in the day.


Pat Branigan Wisc
Posts: 23
Joined: Mon Jan 28, 2019 4:54 pm
First Name: Pat
Last Name: Branigan
Location: River Falls Wi

Re: Kingston 5 Ball for 1909

Post by Pat Branigan Wisc » Sun Aug 16, 2020 8:44 am

I have ran a Five Ball for over twenty years on my 1910 and 1911 and have worked well for me. Rebuilt them with a Brass float and new needle and seat.


Topic author
StanHowe
Posts: 901
Joined: Mon Jan 07, 2019 5:42 pm
First Name: Stan
Last Name: Howe
Location: Helena, MT
MTFCA Number: 19133
Board Member Since: 1999

Re: Kingston 5 Ball for 1909

Post by StanHowe » Sun Aug 16, 2020 10:05 am

I was using a brass float but have some new synthetic material I like better which can be shaped like the original cork float.
I make a needle of my own design that uses the original seat. I do not like drilling out the original seat to put a modern type seat in.
Most of those do not pull the needle open as this design does.
But there are lots of ways to do it, mine is just one way.
