Fuel Tank Building 101 for a Speedster

Post by Henry K. Lee » Tue Mar 05, 2019 1:41 pm

Progress continues with other quest on this Guy's Baby!

Thought you folks would enjoy seeing how sheetmetal is formed and yes, you folks have the talent, just apply yourselves.
This is the pattern we decided to fit the custom Speedster.

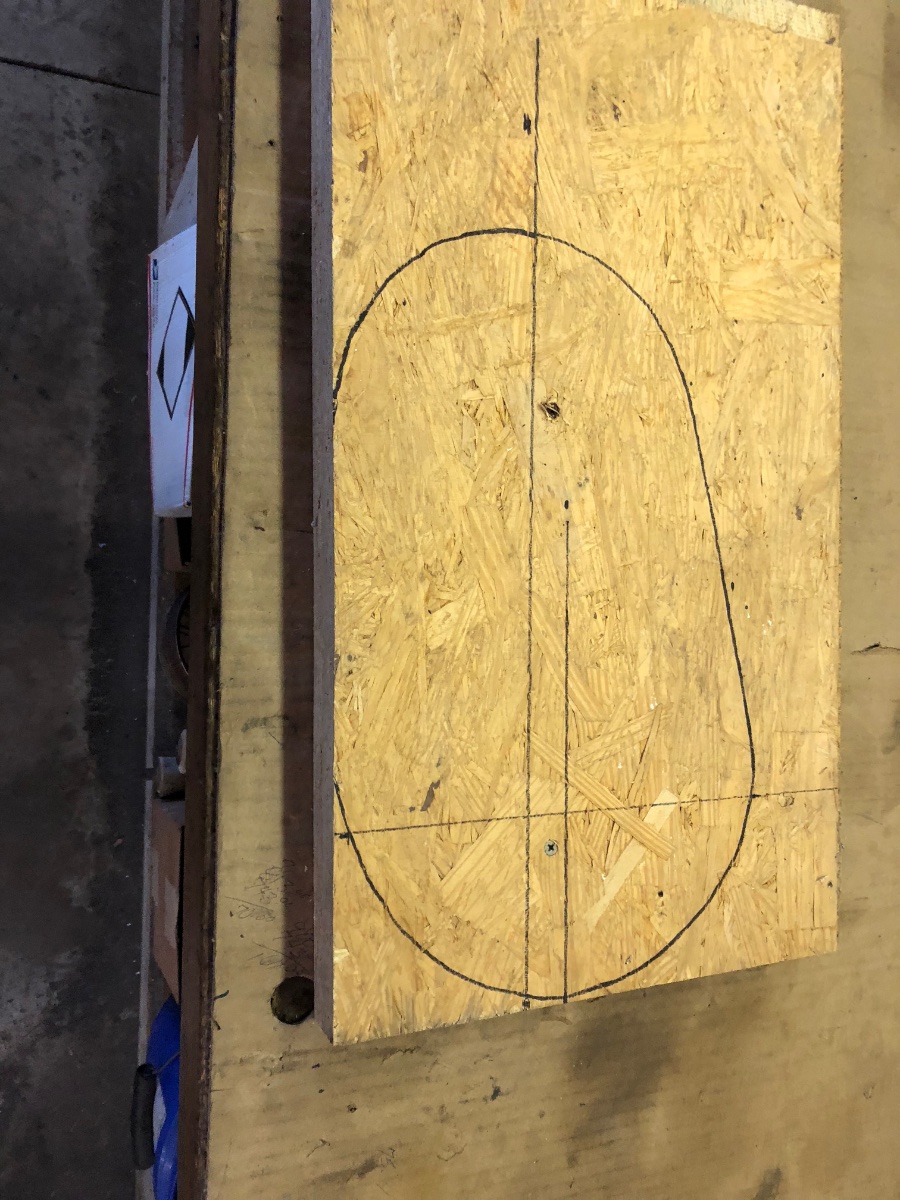

A double lay out and cut using 3/4" Advantech flooring works great.

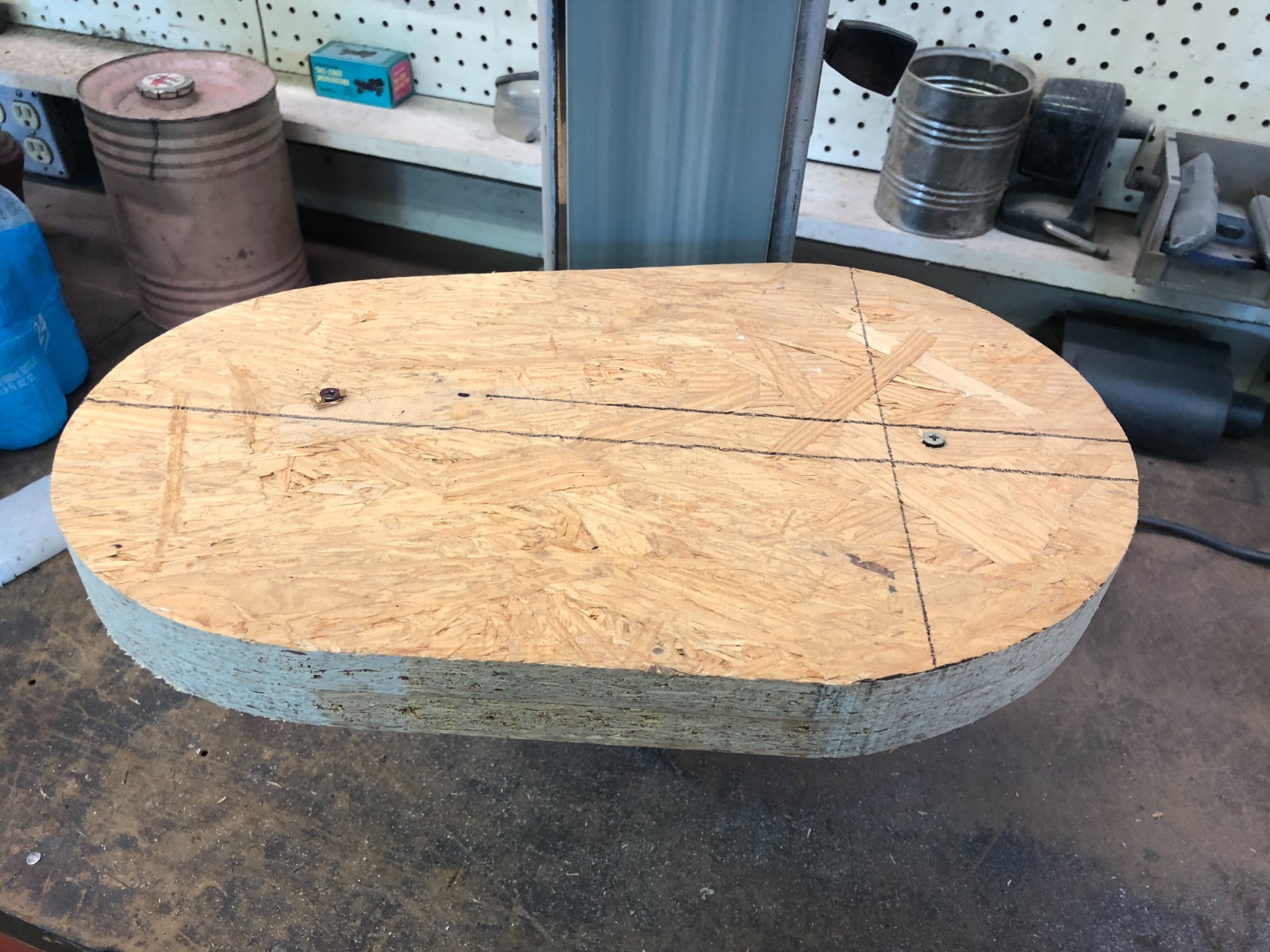

Cutting as twins and sanding as they are screwed together.[

attachment=1]IMG_1012.jpg[/attachment]

Ready to cut the sheetmetal.
More coming!
Attachments

User avatar

Topic author
Henry K. Lee
Posts: 3249
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Fuel Tank Building 101 for a Speedster

Post by Henry K. Lee » Tue Mar 05, 2019 1:46 pm

Now after 2 cups of coffee we are ready to get serious.

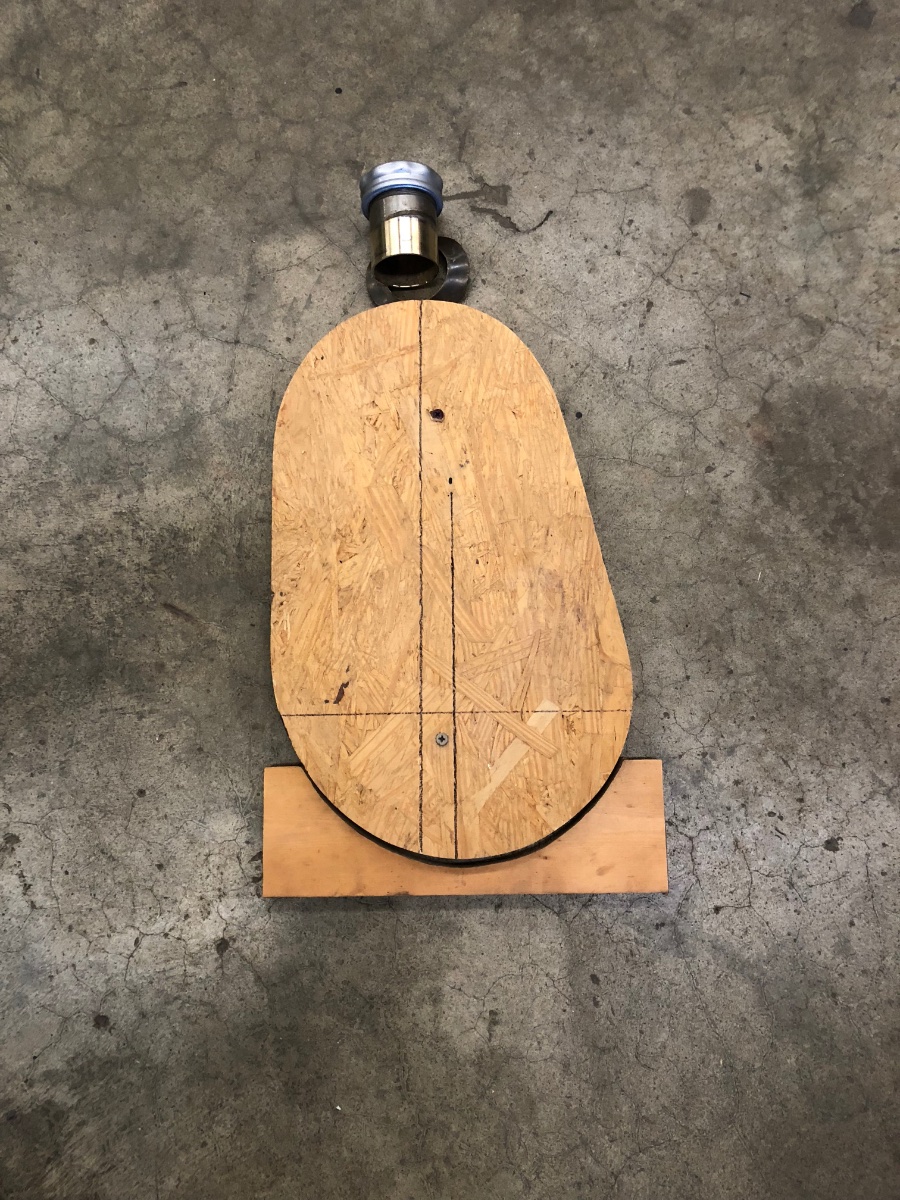

A general mock up of what we are producing.

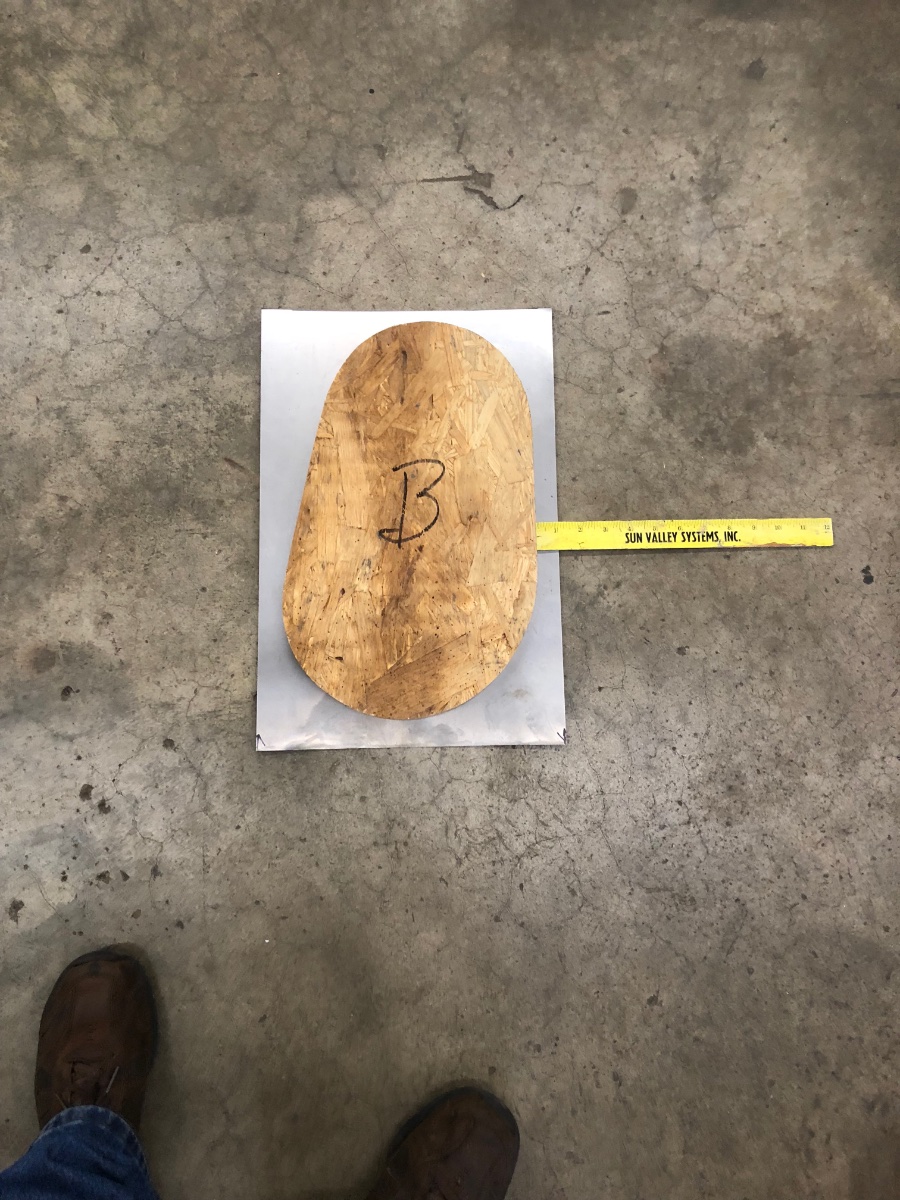

Tin lay out with a one inch lip.
Double check and cut.
Mark ends as there are an A and B side.

And more coming.

User avatar

Topic author
Henry K. Lee
Posts: 3249
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Fuel Tank Building 101 for a Speedster

Post by Henry K. Lee » Tue Mar 05, 2019 1:53 pm

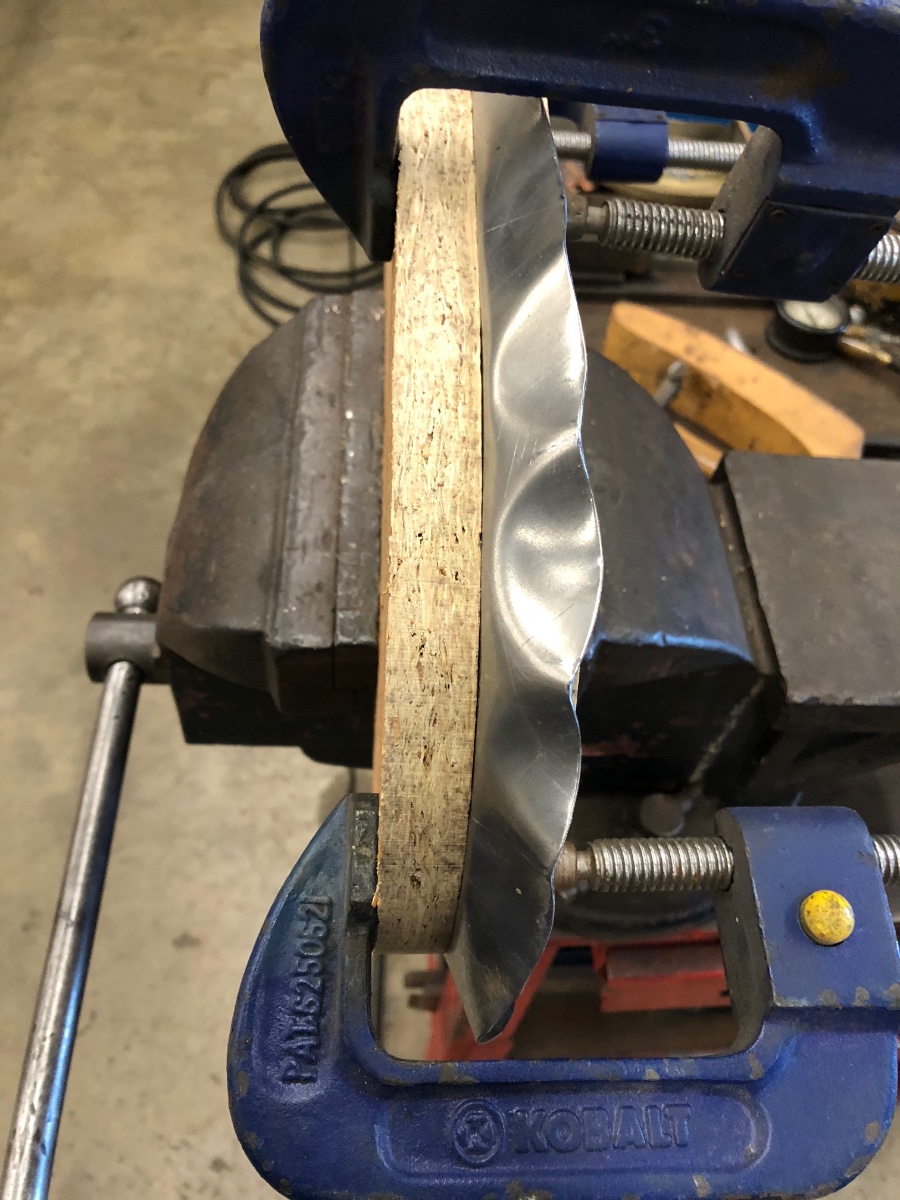

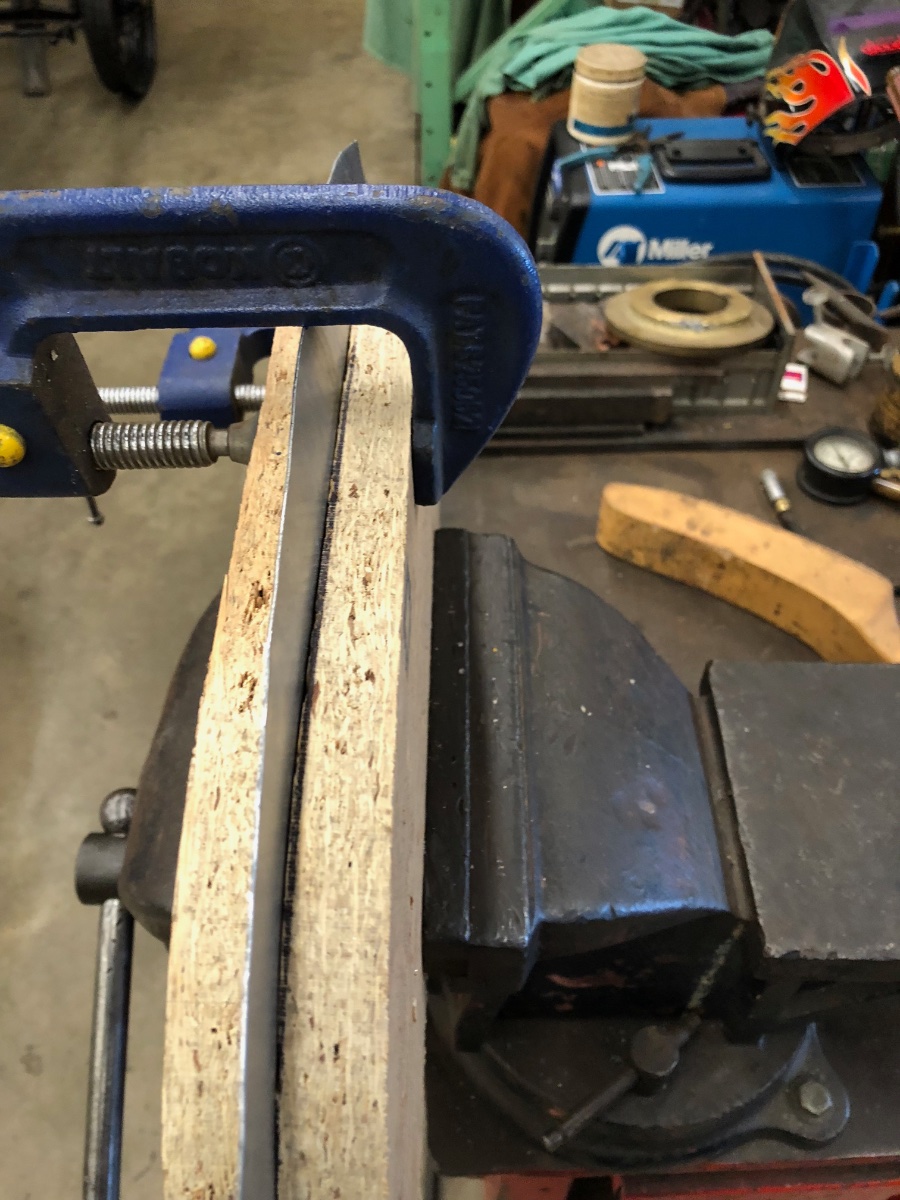

Now comes the slapping or forming, this is done with light strikes combing the metal outward. Slow moment equally around is of the greatest importance in metal forming. If you don't, you will over stretch the metal which it is harder to shrink than to stretch.
A good panishing hammer is a must, maple slap hammers are your friend too.
Still more to come.

User avatar

Topic author
Henry K. Lee
Posts: 3249
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Fuel Tank Building 101 for a Speedster

Post by Henry K. Lee » Tue Mar 05, 2019 2:04 pm

Now we are getting at the end of the day for me. My hands give out in the cold very quick, but progress is progress.
Slapping and removing at times to put into the jaws of a shrinker, if you don't have one you can notch and fold.
Yes, I cheat!
Making a good 90 degree fold over, smoothing comes later.
This will have an outside gas gauge, no sticks required. I use old larger radiator caps/necks for the gas fill area. A lot of reproduction necks/caps are a little to bulky.

Hope You All Enjoy, More to follow as time permits!

Hank in Tin-A-See

User avatar

Rich Eagle
Posts: 2986
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: Fuel Tank Building 101 for a Speedster

Post by Rich Eagle » Tue Mar 05, 2019 2:05 pm

That is how I would do it. These things are so nice to see.
Thanks.
Rich
When did I do that?

User avatar

AndyClary
Posts: 155
Joined: Sun Jan 06, 2019 11:15 am
First Name: Andrew
Last Name: Clary
Location: Usa
MTFCA Number: 24057

Re: Fuel Tank Building 101 for a Speedster

Post by AndyClary » Tue Mar 05, 2019 2:30 pm

Good work Henry. I use MDF which doesn't have the voids like the chip board that can collapse on you, especially on successive steel parts. I'll be starting my tank for the mercury next month. Since it is inside the car the shape is more to fit the space than aesthetic. It will probably be aluminum.

Andy


Les Schubert
Posts: 578
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Fuel Tank Building 101 for a Speedster

Post by Les Schubert » Tue Mar 05, 2019 3:43 pm

I like what you are doing and appreciate your posting.
I use a “bead roller “. A very useful tool. I also have a “shrinker/stretcher”, which is really handy for some of what you are doing. These tools were not very expensive and really speed up the process Next time I do something like this I need to take some pictures.
Again thank you for your posting and keep up the good work!!


46woodduck
Posts: 146
Joined: Mon Jan 07, 2019 1:53 am
First Name: Thomas
Last Name: Petry
Location: Southern California

Re: Fuel Tank Building 101 for a Speedster

Post by 46woodduck » Tue Mar 05, 2019 6:51 pm

Always fun to watch people create parts the "old way". Beating on metal is a fun pastime.
Life is good on the lunatic fringe. Tom


Shane Lach
Posts: 200
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Fuel Tank Building 101 for a Speedster

Post by Shane Lach » Wed Mar 06, 2019 11:25 am

Thanks for the motivation to tackle my fuel tank issues!

User avatar

John Warren
Posts: 725
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Fuel Tank Building 101 for a Speedster

Post by John Warren » Wed Mar 06, 2019 8:57 pm

Thanks Hank, Love seeing this kind of stuff.
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P

User avatar

jagiven
Posts: 103
Joined: Mon Jan 07, 2019 8:13 am
First Name: Jason
Last Name: Given
Location: St. Paiul

Re: Fuel Tank Building 101 for a Speedster

Post by jagiven » Wed Mar 06, 2019 9:15 pm

Thanks for posting, I will be watching this post closely, as we probably need to build a custom tank for the kid's speeder, and we have never done this type of work before.

What gauge steel are you using?

User avatar

Topic author
Henry K. Lee
Posts: 3249
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Fuel Tank Building 101 for a Speedster

Post by Henry K. Lee » Thu Mar 07, 2019 3:37 pm

Sorry for not mentioning before, 20 gauge. Will also be showing how to seal the inside as it progresses.


Craig Leach
Posts: 82
Joined: Tue Jan 08, 2019 12:22 am
First Name: craig
Last Name: leach
Location: Laveen Az
MTFCA Number: 26647

Re: Fuel Tank Building 101 for a Speedster

Post by Craig Leach » Fri Mar 08, 2019 11:20 am

Thanks Henry will be looking forward to the progress.


DHort
Posts: 987
Joined: Sun Jan 06, 2019 1:30 pm
First Name: DAVID
Last Name: HJORTNAES
Location: Men Falls, WI
MTFCA Number: 28762
MTFCI Number: 22402

Re: Fuel Tank Building 101 for a Speedster

Post by DHort » Fri Mar 08, 2019 11:44 am

Henry

If you could please make the next post Part 2, then we all would not have to look through this
post to see how well you have progressed.

thank you for showing us your work

dave

User avatar

Topic author
Henry K. Lee
Posts: 3249
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Fuel Tank Building 101 for a Speedster

Post by Henry K. Lee » Fri Mar 08, 2019 1:02 pm

Hey, I like your way of thinking! I sure will.

All the Best,

Hank
