Hot air pipe, air intake pre-heater

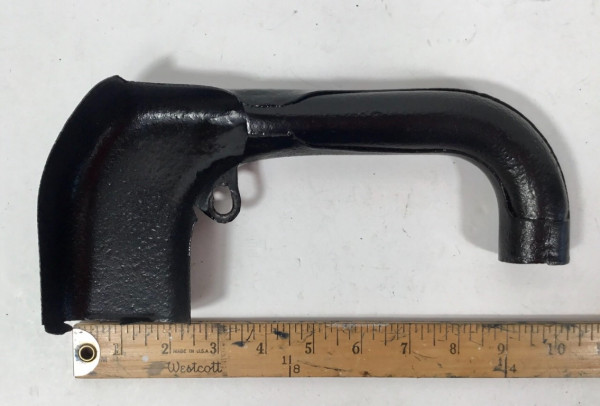

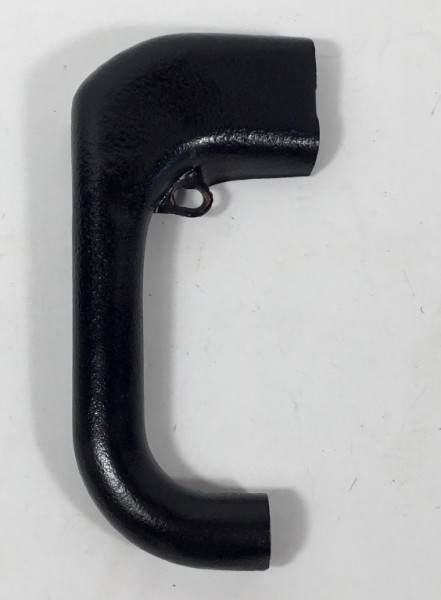

This hot air pipe was on my 1926 Model T coupe which was equipped with a Holley NH carburetor when I bought it in 1970. What years does this hot air pipe fit? Did it fit other carburetors besides the Holley NH? Thank you. Jim Patrick
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Hot air pipe, air intake pre-heater
See Dan's post below.
Last edited by Mark Gregush on Thu Mar 24, 2022 10:59 am, edited 1 time in total.
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
speedytinc
- Posts: 4726
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Hot air pipe, air intake pre-heater
I am not seeing the pronounced flattened area to clear the late adjuster. This one looks like pre 25.
-
John Codman
- Posts: 1482
- Joined: Mon Jan 07, 2019 10:27 am
- First Name: John
- Last Name: Codman
- * REQUIRED* Type and Year of Model Ts owned: 1927 Youring
- Location: Naples, FL 34120
Re: Hot air pipe, air intake pre-heater
That pipe appears to be identical to the one on my '27 which is also equipped with an NH.
-
speedytinc
- Posts: 4726
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Hot air pipe, air intake pre-heater

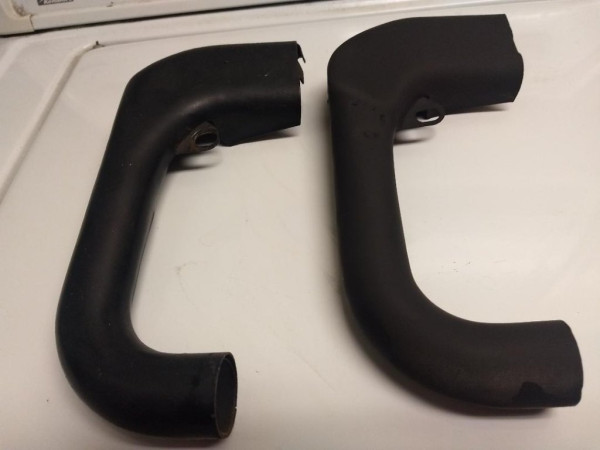

25-27 heat pipe on the right.
Note the face relief on the right to clear the mixture/choke rod for 25-27 carburated engines. Both fit on the late, beefier style exhaust manifold.
- late heat pipes.

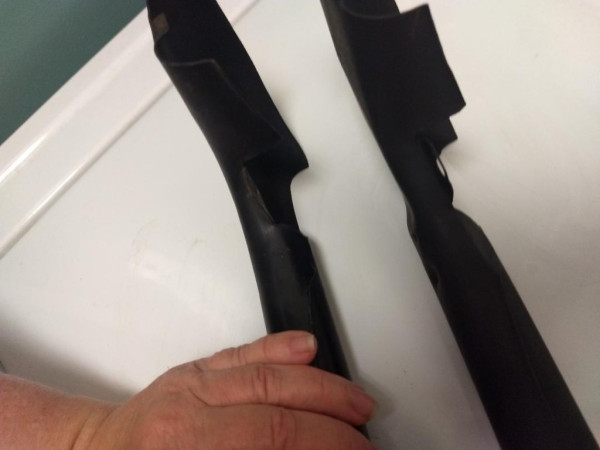

- Side view
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Hot air pipe, air intake pre-heater

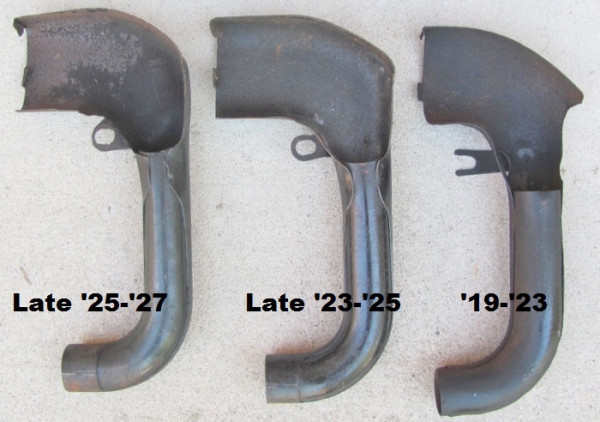

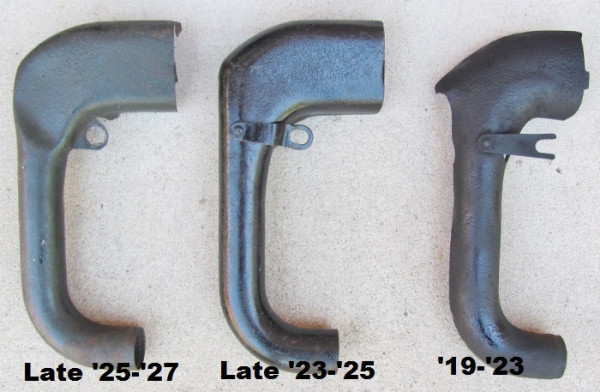

Correct John, and here is comparisons to the earlier heat stove pipes.
The late pipe is recessed at the upper side to clear the new combo choke and carb adj. rod with the universal joint.
That new assembly was shown in the July 1925 Service Bulletin.
The late pipe is recessed at the upper side to clear the new combo choke and carb adj. rod with the universal joint.
That new assembly was shown in the July 1925 Service Bulletin.
