Period Split Wishbone Setup

Post by Tim Rogers » Tue May 10, 2022 2:59 pm

Looking for photos or information on Model T split wishbone setups from the 1920s or 1930s. I am particularly interested in how the wishbone rod mounted to the frame. I don't really want to use a modern ball joint style mount as it won't look correct.

<o><o><o><o> Tim Rogers - South of the Adirondacks - Forum member since 2013 <o><o><o><o>
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Period Split Wishbone Setup

Post by TRDxB2 » Tue May 10, 2022 3:32 pm

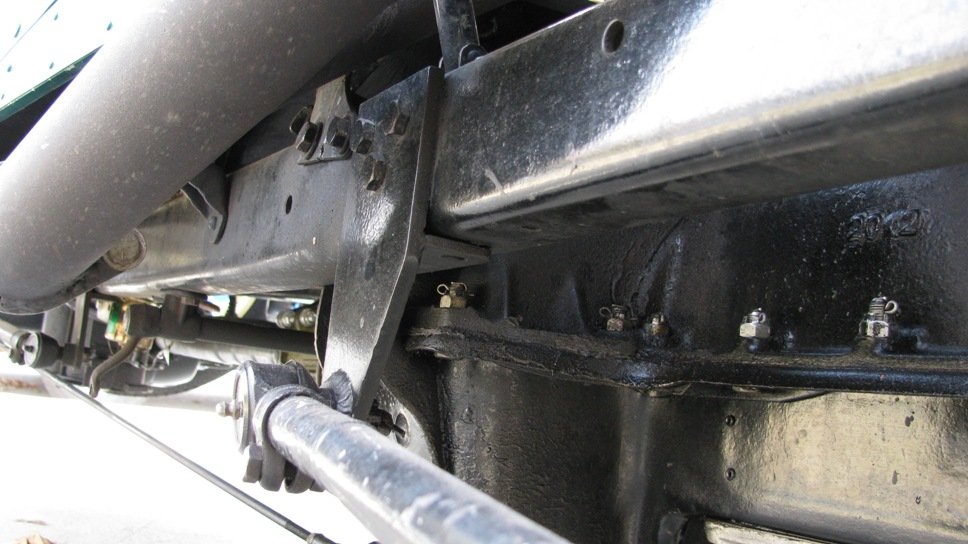

Here are a few
Attachments
bone 0.jpg
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Period Split Wishbone Setup

Post by TRDxB2 » Tue May 10, 2022 3:36 pm

Two more (I have both - haven't decided which I am to use)
--
--
Hank's
Attachments
HANK s.jpg
HANK s.jpg (83.5 KiB) Viewed 2587 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

Dan McEachern
Posts: 1400
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
* REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
Location: ALAMEDA,CA,USA

Re: Period Split Wishbone Setup

Post by Dan McEachern » Tue May 10, 2022 6:34 pm

Using Model A Tie Rod ends is another method. Not 100% era correct, but much better than using heim joints or modern tie rod ends.
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Period Split Wishbone Setup

Post by TRDxB2 » Tue May 10, 2022 9:40 pm

Model A designs
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top
User avatar

henryford2
Posts: 811
Joined: Sun Jan 06, 2019 4:14 pm
First Name: Joseph
Last Name: Andulics
* REQUIRED* Type and Year of Model Ts owned: 1926 Fordor, 1926 Truck, 1927 Roadster GOW, RAJO Sprint car
Location: North Ridgeville, OH
Contact:
Contact henryford2

Re: Period Split Wishbone Setup

Post by henryford2 » Wed May 11, 2022 7:59 am

These are Ford 8N parts. Might be helpful if your'e scratch building your radius rods and they do have the "vintage look". Readily available on Ebay. Enjoy
8N radius rod.jpeg
Top
User avatar

TWrenn
Posts: 3743
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
* REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
Location: Ohio
Board Member Since: 2019

Re: Period Split Wishbone Setup

Post by TWrenn » Wed May 11, 2022 10:20 am

Since your cars already have the tried and true under-axle wishbone I'm only curious as to why you want such a
set up? Man that is one wicked looking contraption for sure! I reckon it would be great, if not necessary, should your
roads be filled with lots of potholes and rough as a washboard.
Top
User avatar

Topic author
Tim Rogers
Posts: 387
Joined: Sun Jan 06, 2019 11:04 am
First Name: Tim
Last Name: Rogers
* REQUIRED* Type and Year of Model Ts owned: 1925 Coupe & 1923 Runabout
Location: South of the Adirondacks
Board Member Since: 2013

Re: Period Split Wishbone Setup

Post by Tim Rogers » Wed May 11, 2022 2:30 pm

Tim- my lowered front end set up requires splitting the wishbone.
<o><o><o><o> Tim Rogers - South of the Adirondacks - Forum member since 2013 <o><o><o><o>
Top
User avatar

TWrenn
Posts: 3743
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
* REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
Location: Ohio
Board Member Since: 2019

Re: Period Split Wishbone Setup

Post by TWrenn » Wed May 11, 2022 4:24 pm

Ah haaa....makes sense. Thanks.

The other Tim
