Z tools
I have 23 Z tools. I would like to learn their usages and their value. I also have a very nice original round gas tank with brackets and bulb for sale.
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Z tools
I can't set a value for you, as prices vary widely. But I can refer you to the the Model T Encyclopedia for a list of all tools and their names.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
J1MGOLDEN
- Posts: 1230
- Joined: Sun Jan 06, 2019 5:39 pm
- First Name: James
- Last Name: Golden
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Roadster
- Location: Bowie, MD
Re: Z tools
Rumor has it that there is a special set of Z Tools for the wire wheels.
I have never been able to find them.
I have never been able to find them.
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Z tools
There is a Z wire wheel rear hub puller & a long handled "T" wrench for w.w. lug nuts.
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Z tools

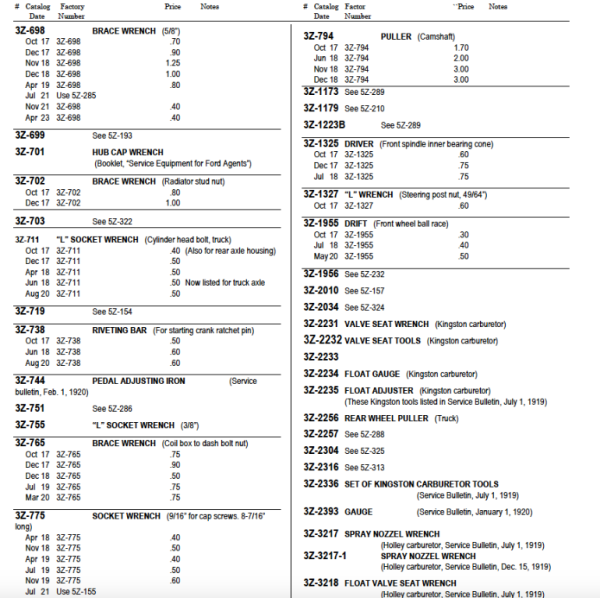

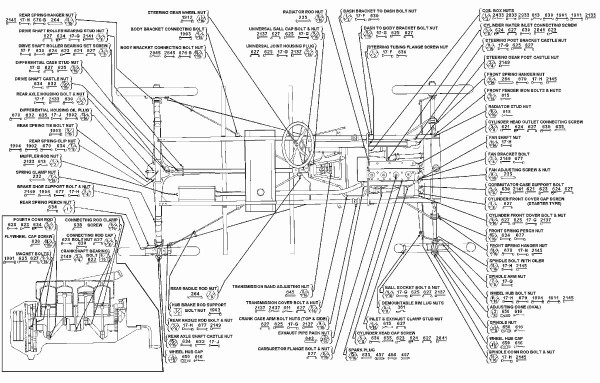

see chart for tool numbers - tool shape is under the number. You can update with Z tool #. I don't believe they are listed
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
V8er
Topic author - Posts: 4
- Joined: Wed Nov 16, 2022 12:35 pm
- First Name: Jon
- Last Name: Anderson
- * REQUIRED* Type and Year of Model Ts owned: 14, 15, 16, 26, 27
- Location: McDonald, PA
Re: Z tools
Thank you for the charts which show 3Z tools. All of the tools that I have are 5Z. Would 5Z be for Model A?
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Z tools
Ford updated their tool numbers - I believe some Model A tools are Z also.
-
V8er
Topic author - Posts: 4
- Joined: Wed Nov 16, 2022 12:35 pm
- First Name: Jon
- Last Name: Anderson
- * REQUIRED* Type and Year of Model Ts owned: 14, 15, 16, 26, 27
- Location: McDonald, PA
Re: Z tools
Two tools have T numbers: T 2839 and T5893. There is also 9N 17014 which is likely a tractor tool.
-
Scott_Conger
- Posts: 6523
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: 1919
- Location: not near anywhere, WY
- Board Member Since: 2005
Re: Z tools
Scott Conger
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Z tools
Early versions of some of the tools had T numbers. These same tools later were given a Z number eg the camshaft nut wrench was T2333 which became 3Z655 and then 5Z162.
Allan from down under.
Allan from down under.
-
ModelTWoods
- Posts: 1418
- Joined: Tue Jan 08, 2019 10:53 am
- First Name: Terry
- Last Name: Woods
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
- Location: Cibolo (San Antonio), TX
Re: Z tools
In addition to some early T tools that transitioned to 3Z tools; some 3Z tools transitioned to 5Z tools, yet all serve the same purpose.
-
Pep C Strebeck
- Posts: 578
- Joined: Sun Jan 06, 2019 11:12 am
- First Name: Joseph
- Last Name: M
- Location: MI
Re: Z tools
The numbering system changed around 1920, going from the 3Z prefix to the 5Z. All 3Z tools are Model T and 5Z tools can be for the Model T or the Model A, just depends on the looking up the number to find their application (A vs. T). But don't forget about the 16Z, 24Z and 28Z tools.
http://www.mtfca.com/discus/messages/82 ... 842693.pdf
"Remember son, there are two ways to do this: The right way, and your way” Thanks Dad, I love you too.
LOOKING FOR A LUFKIN No. 9A Height Gage Attachment.
LOOKING FOR A LUFKIN No. 9A Height Gage Attachment.
-
Jim, Sr.
- Posts: 166
- Joined: Sun Jan 06, 2019 11:13 pm
- First Name: Jim, Sr.
- Last Name: Rodell
- * REQUIRED* Type and Year of Model Ts owned: 1922 coupe, 1926 touring
- Location: Wisconsin
Re: Z tools
T2839 is the wire wheel lug wrench. You could also use 5Z-161. They are both "T" shaped wrenches.
T5893 is the wrench for the spark plug and the cylinder hesd cap screws.
-
