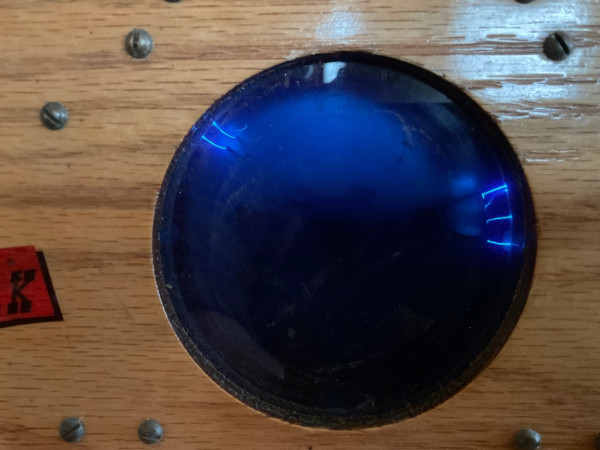

I dont want to start any discussion on its merits or lack off! I just want to come up with a set of instructions for the use and coil tuning using the Strobospark. I am only assuming that it was sold with a printed instruction sheet?

[TWrenn]

I dont want to start any discussion on its merits or lack off! I just want to come up with a set of instructions for the use and coil tuning using the Strobospark. I am only assuming that it was sold with a printed instruction sheet?

Here Mike. Quick! Try this before all the controversy starts again! Feelilng a little devilish this morning I guess! ha ha. Hope this helps.

https://www.youtube.com/watch?v=zfXVIlIO_4Q

[Chris Barker]

The video is helpful, but first you need to check the capacitor:

Hold the points open, Meter set to Cap Leak, press Test - should be zero or close
Hold the points open, Meter set to Cap Value, press Test - should be 4.7, but 2 to 10 will work

Only then go to Coil Amps, medium magneto, press Test and you should get 3 single steady sparks, and about 1.3A

In summary:
Lower point root end bend affects current
Cushion point tension affects single/double spark - you need a tool https://www.modeltford.com/item/5008CST.aspx
Adjusting nut affects everything!

It's an art that you will pick up. When it works on medium magneto, check high and low.
The cushion point travel should be about 0.005" - and all 4 coils should be similar

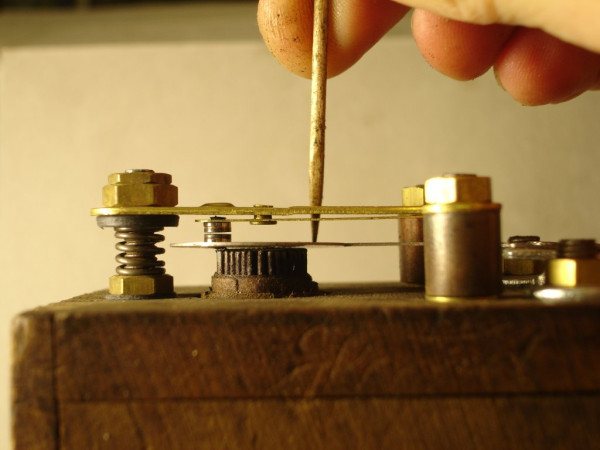

When the coil is at rest, the lower point must push the cushion spring up off its rivet head to touch the top piece. See photo

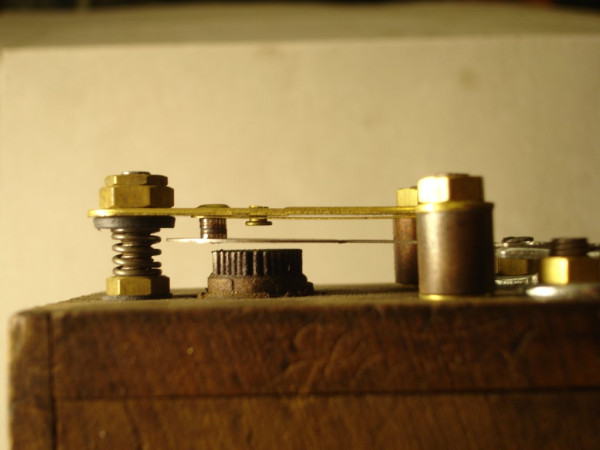

When the lower point is held down, the cushion spring must rest against its tiny rivet head. See photo
The points gap doesn't matter, within reason, as long as you have 3 single sparks and about 1.3A (1.1A to 1.4A)

When it's right, add a locknut to the adjuster to stop you or anyone else fiddling with it!!

[BUSHMIKE]

Tim,
I watched that prior to posting. The video does show a couple points, which helps. I would still love to see a set of printed instructions. It doesn’t sound like there will ever be Strobo Spark collectors group so SN 0012 is a moot point The coil that came with the unit apparently needs work!

[BUSHMIKE]

Chris,
That is fantastic info!
Thank you.

[Art M]

Mike,
If you cannot find a strobotach, try reading the topic in this site, A New DIY electronic coil tester. It is very interesting and informative. Let's us know your results.

Art Mirtes

[JTT3]

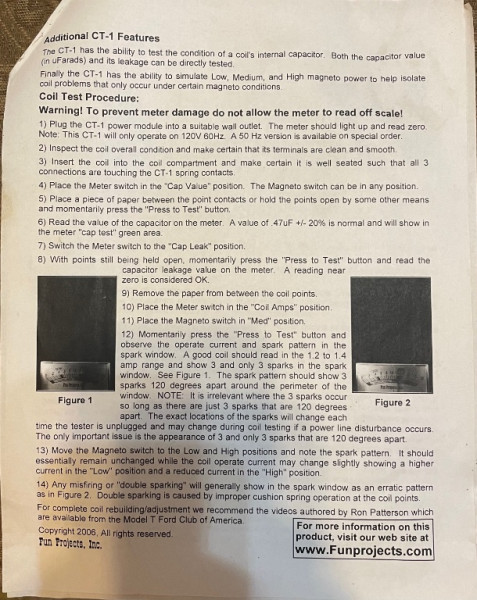

Copied for your reference from Funprojects aka Mr John Regan.

[speedytinc]

Whats with page 2? Do you need a real ID to operate it??

Edit; Page 2 of 3 was removed.

[JTT3]

John it’s what happens when you’re to cheap to buy new printer paper. Ha

[BUSHMIKE]

Many thanx John! I thought someone here would have a paper copy.

[BE_ZERO_BE]

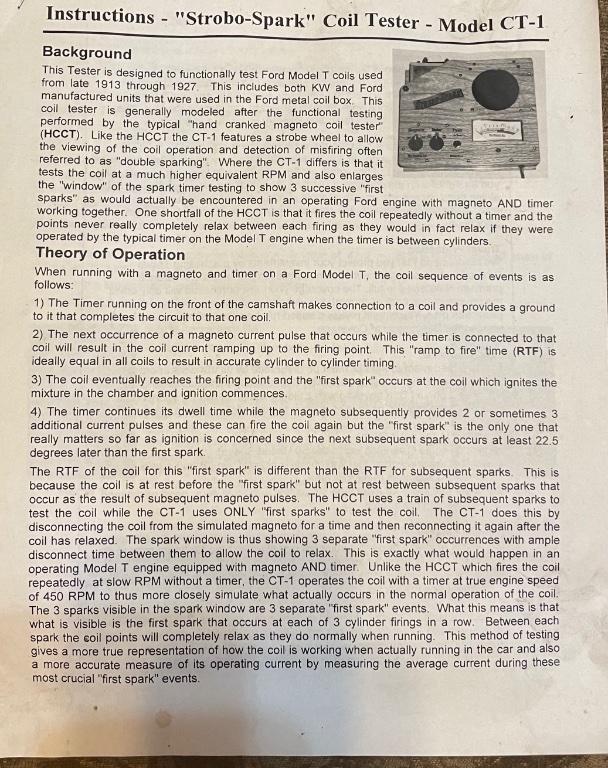

Here is the full PDF.


STROB-O-SPARK CT-1.pdf

(1.1 MiB) Downloaded 139 times
