different Ruckstell shift bracket

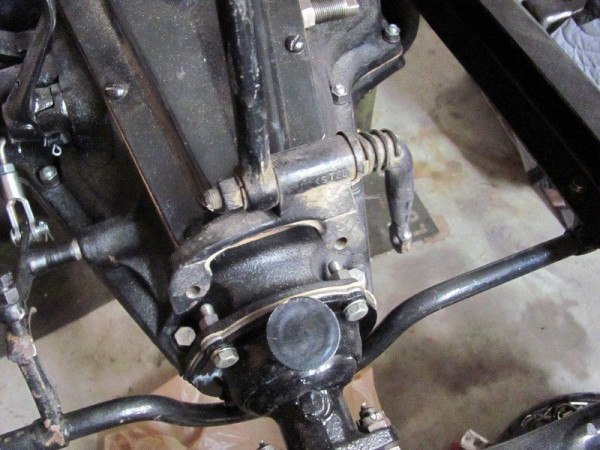

I have three different types of Ruckstell shift brackets. All are center shift. One has the splines and the rod crosses over the drive shaft.

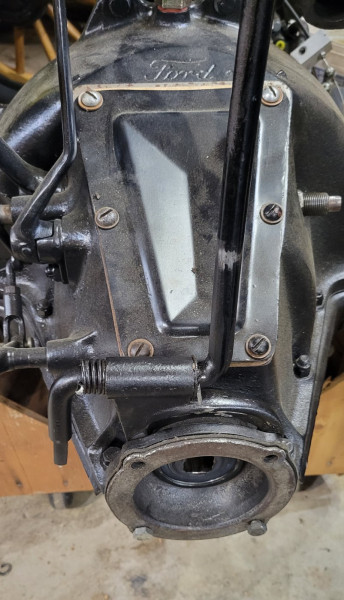

Another was designed for the TT truck. The rod is on the driver side and goes straight back to the shift lock. This is possible because the TT truck battery is up front by the running board. On both of these designs, the bracket is bolted onto the front side of the flange of the 4th main bearing

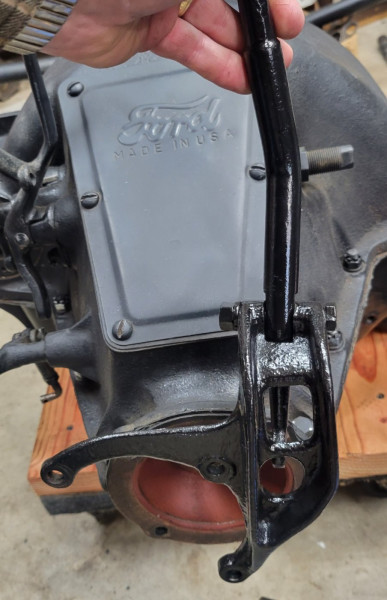

I have a third style bracket that bolts onto the back side of the fourth main bearing flange.
I'm just curious, does anyone know when this style was used? Early? Late? Special application?
Thanks!
: ^ )
Keith
Another was designed for the TT truck. The rod is on the driver side and goes straight back to the shift lock. This is possible because the TT truck battery is up front by the running board. On both of these designs, the bracket is bolted onto the front side of the flange of the 4th main bearing
I have a third style bracket that bolts onto the back side of the fourth main bearing flange.
I'm just curious, does anyone know when this style was used? Early? Late? Special application?
Thanks!
: ^ )
Keith
Last edited by KWTownsend on Tue Oct 10, 2023 10:51 pm, edited 2 times in total.
-
ThreePedalTapDancer
- Posts: 1631
- Joined: Sun Nov 24, 2019 2:29 pm
- First Name: Ed
- Last Name: Martin
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
- Location: Idaho
Re: different Ruckstell shift bracket

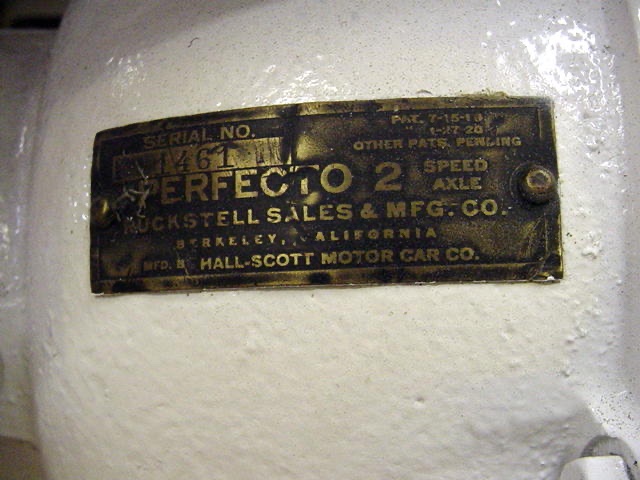

I believe that’s an early Ruckstell Perfecto shifter.
http://www.mtfca.com/discus/messages/11 ... 1279142762
http://www.mtfca.com/discus/messages/11 ... 1279142762
Last edited by ThreePedalTapDancer on Tue Oct 10, 2023 10:18 pm, edited 3 times in total.
-
Norman Kling
- Posts: 4634
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
Re: different Ruckstell shift bracket
All three of mine have the first kind . One is a 22 Roadster and the other 2 are 26 Roadster and Touring. The one in the 22 was there when I bought it and the other two I installed.
Norm
Norm
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: different Ruckstell shift bracket

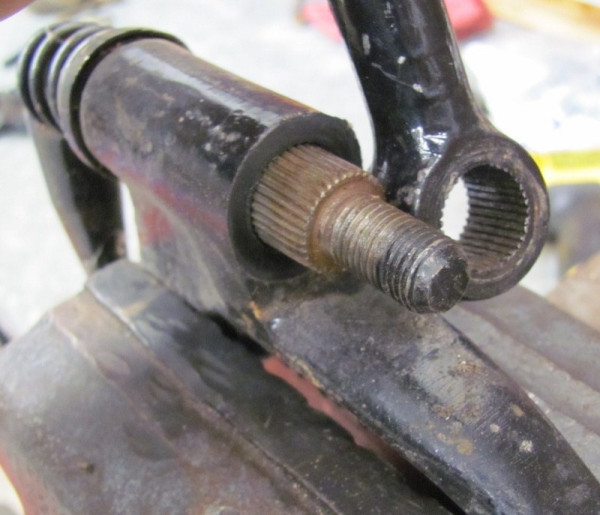

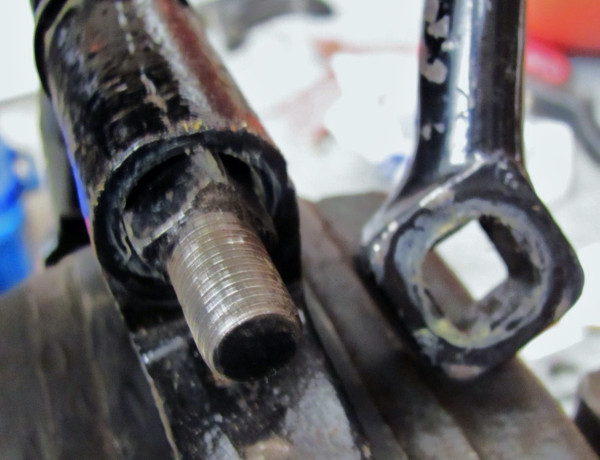

Have two of that first kind, one has the nicer splined shaft, the other is square shaft.
The spine is nice for getting the shift arm where you want it!

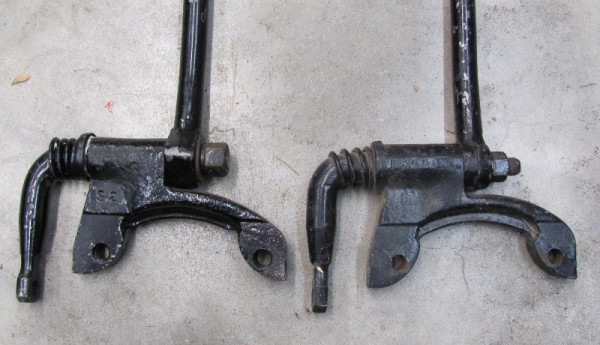

Spline shaft on right:
The spine is nice for getting the shift arm where you want it!
Spline shaft on right:
- Attachments
-
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
jsaylor
- Posts: 411
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: John
- Last Name: Saylor
- * REQUIRED* Type and Year of Model Ts owned: 1921 Touring, 1927 Tudor
- Location: Citrus Heights, Ca
- Board Member Since: 1999
Re: different Ruckstell shift bracket
The square shaft one may have been a modern reproduction. I had one and it never fit right.
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: different Ruckstell shift bracket
Square shaft was regular until Eaton bought out Ruckstell, according to Original Smith which introduced the splined shifter - hope I got that correct Larry !
