TT driveshaft coupler help
Are there any differences in the coupler to connect a TT rear end to the driveshaft? We had a coupler in a working snowmobile with a ruxstell and Watford come apart .we had a spare stock rear end so we took the coupler off of it but it won't fit? Splines seem off.splines on rear end drive gear could have a twist I guess but look ok
-
Adam
- Posts: 1550
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: Adam
- Last Name: Doleshal
- * REQUIRED* Type and Year of Model Ts owned: ‘13 Touring, ‘24 Touring, ‘25 TT dump truck, ‘26 Tudor, ‘20 Theiman harvester T powerplant, ‘20 T Staude tractor
- Location: Wisconsin
- Board Member Since: 2000
Re: TT driveshaft coupler help
There are 3 different splines for the worm gear / coupling / drive shaft and they don’t interchange; Early TT, Late TT, & Model A
-
KenHaverhill
Topic author - Posts: 99
- Joined: Sun Jan 06, 2019 5:04 pm
- First Name: Kenneth
- Last Name: LeBlanc
- * REQUIRED* Type and Year of Model Ts owned: 27 coupe 23 touring 26 TT Snowmobile 22 TT Dump Truck 26 Fordoor
- Location: Atkinson NH 03811
Re: TT driveshaft coupler help
Thanks for the info Adam
-
Adam
- Posts: 1550
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: Adam
- Last Name: Doleshal
- * REQUIRED* Type and Year of Model Ts owned: ‘13 Touring, ‘24 Touring, ‘25 TT dump truck, ‘26 Tudor, ‘20 Theiman harvester T powerplant, ‘20 T Staude tractor
- Location: Wisconsin
- Board Member Since: 2000
Re: TT driveshaft coupler help
Here are specifics on the TT variations:

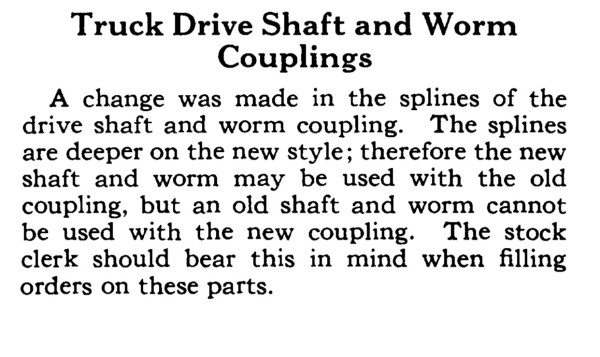

1920:
Then, by 1924, they realize the mis-match causes problems and tell you not to do it!

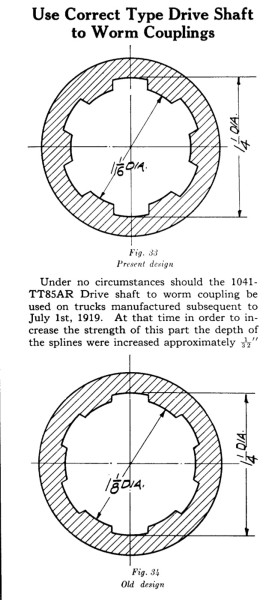

1924:

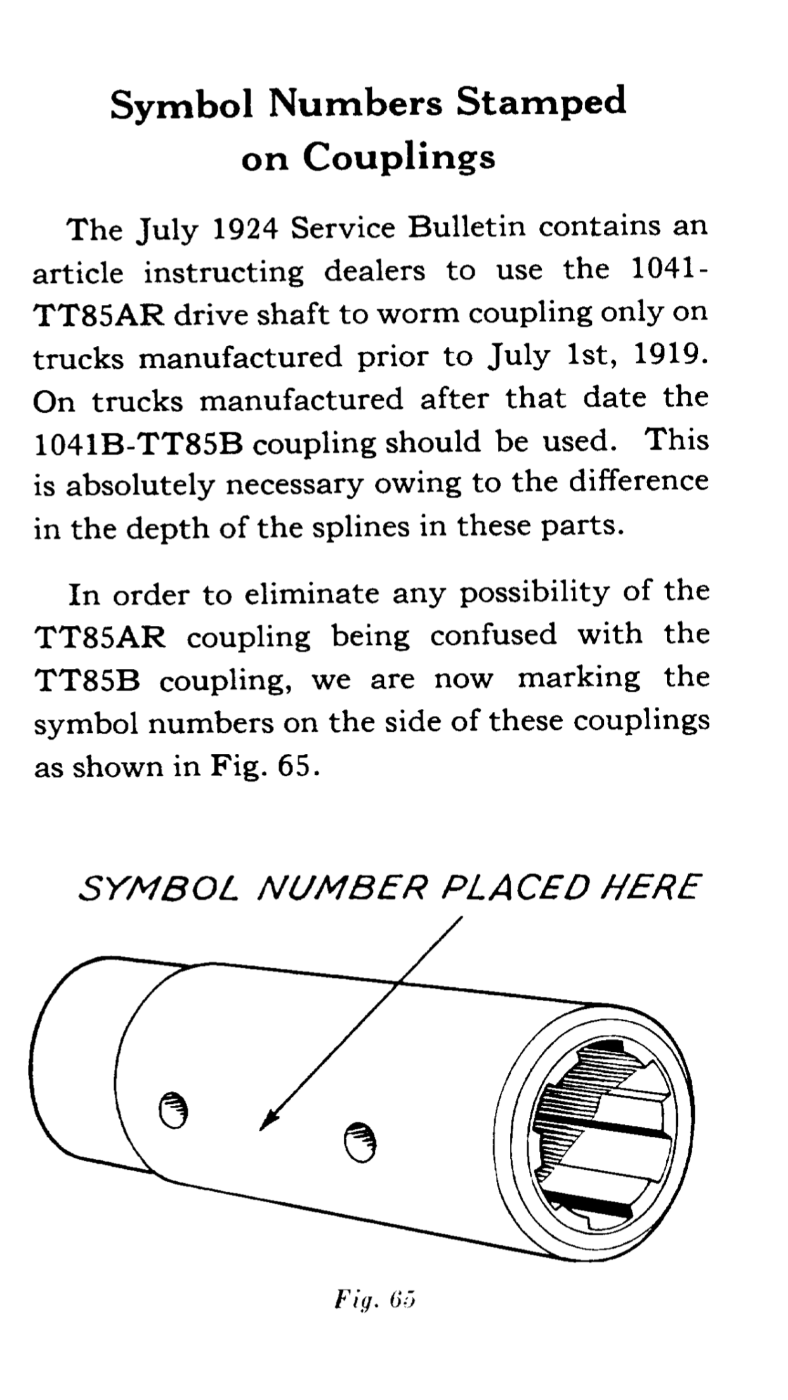

The couplers began to be “marked” late 1924…
Later in 1924:
1920:
Then, by 1924, they realize the mis-match causes problems and tell you not to do it!
1924:
The couplers began to be “marked” late 1924…
Later in 1924:
