Has anyone had a problem reinstalling the rear hubs on a 26/27 coupe after installing new brake linings? My hubs fit very tight over the brake shoes after relining, I can turn the hubs with a lot of effort, any thoughts?
Thanks
Jerry
26-27 rear brakes
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Jerry Young
Topic author - Posts: 81
- Joined: Sun Jan 06, 2019 6:33 pm
- First Name: Jerry M
- Last Name: Young
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring1927
- Location: Burleson, Tx
-
jiminbartow
- Posts: 2434
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: 26-27 rear brakes

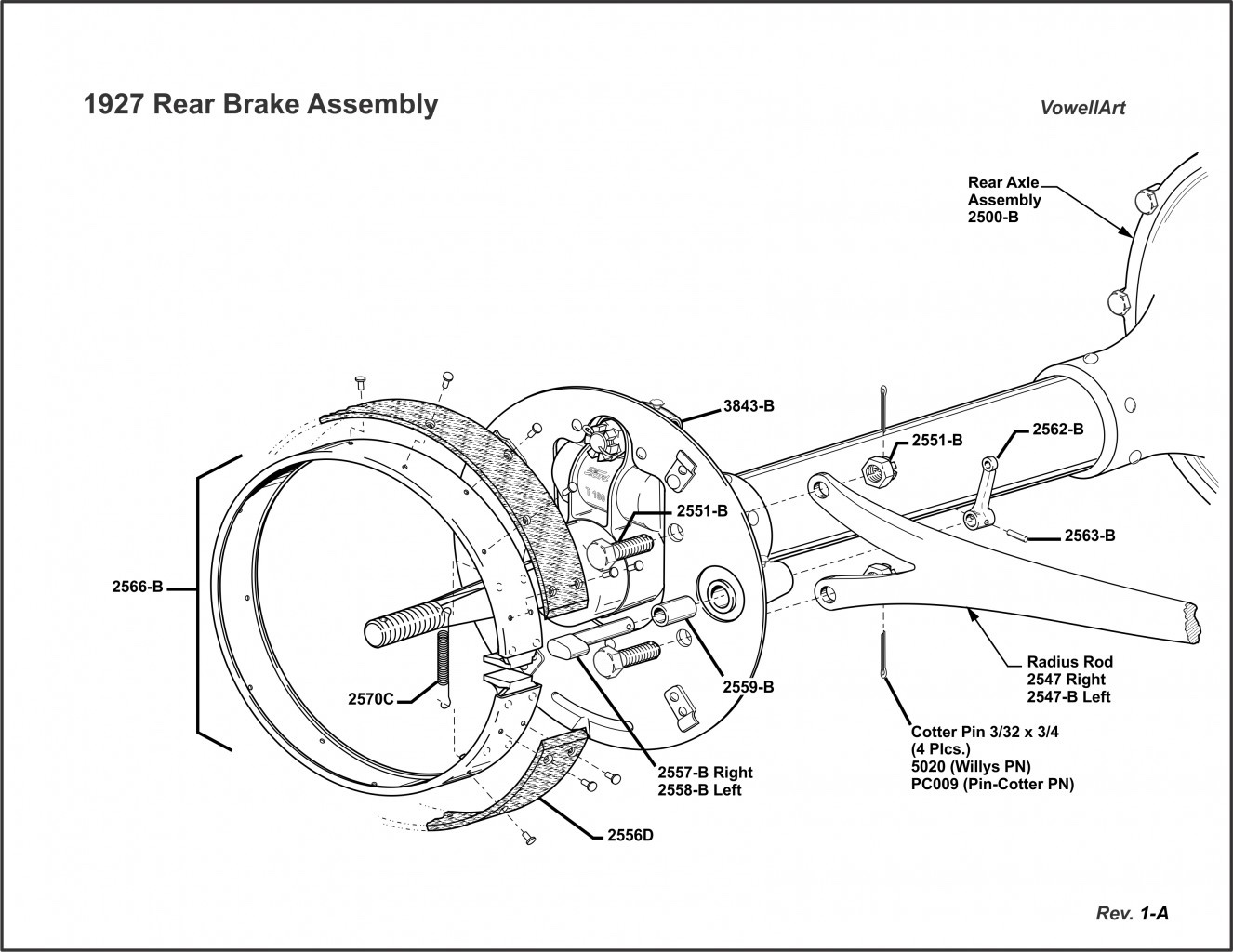

Is the spring, 2570C, installed? It holds the two halves tight against the cam, away from the drum. Jim Patrick
PS. Although my coupe was built in March, 1926, The brakes are like the 1927 drawing. With the 4 retainer clips that hold the brake lining against the plate. My clips were worn off and I had to get 4 new ones and rivet them on the plate.
PS. Although my coupe was built in March, 1926, The brakes are like the 1927 drawing. With the 4 retainer clips that hold the brake lining against the plate. My clips were worn off and I had to get 4 new ones and rivet them on the plate.
-
speedytinc
- Posts: 4726
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: 26-27 rear brakes
Lining too thick?. Check in the drum before installing. Must be round also.
Worn hubs/axle tapers move the drums in further. How much do the drums overhang the backing plates?
If a bit narrow, the edge of the lining can be radius-ed to better match the drum.
Clean the inside of the drum & spray a light coat of flat black. Reassemble. Turn the drum. Remove & look where the paint has rubbed.
Worn hubs/axle tapers move the drums in further. How much do the drums overhang the backing plates?
If a bit narrow, the edge of the lining can be radius-ed to better match the drum.
Clean the inside of the drum & spray a light coat of flat black. Reassemble. Turn the drum. Remove & look where the paint has rubbed.
-
jab35
- Posts: 1001
- Joined: Sun Jan 06, 2019 12:28 pm
- First Name: James
- Last Name: Bartsch
- * REQUIRED* Type and Year of Model Ts owned: '26 Coupe
- Location: Dryden, NY 13053
- MTFCA Life Member: YES
Re: 26-27 rear brakes
Jerry: I recently did this overhaul which included installing new linings on original brake shoes, and replacing the E-brake cams. Everything fit well and turned freely after the install.
Are the brake cams in the fully released position? Shoes correctly aligned and free to 'float' against the axle housing endplates, retaining clips inside the 'lip' at the edge of the shoes and not binding. Are the linings correct thickness? (I bought mine from Lang's as original replacement parts). Linings tight against the shoes at all points, no rivet head protruding. Shoes not out of round or twisted. Return springs correct and holding shoe lugs firmly against brake cams. Shoes on same side as originally found? I found it took some effort to get the new linings tight against the surface of the shoe. I used a radiator clamp around the outside of the lining (after placed a block between the cam lugs of the shoe) to tighten the lining against the shoe before drilling rivet holes and riveting.
Maybe rub some chalk over the linings and try to fit the wheel and drum to see if you can find a high spot where the chalk is rubbed? New linings are a close fit with new cams, but the wheels do turn freely.
Best, jb
Are the brake cams in the fully released position? Shoes correctly aligned and free to 'float' against the axle housing endplates, retaining clips inside the 'lip' at the edge of the shoes and not binding. Are the linings correct thickness? (I bought mine from Lang's as original replacement parts). Linings tight against the shoes at all points, no rivet head protruding. Shoes not out of round or twisted. Return springs correct and holding shoe lugs firmly against brake cams. Shoes on same side as originally found? I found it took some effort to get the new linings tight against the surface of the shoe. I used a radiator clamp around the outside of the lining (after placed a block between the cam lugs of the shoe) to tighten the lining against the shoe before drilling rivet holes and riveting.
Maybe rub some chalk over the linings and try to fit the wheel and drum to see if you can find a high spot where the chalk is rubbed? New linings are a close fit with new cams, but the wheels do turn freely.
Best, jb
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: 26-27 rear brakes
Also - are the brake bands original or repros ? Some time ago the repros pressure points where the cam operates was too thick resulting in the same condition.
-
Jerry Young
Topic author - Posts: 81
- Joined: Sun Jan 06, 2019 6:33 pm
- First Name: Jerry M
- Last Name: Young
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring1927
- Location: Burleson, Tx
Re: 26-27 rear brakes
Thanks for all the suggestions, the bands are original, repo linings from Snyders, shoes float on backing plate, I will recheck tightness of lining to band, will advise what I find!
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: 26-27 rear brakes
Sometimes the leading edge of the lining needs to be tapered, by grinding off some, if it stands up too much.
And be sure the shoe edge is tucked under the 4 retaining tabs to keep it close to the backing plate.
- 100_1204 (550x367).jpg (62.44 KiB) Viewed 2064 times
And be sure the shoe edge is tucked under the 4 retaining tabs to keep it close to the backing plate.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Mopar_man
- Posts: 1152
- Joined: Sat Jan 12, 2019 9:24 pm
- First Name: Robert
- Last Name: Govoni
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring
- Location: Fredericksburg, VA
- Board Member Since: 2016
Re: 26-27 rear brakes
From what I've read the new linings are thicker than the originals. I had to sand mine to get them to fit. Of course check all the stuff written above but I bet you'll have to sand them down a bit.
-
RGould1910
- Posts: 1128
- Joined: Tue Jan 22, 2019 8:16 am
- First Name: Richard
- Last Name: Gould
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
- Location: Folsom, CA
Re: 26-27 rear brakes
Dan and Robert's experience mirrors mine. It's also worth noting that many brake shoes are not round and the lining has high and low spots relative to the drum surface. I used Prussian blue to discover the rubbing spots and proceeded from there.
-
bmklawt
- Posts: 234
- Joined: Sun Jan 13, 2019 8:13 pm
- First Name: Bruce
- Last Name: Klawiter
- * REQUIRED* Type and Year of Model Ts owned: 1927 Touring
- Location: Holland MI
Re: 26-27 rear brakes
I too put new linings on my 1927 last year and I also had to sand the linings down, original bands, NOS drums, new cams, NOS Scandinavia linings.
I marked up the face of the linings with a pencil and sanded until the pencil marks were gone, repeat until a snug fit then I took a candle and coated the the drum with soot, put everything back together, turn the drum using the wheel a billion times with slight bake pressure, take it apart, sand the high spot, repeat, took all day.
I marked up the face of the linings with a pencil and sanded until the pencil marks were gone, repeat until a snug fit then I took a candle and coated the the drum with soot, put everything back together, turn the drum using the wheel a billion times with slight bake pressure, take it apart, sand the high spot, repeat, took all day.
Last edited by bmklawt on Thu Mar 14, 2024 11:31 am, edited 1 time in total.
-
randahl
- Posts: 25
- Joined: Sat Dec 04, 2021 12:30 pm
- First Name: Randahl
- Last Name: Cady
- * REQUIRED* Type and Year of Model Ts owned: 1926 speedster
- Location: cedar rapids iowa
Re: 26-27 rear brakes
I installed new linings on my "26" two years ago in June, they were pretty tight.. Then I just drove the thing... by mid July, they were a good fit. I do agree with checking how the edge of the drum matches up with the back plate. You might have to shim hub out a bit to get a better fit.
